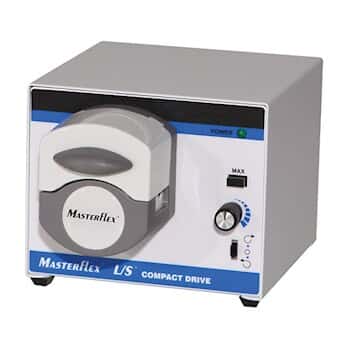

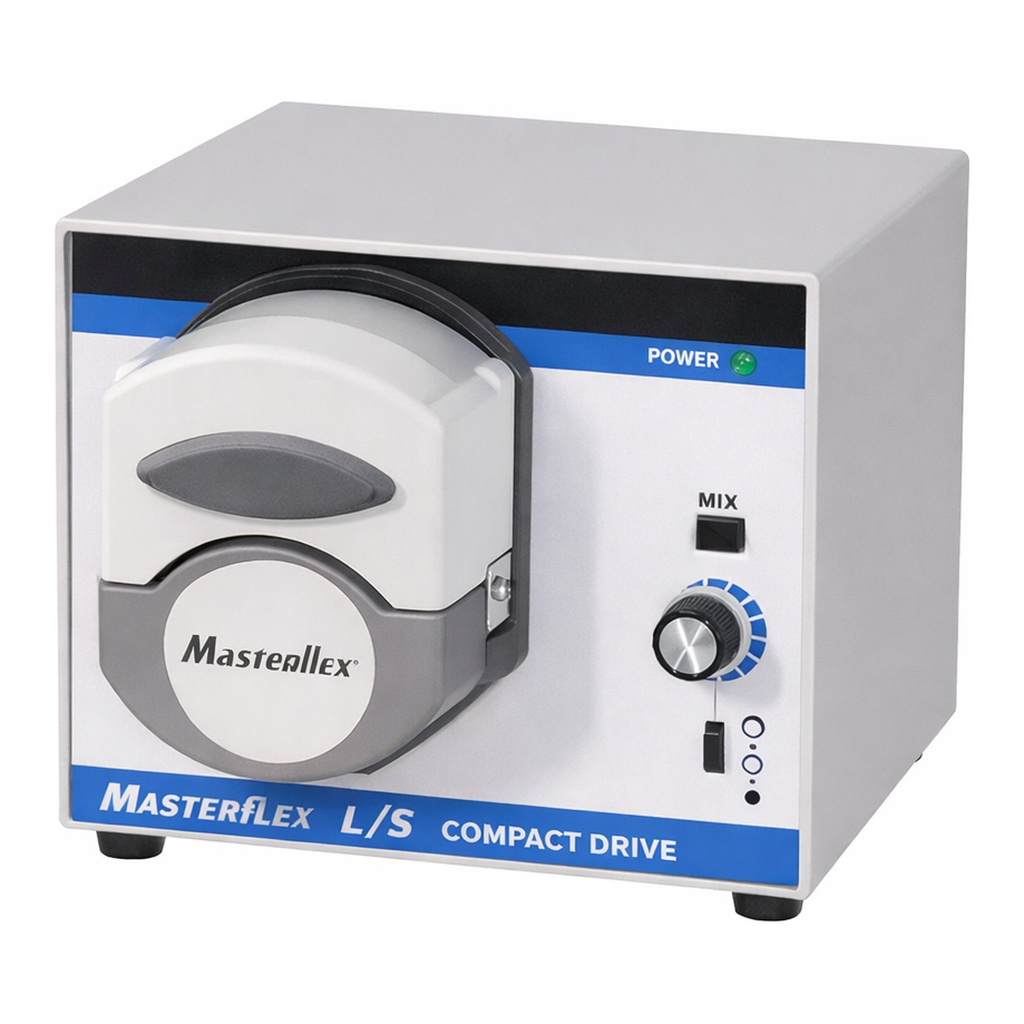

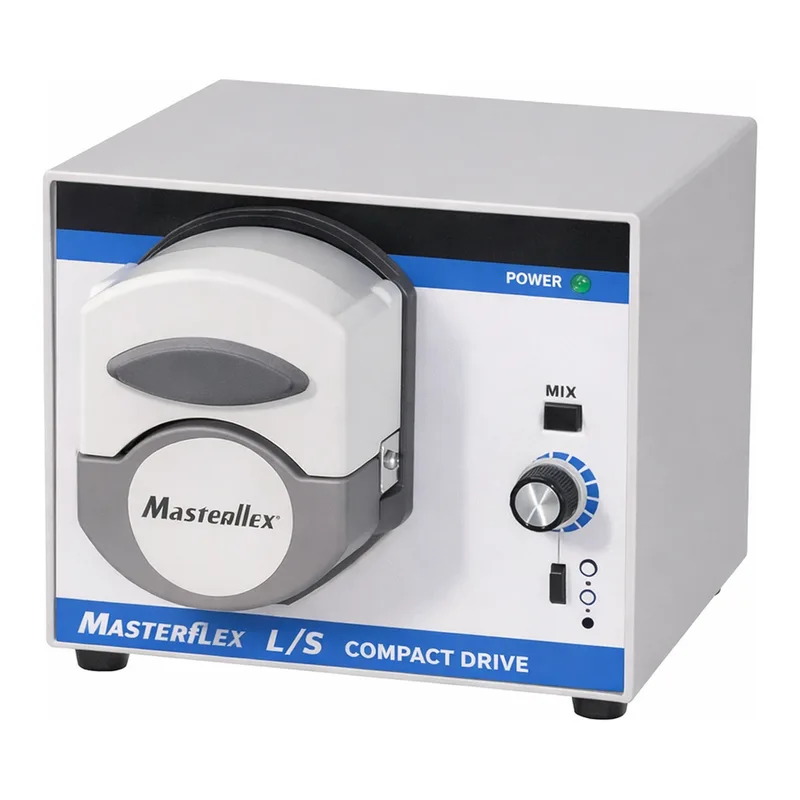

Cole-Parmer Masterflex L/S Analog Compact Drive with Single-Channel Miniflex Pump Head

Masterflex L/S Analog Compact Drive with Single-Channel Miniflex Pump Head, 115/230 VACMasterflex L/S® Analog Compact Drive with Single-Channel Miniflex® Pump Head; 115/230 VAC

Make low-flow pumping easy!

• Flow rate 1.8 to 220 mL/min with L/S tubing—flow rate depends on drive rpm, pump head, and tubing size
• Pump head accepts continuous lengths of tubing for clean flow paths
• Dual-channel model delivers synchronous flow from two separate channels; single-channel model delivers highest flow rate
• Automatic tubing retention makes tube loading quick and easy
• Separate single-turn speed control and forward/off/reverse switch—maintain speed setting when turning pump on or off

Specifications & Description

• Pump SeriesL/S
• Control TypeAnalog
• Min RPM35
• Max RPM200
• Number of Channels1
• Max Flow Rate (mL/min)220
• Min Flow Rate (mL/min)1.8
• Max Flow Rate Per Channel (mL/min)220
• Min Flow Rate Per Channel (mL/min)1.8
• DriveAnalog Miniflex
• Pump Head77220-20 (L/S® Miniflex® Head)
• Tubing06434-16, 10-ft (C-FLEX® Ultra, L/S® 16)
• Tubing sizes acceptedL/S® 13, 14, 16, 25
• Drive IP ratingIP 22
• Washdown CapableNo
• Accuracy±5%
• Duty CycleContinuous
• Number of Rollers3
• Power (VAC)90 to 260
• Power (Hz)50/60
• Width (in)5.25
• Height (in)4.5
• Length (in)8.5
• Width (cm)13.3
• Height (cm)11.4
• Length (cm)21.6
• Open-Head SensorNo
• Housing MaterialPainted Steel
• Reversible MotorYes
• Remote I/OStart/stop via contact closure
• Anti-DripNo
• Cloud ConnectedNo
• Digital DispensingNo
• DescriptionL/S® Analog Compact Drive with Single-Channel Miniflex® Pump Head; 115/230 VAC

![Two year warranty](https://pim-resources.coleparmer.com/icon/2yrwarranty.gif Two year warranty)

Includes

L/S Miniflex pump head and dual-voltage (115/230 VAC) benchtop power supply with IEC320/CEE22 socket. Pump is shipped with cord/plug assembly specific to country of destination.

Key Features

• Flow rate 1.8 to 220 mL/min with L/S tubing—flow rate depends on drive rpm, pump head, and tubing size
• Pump head accepts continuous lengths of tubing for clean flow paths
• Dual-channel model delivers synchronous flow from two separate channels; single-channel model delivers highest flow rate
• Automatic tubing retention makes tube loading quick and easy
• Separate single-turn speed control and forward/off/reverse switch—maintain speed setting when turning pump on or off
• Remote start/stop via contact closure on back of pump
• Single-channel pump head accepts L/S 13, L/S 14, L/S 16, and L/S 25† tubing sizes

More About this Item

These easy-to-use complete pumps offer a wide occlusion angle, which prevents fluid backflow up to the rated pressure of the tubing. Prime or flush tubing quickly by depressing the MAX button. Self-lubricating thermoplastic polyester rollers are low friction and long wearing for smooth operation and long life.

This compact, stackable pump features a durable steel housing with chip-resistant epoxy-based paint. Wide occlusion angle prevents fluid backflow up to the rated pressure of the tubing. MAX button runs motor at full speed to rapidly prime or flush tubing. Self-lubricating thermoplastic polyester (Ertalyte®TX) rollers are low friction and long wearing for smooth operation and long life.

Note:Dual-channel model must have same size tubing loaded in both channels to ensure tubing retention.

†Recommended for use with silicone or C-Flex® formulations only.
