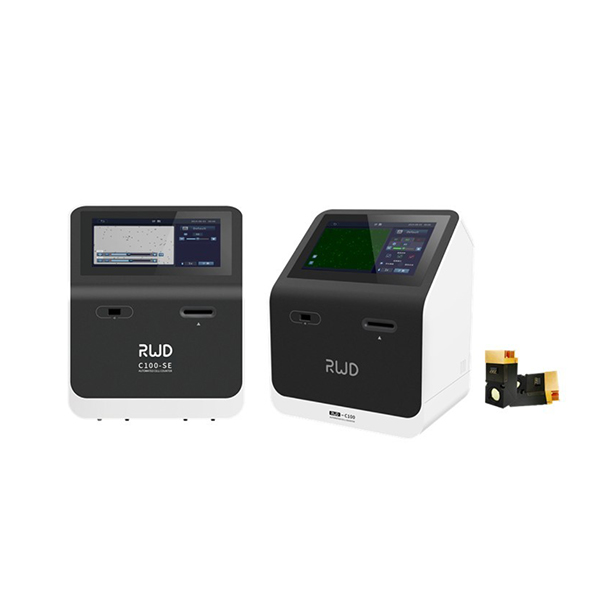

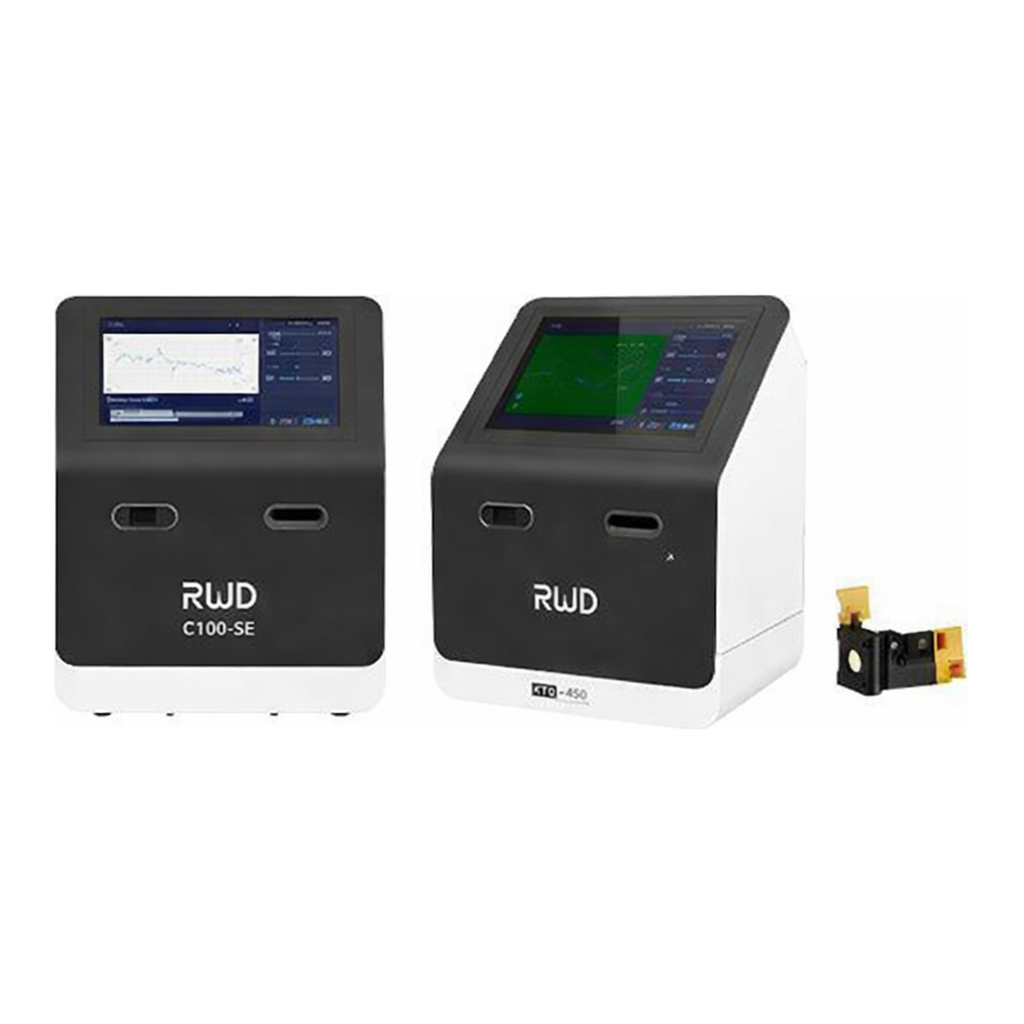

C100/C100-SE Automated Cell Counter

A Real Time-Saver Speeds up Your Research.

RWD automated cell counters provide two models to meet different customers’ needs in BF&FL cell counting and analysis in 9s. Combined with highly intelligent software and excellent microscopy optics structure, the counters could liberate researchers from the heavy work of daily cell counting.

Testimonial

“So far, I have only heard good things about this Cell Counter, so very happy with it. ”

— —Ph.D Claudio David, University of Heidelberg

Testimonial

“The features and general technical standards are excellent. Speed, touchscreen, smooth loading of samples to the slide are all excellent features available in RWD C100 Automated Cell Counter.”

— —Preyesh Stephen, Queens University, Ontario Canada

Testimonial

“Dual fluorescence channels make counting applications more extensive.”

— —Chinese Academy of Sciences

Technical Specifications

Overview

The automated cell counter can identify both live and dead cells. Information such as cell counts, viability and diameter can be obtained with just one click. With fluorescence cube, C100 can display images in BF and FL channels simultaneously and present cell counts and cell morphology. It is an optimal device to analyze cell viability and transfection efficiency in immunology and vaccine development, cell therapy, tumor research, stem cell, metabolism research, and others.

Application

Tumor Research ⸺ Passage cell line, pre-detection of apoptosis

Immunological research ⸺ PBMCs, lymphocytes

Cell Biology Research ⸺ Primary Cells

Cell quality control ⸺ stem cells, CIK

Cell expression level detection ⸺ fluorescent protein, transfection efficiency detection

Advantages

Smart cell recognition

Clustered cells can be identified and counted separately. In trypan blue mode, the counting result will show the proportion of live cells and dead cells.

The results of HEK293 cell line and mouse primary macrophage count showed:

C100 counter has a smaller standard deviation of multiple counts.

The actual measured value and the theoretical value have a slight deviation in a great linear relationship.

The CV value of manual counting can reach more than 10%, while the CV value of the C100 counting result is much lower than 5%.

Fast cell counting in 9 seconds

Compared to the hemocytometer, it can save you more than 24hrs within a month when counting 10 samples per day

It takes about 5 minutes to use a hemocytometer for manual cell counting, while C100-SE/C100 only takes 9s. Counting ten samples per day can save more than 24 hours a month.

User-friendly operation

Touchscreen with built-in user guide interfaces ensures easy operation.

Compact design

Small size fits into different placements.

Removable modular FL cubes allow easy switches among various scenes.

The automated cell counter can identify both live and dead cells. Information such as cell counts, viability and diameter can be obtained with just one click. With fluorescence cube, C100 can display images in BF and FL channels simultaneously and present cell counts and cell morphology. It is an optimal device to analyze cell viability and transfection efficiency in immunology and vaccine development, cell therapy, tumor research, stem cell, metabolism research, and others.

Specifications

Parameters	Description	Description
Model	C100-SE	C100
Optional fluorescence application	N/A	（Ex ：375/28nm ；Em：460/50nm） （Ex ：480/30nm ；Em：535/40nm） （Ex ：540/25nm ；Em：620/60nm ）
Amplification Factor	2.5×, 5.0 Megapixel	좌동
Focus Method	Manual focusing & Autofocusing	좌동
Counting Area	2.15 mm×1.62 mm	좌동
Cell Type	Cell lines, stem cells, primary cells, pollens, beer yeast	좌동
Cell Size Range	4-60 μm (Optimal: 7-60 μm)	좌동
Cell Concentration Range	10^4-10^7 cells/mL	좌동
Cell counting Time	Less than 9s	좌동
Historical Data Storage	1000 counting reports and images at most	좌동
Languages	Chinese and English	좌동
Dimensions	212 mm(W)* 264 mm(H)* 165 mm (D)	좌동
Weight	~3.0kg	~3.2 kg

FL Cube	Excitation	Emission	General Dyes
FL Cube-01	375/28nm	460/50nm	DAPI，Hoechst，BFP
FL Cube-02	480/30nm	535/40nm	Acridine Orange（AO），Calcein-AM，Alexa fluor 488，SYBR Green，FITC，GFP
FL Cube-03	540/25nm	620/60nm	Propidium Iodide（PI），DsRed，dTomato，RFP

Cat No.	Product Description
C100	Automated Cell Counter (BF + FL)
C100-SE	Automated Cell Counter (BF)
FL Cube-01	（Ex ：375/28nm ；Em：460/50nm）
FL Cube-02	（Ex ：480/30nm ；Em：535/40nm）
FL Cube-03	（Ex ：540/25nm ；Em：620/60nm ）
DS-50	Disposable Slide (50 pcs/box)

Order information

Cat No.	Product Description
C100	Automated Cell Counter (BF + FL)
C100-SE	Automated Cell Counter (BF)
FL Cube-01	（Ex ：375/28nm ；Em：460/50nm）
FL Cube-02	（Ex ：480/30nm ；Em：535/40nm）
FL Cube-03	（Ex ：540/25nm ；Em：620/60nm ）
DS-50	Disposable Slide (50 pcs/box)
