| 상품 옵션 정보 | ||||||
|---|---|---|---|---|---|---|
| 카탈로그 번호 | 설명 | 상태 | 단위 | 가격 | 가격(VAT포함) | 수량 / 장바구니 |
| D180 | RWD D180 CO2 incubator with Humidity monitoring, 175L ea | 재고문의 | ea | 10,188,000원 | 11,206,800원 | |
| D180-F01 | RWD D180-F01 CO2 gas inlet pipe package for connecting cylinders to equipment ea | 재고문의 | ea | 0원 | 0원 | |
| D180-F02 | RWD D180-F02 1 horizontal shelves with bracket ea | 재고문의 | ea | 0원 | 0원 | |
| D180-F03 | RWD D180-F03 Water Pond for holding water to increase humidity ea | 재고문의 | ea | 0원 | 0원 | |
| D180-F04 | RWD D180-F04 5.5 inch HEPA filter for inner air filtration ea | 재고문의 | ea | 65,000원 | 71,500원 | |
| D180-F05 | RWD D180-F05 High efficiency filter for air filtration at sampling port ea | 재고문의 | ea | 19,000원 | 20,900원 | |
| D180-F06 | RWD D180-F06 Stacking racks for stacking and fixing of equipment ea | 재고문의 | ea | 0원 | 0원 | |
| D180-F07 | RWD D180-F07 movable holder with casters ea | 재고문의 | ea | 0원 | 0원 | |

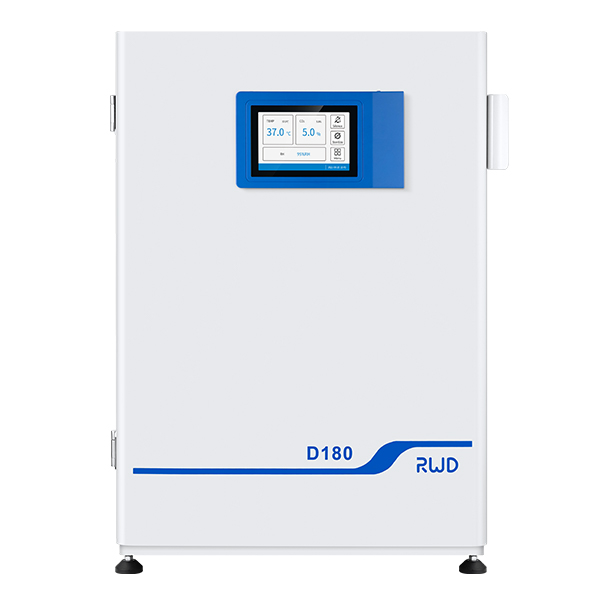

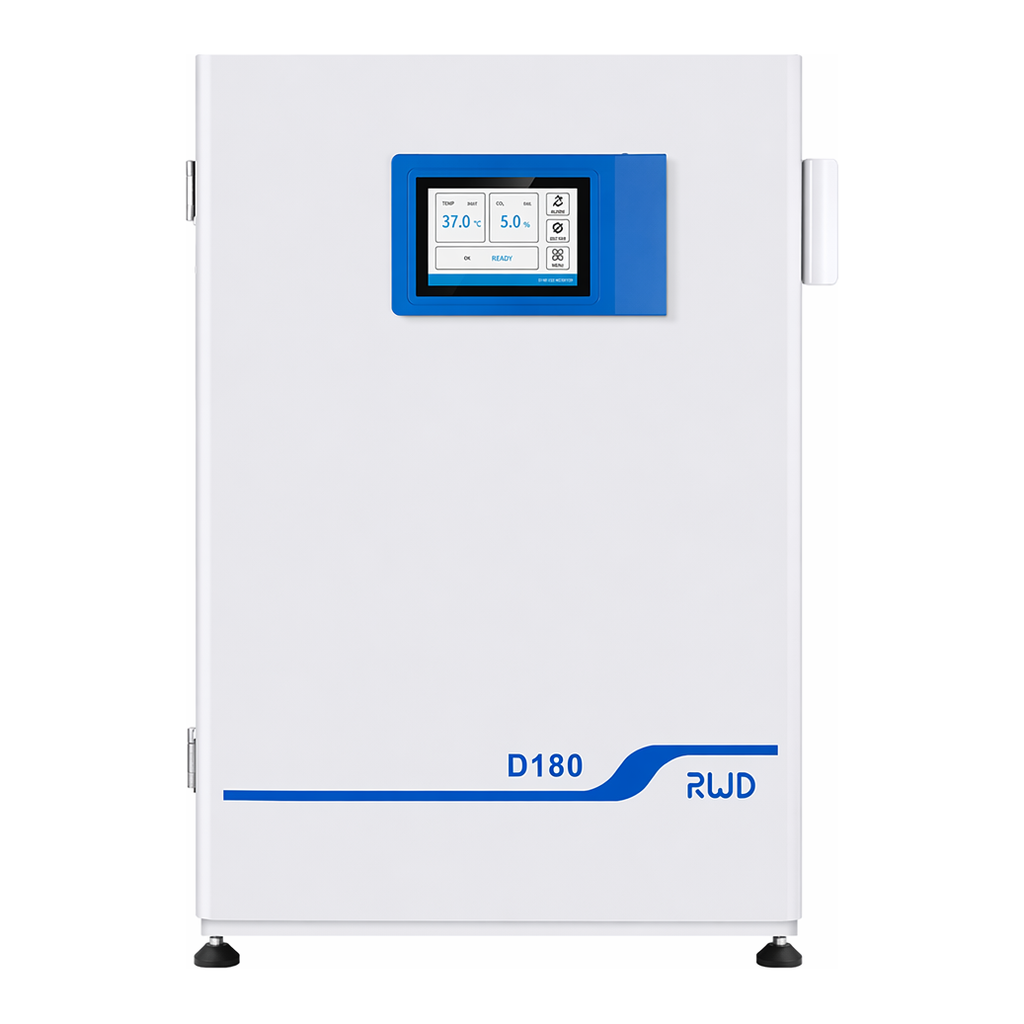

D180 CO2 Incubator
A well-designed air-jacketed co2 incubator with 175L capacity provides a suitable, and stable environment for cell/tissue culture. Meanwhile, an intelligent touch-screen shows 7-days performance trend graphing enables you to monitor the change of key parameters easily.
Overview
The carbon dioxide cell culture incubator is an indispensable device in the fields of cancer research, stem cell research, immunology research, pharmaceutical research, and neurobiology research. It is ideal for ordinary cell lines, stem cells, embryos, and primary cells, animal cell culture.
Growing and maintaining cells can be easy, stable by controlling temperature, CO2 concentration and maintaining a high relative humidity (RH). The built-in 140℃ dry-heat sterilization program helps to prevent bacterial contamination. All the data and 7-days performance trend graphing are visible on the 7-inch touch screen, and stored data can be downloaded through USB.
Advantages
Precise CO2 concentration monitor
High temperature resistant infrared（IR）co2 sensor enables real-time monitoring the change of co2 level. Optional humidity probe to monitor real-time humidity changes.
Stable Temperature control
Six-sided air jacketed heating method with Pt1000 platinum thermistor significantly shorten the recovery time to target temperature.
User-friendly operation
7-inch touch screen provides complete data visibility including three core parameters (Temp. , CO2 and rH).
Multiple alarm system
Internal and external doors open overtime alarm. Abnormal inner cavity core parameters alarm, temperature alarm function.
Specifications
| Temperature | Control & Range | ±0.1℃@ 37℃，5℃above ambient to 50℃ |
| Heating Method | Air jacket(direct heat) | |
| Uniformity | ±0.3℃ @ 37℃ | |
| Alarm Setting | Customized, Upper limit: (T+0.1) ~ (T+5.0); Lower limit:（T-0.1) ~ (T-5.0） | |
| Sensor | Pt1000 Platinum thermistor | |
| Controller | PID | |
| Readability & Setability | 0.1℃ | |
| Sterilization Method | 140℃ dry heat sterilization | |
| CO2 Concentration | Control & Range | ±0.1%@5%，0-20% |
| Sensor | Heat-resistant infrared (IR) sensor | |
| Inlet Pressure | 1.0 bar (recommended) | |
| Uniformity | ±0.3% | |
| Readability & Setability | 0.10% | |
| Alarm Setting | Customized, Upper limit: (C+0.1) ~ (C+1.0); Lower limit: (C-0.1) ~ (C-5.0) | |
| Humidity | Humidity Pan Volume | ~3.8 L |
| Display | 1% RH | |
| Shelves | Dimensions | 48.7×46.1 cm |
| Surface Area | 224.5 cm2 | |
| Number (Standard & Max) | 3 ; 16 | |
| Size & Weight | Interior Volume | 175 L |
| Interior Dimensions | ||
| Exterior Dimensions | 69.5(W)×67.0(D)×97.0(H) cm | |
| Net Weight | 110 kg |
