Servicebio Digital Horizontal Shaker (Big Tray)

Product Description

The destaining shaker is widely used in Western experiments such as blocking of blotting membranes, antibody incubation, washing, fixation, staining and destaining of electrophoretic gels; it can also be used for shaking of liquids in various centrifuge tubes, multi-well plates, petri dishes and culture bottles. , Mix well. The movement modes is horizontal, Servicebio shaker is equipped with LCD display, knob-type control keys and digital timing function.

---

Product Ad**vantages**

1. The tray is larger and adopts stepper motor, which has low noise and more reliable quality;

2. Long time operation without fever;

3. Large digital display screen , intuitive display of running speed and running time

4. Timing function, when the time is up, the buzzer will remind and end the operation

---

Technical P**arameters**

1. Operation mode: horizontal;

2. Product power: 20W;

3. Voltage: 100V~240V 50Hz/60Hz;

4. Pallet size: 338*308mm, maximum load 5 kg;

5. Speed range: Horizontal mode: 5-200 rpm

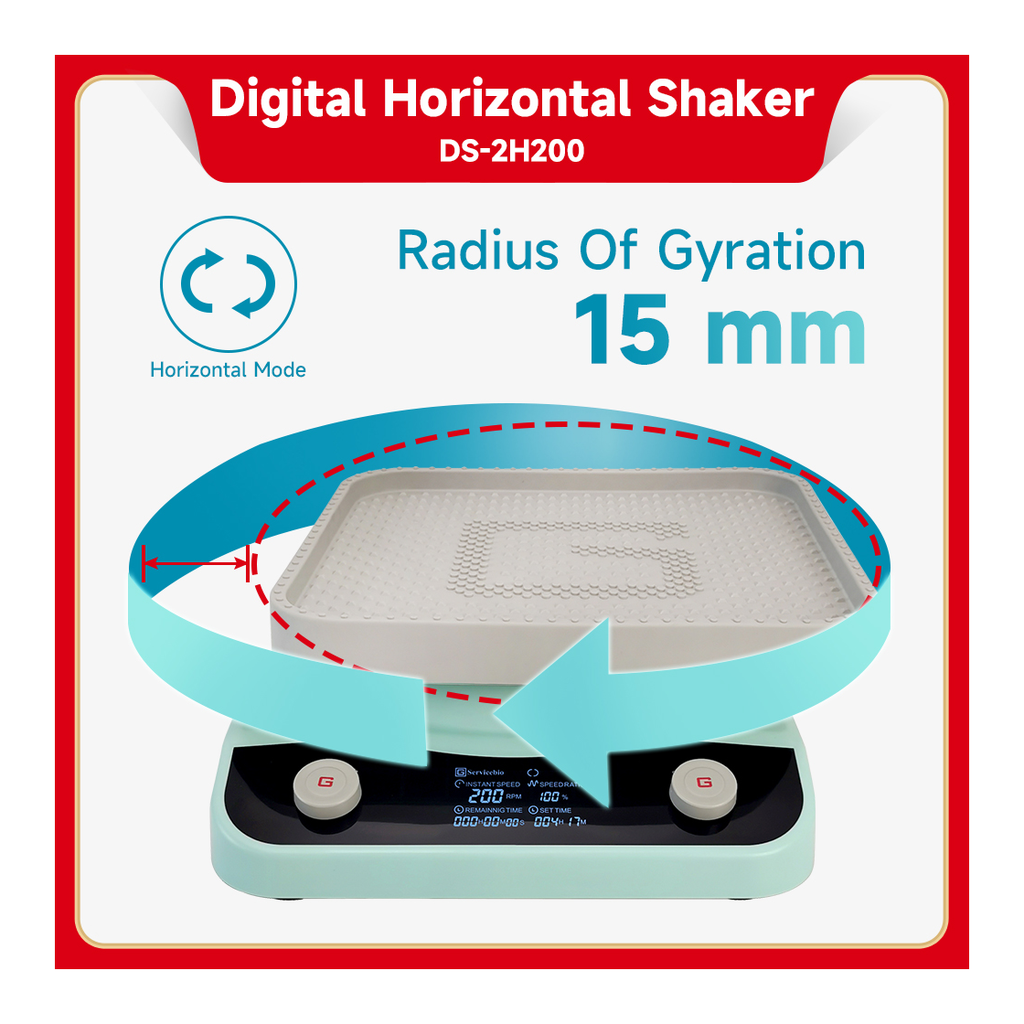

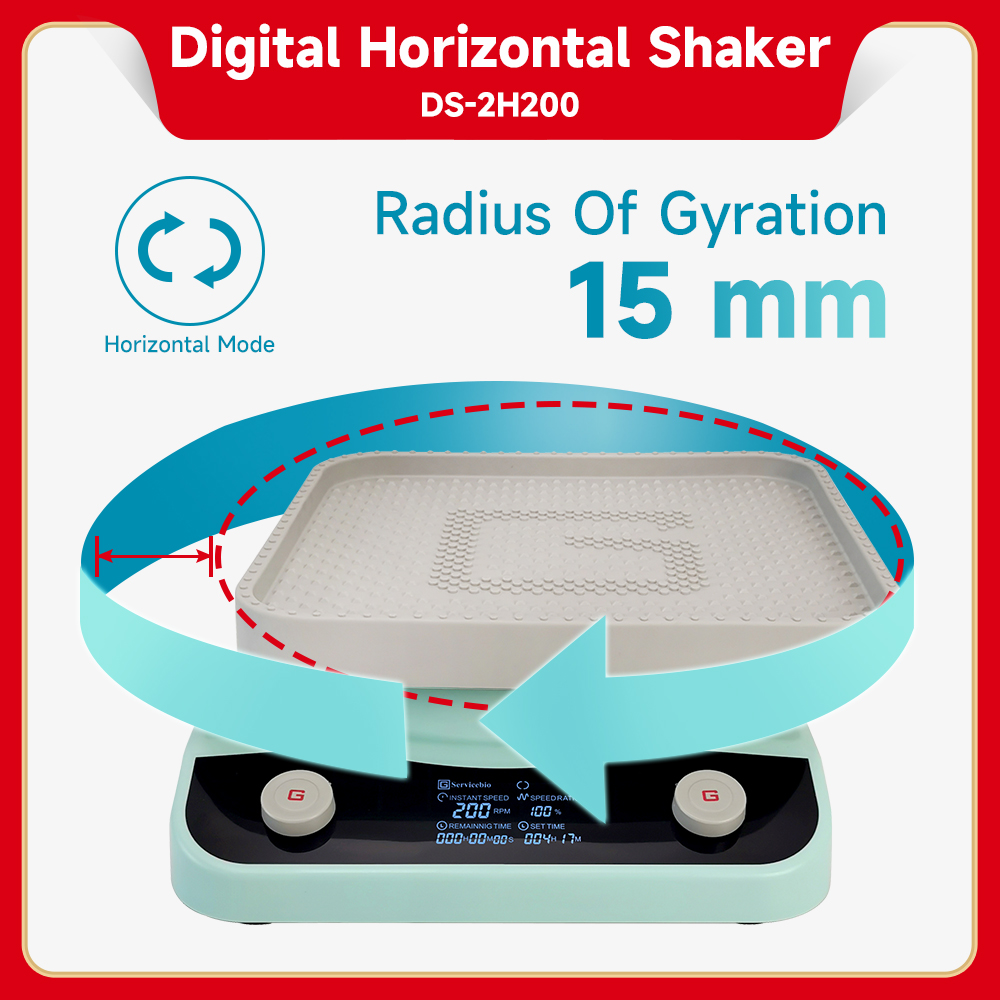

6. Radius of gyration/swing angle: Plane mode Radius of gyration: 15mm,

7. Overall size: 380*330*148 mm;

8. Timing range: 0-999H 59min

9. Product net weight: 7.6 kg

---

Parameter Comparison

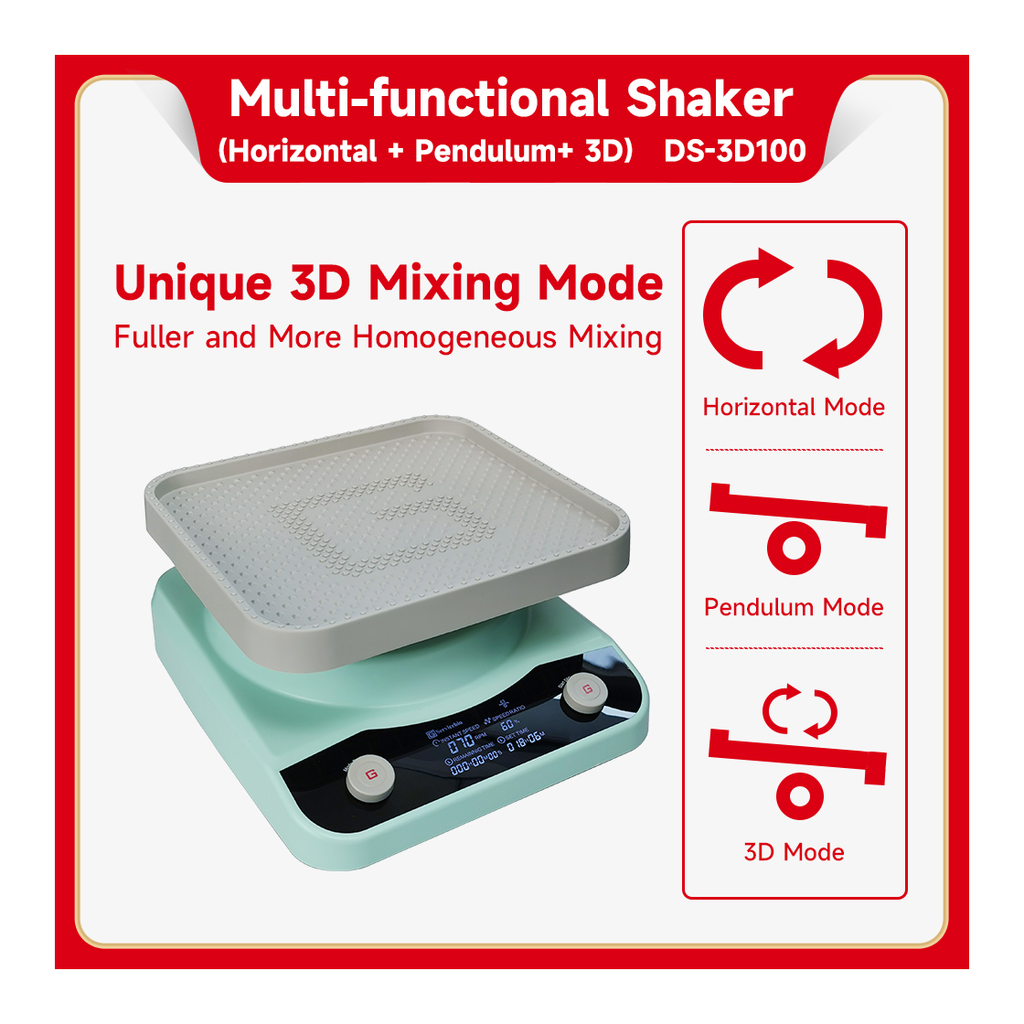

Cat. No.	DS-3D100	DS-2H200 DS-2S100	SYC-P200 SYC-Z100	SYC-FP200 SYC-FZ100
Speed Range	Horizontal model: 5-100rpm, Pendulum model: 5-100 rpm	Horizontal model: 5-200rpm, Pendulum model: 5-100 rpm	Horizontal model: 0-200rpm, Pendulum model: 0-100 rpm	Horizontal model: 0-200rpm, Pendulum model: 0-100 rpm
Radius Of Gyration/Swing Angle	Radius of gyration in plane mode: 15mm, swing angle in swing mode: 10°	Radius of gyration in plane mode: 15mm, swing angle in swing mode: 10°	Radius of gyration in plane mode: 10mm, swing angle in swing mode: 20°	Radius of gyration in plane mode: 10mm, swing angle in swing mode: 20°
3D Operation	3D composite mode: 5-100 rpm, Speed ratio in 3Dcomposite mode: 10%-100%	/	/	/
Automatic Leveling Function	leveling function	leveling function	leveling function	leveling function
Timing Range	0min-999h59min	0min-999h59min	0min-999h59min	0min-999h59min
Digital Display	Time, Speed, Digital display	Time, Speed, Digital display	Time, Speed, Digital display	Time, Speed, Digital display
Max. Load	5kg	5kg	2.5kg	2kg
Motor	Stepper motor	Stepper motor	Stepper motor	Stepper motor
Control Method	Program control chip	Program control chip	Program control chip	Program control chip
Tray Size	338*308mm	338*308mm	317*245mm	317*245mm
Beep Prompt	Beep prompt	Beep prompt	Beep prompt	Beep prompt
Input Voltage	AC100V/AC 240V 50Hz/60Hz	AC100V/AC 240V 50Hz/60Hz	AC100V/AC 240V 50Hz/60Hz	AC100V/AC 240V 50Hz/60Hz
Power	35W	20W	20W	20W
Fuse	250V/3A	250V/3A	/	/
Controller Size	35mm	35mm	35mm	35mm
Display Size	740*420mm	740*420mm	/	/
Overall Dimension	380*330*180mm	380*330*148mm 380*330*173mm	317*245*130mm 317*245*139mm	317*245*134mm 317*245*143mm
Net Weight	9.5kg	7.6kg/8.5kg	4.5kg	4.5kg
