Servicebio Digital Pendulum Shaker (Big Tray)

상품 한눈에 보기

Western blot 및 젤 염색·탈색 과정에 최적화된 디지털 진자형 셰이커. LCD 디스플레이와 타이머 기능 탑재로 직관적 조작 가능. 대형 트레이와 스테퍼 모터 적용으로 저소음, 안정적 운전. 자동 레벨링 기능으로 실험 결과의 균일성 확보.

브랜드: Servicebio
카테고리: Orbital Shakers
판매단위: pk

#Shakers #Orbital Shakers #Servicebio

카탈로그

1개 옵션

회원가입 없이 바로 구매하세요

가입하지 않아도 비회원가로 구매하실 수 있습니다.

카탈로그 번호 · 상품 설명출고판매가담기

Servicebio DS-2S100 Digital Rocking Shaker (Pendulum) pk판매 단위 pk ·

재고 확인 필요재고 확인 필요

756,000원VAT 포함 831,600원

재고문의·견적요청 옵션은 실시간 상담으로 납기를 확인해 드립니다 · 연구비 카드 결제 가능

Servicebio · Servicebio Digital Pendulum Shaker (Big Tray)

Product Description

The destaining shaker is widely used in Western blot experiments such as blocking of membranes, antibody incubation, washing, fixation, staining, and destaining of electrophoretic gels. It can also be used for shaking liquids in centrifuge tubes, multi-well plates, petri dishes, and culture bottles.
The movement mode is pendulum type. The Servicebio shaker is equipped with an LCD display, knob-type control keys, and digital timing function.

Product Advantages

Pendulum type shutdown automatic leveling function prevents long-term tilting of samples after shutdown, avoiding dry film and ensuring reliable experimental results.
Large tray design with stepper motor for low noise and high reliability.
Long-time operation without overheating.
Large digital display screen for intuitive visualization of running speed and time.
Timing function with buzzer alert upon completion.

Technical Parameters

Specification	Description
Operation mode	Pendulum
Product power	20 W
Voltage	100V–240V, 50Hz/60Hz
Pallet size	338 × 308 mm
Maximum load	5 kg
Speed range	5–100 rpm (pendulum mode)

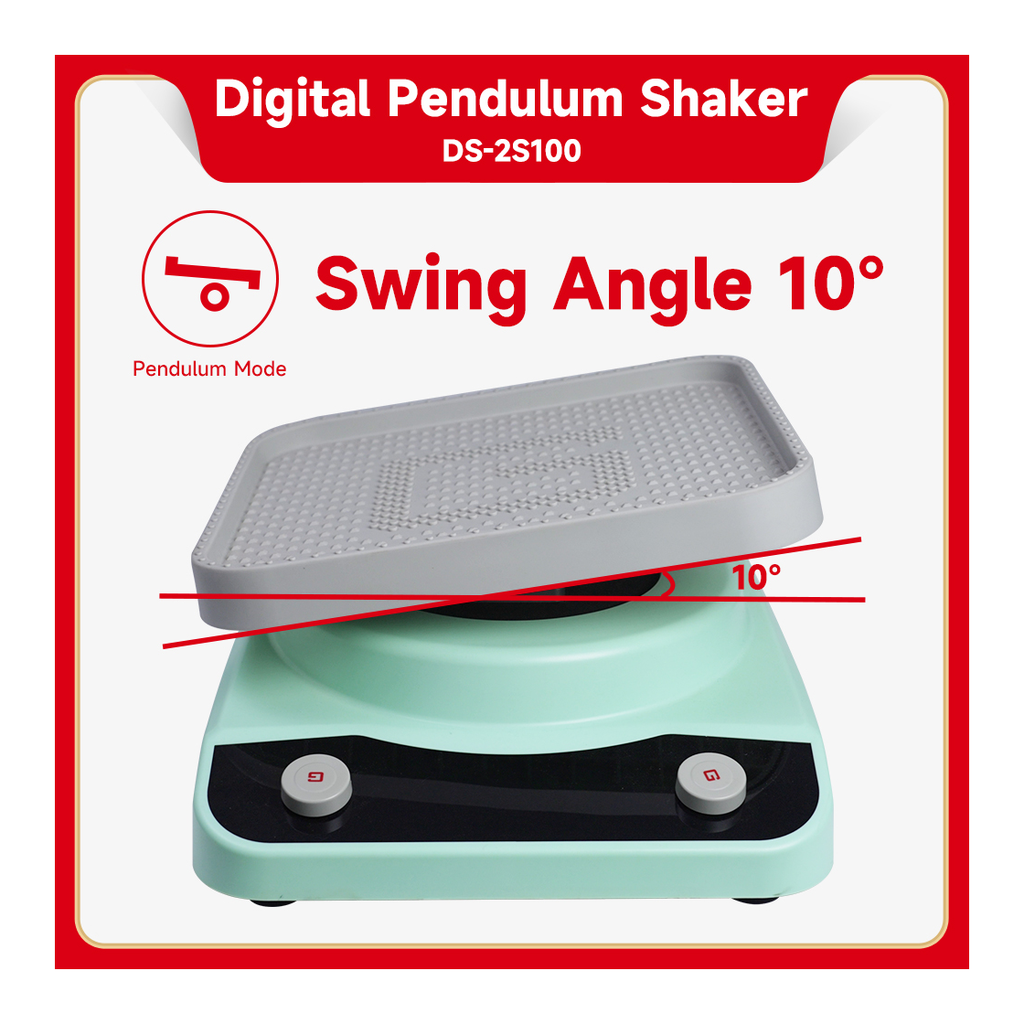

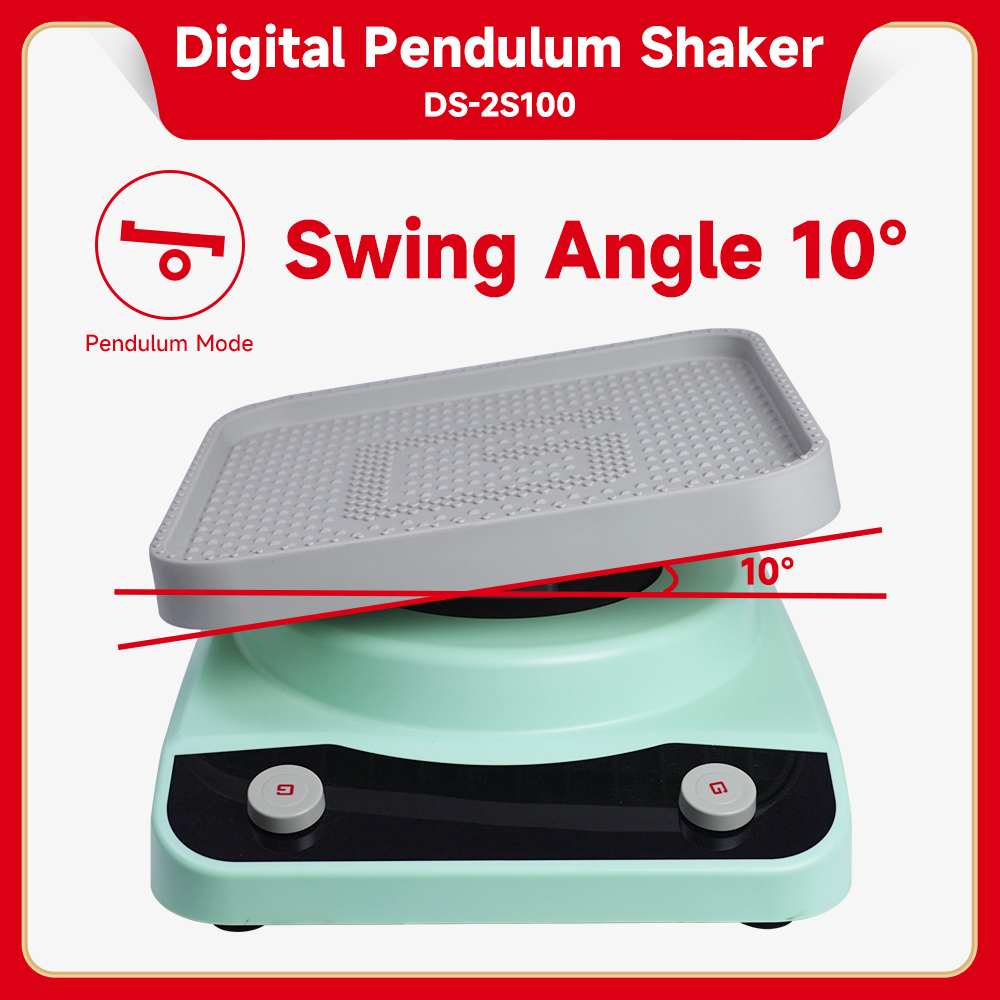

Swing angle	10°
Overall size	380 × 330 × 173 mm
Timing range	0–999 h 59 min
Net weight	8.5 kg

Parameter Comparison

Cat. No.	DS-3D100	DS-2H200 / DS-2S100	SYC-P200 / SYC-Z100	SYC-FP200 / SYC-FZ100
Speed Range	Horizontal: 5–100 rpm Pendulum: 5–100 rpm	Horizontal: 5–200 rpm Pendulum: 5–100 rpm	Horizontal: 0–200 rpm Pendulum: 0–100 rpm	Horizontal: 0–200 rpm Pendulum: 0–100 rpm
Radius of Gyration / Swing Angle	Plane: 15 mm Swing: 10°	Plane: 15 mm Swing: 10°	Plane: 10 mm Swing: 20°	Plane: 10 mm Swing: 20°
3D Operation	3D composite mode: 5–100 rpm Speed ratio: 10–100%	–	–	–
Automatic Leveling Function	Yes	Yes	Yes	Yes
Timing Range	0–999 h 59 min	0–999 h 59 min	0–999 h 59 min	0–999 h 59 min
Digital Display	Time, Speed	Time, Speed	Time, Speed	Time, Speed
Max. Load	5 kg	5 kg	2.5 kg	2 kg
Motor	Stepper motor	Stepper motor	Stepper motor	Stepper motor
Control Method	Program control chip	Program control chip	Program control chip	Program control chip
Tray Size	338 × 308 mm	338 × 308 mm	317 × 245 mm	317 × 245 mm
Beep Prompt	Yes	Yes	Yes	Yes
Input Voltage	AC100–240V, 50/60Hz	AC100–240V, 50/60Hz	AC100–240V, 50/60Hz	AC100–240V, 50/60Hz
Power	35 W	20 W	20 W	20 W
Fuse	250V/3A	250V/3A	–	–
Controller Size	35 mm	35 mm	35 mm	35 mm
Display Size	740 × 420 mm	740 × 420 mm	–	–
Overall Dimension	380 × 330 × 180 mm	380 × 330 × 148 mm / 380 × 330 × 173 mm	317 × 245 × 130 mm / 317 × 245 × 139 mm	317 × 245 × 134 mm / 317 × 245 × 143 mm
Net Weight	9.5 kg	7.6 kg / 8.5 kg	4.5 kg	4.5 kg
