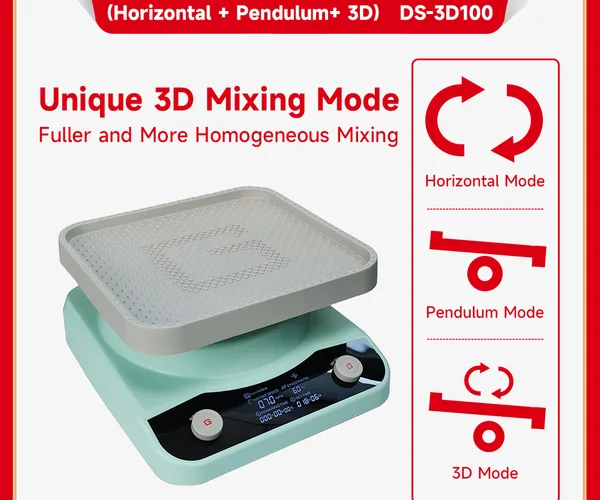

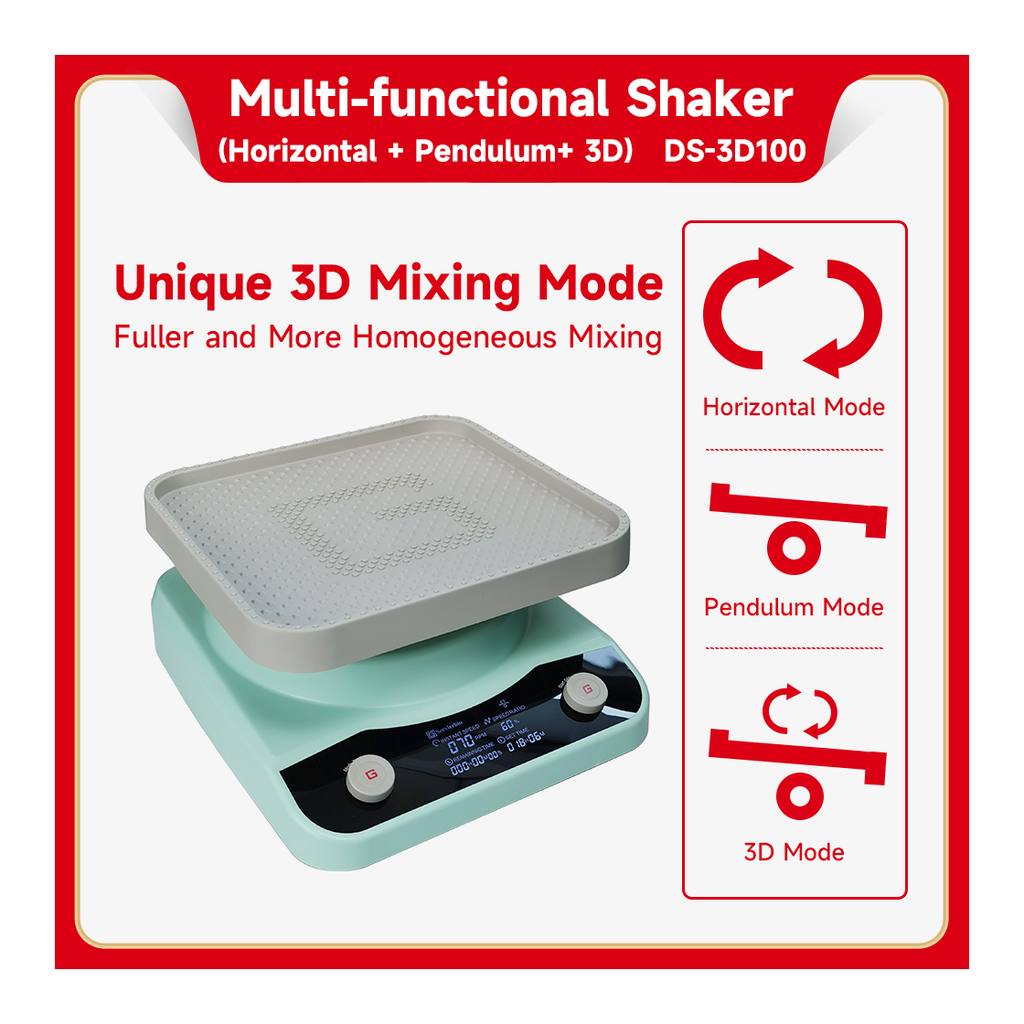

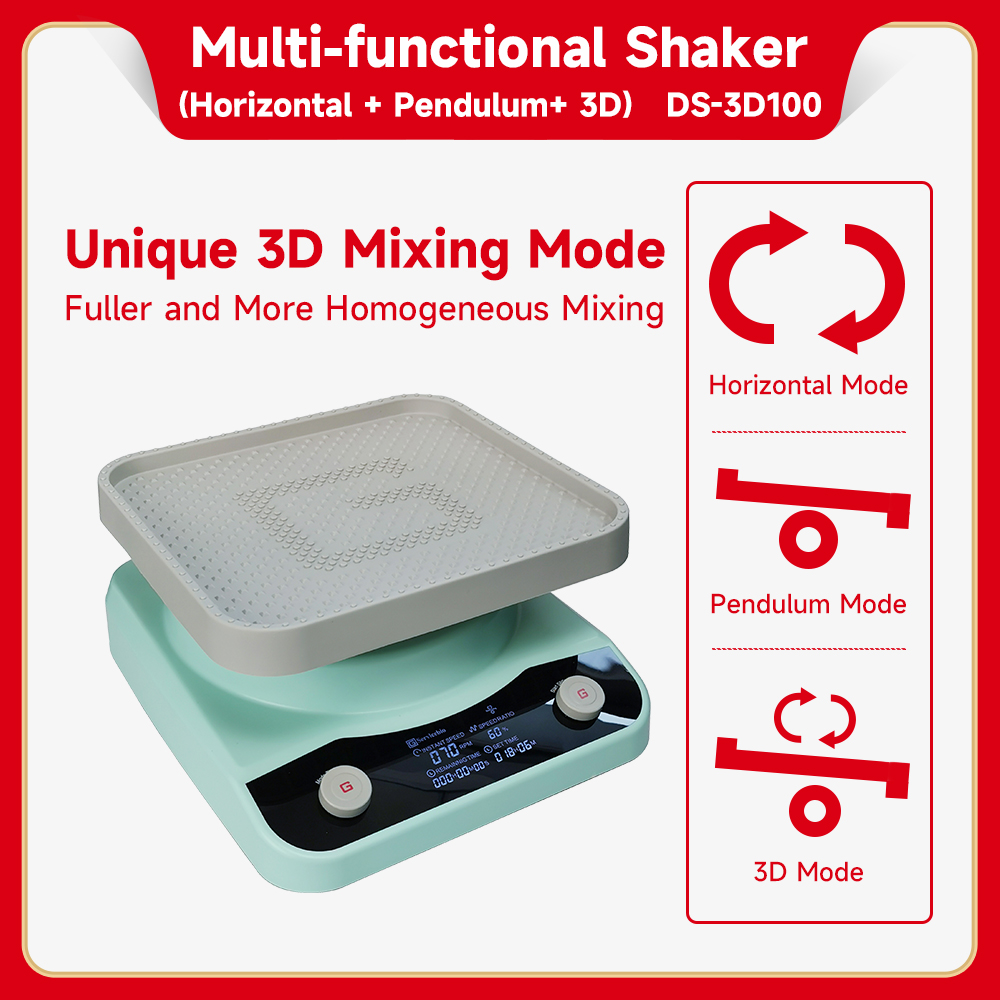

Servicebio Multi-functional Shaker (Horizontal + Pendulum+ 3D)

Product Introduction

Shakers are commonly used in Western experiments such as blocking of blotting membranes, antibody incubation, washing, fixation, staining, and destaining of electrophoretic gels; they can also be used for shaking liquids in various centrifuge tubes, multi-well plates, petri dishes, and culture bottles. Mix well. The movement modes are horizontal, pendulum and three-dimensional composite, and the Servicebio shaker is equipped with LCD display, knob-type control keys and digital timing function.

---

*Product advantages
*1.Three independent modes: swing, horizontal, and 3D. In 3D mode, the mixing intensity can be set separately.

2.Automatically stops in a horizontal position after operation. Timer and power-off memory function.
3..Equipped with a stepper motor for precise speed control and long lifespan.
4.Large tray and large LCD screen for easy operation.
5.Rust-proof treatment on the base plate for durability.

---

Technical parameters

1. Operation mode: horizontal, pendulum and three-dimensional composite, which can be adjusted freely;

2. Product power: 35W;

3. Voltage: 100V~240V 50Hz/60Hz;

4. Pallet size: 338*308mm, maximum load 5Kg;

5. Speed range: horizontal mode: 5-100 rpm, pendulum mode: 5-100 rpm, three-dimensional composite mode 5-100 rpm;

6. Radius of gyration/swing angle: Radius of gyration in plane mode: 15mm,swing angle in swing mode: 10°, speed ratio in three-dimensional composite mode: 10%-100%;

7. Speed ratio: pendulum speed/horizontal speed

8. Overall size: 380*330*180 mm;

9. Timing range: 0-999h59min

10. Product net weight: 9.5Kg

Parameters Comparison

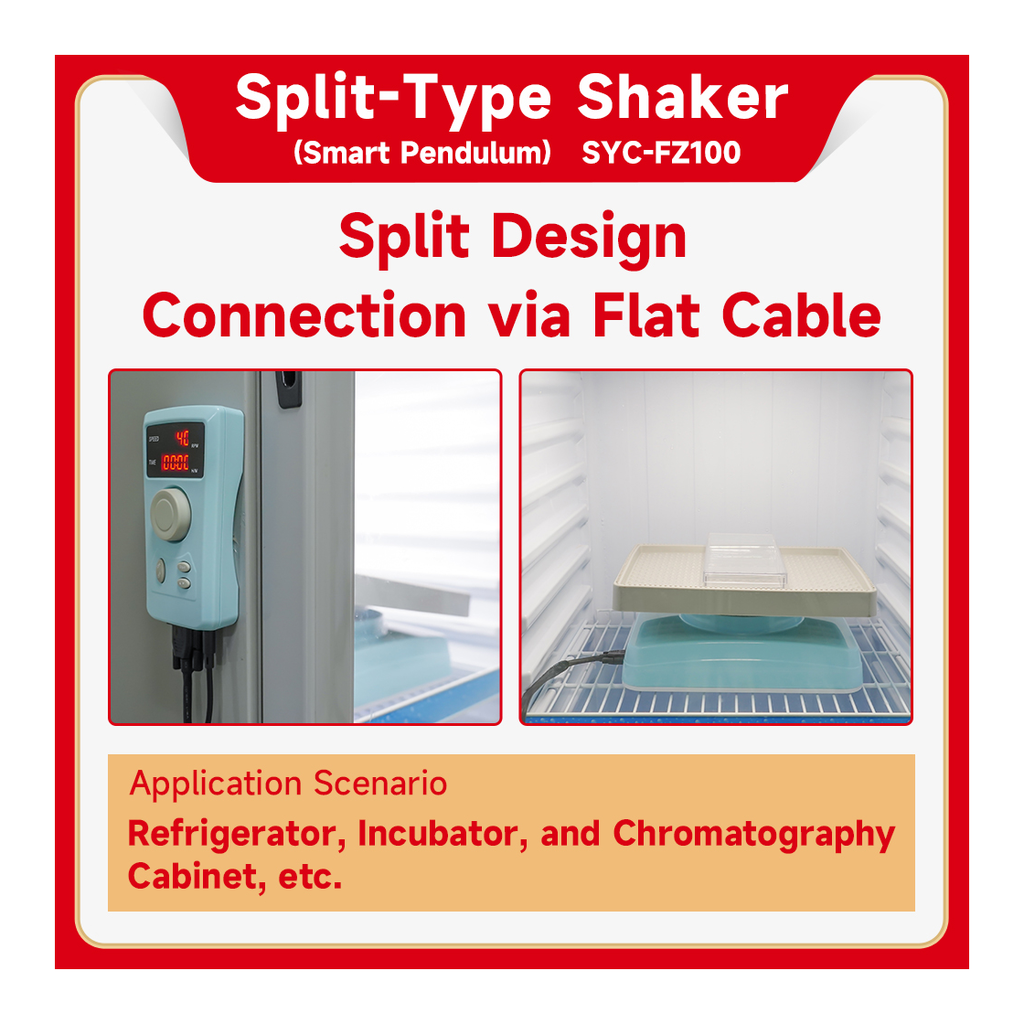

Cat.No.	DS-3D100 Multi-function Shaker (Horizontal + Pendulum+ 3D)	DS-2H200 Shaker (Horizontal) DS-2S100 Shaker (Pendulum)	SYC-P200 Digital Display Horizontal Shaker SYC-Z100 Digital Display Pendulum Shaker	SYC-FP200(Split-type,Horizontal Shaker) SYC-FZ100(Split-type,Pendulum)
Speed range	Horizontal: 5-100 rpm Pendulum: 5-100 rpm.	Horizontal： 5-200 rpm Pendulum： 5-100 rpm	Horizontal： 0-200 rpm Pendulum： 0-100 rpm	Horizontal： 0-200 rpm Pendulum： 0-100 rpm
Swing radius and swing amplitude	Horizontal model swing radius：15mm Pendulum swing angle：10°	Horizontal model swing radius：15mm Pendulum swing angle：10°	Horizontal model swing radius：10mm Pendulum swing angle：20°	Horizontal model swing radius：10mm Pendulum swing angle：20°
3D operation	Speed of the composite mode in 3D mode 5-100 rpm Relative running speed in 3D composite operation mode： 1%-100%	N/A	N/A	N/A
Automatic leveling function	Yes	Yes	Yes	Yes
Timer range	0-999h59min	0-999h59min	0-999h59min	0-999h59min
Digital display	Digital display of time and speed	Digital display of time and speed	Digital display of time and speed	Digital display of time and speed
Max loading capacity	5kg	5kg	2.5kg	2.0kg
Motor parameters	Stepper motor	Stepper motor	Stepper motor	Stepper motor
Control mode	Program-controlled chip	Program-controlled chip	Program-controlled chip	Program-controlled chip
Tray size	338*308mm	338*308mm	317*245mm	317*245mm
Buzzer reminder	Yes	Yes	Yes	Yes
Input power supply	100V~240V 50Hz/60Hz	100V~240V 50Hz/60Hz	100V-240V50Hz/60Hz	100V-240V50Hz/60Hz
Power	35W	20W	20W	20W
Fuse	250V,3A	250V,3A	N/A	N/A
Controller size	35mm	35mm	35mm	35mm
Display size	740*420mm	740*420mm	N/A	N/A
Dimensions	380*330*180 mm	380*330*148 mm 380*330*173 mm	317*245*130mm 317*245*139mm	317*245*134mm 317*245*143mm
Net Weight	9.5kg	7.6kg/8.5kg	4.5kg	4.5kg
Environmental temperature	Room Temperature-38°C	Room Temperature-38°C	Room Temperature-38°C	4-38°C
Relative humidity	40%-70%	40%-70%	40%-70%	40%-80%
