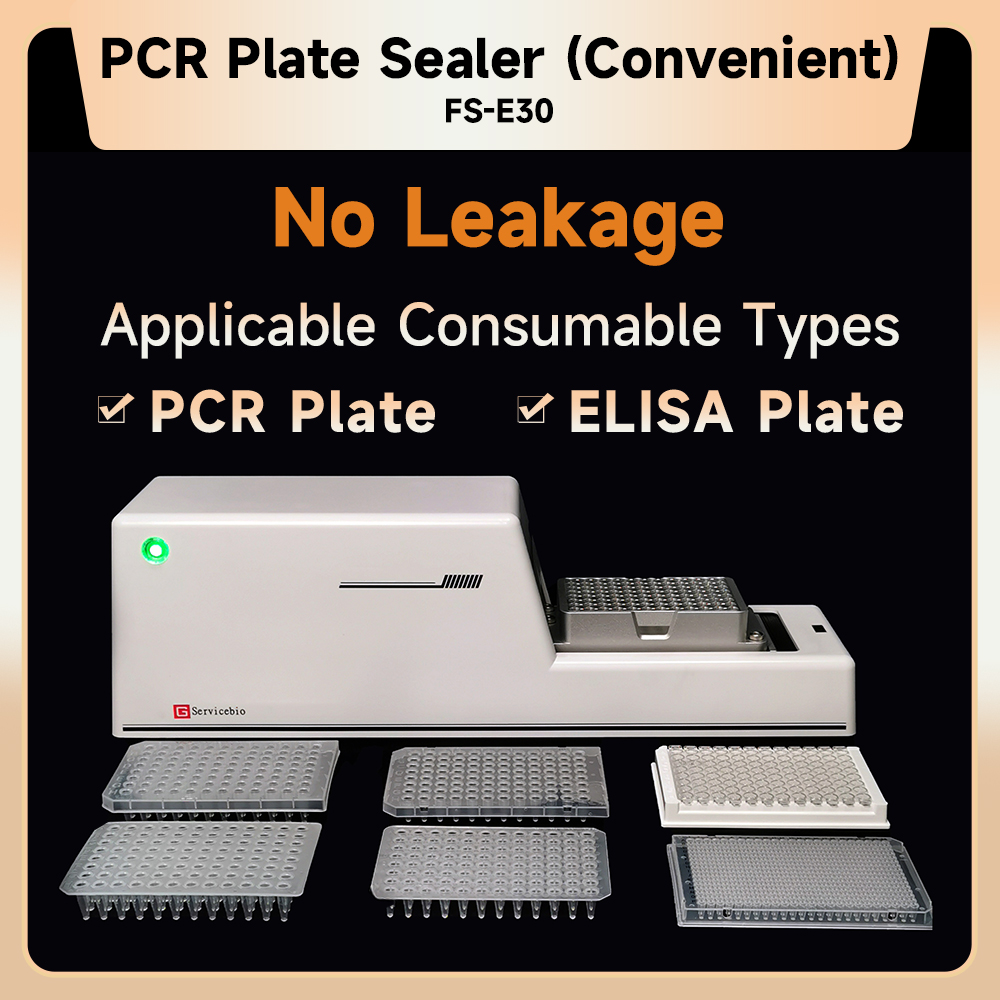

Servicebio PCR Plate Sealer (Convenient)

Servicebio`s patented design perfectly replaces the** manual** scraper sealing, so you don`t have to worry about liquid leakage**.**

Affordable price, demo** trial available!**

---

Product Description

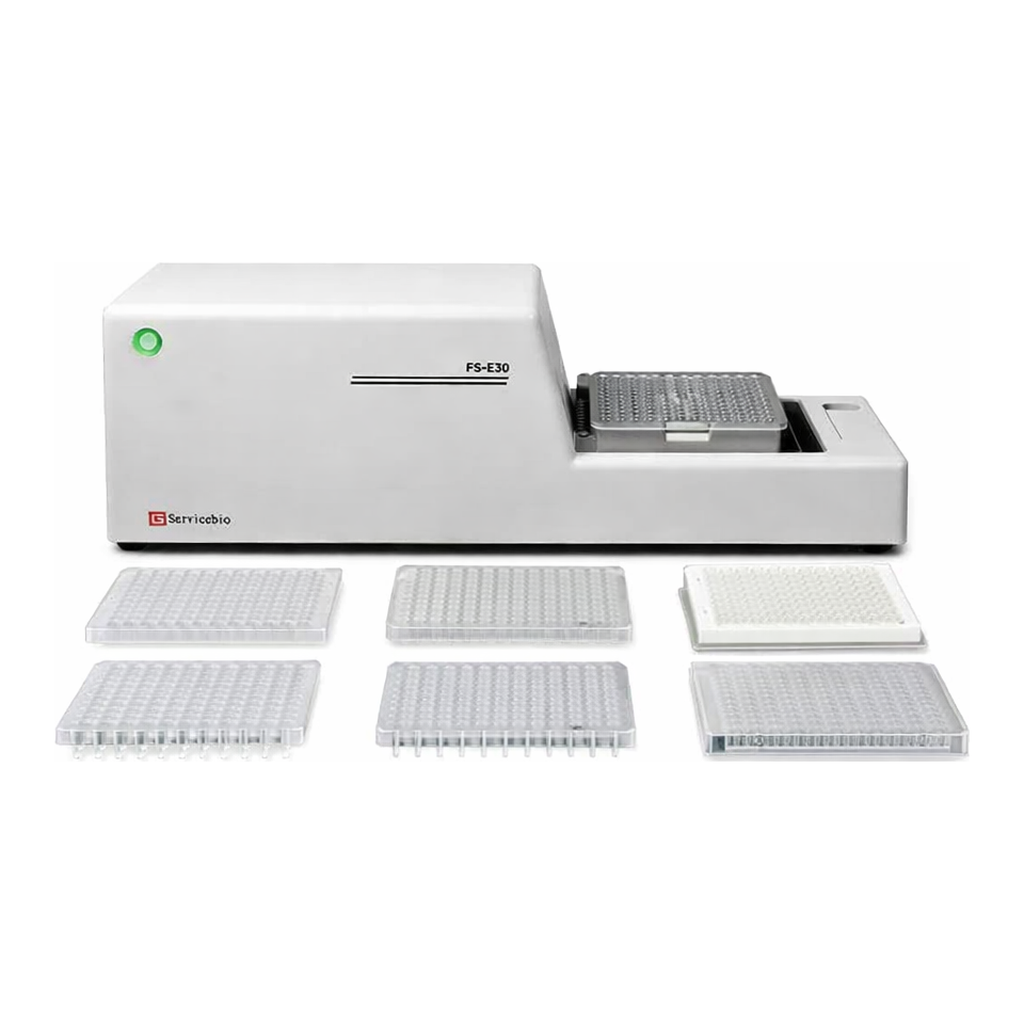

FS-E30 Automatic Film Sealer adopts the rolling method to seal the film safely and firmly. It is not only simple to operate, but also solves the problems caused by traditional manual glue sealing, and can prevent the sample loss and space cross-infection caused by the volatilization and leakage of the PCR plate during the detection reaction process. Another role is to ensure the safe storage and transportation of samples in microplates.
Compared with the traditional hot-pressing method, this product adopts a mechanical rolling sealing film, which can effectively avoid the problems of sample inactivation and sample volatilization caused by high temperature, and improve the accuracy of the experiment.

---

Product Features

(1). Simple operation and reliable sealing

(2). Automatic rolling mode, no need for personnel to operate

(3).30 seconds to complete a sealing film, high efficiency

(4). Intelligent touch controls the entrance and exit of the warehouse door. In order to prevent problems such as unplaced samples or personnel operating errors, timely touch the switch can withdraw the samples from the working warehouse

(5). Small footprint, light weight, can be placed and moved at will

(6). The status light can visually judge the machine state, yellow light - standby state, green light - running state, red light - abnormal state, the red light is always on, the machine can be restarted directly, and it can be used normally after automatic initialization.

---

Operation S**teps**

(1) Plug in the power cord and start the self-check of the film sealer. At this time, the indicator light is red; after the self-check is completed, the indicator light turns yellow, which is the standby state;

(2) Place the prepared sample in the PCR plate, tear off the sealing film and stick it on;

(3) Put the filmed PCR plate on the film sealing machine, pay attention to the alignment of the holes, and then touch the switch to start running, the status light is green and flashes, the machine is running normally, and the PCR plate enters the working compartment;

(4) It can be observed that the film sealer first performs a pre-rolling, and after the PCR plate partially exits the working chamber, it enters the second rolling and then completely exits the working chamber. At this time, the status light is yellow, indicating that the operation is over. ;

(5) Take out the sealed PCR plate

Note: The purpose of pre-rolling is to make the sealing film quickly fit and prevent edge warping and unevenness, resulting in poor sealing of the PCR plate.

If the operation or sample is wrong, you need to stop the operation and take out the PCR plate. Touch the switch to withdraw the PCR plate from the working chamber.

W**arn! Remember not to directly handle the PCR plate during operation to prevent personal injury or sample loss.**

---

Basic** Parameters**

M**odel**	FS-E30
Dimensions (L*W*H)	472x119x143mm
PCR Reaction Plate	Non Skirt, Half Skirt, Full Skirt Pcr Reaction Plate, Elisa Plate (Optional)
Sealing Film	PCR Sealing Film (Pressure Sensitive)
Weight	6.7kg

---

Product C**onfiguration** L**ist**

Item	Name	Cat No.	Qty
1	Film Sealer	FS-E30	1 Set
2	Pcr Sealing Film	G6065	1 Box
3	Pcr Reaction Plate	PCR-9601-NS	1 Box
4	Power Cable		1
5	Product Manual		1
6	Warranty Card		1
7	Product Certification		1
