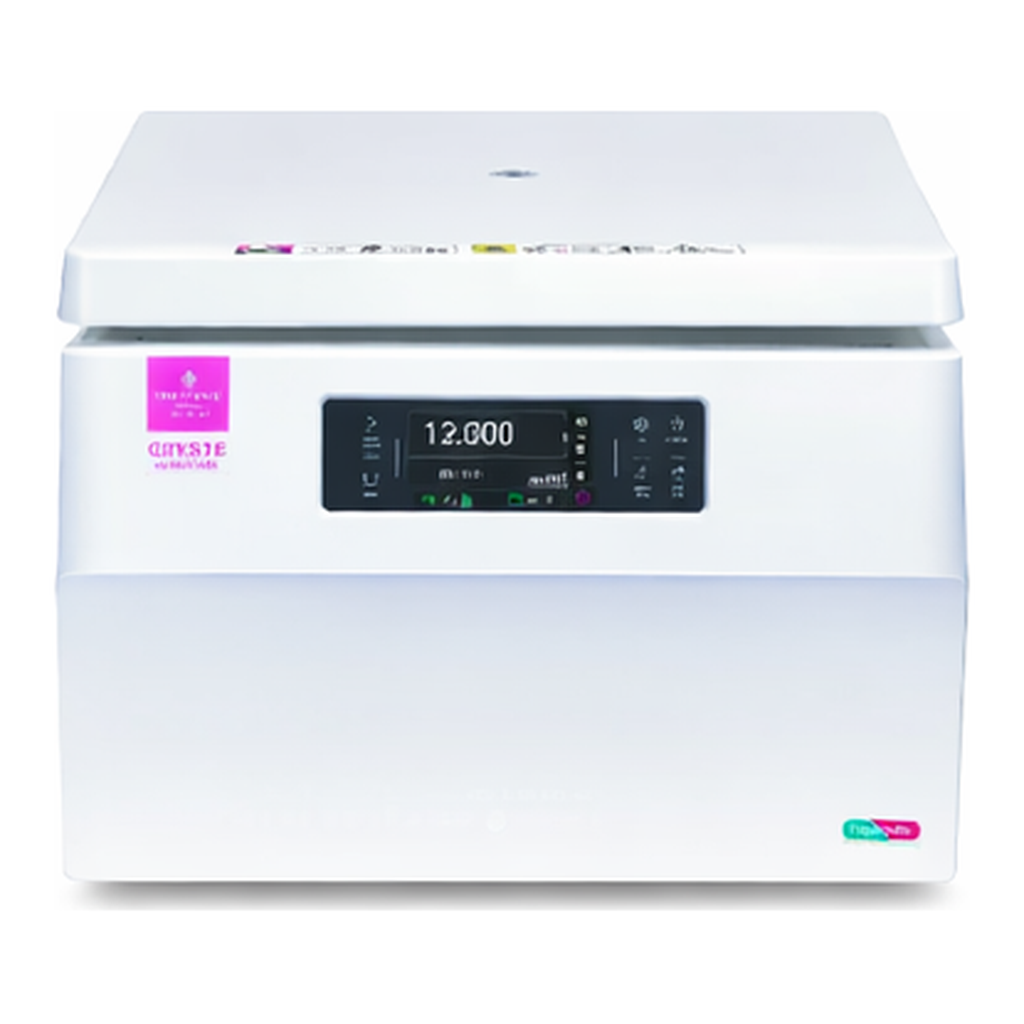

Lklab Korea Multi-Purpose Centrifuge / 다목적 원심분리기

■ 많은 양의 시료 처리와 폭넓은 사용이 가능한 다목적 원심분리기
■ 100 Memory Programs
■ 대기모드 종료 및 냉장기능 자동 종료 기능 내장
■ 4.3인치 LCD Touch Screen
■ 0 ~ 99h 59min 타이머
■ 냉장제어 기술과 로터의 마찰을 최소화하여 정확하고 안정적인 온도 유지 가능
■ 60 db 이하의 소음
■ Rotor 인식 기능
■ Accel/Decel phase : 0 ~ 9(10 step)
■ 비밀번호 설정을 통한 보안 설정
■ 하단의 배수구를 통해 응축수 제거
■ EBS250, BS750 : Biocontainment (병원성 미생물 등 감염 인자가 포함된 에어로졸의 위험을 차단)
Certified for dynamic microbiological test(En611010-020) by TUV NORD(독일 글로벌 시험인증기관)
■ AS301.5TX, AS685TX : Biocontainment (병원성 미생물 등 감염 인자가 포함된 에어로졸의 위험을 차단), Not Certified
■ CRYSTE
※ 이 제품은 의료용기기가 아닙니다.

/* standard table style */ .st-tablebox{ width:800px; max-width:800px; margin-bottom:10px; height:auto; border-top:#cdcdcd solid 3px;} .st-tablebox p{ line-height: 19px;} .st-tablebox th{ height:33px; background-color:#fbf8f4; font-size: 12px; color: #666; font-family:Tahoma; font-weight:bold; text-align:center;} .st-tablebox td{ height:33px; font-size: 12px; color: #777; font-family:돋움; text-align:center;} .st-tablebox th,td{border-left:#cdcdcd solid 1px; border-bottom:#cdcdcd solid 1px;} .st-tablebox .tdfin{border-left:#cdcdcd solid 1px; border-right:#cdcdcd solid 1px;} .st-tablebox .trfinth{background-color:#f5f7f1; font-size: 12px; color: #333; line-height: 33px; font-family:Tahoma; font-weight:bold; border-bottom:#cdcdcd solid 3px; } .st-tablebox .trfinth2{height:33px; background-color:#fbf8f4; font-size: 12px; color: #666; line-height: 33px; font-family:Tahoma; font-weight:bold; text-align:center; border-bottom:#cdcdcd solid 3px; } .st-tablebox .trfinth3{background-color:#f5f7f1; font-size: 12px; color: #333; line-height: 33px; font-family:Tahoma; font-weight:bold; border-bottom:#cdcdcd solid 1px; border-right:#cdcdcd solid 1px;} .st-tablebox .trfinth4{background-color:#f5f7f1; font-size: 12px; color: #333; line-height: 33px; font-family:Tahoma; font-weight:bold; border-bottom:#cdcdcd solid 1px; } .st-tablebox .trfin{border-bottom:#cdcdcd solid 3px; } .st-tablebox .trfin2{border-bottom:#cdcdcd solid 3px; border-right:#cdcdcd solid 1px;} /* standard table style 900 */ .st-tablebox900 { width:900px; max-width:900px; margin-bottom:10px; height:auto; border-top:#cdcdcd solid 3px;} .st-tablebox900 p{ line-height: 19px;} .st-tablebox900 th{ height:33px; background-color:#fbf8f4; font-size: 12px; color: #666; font-family:Tahoma; font-weight:bold; text-align:center;} .st-tablebox900 td{ height:33px; font-size: 12px; color: #777; font-family:돋움; text-align:center;} .st-tablebox900 th,td{border-left:#cdcdcd solid 1px; border-bottom:#cdcdcd solid 1px;} .st-tablebox900 .tdfin{border-left:#cdcdcd solid 1px; border-right:#cdcdcd solid 1px;} .st-tablebox900 .trfinth{background-color:#f5f7f1; font-size: 12px; color: #333; line-height: 33px; font-family:Tahoma; font-weight:bold; border-bottom:#cdcdcd solid 3px; } .st-tablebox900 .trfinth2{height:33px; background-color:#fbf8f4; font-size: 12px; color: #666; line-height: 33px; font-family:Tahoma; font-weight:bold; text-align:center; border-bottom:#cdcdcd solid 3px; } .st-tablebox900 .trfinth3{background-color:#f5f7f1; font-size: 12px; color: #333; line-height: 33px; font-family:Tahoma; font-weight:bold; border-bottom:#cdcdcd solid 1px; border-right:#cdcdcd solid 1px;} .st-tablebox900 .trfinth4{background-color:#f5f7f1; font-size: 12px; color: #333; line-height: 33px; font-family:Tahoma; font-weight:bold; border-bottom:#cdcdcd solid 1px; } .st-tablebox900 .trfin{border-bottom:#cdcdcd solid 3px; } .st-tablebox900 .trfin2{border-bottom:#cdcdcd solid 3px; border-right:#cdcdcd solid 1px;} /* 첨부파일 관련 스타일 */ .st-table_file td{border-left:#cdcdcd solid 0px; border-bottom:#cdcdcd solid 0px; }

Cat. No	Model	Type	Max. Speed
C05-608-071	VARISPIN 12 Set	VARISPIN 12 with S4250TE Rotor, EB250(4ea), S250ET-50C-3(2EA), S250ET-15C-9(2EA)

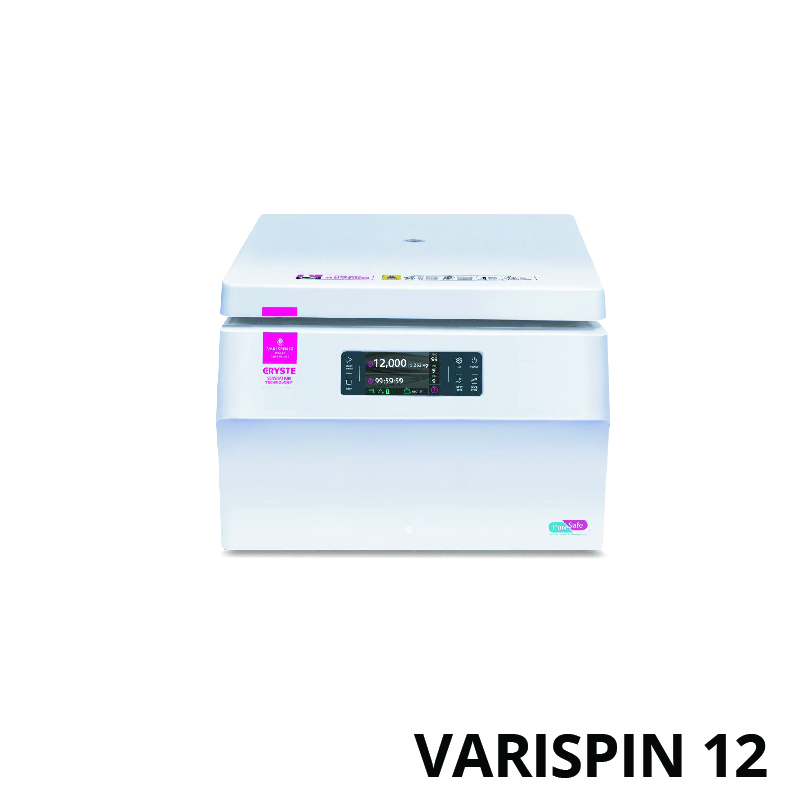

C05-608-076	VARISPIN 12	Multi Centrifuge	12,000 rpm
C05-608-061	VARISPIN 12R Set	VARISPIN 12R with S4250TE Rotor, EB250(4ea), S250ET-50C-3(2EA), S250ET-15C-9(2EA)
C05-608-066	VARISPIN 12R	Refrigerated Muiti Centrifuge	12,000 rpm
C05-608-051	VARISPIN 15 Set	VARISPIN 15 with S4750T Rotor, B750(4ea), S750T-15C-14(2EA), S750T-50C-5(2EA)
C05-608-056	VARISPIN 15	Multi Centrifuge	15,000 rpm
C05-608-041	VARISPIN 15R Set	VARISPIN 15R with S4750T Rotor, B750(4ea), Tube Rack
C05-608-046	VARISPIN 15R	Refrigerated Multi Centrifuge	15,000 rpm

Cat. No	C05-608-076		C05-608-066		C05-608-056		C05-608-046
Model	VARISPIN 12		VARISPIN 12R		VARISPIN 15		VARISPIN 15R
---	---	---	---	---	---	---	---	---
Rotor Type	Angle Rotor	Swing Rotor	Angle Rotor	Swing Rotor	Angle Rotor	Swing Rotor	Angle Rotor	Swing Rotor
---	---	---	---	---	---	---	---	---
Max. rpm	12,000	4.000	12,000	5,000	15,000	4,000	15,000	5,000
---	---	---	---	---	---	---	---	---
Max. Rcf	16,647×g	3,461×g	16,647×g	4,947×g	23,847×g	3,667×g	23,847×g	4,947×g
Max. Capacity	85 ml×6	250 ml×4	85 ml×6	250 ml×4	85 ml×6	750 ml×4	85 ml×6	750 ml×4
Size	w496×d657×h360 mm / 55 kg		w681×d656×h372 mm / 86 kg		w546×d684×h379 mm / 70 kg		w765×d687×h375 mm / 95 kg
Speed	400 ~ 12,000 rpm				400 ~ 15,000 rpm
Set Temperature	-		-10 ~ 40℃ (1℃ increment)		-		-10 ~ 40℃ (1℃ increment)
Power	230 V ±10%, 50/60 Hz, 1 Phase, 1.3 KW		230 V ±10%, 50/60 Hz, 1 Phase, 2 KW		230 V ±10%, 50/60 Hz, 1 Phase, 1.5 KW		230 V ±10%, 50/60 Hz, 1 Phase, 2.5 KW

Optional Angle Rotor

Cat. No	Model
C05-608-401	A480.2T
Rotor Type	48×0.2 ml
Speed	12,000 rpm
Tube Size	Ø6.5 mm
Radius	83.5
Max. Rcf	13,443×g
Tube Angle	45°

Cat. No	Model
C05-608-404	A301.5T
C05-608-428	AS301.5TX
Rotor Type	30×1.5 ml
Speed	15,000 rpm
Available Tube	0.2 ml	0.5 ml	1.5/2.0 ml
Use Adapter	F1.5A-0.2	F1.5A-0.5	-
Tube Size	Ø6.5×44 mm	Ø8×52 mm	Ø11.1×61 mm
Radius	80.3 mm	86.7 mm	94.8 mm
Rcf	20,199×g	21,809×g	23,847×g
Tube Angle	45°

Cat. No	Model
C05-608-407	A481.5T
Rotor Type	48×1.5 ml
Speed	13,000 rpm
Available Tube	0.2 ml	0.5 ml	1.5/2.0 ml
Use Adapter	F1.5A-0.2	F1.5A-0.5	-
Tube Size	In Ø6.5×51 mm Out Ø6.5×44 mm	In Ø8×62 mm Out Ø8×54 mm	In Ø11.1×70 mm Out Ø11.1×61 mm
Radius	In 70.3 mm Out 80.3 mm	In 76.7 mm Out 86.7 mm	In 84.8 mm Out 94.8 mm
Rcf	In 13,283×g Out 15,172×g	In 14,492×g Out 16,381×g	In 16,022×g Out 17,912×g
Tube Angle	45°

Cat. No	Model
C05-608-410	A1215T
Rotor Type	12×15(16) ml
Speed	12,000 rpm
Tube Size	Ø18×117 mm
Radius	97.1 mm
Rcf	15,632×g
Tube Angle	28°

Cat. No	Model
C05-608-413	A1215TC
Rotor Type	12×15 ml Conical
Speed	13,000 rpm
Tube Size	Ø17×129 mm
Radius	100.9 mm
Rcf	19,064×g
Tube Angle	25°

| Cat. No | Model | | |
| --- | --- | --- |
| C05-608-416 | A650T | | |
| Rotor Type | 6×50 ml | | |
| Speed | 12,000 rpm | | |
| Available Tube | 15 ml Conical | 50 ml |
| Use Adapter | F50A-15C | - |
| Tube Size | Ø17×122 mm | Ø29.5×120 mm |
| Radius | 94.3 mm | 99.9 mm |
| Rcf | 15,182×g | 16,083×g |
| Tube Angle | 30° | | |

| Cat. No | Model | | |
| --- | --- | --- |
| C05-608-419 | A650TC | | |
| Rotor Type | 6×50 ml Conical | | |
| Speed | 13,000 rpm | | |
| Available Tube | 15 ml Conical | 50 ml Conical |
| Use Adapter | F50CA-15C | - |
| Tube Size | Ø17×124 mm | Ø30×121 mm |
| Radius | 91.3 mm | 95.7 mm |
| Rcf | 17,250×g | 18,082×g |
| Tube Angle | 25° | | |

| Cat. No | Model | | |
| --- | --- | --- |
| C05-608-422 | A850T | | |
| Rotor Type | 8×50 ml | | |
| Speed | 12,000 rpm | | |
| Available Tube | 15 ml Conical | 50 ml |
| Use Adapter | F50A-15C | - |
| Tube Size | Ø17×123 mm | Ø29.5×120 mm |
| Radius | 97.8 mm | 103.4 mm |
| Rcf | 15,745×g | 16,647×g |
| Tube Angle | 30° | | |

Cat. No	Model
C05-608-425	A685T
C05-608-431	AS685TX
Rotor Type	6×85 ml
Speed	12,000 rpm
Available Tube	15 ml Conical	50 ml Conical	50 ml	85 ml
Use Adapter	F85A-15C	F85A-50C	F85A-50	-
Tube Size	Ø17×123 mm	Ø30×122 mm	Ø29×118 mm	Ø39×118 mm
Radius	90.7 mm	94.8 mm	95.3 mm	99.8 mm
Rcf	14,602×g	15,262×g	15,343×g	16,067×g
Tube Angle	25°

Swing Rotor Specification

Cat. No	C05-608-434	C05-608-437	C05-608-440	C05-608-443
Model	S4250TE	S4250T	S4750T	S4100T
---	---	---	---	---
Max. rpm	4,000	4,500	4,000	5,000
---	---	---	---	---
Radius	182.5 mm	193.5 mm	205 mm	177 mm
---	---	---	---	---
Max. rcf	3,265×g	4,381×g	3,667×g	4,947×g

Optional Swing Rotor Bucket

Rotor
Cat.No	C05-608-434
Model	S4250TE
Bucket
Cat. No	C05-608-522				C05-608-525					C05-608-528
Model	EB250				EBS250					BW250
Type	Basic				Dynamic microbiological tested (En61010-020, by TUV NORD)
Available Adapter	S250ET-3-12 / S250ET-5-12 / S250ET-10-12 / S250ET-15-12 / S250ET-15C-9 / S250ET-50-4 / S250ET-50C-3 / S250ET-85-2 / S250EA-250									-
Adapter
Cat. No	C05-608-531	C05-608-534	C05-608-537	C05-608-540	C05-608-543	C05-608-546	C05-608-549	C05-608-552	C05-608-555	-	-
Model	S250ET -3-12	S250ET -5-12	S250ET -10-12	S250ET -15-12	S250ET -15C-9	S250ET -50-4	S250ET -50C-3	S250ET -85-2	S250EA -250	-	-
Type	12×3 ml	12×5 ml	12×10 ml	12×15 ml	9×15 ml Conical	4×50 ml	3×50 ml Conical	2×85 ml	1×250 ml	4× Microplate	1×Deep well plate
Tube Size (mm)	Ø13.2×h124		Ø16×h124	Ø17.2×h124	Ø17×h127	Ø29.5×h124	Ø29.5×h127	Ø38.5×h124	Ø62.5×h138	-	-
Speed	4,000 rpm
Radius	177.5 mm				180.7 mm	177.5 mm	180.5 mm	177.5 mm	180.5 mm	153.5 mm
Rcf	3,175×g				3,232×g	3,175×g	3,229×g	3,175×g	3,229×g	2,746×g

Rotor
Cat.No	C05-608-437
Model	S4250T
Bucket
Cat. No	C05-608-561
Model	B250
Type	Basic
Available Adapter	S250T-5-8 / S250T-10-7 / S250T-15-5 / S250T-15C-4 / S250T-50-2 / S250A-50C
Adapter
Cat. No	C05-608-728	C05-608-731	C05-608-734	C05-608-737	C05-608-740	C05-608-743	-
Model	S250T-5-8	S250T-10-7	S250T-15-5	S250T-15C-4	S250T-50-2	S250A-50C	-
Type	8×5 ml	7×10 ml	5×15 ml	4×15 ml Conical	2×50 ml	1×50 ml Conical	1×250 ml
Tube Size (mm)	Ø13.5×h145	Ø16×h145	Ø17.5×h145	Ø17×h148	Ø29.5×h145	Ø30×h150	Ø62×h150
Speed	4,500 rpm
Radius	190.5 mm			193.5 mm	190.5 mm	193.5 mm
Rcf	4,313×g			4,381×g	4,313×g	4,381×g

Rotor
Cat.No	C05-608-440
Model	S4750T
Bucket
Cat. No	C05-608-564				C05-608-567					C05-608-570	C05-608-573
Model	B750				BS750					B500	BW750
Type	Basic				Dynamic microbiological tested (En61010-020, by TUV NORD)					Basic
Available Adapter	S750T-3-24 / S750T-5-24 / S750T-10-19 / S750T-15-19 / S750T-15C-14 / S750T-50-7 / S750T-50C-5 / S750A-250									-
Adapter
Cat. No	C05-608-579	C05-608-582	C05-608-585	C05-608-588	C05-608-591	C05-608-594	C05-608-597	C05-608-599	-	-
Model	S750T -3-24	S750T -5-24	S750T -10-19	S750T -15-19	S750T -15C-14	S750T -50-7	S750T -50C-5	S750A -250	-	-
Type	24×3 ml	24×5 ml	19×10 ml	19×15 ml	14×15 ml conical	7×50 ml	5×50 ml conical	1×250 ml	1×750 ml	1×500 ml	4× Microplate	1×Deep Well Plate
Tube Size (mm)	Ø13.2×h136		Ø16×h136	Ø17.2×h136	Ø17×h134	Ø29.5×h136	Ø29.5×h140	Ø62.5×h161	h143 mm	Ø70×h165	-
Speed	4,000 rpm
Radius	198 mm				196 mm	198 mm	202 mm	205 mm		213 mm	170 mm
Rcf	3,542×g				3,506×g	3,542×g	3,613×g	3,667×g		3,810×g	3,041×g

Swing Rotor for Refrigerated Multi Centrifuge

Rotor
Cat.No	C05-608-443
Model	S4100T
Bucket
Cat. No	C05-608-576
Model	B100
Type	Basic
Available Adapter	S100T-1.5-6 / S100T-5-5 / S100T-10-4 / S100T-15-3 / S100T-15C-3 / S100A-50 / S100A-50C / S100A-85 / S100A-100
Adapter
Cat. No	C05-608-701	C05-608-704	C05-608-707	C05-608-710	C05-608-713	C05-608-716	C05-608-719	C05-608-722	C05-608-725
Model	S100T-1.5-6	S100T-5-5	S100T-10-4	S100T-15-3	S100T-15C-3	S100A-50	S100A-50C	S100A-85	S100A-100
Type	6×1.5 ml	5×5 ml	4×10 ml	3×15 ml	3×15 ml conical	1×50 ml	1×50 ml conical	1×85 ml	1×100 ml
Tube Size (mm)	Ø11×h130	Ø13.5×h130	Ø16×h130	Ø17.5×h130	Ø17×h133	Ø29.5×h130	Ø30×h133	Ø38.5×h130	Ø44×h130
Speed	5,000 rpm
Radius	174 mm				177 mm	174 mm	177 mm	174 mm
Rcf	4,683×g				4,947×g	4,683×g	4,947×g	4,683×g
