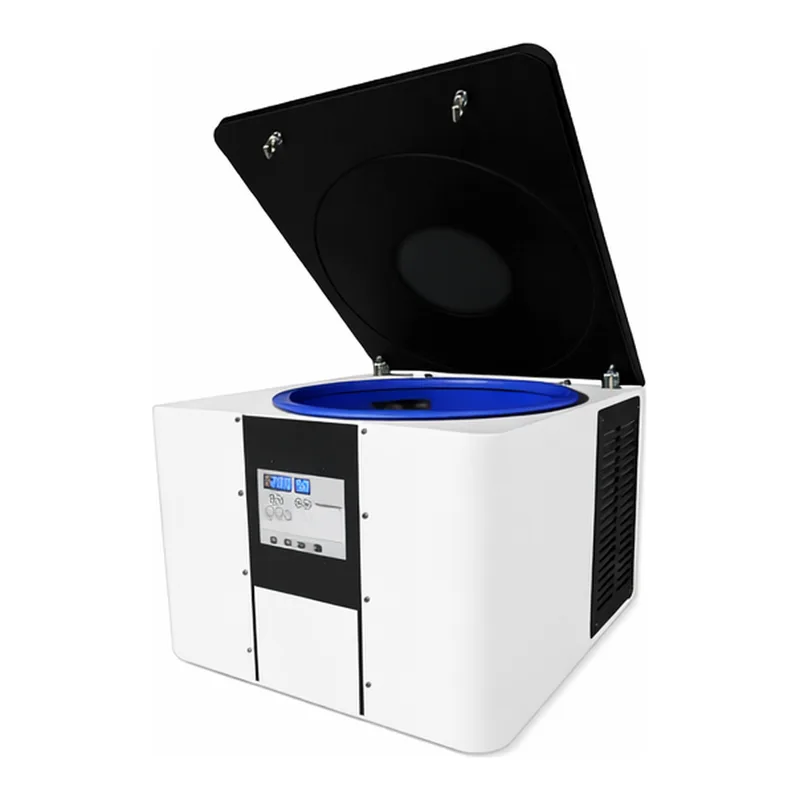

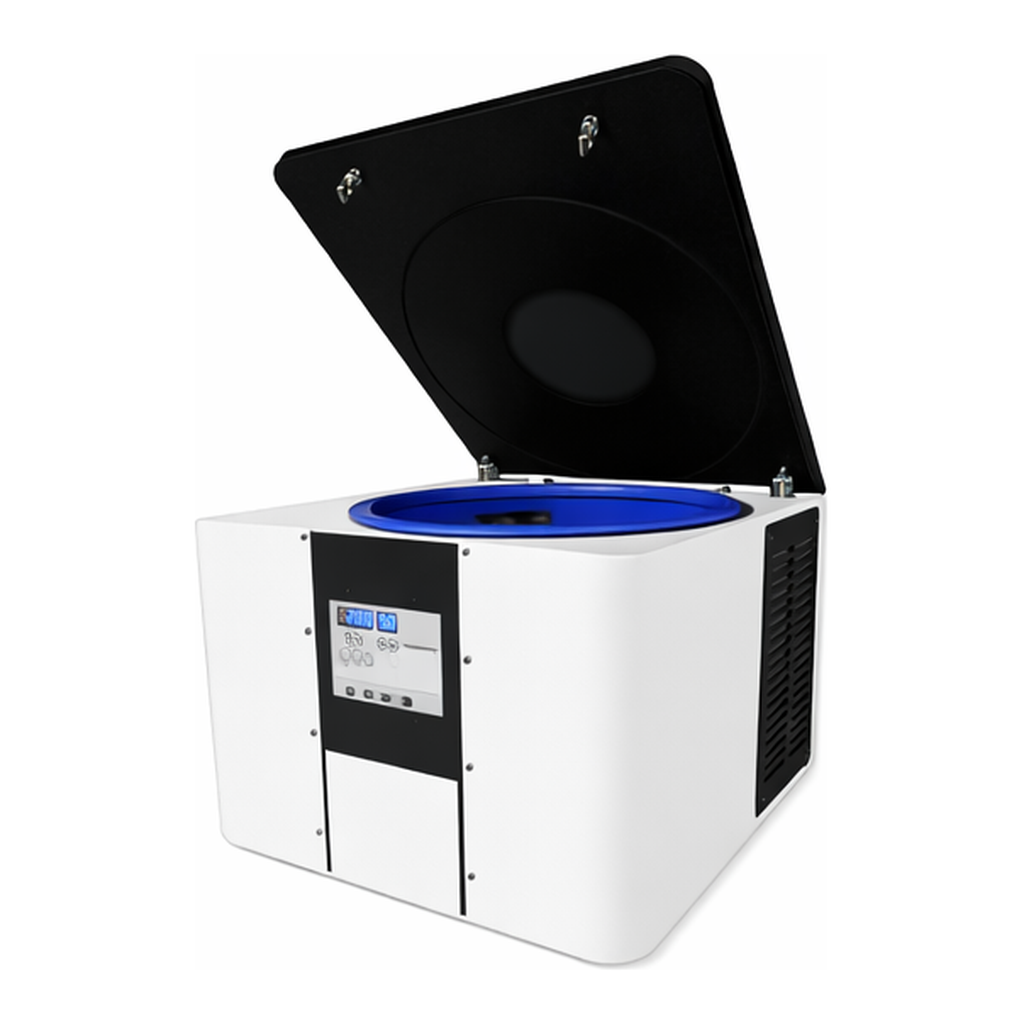

Lklab Korea Advanced Centrifuge, PrO-Analytical / 고급형 대형 원심분리기, Max. 3 L

■ LED Display
■ 10 Memory Programs
■ 10 RPM 단위 속도조절
■ 0 ~ 99 min 타이머 (30초 단위 조절가능)
■ 60 db 이하의 소음
■ Multi-Point lid-locking
■ Emergency lid-release
■ CE / ISO9001 / IVD Certified
■ Rotor 별매
■ -9 ~ 40℃ PID Controlled - CR7000R
■ Max. 3L 까지 가능 (Rotor BRK3000, Bucket B3000 사용시)
■ Centurion Scientific Ltd.
※ 이 제품은 의료용기기가 아닙니다.

Cat. No	Model	Type

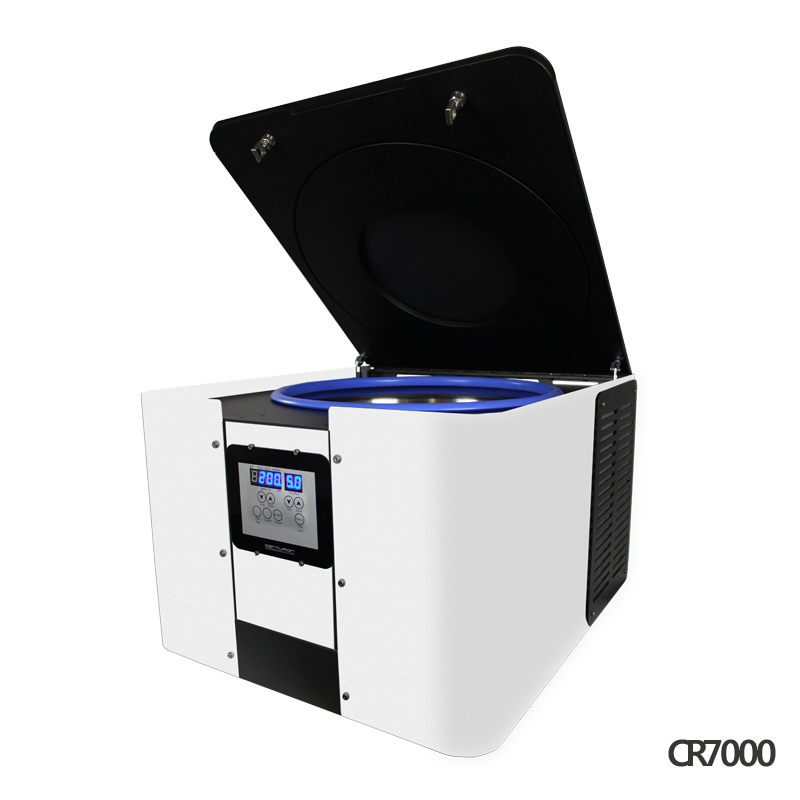

C05-79-185	CR7000	Ambient Large Centrifuge
C05-79-190	CR7000R	Refrigerated Large Centrifuge

Cat. No.	C05-79-185	C05-79-190
Model	CR7000	CR7000R
---	---	---
Size (mm)	w600×d630×h375/ 63.5 kg	w998×d630×h410/ 110 kg
Speed	500 ~ 15,000 rpm
Max. Rcf	22,000 G
Power	750 watts	1200 watts

Optional Rotor

Cat. No	Model
C05-79-667	BRK 3000
Rotor Type	4×500 ml	4×750 ml
Bucket	B2000	B3000
Speed	500 ~ 4,000 rpm
Max. Rcf	3,600 G
Radius Max	20.5
Tube Angle	0°

| | |
| --- | --- |상세 규격 표
| Cat. No | Model |
| --- | --- |
| C05-79-665 | BRK 5540 |
| Rotor Type | 4×Microtitor Plate |
| Speed | 500 ~ 4,000 rpm |
| Tube Size Max. | 85×128 mm |
| Max. Rcf | 2,500 G |
| Radius Max | 14 |
| Tube Angle | 0° |

| | |
| --- | --- |상세 규격 표
| Cat. No | Model |
| --- | --- |
| C05-79-639 | BRK 5324 |
| Rotor Type | 24×15 ml |
| Speed | 500 ~ 6,000 rpm |
| Tube Size Max. | 17×120 mm |
| Max. Rcf | 4,800 G |
| Radius Max | 12 |
| Tube Angle | 30° |

Cat. No	Model
C05-79-727	BRK 5224
Rotor Type	24×15 ml
Speed	500 ~ 10,000 rpm
Tube Size Max.	17×120 mm
Max. Rcf	13,400 G
Radius Max	12
Tube Angle	30°

| | |
| --- | --- |상세 규격 표
| Cat. No | Model |
| --- | --- |
| C05-79-725 | BRK 5208 |
| Rotor Type | 8×50 ml |
| Speed | 500 ~ 10,000 rpm |
| Tube Size Max. | 30×120 mm |
| Max. Rcf | 13,400 G |
| Radius Max | 12 |
| Tube Angle | 30° |

| | |
| --- | --- |상세 규격 표
| Cat. No | Model |
| --- | --- |
| C05-79-723 | BRK 5210 |
| Rotor Type | 6×100 ml |
| Speed | 500 ~ 10,000 rpm |
| Tube Size Max. | 45×125 mm |
| Max. Rcf | 13,400 G |
| Radius Max | 12 |
| Tube Angle | 30° |

| | |
| --- | --- |상세 규격 표
| Cat. No | Model |
| --- | --- |
| C05-79-545 | BRK 5401 |
| Rotor Type | 24 Capillary & 12×2 ml |
| Speed | 500 ~ 12,000 rpm |
| Tube Size Max. | 2×75 / 11×40 mm |
| Max. Rcf | 13,500 G |
| Radius Max | 8.5 |
| Tube Angle | 0 & 60° |

| | |
| --- | --- |상세 규격 표
| Cat. No | Model |
| --- | --- |
| C05-79-653 | BRK 5436 |
| Rotor Type | 36×0.5 ml |
| Speed | 500 ~ 15,000 rpm |
| Tube Size Max. | 8×30 mm |
| Max. Rcf | 22,000 G |
| Radius Max | 8.5 |
| Tube Angle | 45° |

| | |
| --- | --- |상세 규격 표
| Cat. No | Model |
| --- | --- |
| C05-79-553 | BRK 5448 |
| Rotor Type | 48×0.2 ml |
| Speed | 500 ~ 15,000 rpm |
| Tube Size Max. | 6×40 mm |
| Max. Rcf | 22,000 G |
| Radius Max | 8.5 |
| Tube Angle | 45° |

| | |
| --- | --- |상세 규격 표
| Cat. No | Model |
| --- | --- |
| C05-79-655 | BRK 5494 |
| Rotor Type | 4×Pcr Strips |
| Speed | 500 ~ 15,000 rpm |
| Tube Size Max. | 6×40 mm |
| Max. Rcf | 22,000 G |
| Radius Max | 8.5 |
| Tube Angle | 45° |

| | |
| --- | --- |상세 규격 표
| Cat. No | Model |
| --- | --- |
| C05-79-637 | BRK 5308 |
| Rotor Type | 8×50 ml |
| Speed | 500 ~ 6,000 rpm |
| Tube Size Max. | 30×120 mm |
| Max. Rcf | 4,800 G |
| Radius Max | 12 |
| Tube Angle | 30° |

| | |
| --- | --- |상세 규격 표
| Cat. No | Model |
| --- | --- |
| C05-79-635 | BRK 5100 |
| Rotor Type | 6×100 ml |
| Speed | 500 ~ 6,000 rpm |
| Tube Size Max. | 45×125 mm |
| Max. Rcf | 4,800 G |
| Radius Max | 12 |
| Tube Angle | 30° |
