● 구성
1) S700-Basic : Meter, Conductivity Expansion Unit, 2 Blank Expansion Unit, Eel ctrode Holder, Cover, Manual,
PC Software, Test Certificate
2) S700-Kit : “S700-Basic” 기본구성품, InLab® 731-ISM 전극, Guide to Conductivity Measurement, 1회용 Buffer(1413us/cm and 12.88 ms/cm)
3) S700-Trace : “S700-Kit” 기본구성품과 같으나 전극은 Inlab® Trace, With Fol w-Cell and Without Buffer Solution
● 3개의 Module까지 장착 가능하며, 때에 따라서 원하는 Module로 교체 가능함
● Module : PH/MV Expansion Unit, Conductivity Expansion Unit, PH/Ion Expansion Unit, Blank Expansion Unit
● Large Color Display and Intuitive Touch Screen Operation
● GLP Compliant, Including User Management
● The USB, Ethernet and RS232 Interface
● Connection : Barcode Reader, Fingerprint Reader, USB Stick, Network Printer

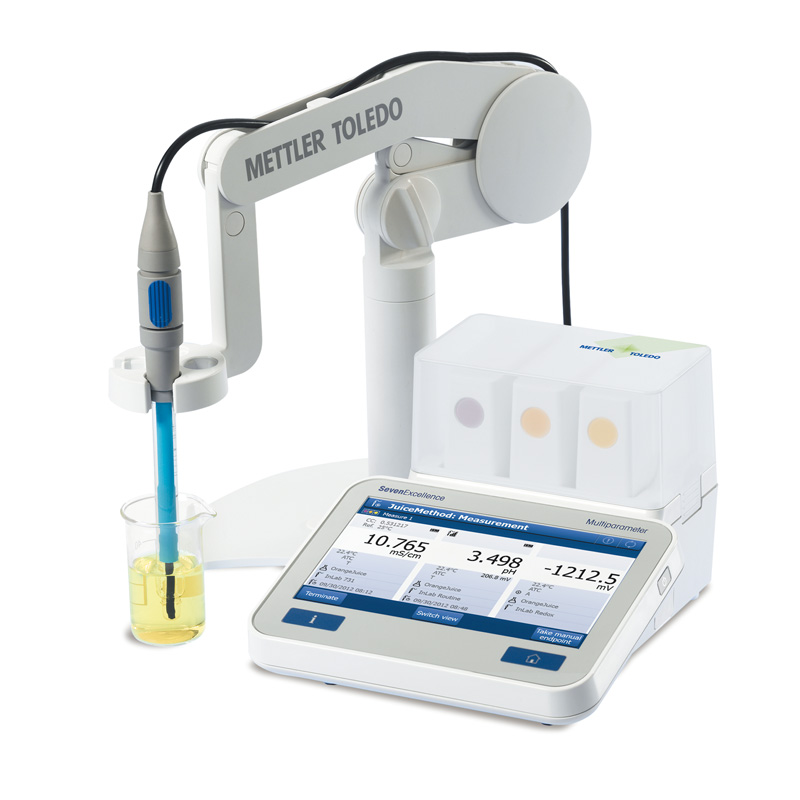

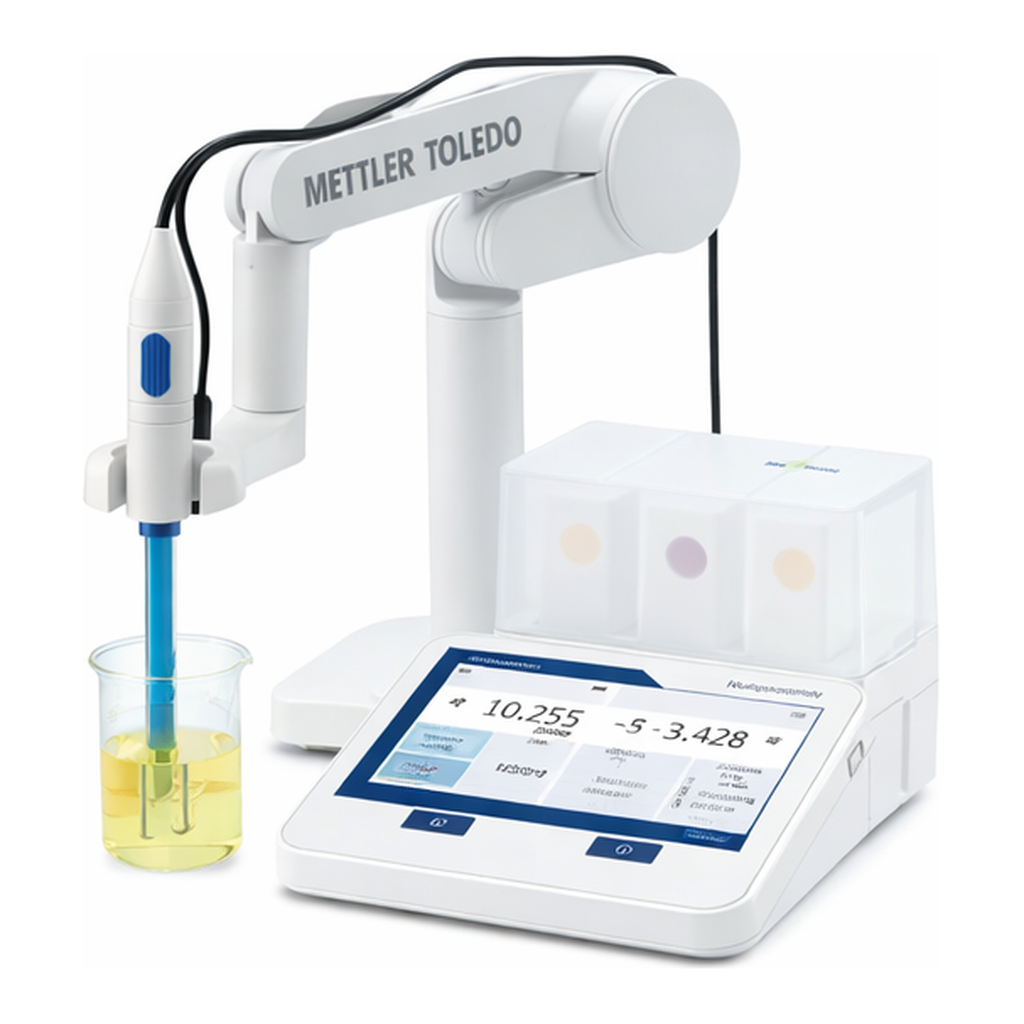

● Mettler Toledo / SevenExcellence™
| | | | |
| --- | --- | --- | --- |상세 규격 표
| Cat. No. | Model | 구분 | 전극 |
| --- | --- | --- | --- |
| C19-162-210 | S700-Basic | Instrument | X (포함 안됨) |
| C19-162-220 | S700-Kit | InLab® 731-ISM | |
| C19-162-230 | S700-Trace | InLab® Trace (Low Conductivity) | |
| | | | |
| --- | --- | --- | --- |상세 규격 표
| S700 | Measuring Range | Resolution | Accuracy |
| --- | --- | --- | --- |
| Conductivity | 0.001 ~ 999999 uS/cm | 0.001~ 1 | ±0.5% |
| TDS | 0.001 ~ 1000 g/L, ppt | 0.001~ 1 | ±0.5% |
| Salinity | 0.01 ~ 80.0 psu, ppt | 0.01 ~ 0.1 | ±0.5% |
| Resistivity | 0.01 ~ 100.0 ㏁ ·㎝ | 0.0001 ~ 1 | ±0.5% |
| Conductivity ash | 0.000 ~ 2022% | 0.001 ~ 1 | ±0.5% |
| Temp. MTC / ATC | -30℃ ~ 130℃ | 0.1℃ | ±0.1℃ |
| Calibration | Calibration Points : 1
Temperature Capture : Automatic (Internal and External) and manual
Manual Input of Cell Constant : Yes | | |
| Regulation | Pure & Ultra-pure Water : USP/EP Compliant | | |
| System and GLP | Time and Date : 2 Time Formats, 4 Date Formats
PIN Protection : Login (Password or Fingerprint Reader)
User Management : 4 Groups-Operator, Technician, Expert, Administrator
Measurement Limits : User-Defined
ID Input : User ID, Sample ID, Sensor SN | | |
| Data Processing | Data Storage : At Least 20000 Data Points, 250 Analyses
Print Formats : Summary and User-Defined | | |
| Connector | Conductivity Input : Mini-DIN | | |
Optional Upgrade Expansion Unit
| Cat. No. |
Model |
Description |
| C19-162-850 |
30034472 |
PH/MV Expansion Unit |
| C19-162-860 |
30034473 |
Conductivity Expansion Unit |
| C19-162-870 |
30034471 |
PH/Ion Expansion Unit |
| C19-162-880 |
30034475 |
Blank Expansion Unit |
General Accessory
| Cat. No. |
Model |
Description |
| C19-162-902 |
11120270 |
Power adapter / w Plugs 12V / 10W |
| P08-162-011 |
30019823 |
uPlace™ electrode holder |
| C19-162-904 |
30041154 |
semi-transparent cover |
| C19-162-914 |
51302888 |
Rondolino Sample Changer |
| C19-162-926 |
51191926 |
USB A-B Cable for LabX↔PC Software |
Conductivity Cell
| Cat. No. |
Model |
Description |
| C19-162-522 |
30014092 |
“Inlab731-ISM” Epoxy, 4 Graphite Pole |
| C19-162-542 |
30014094 |
“Inlab741-ISM” Steel, 2 Steel Pole |
| C19-162-555 |
30014097 |
“Inlab Trace” Titanium, 2 Titanium Pole |
| C19-162-560 |
30014098 |
Flow-Cell for Inlab Trace |
| C19-162-558 |
30014099 |
Inlab Trace Kit, Sensor & Flow Cell |
