● 구성
1) S230-Basic : Meter, Electrode Stand, Protect Cover, Manual, Quick Guide Power Supply, Declaration of Conformity and Test Certificate
2) S230-Kit : “S230-Basic” 기본구성품, InLab731-ISM 전극, Guide to Conductivity & DO, 1회용 buffer 2개
(1413 uS/cm, 12.88 mS/cm)
3) S230-USP/EP : “S230-Kit” 기본구성품과 같으나 전극은 Inlab741-ISM, 1회용 Buffer는 1413 uS/cm 한종류
들어 있음
● 5개의 측정 모드 : Conductivity, TDS, Resistivity, Salinity, Temperature
● 수정 가능한 Cell Constant 및 자동, 수동 온도 보상 가능
● PC나 Printer 연결을 위한 RS232 인터 페이스 기본 내장
● GLP 준수
● IQ/OQ 서비스 제공(옵션사항)
● IP54 설계
● Conductivity Cell 등 악세사리에 대한 자세한 내용은 Accessory란 참조

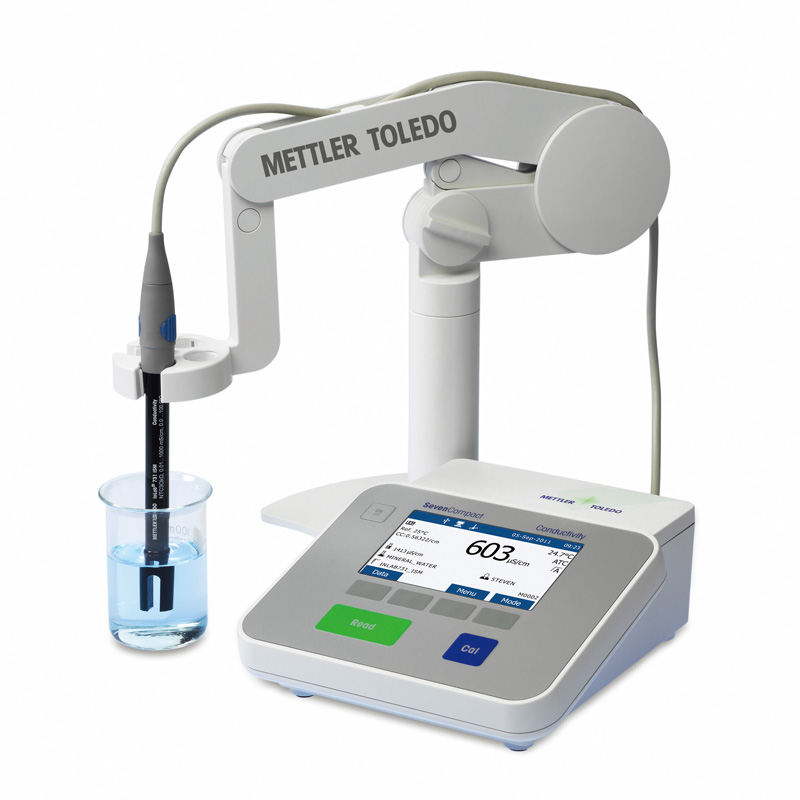

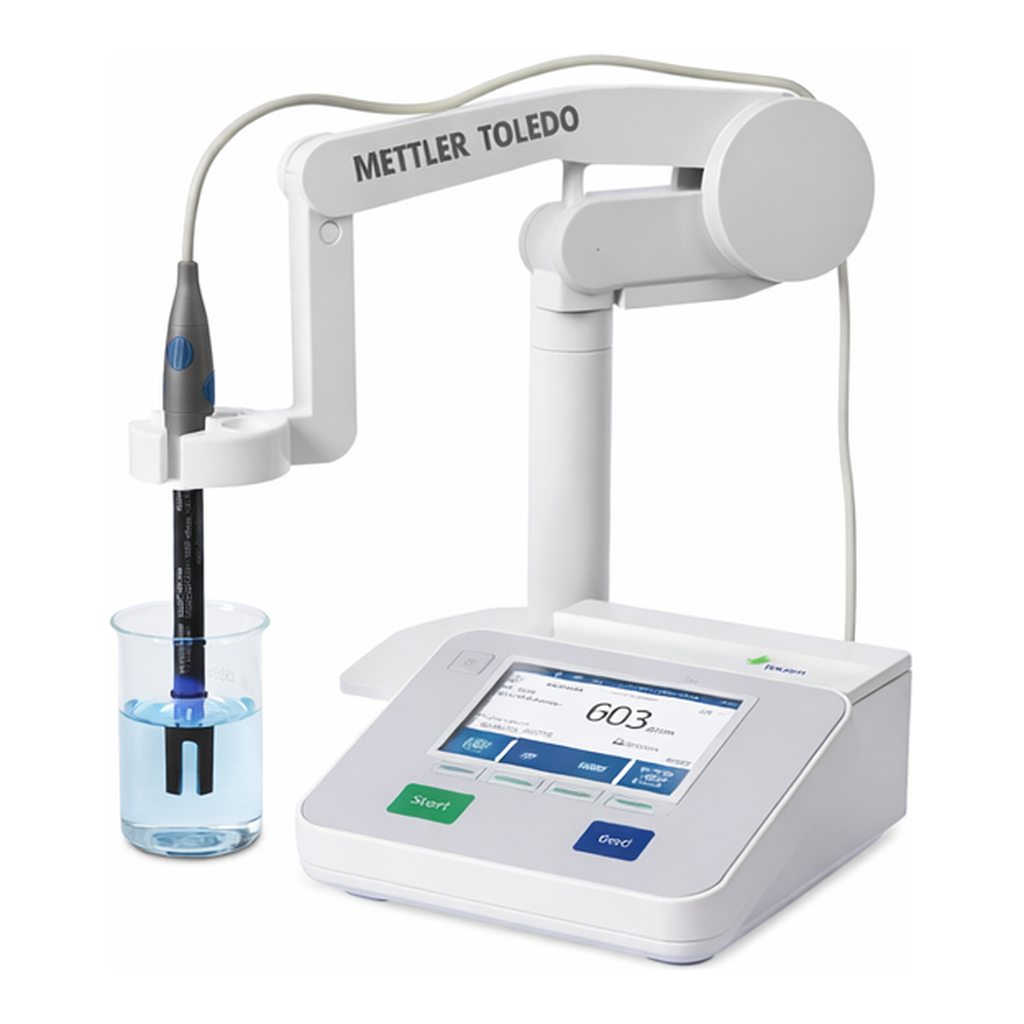

● Mettler Toledo / SevenCompact®
| | | | |
| --- | --- | --- | --- |상세 규격 표
| Cat. No. | Model | 구분 | 전극 |
| --- | --- | --- | --- |
| C19-162-009 | S230-Basic | Instrument | X (포함 안됨) |
| C19-162-016 | S230-Kit | 4 Pole Cell, InLab731-ISM | |
| C19-162-019 | S230-USP/EP | 2 Pole Cell, InLab741-ISM | |
| | | | |
| --- | --- | --- | --- |상세 규격 표
| S230 | Range | Resolution | Accuracy |
| --- | --- | --- | --- |
| Conductivity | 0.001 uS/cm ~ 1000 mS/cm | 0.001 ~1 | ±0.5% |
| TDS | 0.00 mg/L ~ 1000 g/L | 0.01 ~ 1 | ±0.5% |
| Salinity | 0.00 ~ 80.00 psu | 0.00 ~ 1.0 | ±0.5% |
| Resistivity | 0.00 ~ 100.00 ㏁ ·㎝ | 0.00 ~ 1.0 | ±0.5% |
| Conductivity ash | 0.000 ~ 2022% | 0.001 ~ 1 | ±0.5% |
| Temp. MTC | -30℃ ~ 130℃ | 0.1℃ | ±0.1℃ |
| Temp. ATC | -5℃ ~ 130℃ | 0.1℃ | ±0.1℃ |
| Calibration | Points : 1
Temperature Capture : Automatic and Manual
Manual Input of Cell Constant : Yes | | |
| Regulation | Pure & Ultra-pure Water : USP/EP Compliant | | |
| System and GLP | Time and Date : 2 Time Formats, 4 Date Formats
PIN Protection : Login, Deletion of Data, System Settings
Instrument Modes : Routine Mode / Expert Mode
ID Input : User ID, Sample ID, Sensor ID, Sensor SN | | |
| Data Processing | Data Storage : 1000 Measurements
Print Formats : Short, Normal, GLP | | |
| Connector | Mini-DIN | | |
Conductivity Cell
| Cat. No. |
Model |
Description |
| C19-162-522 |
30014092 |
“Inlab731-ISM” Epoxy, 4 Graphite Pole |
| C19-162-542 |
30014094 |
“Inlab741-ISM” Steel, 2 Steel Pole |
| C19-162-555 |
30014097 |
“Inlab Trace” Titanium, 2 Titanium Pole |
| C19-162-560 |
30014098 |
Flow-Cell for Inlab Trace |
| C19-162-558 |
30014099 |
Trace Kit (Sensor & Cell) for Inlab Trace |
- ● InLab731-ISM : 4 Graphite Poles, Epoxy Body, Cell constant 0.57, Mini-DIN, 0.01 mS/cm ~ 1000 mS/cm
● InLab741-ISM : 2 Steel Poles, Stainless Steel Body, Cell constant 0.105, Mini-DIN, 0.001 us/cm ~ 500 us/cm
● InLab Trace : High-accuracy Sensor for Low Conductivities, ATC
Optional Accessory
| Cat. No. |
Model |
Description |
| B02-162-712 |
RS-P25/02 |
Printer with RS232 Cable |
| C19-162-926 |
51191926 |
USB A-B Cable 1.8 M |
