Lklab Korea IKA LR-2.ST High Viscosity Reactor / IKA LR-2.ST 고점도 반응기
다른 상품 둘러보기

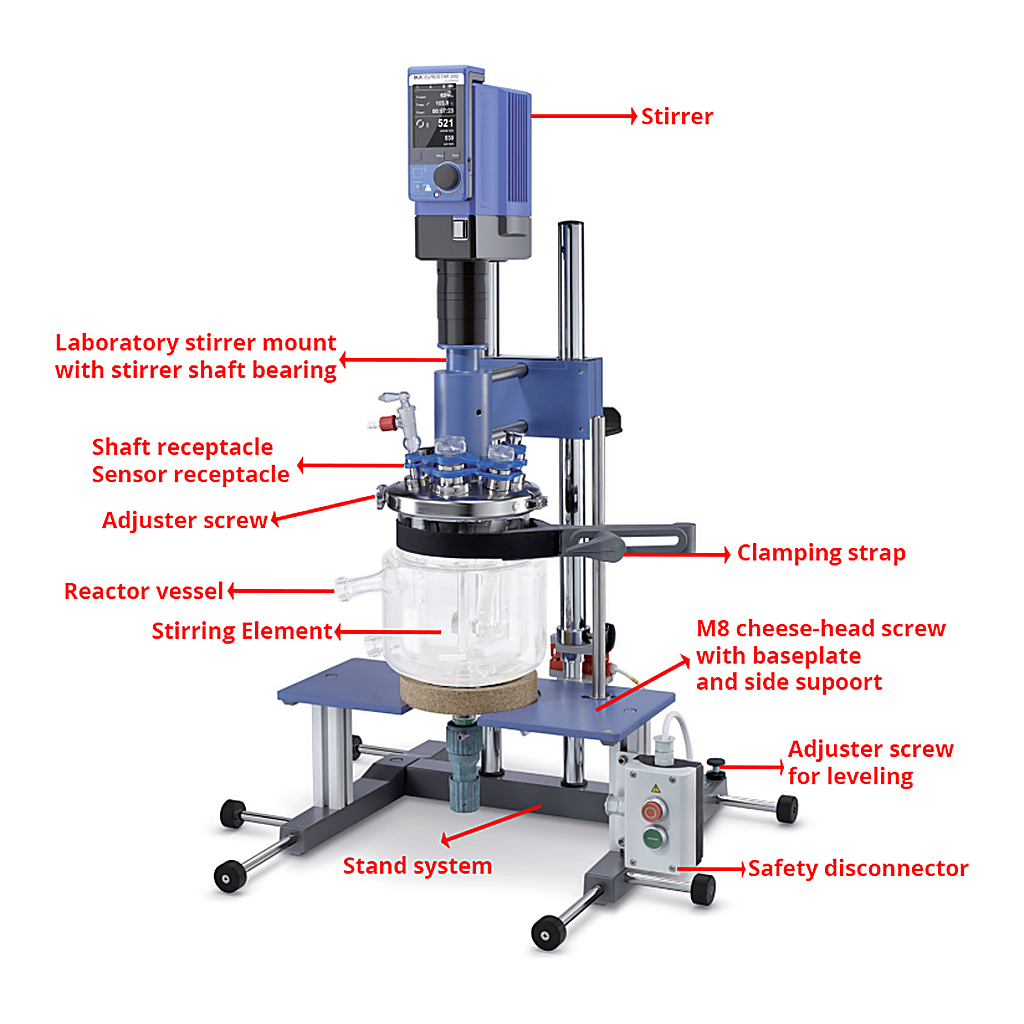

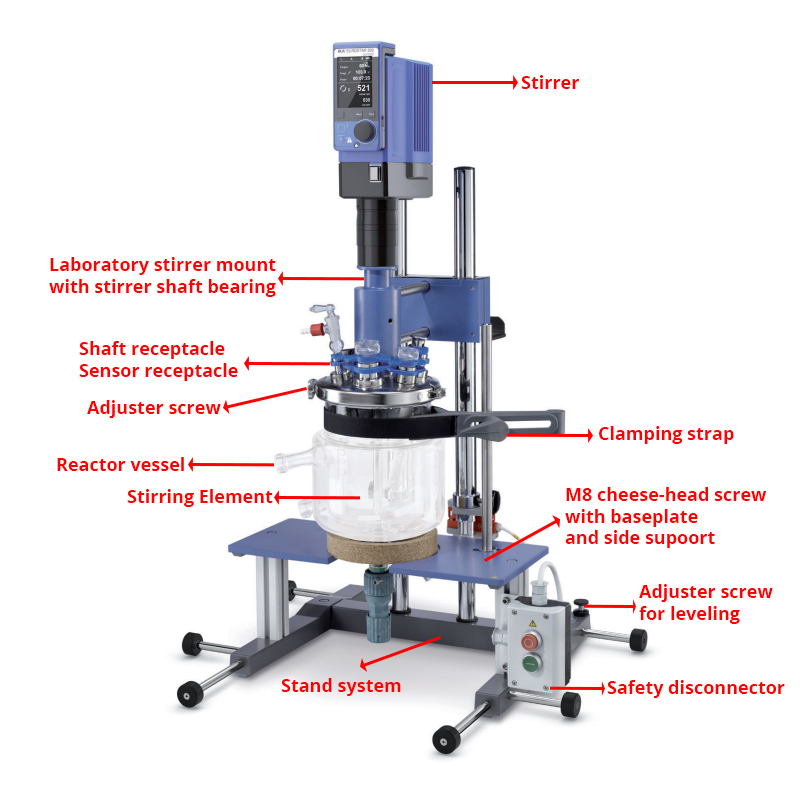

■ 구성 : LR-2.ST, LR-2.SI Safety disconnector, LR2.10 Reactor Head, Stirrer
■ 실험실 규모의 모듈식 반응기
■ 다양한 화학 반응, 혼합 및 균질화 프로세스를 최적화 및 재생
■ ULTRA-TURRAX® disperser, Temperature sensor, Flow breaker 등을 뚜껑의 포트를 통해 장착 가능
■ 진공 작업에 적합
■ 용제 및 FFPM Seal이 샘플과 직접 접촉
■ 회전 속도 조정 가능
■ 점도 변화 표시
■ 안정된 속도 유지를 위해 Microprocessor로 속도 제어
■ 이동식 WiCo(Wiresless Controller)로 흄후드에서 안전하게 사용 가능
■ Starvisc 200은 점도를 보다 정밀하게 표시
■ IKA
/* standard table style */ .st-tablebox{ width:800px; max-width:800px; margin-bottom:10px; height:auto; border-top:#cdcdcd solid 3px;} .st-tablebox p{ line-height: 19px;} .st-tablebox th{ height:33px; background-color:#fbf8f4; font-size: 12px; color: #666; font-family:Tahoma; font-weight:bold; text-align:center;} .st-tablebox td{ height:33px; font-size: 12px; color: #777; font-family:돋움
; text-align:center;} .st-tablebox th,td{border-left:#cdcdcd solid 1px; border-bottom:#cdcdcd solid 1px;} .st-tablebox .tdfin{border-left:#cdcdcd solid 1px; border-right:#cdcdcd solid 1px;} .st-tablebox .trfinth{background-color:#f5f7f1; font-size: 12px; color: #333; line-height: 33px; font-family:Tahoma; font-weight:bold; border-bottom:#cdcdcd solid 3px; } .st-tablebox .trfinth2{height:33px; background-color:#fbf8f4; font-size: 12px; color: #666; line-height: 33px; font-family:Tahoma; font-weight:bold; text-align:center; border-bottom:#cdcdcd solid 3px; } .st-tablebox .trfinth3{background-color:#f5f7f1; font-size: 12px; color: #333; line-height: 33px; font-family:Tahoma; font-weight:bold; border-bottom:#cdcdcd solid 1px; border-right:#cdcdcd solid 1px;} .st-tablebox .trfinth4{background-color:#f5f7f1; font-size: 12px; color: #333; line-height: 33px; font-family:Tahoma; font-weight:bold; border-bottom:#cdcdcd solid 1px; } .st-tablebox .trfin{border-bottom:#cdcdcd solid 3px; } .st-tablebox .trfin2{border-bottom:#cdcdcd solid 3px; border-right:#cdcdcd solid 1px;} /* standard table style 900 */ .st-tablebox900 { width:900px; max-width:900px; margin-bottom:10px; height:auto; border-top:#cdcdcd solid 3px;} .st-tablebox900 p{ line-height: 19px;} .st-tablebox900 th{ height:33px; background-color:#fbf8f4; font-size: 12px; color: #666; font-family:Tahoma; font-weight:bold; text-align:center;} .st-tablebox900 td{ height:33px; font-size: 12px; color: #777; font-family:돋움
; text-align:center;} .st-tablebox900 th,td{border-left:#cdcdcd solid 1px; border-bottom:#cdcdcd solid 1px;} .st-tablebox900 .tdfin{border-left:#cdcdcd solid 1px; border-right:#cdcdcd solid 1px;} .st-tablebox900 .trfinth{background-color:#f5f7f1; font-size: 12px; color: #333; line-height: 33px; font-family:Tahoma; font-weight:bold; border-bottom:#cdcdcd solid 3px; } .st-tablebox900 .trfinth2{height:33px; background-color:#fbf8f4; font-size: 12px; color: #666; line-height: 33px; font-family:Tahoma; font-weight:bold; text-align:center; border-bottom:#cdcdcd solid 3px; } .st-tablebox900 .trfinth3{background-color:#f5f7f1; font-size: 12px; color: #333; line-height: 33px; font-family:Tahoma; font-weight:bold; border-bottom:#cdcdcd solid 1px; border-right:#cdcdcd solid 1px;} .st-tablebox900 .trfinth4{background-color:#f5f7f1; font-size: 12px; color: #333; line-height: 33px; font-family:Tahoma; font-weight:bold; border-bottom:#cdcdcd solid 1px; } .st-tablebox900 .trfin{border-bottom:#cdcdcd solid 3px; } .st-tablebox900 .trfin2{border-bottom:#cdcdcd solid 3px; border-right:#cdcdcd solid 1px;} /* 첨부파일 관련 스타일 */ .st-table_file td{border-left:#cdcdcd solid 0px; border-bottom:#cdcdcd solid 0px; } /* standard table style */ .st-tablebox{ width:800px; max-width:800px; margin-bottom:10px; height:auto; border-top:#cdcdcd solid 3px;} .st-tablebox p{ line-height: 19px;} .st-tablebox th{ height:33px; background-color:#fbf8f4; font-size: 12px; color: #666; font-family:Tahoma; font-weight:bold; text-align:center;} .st-tablebox td{ height:33px; font-size: 12px; color: #777; font-family:돋움
; text-align:center;} .st-tablebox th,td{border-left:#cdcdcd solid 1px; border-bottom:#cdcdcd solid 1px;} .st-tablebox .tdfin{border-left:#cdcdcd solid 1px; border-right:#cdcdcd solid 1px;} .st-tablebox .trfinth{background-color:#f5f7f1; font-size: 12px; color: #333; line-height: 33px; font-family:Tahoma; font-weight:bold; border-bottom:#cdcdcd solid 3px; } .st-tablebox .trfinth2{height:33px; background-color:#fbf8f4; font-size: 12px; color: #666; line-height: 33px; font-family:Tahoma; font-weight:bold; text-align:center; border-bottom:#cdcdcd solid 3px; } .st-tablebox .trfinth3{background-color:#f5f7f1; font-size: 12px; color: #333; line-height: 33px; font-family:Tahoma; font-weight:bold; border-bottom:#cdcdcd solid 1px; border-right:#cdcdcd solid 1px;} .st-tablebox .trfinth4{background-color:#f5f7f1; font-size: 12px; color: #333; line-height: 33px; font-family:Tahoma; font-weight:bold; border-bottom:#cdcdcd solid 1px; } .st-tablebox .trfin{border-bottom:#cdcdcd solid 3px; } .st-tablebox .trfin2{border-bottom:#cdcdcd solid 3px; border-right:#cdcdcd solid 1px;} /* standard table style 900 */ .st-tablebox900 { width:900px; max-width:900px; margin-bottom:10px; height:auto; border-top:#cdcdcd solid 3px;} .st-tablebox900 p{ line-height: 19px;} .st-tablebox900 th{ height:33px; background-color:#fbf8f4; font-size: 12px; color: #666; font-family:Tahoma; font-weight:bold; text-align:center;} .st-tablebox900 td{ height:33px; font-size: 12px; color: #777; font-family:돋움
; text-align:center;} .st-tablebox900 th,td{border-left:#cdcdcd solid 1px; border-bottom:#cdcdcd solid 1px;} .st-tablebox900 .tdfin{border-left:#cdcdcd solid 1px; border-right:#cdcdcd solid 1px;} .st-tablebox900 .trfinth{background-color:#f5f7f1; font-size: 12px; color: #333; line-height: 33px; font-family:Tahoma; font-weight:bold; border-bottom:#cdcdcd solid 3px; } .st-tablebox900 .trfinth2{height:33px; background-color:#fbf8f4; font-size: 12px; color: #666; line-height: 33px; font-family:Tahoma; font-weight:bold; text-align:center; border-bottom:#cdcdcd solid 3px; } .st-tablebox900 .trfinth3{background-color:#f5f7f1; font-size: 12px; color: #333; line-height: 33px; font-family:Tahoma; font-weight:bold; border-bottom:#cdcdcd solid 1px; border-right:#cdcdcd solid 1px;} .st-tablebox900 .trfinth4{background-color:#f5f7f1; font-size: 12px; color: #333; line-height: 33px; font-family:Tahoma; font-weight:bold; border-bottom:#cdcdcd solid 1px; } .st-tablebox900 .trfin{border-bottom:#cdcdcd solid 3px; } .st-tablebox900 .trfin2{border-bottom:#cdcdcd solid 3px; border-right:#cdcdcd solid 1px;} /* 첨부파일 관련 스타일 */ .st-table_file td{border-left:#cdcdcd solid 0px; border-bottom:#cdcdcd solid 0px; } 2.1 kW (9.6 A)
Cat. No. | Model | Description |
---|---|---|
R04-05-011 | 20013294 | LR-2.ST the Compact Power |
R04-05-009 | 20013293 | LR-2.ST the Versatile |
R04-05-007 | 20013292 | LR-2.ST the Allrounder |
R04-05-005 | 20013291 | LR-2.ST the High-Performer |
R04-05-015 | 20020603 | LR-2.ST Starvisc 200 |
Cat. No. | R04-05-011 | R04-05-009 | R04-05-007 | R04-05-005 | R04-05-015 |
---|---|---|---|---|---|
Model | 20013294 | 20013293 | 20013292 | 20013291 | 20020603 |
--- | --- | --- | --- | --- | --- |
Useable volume [ml] | 500 - 2000 ml | ||||
Working temperature [°C] | room temp. - 230 °C | ||||
Attainable vacuum [mbar] | 25 | ||||
Viscosity max. [mPas] | 50000 | 70000 | 100000 | 150000 | 100000 |
Speed min. [rpm] | 8 - 290 | 6 | |||
Telescope stand stroke [mm] | 390 | ||||
Material in contact with medium | Borosilicate glass, FFPM, PTFE, steel 1.4571 | ||||
Reactor vessel openings (units/standard) | 3/NS 29/32 2/NS 14/23 | ||||
Torque max. at stirring shaft [Ncm] | 60 | 100 | 200 | 660 | 200 |
Size | w460×d430×h1240 mm | ||||
Weight [kg] | 25 | 34 | 25 | ||
Enviromental Conditons | Temp. 5 - 40°C / Humidity 80% | ||||
Stirrer | EUROSTAR 60 control | EUROSTAR 100 control | EUROSTAR 200 control | EUROSTAR 200 P4 control | STARVISC 200-2.5 control |
Optional Accessory
Cat. No. | Model | Description |
---|---|---|
R04-05-061 | 3070000 | LR 2.1 Glass Reactor vessel, Single-walled, 2000 ml |
R04-05-063 | 2508300 | LR 2000.1 Glass Reactor vessel, Double-walled, 2000 ml |
R04-05-065 | 2509600 | LR 2000.2 Glass Reactor vessel, Double-walled, Bottom drain, 2000ml |
R04-05-067 | 2509700 | LR 2000.3 Stainless steel Reactor vessel, Double-walled, 2000 ml |
R04-05-069 | 3064900 | LR 2000.4 Stainless steel Reactor vessel, Double-walled, Bottom drain 2000ml |
R04-05-055 | 2508400 | LR 2000.10 Anchor stirrer with PEEK scraper |
R04-05-057 | 2509500 | LR 2000.11 Anchor stirrer, Stainless steel |
R04-05-059 | 2508500 | LR 2000.20 Flow breaker baffle, Stainless steel |
R04-05-101 | 20008820 | T 25 digital LR LAB SCALE DISPERSERS |
H01-05-143 | 25002500 | T 25 easy clean control LAB SCALE DISPERSERS |
H01-05-141 | 25002560 | T 25 easy clean digital LAB SCALE DISPERSERS |
R04-05-071 | 2509200 | LR 2000.40 Shaft receptacle |
H01-05-858 | 2466900 | S25KV-25G Dispersing Element |
H01-05-861 | 2404000 | S25KV-25F Dispersing Element |
R04-05-109 | 25007322 | S25KD - LR25F DISPERSING TOOL Laboratory reactor |
R04-05-105 | 20015397 | S25KV - 26LR Dissolver stirrer, High speed |
R04-05-107 | 25007321 | S25KD - LR25G DISPERSING TOOL Laboratory reactor |
R04-05-075 | 20010075 | LR 2000.64 pH Process electrode |
R04-05-077 | 3172600 | LR 2000.65 pH Measuring sensor receptacle |
R04-05-091 | 25001479 | H 68.55 Temperature sensor, Stainless steel, d: 8 mm |
R04-05-095 | 20009881 | PT 1000.61 Temperature sensor, Ø 6 mm |
B04-05-247 | 4284700 | PT 100.30 Temperature sensor, Stainless steel |
R04-05-073 | 2509300 | LR 2000.60 Sensor receptacle |
P06-05-001 | 35003560 | MVP 10 basic Vacuum pump |
P06-05-003 | 20016432 | Vacstar Digital Vacuum pump |
P06-05-004 | 20109387 | Vacstar Control Vacuum pump |
B04-05-091 | 4165000 | CBC 5 basic Circulator |
B04-05-093 | 4167000 | CBC 5 control Circulator |
B04-05-095 | 25003742 | HRC 2 basic Circulator |
B04-05-097 | 25004524 | HRC 2 control Circulator |
B04-05-081 | 4125000 | HBC 5 basic Circulator |
B04-05-083 | 4127000 | HBC 5 control Circulator |
B04-05-179 | 4569300 | H.FKM.12 Tube FKM, Ø12 mm -30°C - 180°C, 2x1,5m (Not Starvisc) |
R02-05-311 | LT 5.30 | LT 5.30 Tempering hose 800 mm |
R02-05-314 | LT 5.31 | LT 5.31 Tempering hose 1200 mm |
R02-05-317 | LT 5.32 | LT 5.32 Tempering hose 1600 mm |
R04-05-083 | 2235000 | LT 5.23 Hose adapter |
R04-05-085 | 20000878 | LT 5.25 Lock Coupling |
R04-05-087 | 20000879 | LT 5.26 Lock Adapter |
R04-05-089 | 20000880 | LT 5.27 Hose Adapter |
R04-05-090 | 20100227 | LT 5.28 Pressure control valve (Not Starvisc) |
R04-05-093 | 10001849 | HBR 4 control LR Heating bath, 4 l |
B04-05-007 | 20003549 | HBR 4 control Bath Stirring Oil, 4 L |
H03-05-651 | 20017366 | Labworldsoft 6 Pro Software |
H03-05-666 | 20117504 | Labworldsoft 6 Reactor Software |
H03-05-801 | 20003456 | USB SER 4 USB-serial converter 4 ports |
H03-05-803 | 20018480 | USB SER 8 USB-serial converter 8 ports |
H03-05-805 | 20018736 | USB SER 16 USB-serial converter 16 ports |
H03-05-690 | 3192000 | PC4.1 RS232 Server Up to 4 unit |
H03-05-811 | 20021350 | ETH SER 8 Ethernet-serial converter 8 ports |
H03-05-813 | 20021351 | ETH SER 16 Ethernet-serial converter 16 ports |
H03-05-657 | 2616700 | PC 1.1 Cable, L3 m |
R04-05-079 | 3326400 | LR-2.SP Splinter shield |
T22-05-001 | 4709300 | ALMEMO 2490 Temperature measuring instrument |
