Lklab Korea Large Process Reactor System, Jacketed / 자켓식 대형 반응 시스템, 10, 15, 20 L
다른 상품 둘러보기
■ 높이 : Electric (1780 mm) 모터 포함 높이임
■ Valve 하단에서 바닥까지의 높이 : 390 mm (공통)
■ 요청에 의해 Air Type Motor 공급가능
■ Chemglass
1965-615M
| | | | | |
| --- | --- | --- | --- | --- |상세 규격 표
| Cat. No | Model | 용량 | Motor | Manifold Ass. |
| --- | --- | --- | --- | --- |
| R02-132-044 | 1965-610 | 10 L | Electric | X |
| R02-132-053 | 1965-610M | O |
| R02-132-052 | 1965-615 | 15 L | X |
| R02-132-054 | 1965-615M | O |
| R02-132-060 | 1965-620 | 20 L | X |
| R02-132-069 | 1965-620M | O |

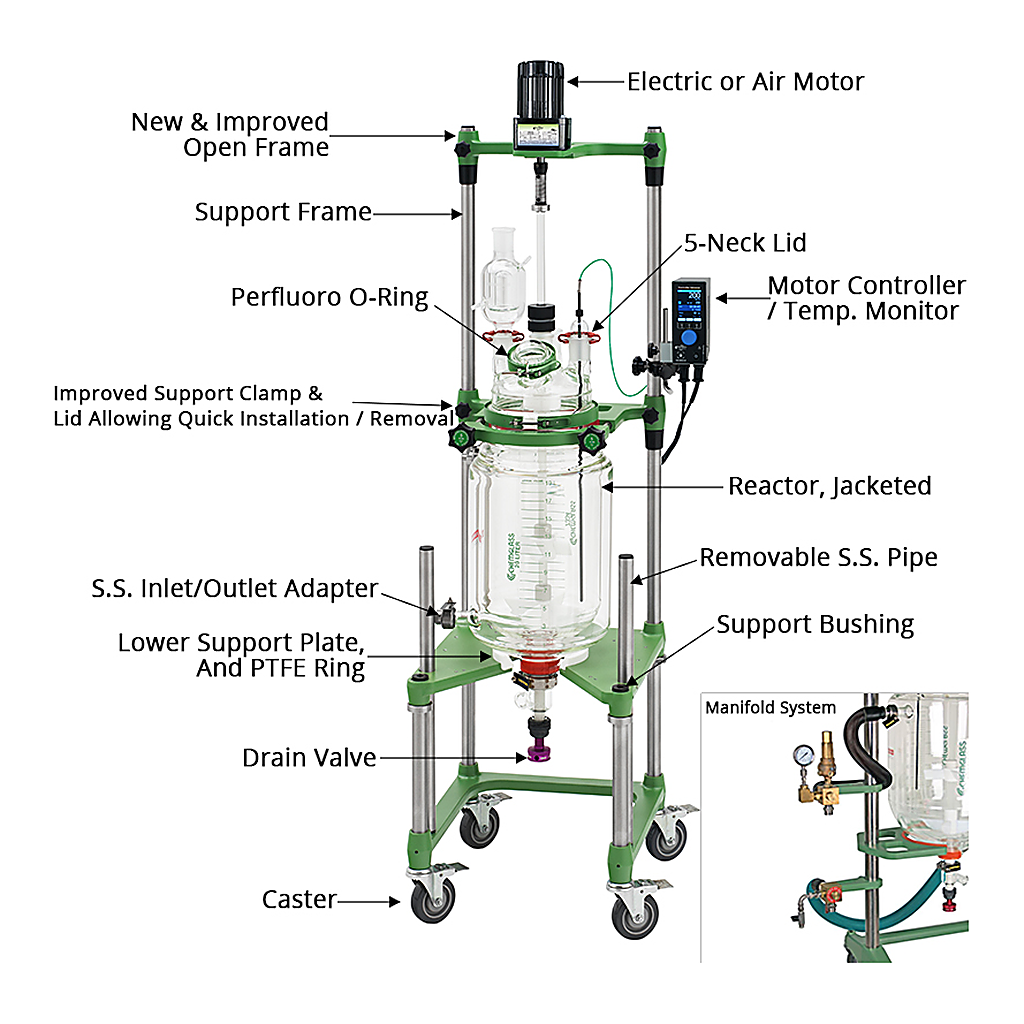

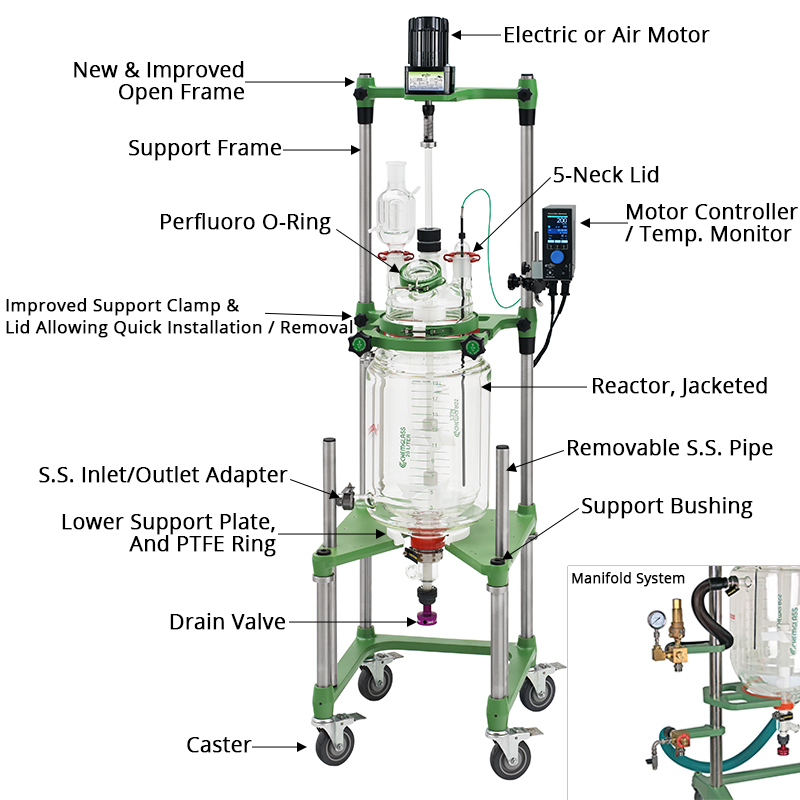

Standard Component, 구성품
| Cat. No. | Model | Description |
|---|---|---|
| R02-132-648 | 1217-25 | Condenser, 45/50, ① |
| R02-132-652 | 2097-10 | 10L, 15L용 19mm Stirrer Shaft, h780mm, ② |
| R02-132-656 | 2097-12 | 15, 20L용 19mm Stirrer Shaft, h880mm, ② |
| R02-132-660 | 2077-H-05 | 19 mm PTFE Stir Bearing, ③ |
| R02-132-664 | 149-01 | 60 mm Glass Cap, ④ |
| R02-132-668 | 141-T-11 | 60 mm S.S. Clamp, PTFE Coated, ⑤ |
| R02-132-672 | 147-80 | 60 mm Perfluoro O-Ring, ⑥ |
| R02-132-676 | 147-84 | 200 mm Perfluoro O-Ring, ⑦ |
| R02-132-232 | 1930-31 | 10L Jacketed Reaction Vessel, ⑧ |
| R02-132-236 | CG-1930-33 | 15L Jacketed Reaction Vessel, ⑧ |
| R02-132-240 | 1930-34 | 20L Jacketed Reaction Vessel |
| R02-132-426 | 1969-A-07 | S.S. Adapter, 1” Beaded Pipe to M30×1.5 Male (2ea), 20 L용 ⑨ |
| R02-132-692 | 1969-A-05 | S.S. Adapter, 1” Beaded Pipe to M16×1 Male (2ea), 10/15 L용 ⑨ |
| R02-132-692C | HN10HM16PF | 1969-A-05 용 Hose Nipple, 10mm Hose-F & 16mmPF |
| R02-132-696 | 1968-66 | 1” Beaded Pipe Coupling (2ea), ⑩ |
| R02-132-410 | 1968-67 | 2” Beaded Pipe Coupling, ⑪ |
| R02-132-709 | 2033-B-25 | Electric Stir Motor, 1/4Hp, 500 RPM, ⑫ |
| R02-132-518 | 2044-30 | 19 mm Tru-Stir® Shaft Coupling, (Electric), ⑬ |
| R02-132-500 | 2033-V-75 | Digital Controller Only for Brushless DC Motor, 120v, ⑮ |
| R02-132-504 | 3498-03 | 1/2” OD Rod, 90°Bend, (17) |
| R02-132-512 | 9253-10 | Universal Kwik Mount Klamp, (18) |
| R02-132-744 | 1042-E-10 | Thermocouple Adapter, 45/50, (19) |
| R02-132-C68 | 1946-50 | 5-Neck Lid, 200 mm, (20) |
| R02-132-752 | 141-T-15 | 200 mm S.S Clamp, PTFE Coated, (21) |
| R02-132-756 | 2093-20 | PTFE Flake Catching Cup, (22) |
| R02-132-761 | 1978-P926 | 1/4” Diameter×660 mm PT100 Temp. Sensor, (23) |
| R02-132-764 | 2095-05 | 127 mm OD PTFE Agitator, 60°, (24) |
| R02-132-768 | 2096-09 | 190 mm OD PTFE Agitator, High Viscosity, 10/15 L용(24) |
| R02-132-769 | 2096-10 | 203 mm OD PTFE Agitator, High Viscosity, 20 L용(24) |
| R02-132-772 | 3055-10 | PTFE Support Ring, ‘V” Cut, (25) |
| R02-132-776 | 1965-X-150 | Auto-Center Support Frame, 1610 mm OAH,(26) |
| R02-132-781 | 1968-GL-040 | Zero Dead Space Drain Valve, (27) |
| R02-132-584 | 3002-L-45 | 45/50 PTFE Stopper W/Loosening Ring |
| R02-132-784 | 1963-B-10 | Beam Torque Wrench |
| R02-132-788 | 1963-B-14 | 7/16” Deep Socket, 6 Point, 1/4” Drive |
- ● 시스템 용량에 따라 Reaction Vessel과 Stirring Shaft가 변경되어짐
