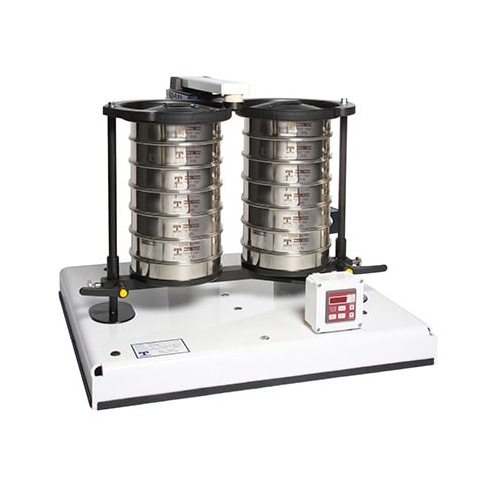

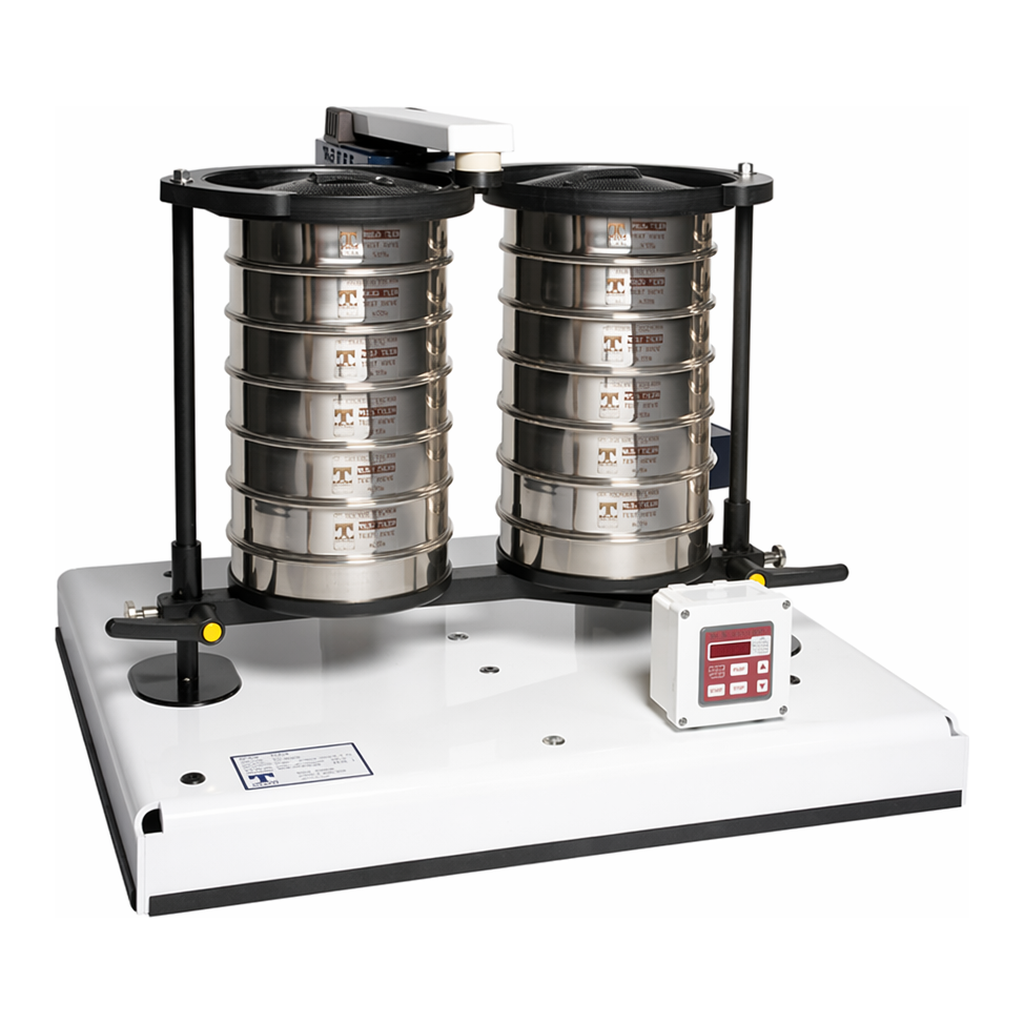

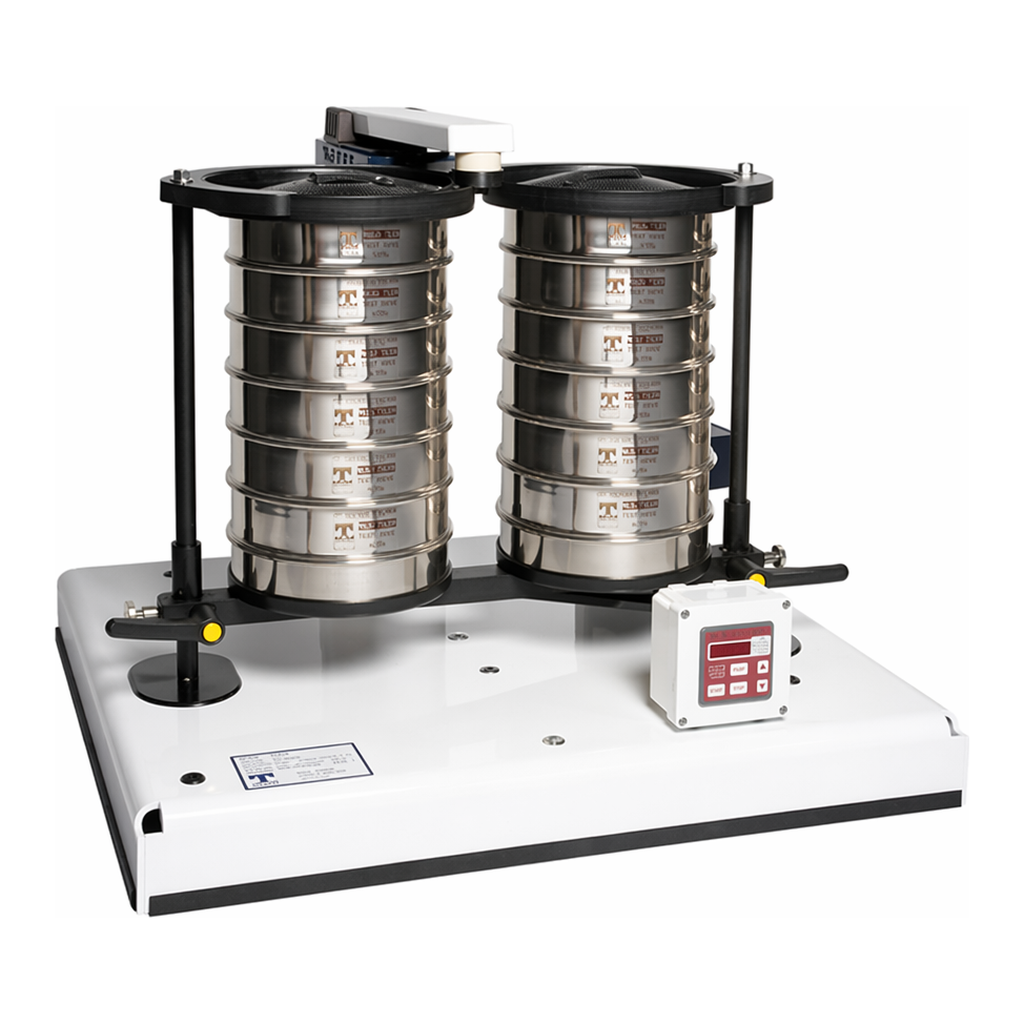

■ RX-29, RX-30의 디자인을 동일하게 적용한 체진동기
■ 2개의 기둥에 고정된 8Diameter Test Sieve를 동시에 진동시킴
■ Testing Application: 2 Down Through 635 Mesh (20 Micron).
■ Clamping System으로 단단히 고정시킬 수 있음
■ Tyler
| Cat. No. |
Model |
Description |
| S19-55-270 |
RX-94-1 |
Ro-Tap 체진동기 2열 |
|
|
| Cat. No. |
S19-55-270 |
| --- |
--- |
| Model |
RX-94-1 |
| --- |
--- |
| Oscillation Per Minute |
278±10 |
| --- |
--- |
| Oscillation Displacement |
1-1/8x 7/16 |
| --- |
--- |
| Taps Per Minute |
150±10 |
| --- |
--- |
| Hammer Weight |
5 lbs., 6 oz. |
| --- |
--- |
| Testing Applications |
2` down through 635 mesh (20 micron) |
| --- |
--- |
| 최대 거치 수량 |
Φ 203 또는 200mm, 최대 12개 (1열 6개 × 2열) |
| --- |
--- |
| Size |
w750 mm x d680 mm x h560 mm, 110 kg |
| --- |
--- |
Optional Accessory
| Cat. No. |
Model |
Description |
| S19-55-925 |
10121 |
Maintance Kit for RX-94 |
| S19-55-927 |
10123 |
Repair Kit for RX-94 |
| S19-55-947 |
RX-99 |
Sound Encloser for RX-94 |
| S19-55-967 |
LA11194 |
Wet Sieving Kit |
* Maintance Kit (10121) :2 Eccentric Discs, 1 Flange Bushing, 1 Bearing, 1 Cork and 2 Flange Bearings
* Repair Kit (10123) :1 Maintenance Kit, 1 Timing Belt, 1 Cam Gear, and 1 Timing Belt Pulley
