DocuLink® Manifold Assembly Identification System

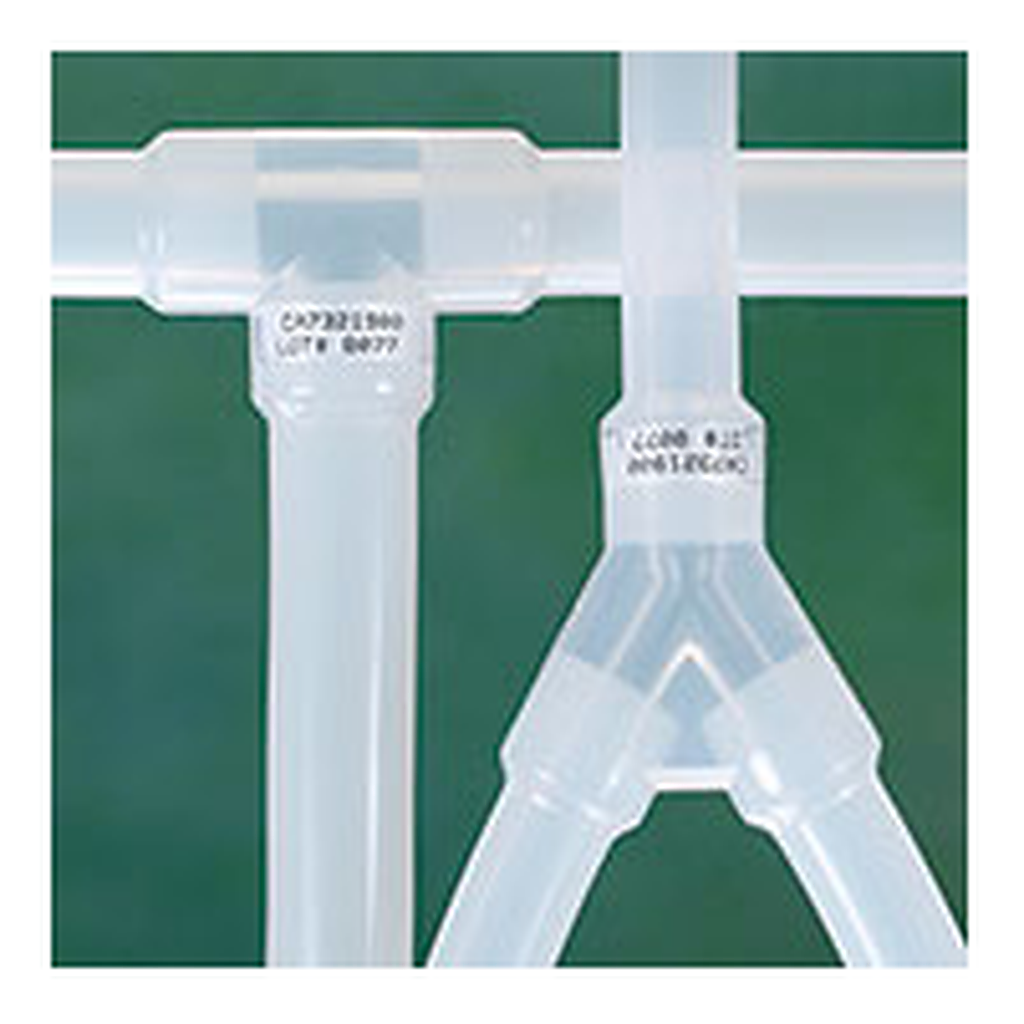

DocuLink is a service designed to save time and effort during document retrieval. DocuLink identifies a single use system on the product itself — not only on the bag from which it was removed — by use of a permanently affixed label encapsulated into the molded silicone connector.
DocuLink lists the individual part number and lot number to allow quick lookup of documents such as certificates of compliance and certificates of analysis.
Molded silicone manifolds are often supplied to customers in labeled bags. Once a manifold is removed from a bag, its individual identification and tracking information — lot numbers, part numbers, and all supplied certificates — are separated. Document retrieval for audits and validations becomes time consuming, tedious, and expensive. DocuLink addresses this burden by providing identification directly on each manifold in the form of a silicone-encased label.
- Visually identifies each manifold with a part number and/or lot number
- Label is permanently molded into the silicone connection
- Does not come into contact with the critical stream
- Allows easy tracking of a manifold assembly back to its origins
- Handles clean-in-place (CIP), steam-in-place (SIP), gamma irradiation, and autoclave processes
- Cannot fall off like adhesive labels
- Molded and packaged in an ISO Class 7 (Class 10,000) clean room
- Identification can be linked to an online data management site
- Documented quality control` lot traceable with identification on polybags
Customize to fit your needs
- Every individual manifold is manufactured with a permanently affixed label including part number and lot number
- Enables tracking of manifold assembly back to its origins
- Permanently molded into the silicone connector
- Handles clean-in-place (CIP) or steam-in-place (SIP) processes
- Gamma sterilizable
Manifold I.D. Number can be linked to an online data management site (optional)
- Fast, easy access to certifications for each individual manifold & its AdvantaPure-assembled components
- Facilitates gathering of documents for FDA audits
- A less expensive method of document storage & retrieval
Download a printable version of our DocuLink brochure. DocuLink.pdf (676kb)
