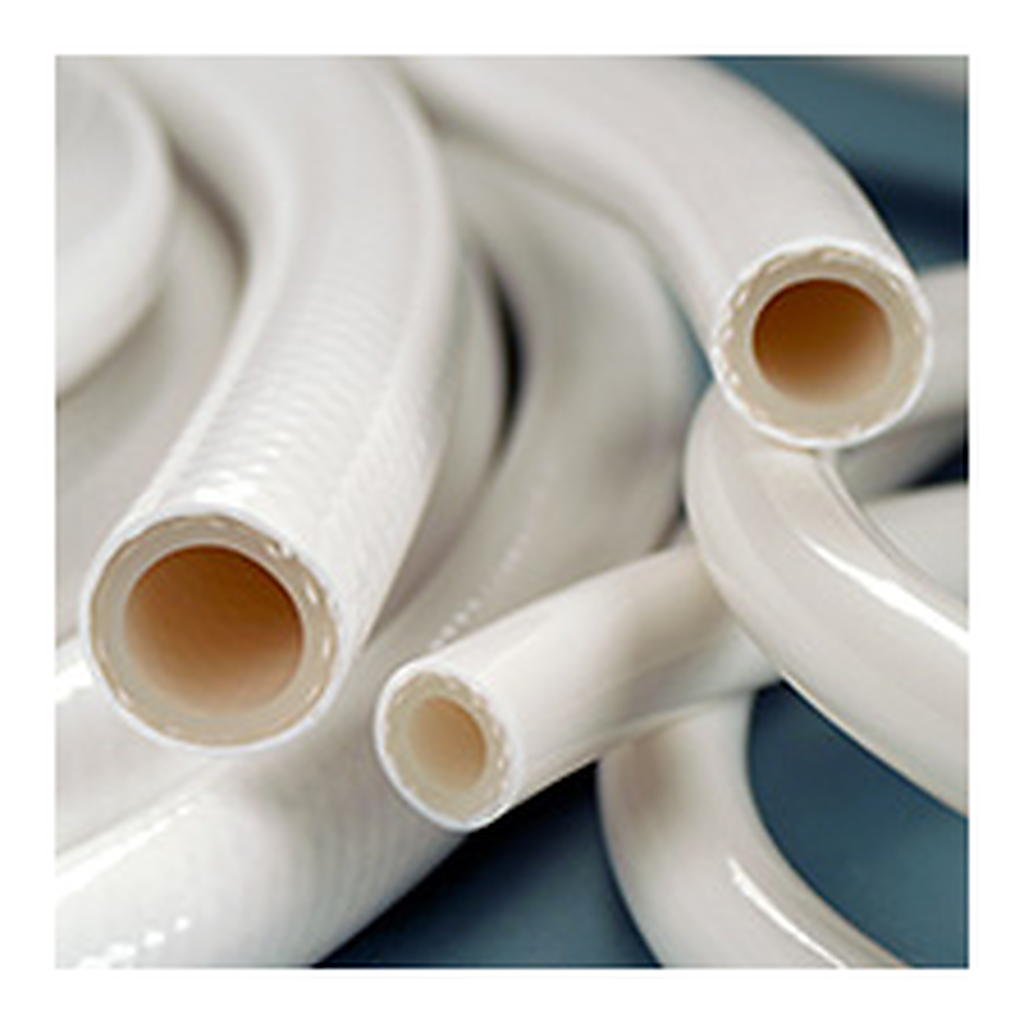

APSH-DB: Double-Braided Silicone Hose

Offered as an alternative to mandrel-built wrapped silicone hose, AdvantaSil® APSH-DB provides several advantages over wrapped hose. APSH-DB, an extruded product, is available in lengths up to 50 feet. It offers more flexibility than wrapped hose and comparable working pressure ratings. APSH-DB meets USP Class VI, FDA CFR 177.2600, ISO 10993 and European Pharmacopoeia 3.1.9 standards. Full BPOG standardized extractables test protocol has been performed on the hose liner by a fully-accredited, third-party test lab.

AdvantaSil APSH-DB Double Braid-Reinforced Silicone Hose is not intended for implantation and is not to be used for continuous steam applications.

KEY FEATURES

• Particulate testing per USP 788 is performed quarterly
• All assembly and final packaging of extruded tubing is performed in an ISO Class 7 clean room
• Low volatile grade suitable for pharmaceutical and biopharm applications
• AdvantaSil APSH-DB has a Master File with the U.S. Food and Drug Administration (#27582)
• Liner made of silicone certified by the National Sanitation Foundation for food equipment materials (NSF-51)
• Provided with white-colored outer silicone for a neat, clean appearance
• Certified free of animal-derived ingredients
• General temperature range: -100°F (-73.3°C) to 400° F (204.4°C)
• Resists temperature extremes, compression set, chemical attack, ozone, radiation, moisture and environmental exposure
• Sterilizable/autoclavable
• Documented lot traceable with identification on packaging
• Documented quality control per ISO 9001:2015
• Complete validation package available upon request

Full BPOG standardized extractables test results available on request

SPECIFICATIONS

항목	값
APSH-DB - DOUBLE-BRAIDED SILICONE HOSE--------------------------------------
