AdvantaFlex®: Biopharmaceutical Grade TPE Tubing

VAT 별도
108,000
판매자: 비티알
브랜드: Advantapure
상품 옵션 정보
Part No설명상태단위가격
APAF-BP-0125-0250-500SAdvantaFlex®: Biopharmaceutical Grade TPE Tubing, APAF-BP-0125-0250-500S판매중PK1,080,000
APAF-BP-0125-0250LAdvantaFlex®: Biopharmaceutical Grade TPE Tubing, APAF-BP-0125-0250L판매중PK108,000
APAF-BP-0250-0375LAdvantaFlex®: Biopharmaceutical Grade TPE Tubing, APAF-BP-0250-0375L판매중PK126,000
APAF-BP-0250-0438LAdvantaFlex®: Biopharmaceutical Grade TPE Tubing, APAF-BP-0250-0438L판매중PK206,000
APAF-BP-0375-0625LAdvantaFlex®: Biopharmaceutical Grade TPE Tubing, APAF-BP-0375-0625L판매중PK297,000
APAF-BP-0500-0750LAdvantaFlex®: Biopharmaceutical Grade TPE Tubing, APAF-BP-0500-0750L판매중PK363,000

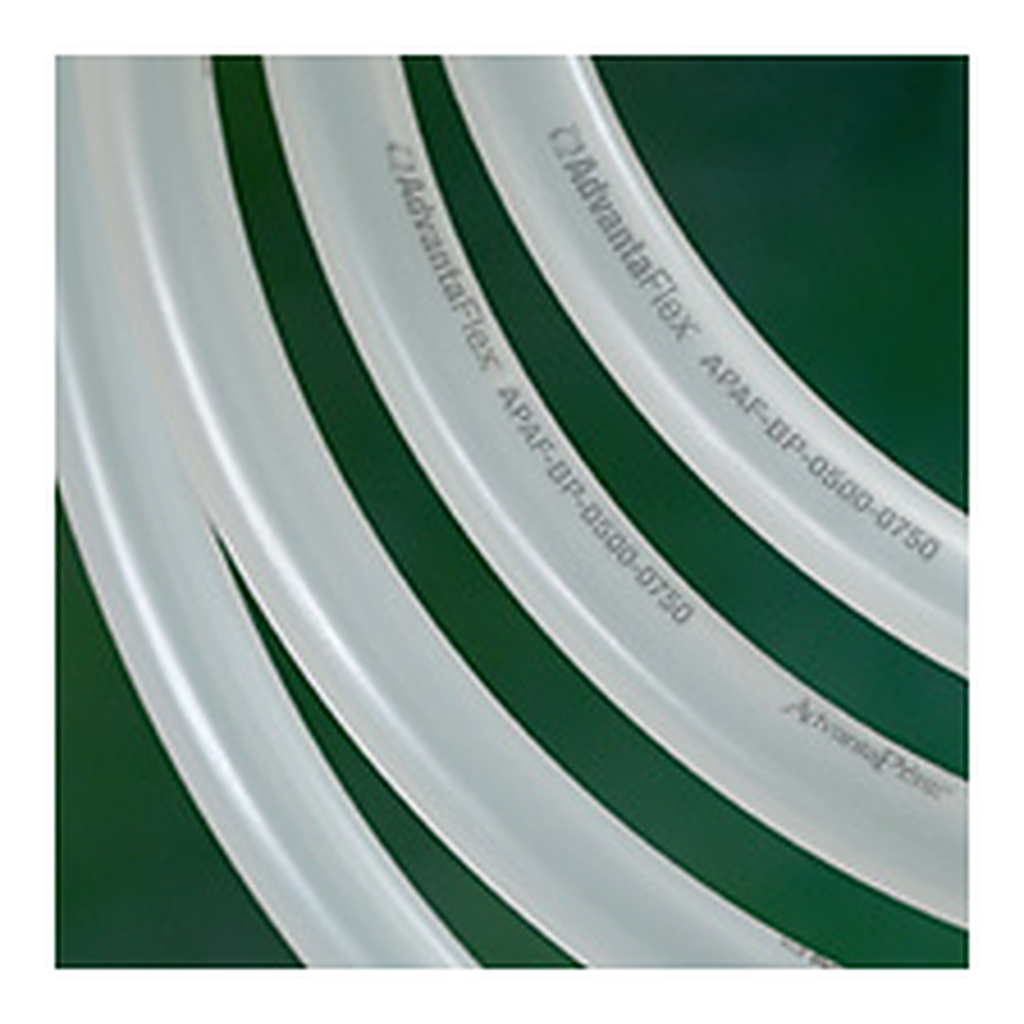

AdvantaFlex Biopharmaceutical Tubing There is a Better Alternative

AdvantaFlex addresses the need for a flexible, translucent, sterilizable, moldable, heat sealable, and weldable biopharmaceutical tubing for fluid processing. AdvantaFlex TPE tubing maintains its physical properties following sterilization processes, resists kinking, remains translucent for visible product flow, and does not become gummy.

Full BPOG standardized extractables test protocol has been performed by a fully-accredited, third-party test lab.

welded AdvantaFlex tubing AdvantaFlex heat seal

KEY FEATURES

  • Sterile weldable and heat sealable
  • Available as leak-proof molded connections and tubing
  • Made from FDA-approved ingredients
  • Animal Derived Ingredient FreeCertified free of silicone oils and animal-derived ingredients
  • Sterilizable by autoclave or gamma radiation
  • Available with validated sterility assurance of 10-6 via gamma irradiation per ISO 11137 method VDmax 25
  • Meets various ISO and USP standards, including Class VI
  • Meets European Pharmacopoeia 3.2.2.1 standards
  • REACH, RoHS and California Proposition 65 compliant
  • Excellent low absorption and adsorption characteristics as compared to silicone
  • Low permeability as compared to silicone
  • Smooth interior for excellent flow and performance
  • Translucent for fluid flow visibility
  • Excellent tubing component for Single-Use systems
  • Sizes from 1/8" (.125) through 1" (1.000) I.D.
  • Custom lengths, sizes, and packaging available
  • Supplied double bagged` sealed in polybags at manufacture for cleanliness
  • Documented lot traceable with identification on packaging
  • Documented quality control per ISO 9001:2015
  • Single resin validation — no need to graft to other tubing materials like silicone for media filling and sampling applications that involve peristaltic pumps` helps eliminate operator errors
  • "Extractables" test portfolio available upon request
  • AdvantaFlex has a Master File with the U.S. Food and Drug Administration (#28810)
  • Complete validation package available upon request

Full BPOG standardized extractables test results available on request

There is a Better Alternative
Discover how much better the right tubing — AdvantaFlex — will work in
your pharmaceutical, biotech, medical, or other critical processing application.

AdvantaFlex Weld Strength

Weld Test Video


APPLICATIONS

  • AdvantaFlex with bagsSterile filling
  • Vaccine production
  • Pharmaceutical sampling and delivery systems
  • Single-use systems
  • Bioreactor processes
  • Cell media, harvesting, and fermentation
  • Pharmaceutical production and processing
  • High purity water transfer
  • Filtration

Because of its ability to be sealed and welded, AdvantaFlex is ideal for filling and sampling applications.


SPECIFICATIONS

항목
ADVANTAFLEX® - BIOPHARMACEUTICAL GRADE TPE------------------------------------------ AdvantaFlex Biopharmaceutical TPE tubing

ADVANTAFLEX® - BIOPHARMACEUTICAL GRADE TPE.JPG



MOLDED ASSEMBLIES AND CONNECTIONS

  • AdvantaFlex molded connectionsBuild a complete single use system from AdvantaFlex
  • Eliminates the need to splice silicone tubing sections into a process line
  • Reduce the number of barbed fittings and cable ties needed and their potential for contamination, leaks, and a wasted batch of product
  • AdvantaFlex molded connections provide a smooth inner surface for even, unrestricted flow
  • AdvantaFlex MoldedChoose from Ts, Ys, reducers, couplers, crosses, mini and standard Tri-Clamps®, BioClosure® container closures and inserts such as GL45`s
  • Available with validated sterility assurance of 10-6 via gamma irradiation per ISO 11137 method VDmax 25

filling assembliesFilling Assemblies

Sterile molded filling assemblies from AdvantaPure continue the shift to Single-Use processes that save time and reduce the risk of cross contamination while increasing productivity between batches. Manufactured with a focus on quality, the assemblies can be quickly installed and operational in a fraction of time as compared to traditional systems used in pharmaceutical and biotech filling.

MORE ABOUT MOLDED FILLING ASSEMBLIES


BioClosure System AssembliesBioClosure System Assemblies

animal derived indgediantsStandardized configurations for media bottles, flasks and carboys using AdvantaFlex Biopharmaceutical Grade TPE tubing and molded components are available.

MORE ABOUT BIOCLOSURE SYSTEM ASSEMBLIES


bioreactor tubingBioreactor Tubing Kits

The Single-Use kits are custom manufactured and assembled from a variety of components — tubing, filters, connectors — to meet your needs. Made from platinum-cured silicone or AdvantaFlex® biopharmaceutical grade TPE tubing, AdvantaPure`s Bioreactor Tubing Kits provide convenience and greater efficiency.

MORE ABOUT BIOREACTOR TUBING KITS


PDF Download a printable version of our AdvantaFlex brochure. AdvantaFlex.pdf (616kb)
