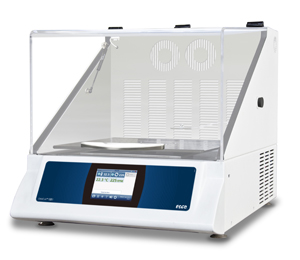

OrbiCult™ Benchtop Incubator Shaker

The Oribult™ Benchtop Incubator Shaker offers precise temperature control and maintenance to provide your cells with the optimum temperature conditions throughout the cell culture duration. The force convection ventilation design of this model ensures consistent and stable temperature. Precise programmable microprocessor extend versatilities through controllable time, speed and temperature.

Long term reliability with excellent performance:

• *TriDrive™: *Esco’s unique triple-eccentric counterbalanced drive supports heavy duty and high speed applications.
• *RobustDrive™: *This mechanism eliminates the need for lubrication as the Brushless DC Motor reduces maintenance.
• *SmartRun™: *Excellent out-of-balance sensor and propriety imbalance compensation algorithm adjust the optimum revolutions per minute (rpm) to ensure smooth operation without any vibration.
• Microprocessor PID controller enables accurate temperature, gas, speed and running time settings to deliver valid results.
• Data are saved even after power failure.

Flexibility and Versatility

• Apt to fit any application required for your operation.
• Offers multiple choice of accessories which allow to customize and meet the appropriate application.
• Two types of orbit (19 mm and 25 mm) that meets different application.
• Gassing manifold function add versatility for aerobic and anaerobic cultivation.

User-Friendly Control System

• *SmarTouch™: *Large 5.7` intuitive touchscreen clearly displays every parameter and status of the shaker at a glance.
• Easy-to-use design enables to set parameter precisely.
• Historical settings can easily track and review from the touchscreen.
• Voyager® - coordinated with a software kit that remotely monitor and control the shakers conveniently through computer.
• Audible and visible alarm every end run.

Built for Safety

• Audible and visible alarms alert any speed and temperature deviations.
• Temperature sensor stops the heater or compressor in any exceeded temperature.
• The door sensor will pause the driver motor rotation every time the chamber door is open.
• Shaker automatically restarts after power interruption for the non-volatile program saved in the memory.
• Each shaker is individually factory tested for performance assurance in accordance with international standards.
• External surfaces are powder coated with Esco ISOCIDE™ to eliminate 99.9% of surface bacteria within 24 hours exposure.

TECHNICAL SPECIFICATION
MODEL	IBS-NR-19	IBS-NR-25	IBS-R-19	IBS-R-25
Orbit	19mm (0.7")	25mm(1.0")	19mm(0.7")	25mm (1.0")
Speed	15-575 rpm
rpm Accuracy	+ 1
Display	Coloured Touchscreen
Timer	9999 minutes
Platform Size	P3, 457 x 457 mm (18.0" x 18.0")
Maximum Load	30 kg (66.1lbs)	25 kg (55.1 lbs)	30 kg (66.1lbs)	25 kg (55.1 lbs)
External Dimension (W x D x H)	560 x 820 x 625 mm (22.0" x 32.3" x 24.6")
Net Weight	70 kg (154.3 lbs)	70 kg (154.3 lbs)	80 kg (176.4 lbs)	80 kg (176.4 lbs)
Cover Material	UL 94 Flammability Standard, V-) requirement made of ABS plastic
Base Construction	3.0 mm (0.1") 18 gauge EG Steel with IsocideTM antimicrobial powder coating
Main Construction	2.0 mm (0.07") 18 gauge EG Steel with IsocideTM antimicrobial powder coating
Workzone Construction	2.0 mm (0.07") 18 gauge Stainless Steel with IsocideTM antimicrobial powder coating
Temperature Range	15oC (below ambient) - 80oC		5oC (below ambient) - 80oC
Shipping Weight	90 kg (198.4 lbs)		100 kg (220.5 lbs)
Shipping Dimension (W x D x H)	720 x 1120 x 860 mm (44.1" x 28.4" x 33.9")
Shipping Volume, Maximum	0.7 mm3 (24.7 cu. ft.)

Esco offers a variety of options and accessories to meet local applications. Contact Esco or your local Sales Representative for ordering information.

Universal Platforms – have standard holes pattern that can fit any flask clamps and test tube rack. All multiple flask clamps and labware holders are shipped separately and installed by the end user.

Platform List (Universal)
Item Code	Item Name	Description	Flask Clamp Capacity Guide
25ml	50ml	125ml	250ml	300ml	500ml	1L	2L	2.8L
5270017	P3 Platform Universal	457 x 457 mm (18.0" x 18.0")	64	64	32	16	16	16	8	5	4

Dedicated Platforms – platforms have a customized pattern to optimize the number of a particular size of flask clamp on a platform. Dedicated platforms are pre-installed with the flask clamps.

Item Code	Item Name	Description	Flask Clamp Capacity
5270032	P3 Platform Dedicated 25ml	457 x 457 mm (18.0" x 18.0") for 25ml Flask	64
5270033	P3 Platform Dedicated 50ml	457 x 457 mm (18.0" x 18.0") for 50ml Flask	64
5270034	P3 Platform Dedicated 125ml	457 x 457 mm (18.0" x 18.0") for 125ml Flask	32
5270035	P3 Platform Dedicated 250ml	457 x 457 mm (18.0" x 18.0") for 250ml Flask	16
5270036	P3 Platform Dedicated 300ml	457 x 457 mm (18.0" x 18.0") for 300ml Flask	16
5270037	P3 Platform Dedicated 500ml	457 x 457 mm (18.0" x 18.0") for 500ml Flask	16
5270038	P3 Platform Dedicated 1L	457 x 457 mm (18.0" x 18.0") for 1L Flask	8
5270039	P3 Platform Dedicated 2L	457 x 457 mm (18.0" x 18.0") for 2L Flask	5
5270040	P3 Platform Dedicated 2.8L	457 x 457 mm (18.0" x 18.0") for 2.8L Flask	4

• Flask Clamps – Single piece stainless steel clamps that provide enough strength and security to hold flasks.
• Test Tube Racks – Stainless steel rack that stabilizes and hold test tubes.
• Microplate Holder – Double layer racks that hold up to six standard deep well plates.
• ** Utility Carrier –** Made of stainless steel that holds different glassware in between of adjustable stainless steel bars.
• Sticky Mats – Allows the user to place the flask directly on the mat without the use of a clamp. Sticky mats are very convenient if the user desires to rotate at less than 350rpm. This can be ordered separately and attach on Universal Platform.
• Gas Manifold – Contain 12 gas port that adds aerobic and anaerobic cell cultivation.

Features

Long term reliability with excellent performance:

• *TriDrive™: *Esco’s unique triple-eccentric counterbalanced drive supports heavy duty and high speed applications.
• *RobustDrive™: *This mechanism eliminates the need for lubrication as the Brushless DC Motor reduces maintenance.
• *SmartRun™: *Excellent out-of-balance sensor and propriety imbalance compensation algorithm adjust the optimum revolutions per minute (rpm) to ensure smooth operation without any vibration.
• Microprocessor PID controller enables accurate temperature, gas, speed and running time settings to deliver valid results.
• Data are saved even after power failure.

Flexibility and Versatility

• Apt to fit any application required for your operation.
• Offers multiple choice of accessories which allow to customize and meet the appropriate application.
• Two types of orbit (19 mm and 25 mm) that meets different application.
• Gassing manifold function add versatility for aerobic and anaerobic cultivation.

User-Friendly Control System

• *SmarTouch™: *Large 5.7` intuitive touchscreen clearly displays every parameter and status of the shaker at a glance.
• Easy-to-use design enables to set parameter precisely.
• Historical settings can easily track and review from the touchscreen.
• Voyager® - coordinated with a software kit that remotely monitor and control the shakers conveniently through computer.
• Audible and visible alarm every end run.

Built for Safety

• Audible and visible alarms alert any speed and temperature deviations.
• Temperature sensor stops the heater or compressor in any exceeded temperature.
• The door sensor will pause the driver motor rotation every time the chamber door is open.
• Shaker automatically restarts after power interruption for the non-volatile program saved in the memory.
• Each shaker is individually factory tested for performance assurance in accordance with international standards.
• External surfaces are powder coated with Esco ISOCIDE™ to eliminate 99.9% of surface bacteria within 24 hours exposure.

Models

TECHNICAL SPECIFICATION
MODEL	IBS-NR-19	IBS-NR-25	IBS-R-19	IBS-R-25
Orbit	19mm (0.7")	25mm(1.0")	19mm(0.7")	25mm (1.0")
Speed	15-575 rpm
rpm Accuracy	+ 1
Display	Coloured Touchscreen
Timer	9999 minutes
Platform Size	P3, 457 x 457 mm (18.0" x 18.0")
Maximum Load	30 kg (66.1lbs)	25 kg (55.1 lbs)	30 kg (66.1lbs)	25 kg (55.1 lbs)
External Dimension (W x D x H)	560 x 820 x 625 mm (22.0" x 32.3" x 24.6")
Net Weight	70 kg (154.3 lbs)	70 kg (154.3 lbs)	80 kg (176.4 lbs)	80 kg (176.4 lbs)
Cover Material	UL 94 Flammability Standard, V-) requirement made of ABS plastic
Base Construction	3.0 mm (0.1") 18 gauge EG Steel with IsocideTM antimicrobial powder coating
Main Construction	2.0 mm (0.07") 18 gauge EG Steel with IsocideTM antimicrobial powder coating
Workzone Construction	2.0 mm (0.07") 18 gauge Stainless Steel with IsocideTM antimicrobial powder coating
Temperature Range	15oC (below ambient) - 80oC		5oC (below ambient) - 80oC
Shipping Weight	90 kg (198.4 lbs)		100 kg (220.5 lbs)
Shipping Dimension (W x D x H)	720 x 1120 x 860 mm (44.1" x 28.4" x 33.9")
Shipping Volume, Maximum	0.7 mm3 (24.7 cu. ft.)

Accessories

Esco offers a variety of options and accessories to meet local applications. Contact Esco or your local Sales Representative for ordering information.

Universal Platforms – have standard holes pattern that can fit any flask clamps and test tube rack. All multiple flask clamps and labware holders are shipped separately and installed by the end user.

Platform List (Universal)
Item Code	Item Name	Description	Flask Clamp Capacity Guide
			25ml	50ml	125ml	250ml	300ml	500ml	1L	2L
5270017	P3 Platform Universal	457 x 457 mm (18.0" x 18.0")	64	64	32	16	16	16	8	5

Dedicated Platforms – platforms have a customized pattern to optimize the number of a particular size of flask clamp on a platform. Dedicated platforms are pre-installed with the flask clamps.

Item Code	Item Name	Description	Flask Clamp Capacity
5270032	P3 Platform Dedicated 25ml	457 x 457 mm (18.0" x 18.0") for 25ml Flask	64
5270033	P3 Platform Dedicated 50ml	457 x 457 mm (18.0" x 18.0") for 50ml Flask	64
5270034	P3 Platform Dedicated 125ml	457 x 457 mm (18.0" x 18.0") for 125ml Flask	32
5270035	P3 Platform Dedicated 250ml	457 x 457 mm (18.0" x 18.0") for 250ml Flask	16
5270036	P3 Platform Dedicated 300ml	457 x 457 mm (18.0" x 18.0") for 300ml Flask	16
5270037	P3 Platform Dedicated 500ml	457 x 457 mm (18.0" x 18.0") for 500ml Flask	16
5270038	P3 Platform Dedicated 1L	457 x 457 mm (18.0" x 18.0") for 1L Flask	8
5270039	P3 Platform Dedicated 2L	457 x 457 mm (18.0" x 18.0") for 2L Flask	5
5270040	P3 Platform Dedicated 2.8L	457 x 457 mm (18.0" x 18.0") for 2.8L Flask	4

• Flask Clamps – Single piece stainless steel clamps that provide enough strength and security to hold flasks.
• Test Tube Racks – Stainless steel rack that stabilizes and hold test tubes.
• Microplate Holder – Double layer racks that hold up to six standard deep well plates.
• ** Utility Carrier –** Made of stainless steel that holds different glassware in between of adjustable stainless steel bars.
• Sticky Mats – Allows the user to place the flask directly on the mat without the use of a clamp. Sticky mats are very convenient if the user desires to rotate at less than 350rpm. This can be ordered separately and attach on Universal Platform.
• Gas Manifold – Contain 12 gas port that adds aerobic and anaerobic cell cultivation.
