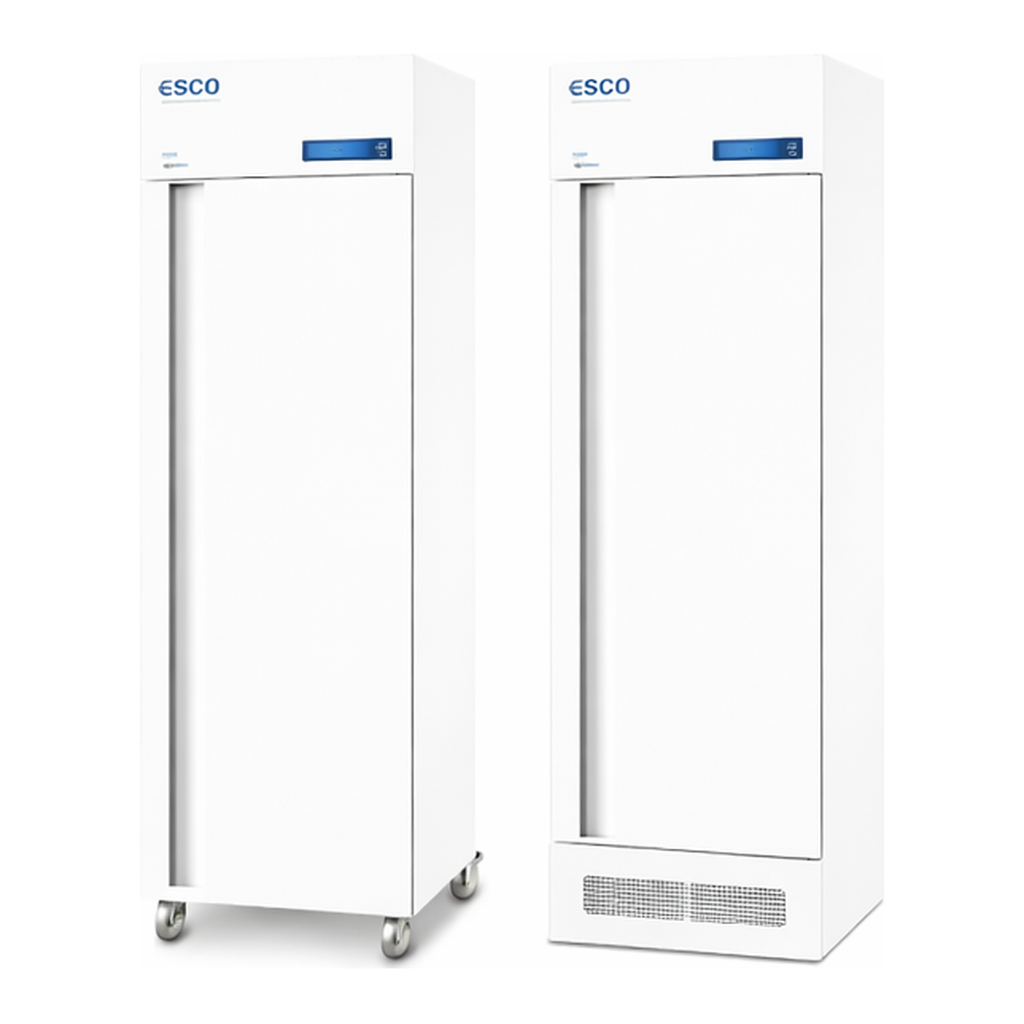

Esco HP Series Laboratory Freezers

Esco HP Series Laboratory Freezers offers exceptional performance for the storage of biopharmaceutical samples and products' for instance, storage of vaccines that require storage at freezer temperature, including vaccines against Varicella, MMRV, and Zoster. It features superior sample protection and long-term durability and reliability and is available in various capacities 128 L, 347 L, 620 L and 1355 L and has a temperature range from –10°C to –40°C.

Forced air design:

• Superior forced air design instead of regular cold wall for freezer
• Rapid cool-down and very fast recovery due to fan assistance
• Fast temperature equilibration' superior sample protection

Intelligent Automatic defrost for additional sample protection?

• High performance unit uses intelligent defrost to maximize sample protection
• Computer has thermocouple on the evaporator

    -    Detects ice formation
    -    Defrosts only when needed to keep units at optimum performance
    -    Keeps chamber temperature within safe limits

Other features including:

• Door lock, which provides additional security for expensive samples and reagents from unauthorized users
• Solid door for refrigerator and freezer
• Esco ISOCIDE™ external surfaces, to eliminate 99.9% of surface bacteria within 24 hours of exposure and ensure environment friendly
• High quality stainless steel interior for sample protection
• Internal LED lighting save up 70% power with less heat exposure than fluorescent or incandescent lighting
• Standard wheel/casters for easy location or movement

MODEL	HF2-140	HF2-400	HF2-700	HF2-1500	HF3-400	HF3-700
TENSION:
220V, 50Hz	HF2-140S-1	HF2-400S-1	HF2-700S-1	HF2-1500S-1	HF3-400S-1	HF3-700S-1
110V, 50Hz	HF2-140S-2	HF2-400S-2	HF2-700S-2	HF2-1500S-2	HF3-400S-2	HF3-700S-2
230V, 60Hz	HF2-140S-3	HF2-400S-3	HF2-700S-3	HF2-1500S-3	HF3-400S-3	HF3-700S-3
Capacity	128 L (4.52 cu ft)	347 L (12.25 cu ft)	620 L (21.90 cu ft)	1355 L (47.85 cu ft)	360 L (12.72 cu ft)	544 L (19.22 cu ft)
Temperature Range	-10?C to -20?C	-10?C to -25?C			-20?C to -40?C
Controller	Standard controller

MODEL		HF2-400	HF2-700	HF2-1500	HF3-400	HF3-700
TENSION:
220V, 50Hz	HF2-140T-1	HF2-400T-1	HF2-700T-1	HF2-1500T-1	HF3-400T-1	HF3-700T-1
110V, 50Hz	HF2-140T-2	HF2-400T-2	HF2-700T-2	HF2-1500T-2	HF3-400T-2	HF3-700T-2
230V, 60Hz	HF2-140T-3	HF2-400T-3	HF2-700T-3	HF2-1500T-3	HF3-400T-3	HF3-700T-3
Capacity	128 L (4.52 cu ft)	347 L (12.25 cu ft)	620 L (21.90 cu ft)	1355 L (47.85 cu ft)	360 L (12.72 cu ft)	544 L (19.22 cu ft)
Temperature Range	-10?C to -20?C	-10?C to -25?C			-20?C to -40?C
Controller	Touch-screen

• Wire Shelves
• Stainless Steel Basket
• Aluminium Drawer
• Stainless Steel Rack
• Electric Digital Key Lock
• Backup Batteries Kit

Features

Forced air design:

• Superior forced air design instead of regular cold wall for freezer
• Rapid cool-down and very fast recovery due to fan assistance
• Fast temperature equilibration` superior sample protection

Intelligent Automatic defrost for additional sample protection?

• High performance unit uses intelligent defrost to maximize sample protection
• Computer has thermocouple on the evaporator

    -    Detects ice formation
    -    Defrosts only when needed to keep units at optimum performance
    -    Keeps chamber temperature within safe limits

Other features including:

• Door lock, which provides additional security for expensive samples and reagents from unauthorized users
• Solid door for refrigerator and freezer
• Esco ISOCIDE™ external surfaces, to eliminate 99.9% of surface bacteria within 24 hours of exposure and ensure environment friendly
• High quality stainless steel interior for sample protection
• Internal LED lighting save up 70% power with less heat exposure than fluorescent or incandescent lighting
• Standard wheel/casters for easy location or movement

Models

MODEL	HF2-140	HF2-400	HF2-700	HF2-1500	HF3-400	HF3-700
TENSION:
220V, 50Hz	HF2-140S-1	HF2-400S-1	HF2-700S-1	HF2-1500S-1	HF3-400S-1	HF3-700S-1
110V, 50Hz	HF2-140S-2	HF2-400S-2	HF2-700S-2	HF2-1500S-2	HF3-400S-2	HF3-700S-2
230V, 60Hz	HF2-140S-3	HF2-400S-3	HF2-700S-3	HF2-1500S-3	HF3-400S-3	HF3-700S-3
Capacity	128 L (4.52 cu ft)	347 L (12.25 cu ft)	620 L (21.90 cu ft)	1355 L (47.85 cu ft)	360 L (12.72 cu ft)	544 L (19.22 cu ft)
Temperature Range	-10?C to -20?C	-10?C to -25?C			-20?C to -40?C
Controller	Standard controller

MODEL		HF2-400	HF2-700	HF2-1500	HF3-400	HF3-700
TENSION:
220V, 50Hz	HF2-140T-1	HF2-400T-1	HF2-700T-1	HF2-1500T-1	HF3-400T-1	HF3-700T-1
110V, 50Hz	HF2-140T-2	HF2-400T-2	HF2-700T-2	HF2-1500T-2	HF3-400T-2	HF3-700T-2
230V, 60Hz	HF2-140T-3	HF2-400T-3	HF2-700T-3	HF2-1500T-3	HF3-400T-3	HF3-700T-3
Capacity	128 L (4.52 cu ft)	347 L (12.25 cu ft)	620 L (21.90 cu ft)	1355 L (47.85 cu ft)	360 L (12.72 cu ft)	544 L (19.22 cu ft)
Temperature Range	-10?C to -20?C	-10?C to -25?C			-20?C to -40?C
Controller	Touch-screen

Accessories

• Wire Shelves
• Stainless Steel Basket
• Aluminium Drawer
• Stainless Steel Rack
• Electric Digital Key Lock
• Backup Batteries Kit
