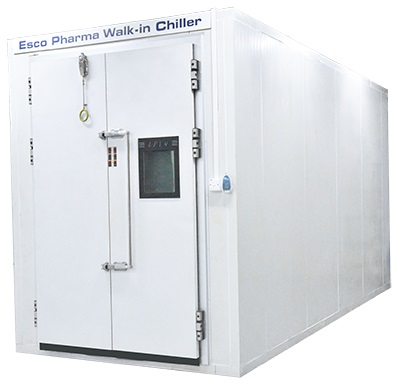

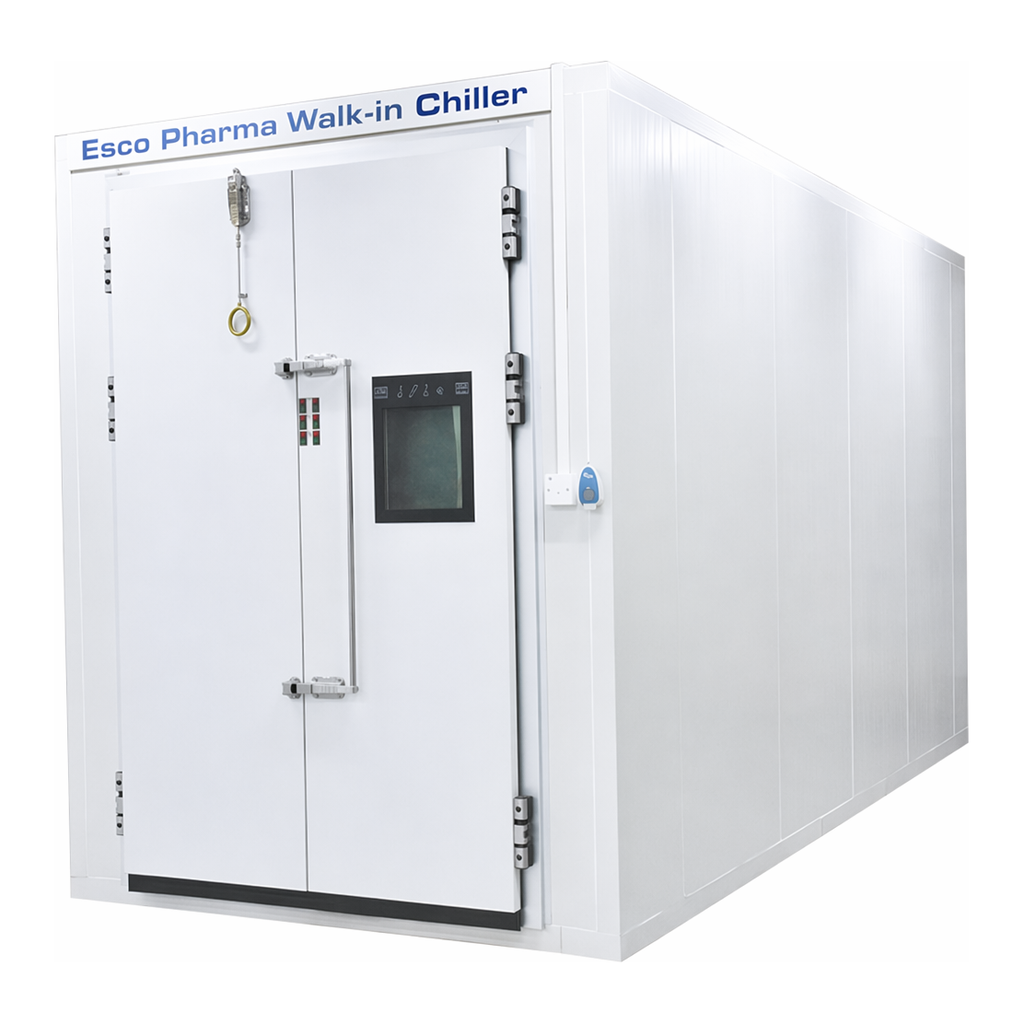

Cold Room

VacciXcell takes cold chain storage a step further by providing Cold Room design and construction services. Cold Rooms are used for the large scale storage of bioprocessing products including vaccines and biopharamaceuticals. VacciXcell Cold Rooms are designed for exceptional protection, energy efficiency, and operator ease.

VacciXcell Cold Rooms are also highly customizable, depending on the clients’ requirements and specifications.

• Panel System
  • Pre-fabricated, insulated, metal laminated panels best suited for freezing and chilling
  • Rigid Polyurethane Foam (RPUF) insulation
  • Pre-Painted Galvanised Steel (PPGS) or
  • Stainless Steel (SS) metal laminate
  • Joinery through cam locks and finished with a silicone sealant.
• Doors:
  • Pre-fabricated, insulated doors with great features
  • Swing, sliding, roll-up types
  • Non-corrosive, non-metallic hinges, door handles, and locks
  • Self-closing hinges
  • Audio alarm for ‘door-open’ condition
  • View port with anti-condensate glass
  • Lock defeat mechanism
  • Positive seal mechanism for all door types to avoid cold air loss
• Floors:
  • A range of floors for various applications
  • Aluminium /SS checkered plate for dry and light-weight operations
  • Bitumious felt with PCC floor for heavy and wet operations
  • Altro-vinyl floors for heavy traffic operations
  • Floor breathers and heater where applicable
• Covings:
  • Food grade PVC or metallic covings
  • Wall-to-wall, wall-to-ceiling, and wall-to floor covings available
  • Cornice cups to ensure three-dimensional integration at the corners of the cold room
• Electricals:
  • IP 54 or higher protected light fittings
  • Shatter-proof polycarbonate cover glass,
  • which is designed for cold room lighting
  • Weather-proof switches, where required
  • Embedded conduit for wiring
  • Safety devices like relays, SPPs, and tim ersSafety devices like relays, SPPs, and timers
  • Alarm annunciators
  • IP 55 control panel, built-in with condensing unit
• Chiller System:
  • Hermetic or semi-hermetic compressors
  • Air-cooled or water-cooled condensation systems
  • High efficiency evaporators equipped with auto defrost features
  • Hot gas defrost
  • All metallic casings are in galvanised steel with powder-coating finishes, enabling them to withstand H500 SS test
  • Safety systems like high and low pressure cut-outs, microprocessor-based thermo controls
  • Drain-tray and drain-pipe heaters
  • Vibration eliminators in refrigerant piping
  • Temperature controllers
  • Humidification systems with indicators and controllers
• Accessories and Customisations:
  • Pressure relief valves for freezer rooms
  • Push and kick plates for doors
  • Ramp for entry at door
  • Strip curtains to operate at freezing temperatures without stiffening
  • Air curtains
