Cytoculture® Lead-Shielded Class II Biosafety Cabinet

상품 한눈에 보기

방사성 동위원소 작업용 Class II 생물안전작업대. 3mm 납 차폐 구조와 ULPA 필터로 사용자·시료·환경 보호. KI 함침 탄소필터로 요오드 흡착. 저소음, 인체공학적 디자인, 항균 코팅 구조. 다양한 모델 및 옵션 제공.

브랜드: Esco
카테고리: Biological and Microbiological Safety Cabinets

#Esco #Fume Hoods and Enclosures #Biological and Microbiological Safety Cabinets

Esco · Cytoculture® Lead-Shielded Class II Biosafety Cabinet

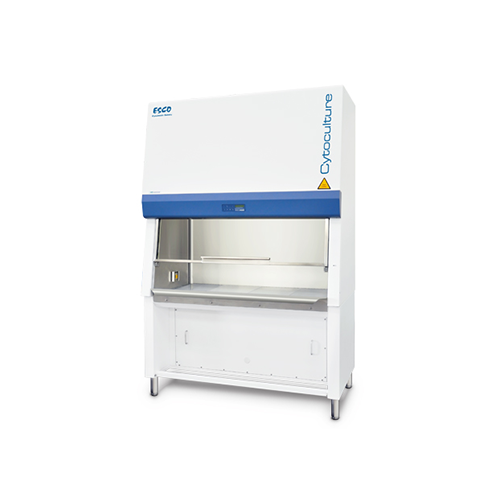

Cytoculture® Lead-Shielded Class II Biosafety Cabinet

The Esco Cytoculture® Lead-Shielded Class II biosafety cabinet is designed for use in the radiopharmaceutical industry and protects the operator during work involving radioisotopes.

Superior Protection for Radioisotope Laboratories

The operator is protected from radiation by lead-shielded sides, a lead-shielded work zone bottom, and a lead-shielded front sliding sash.
Air enters the cabinet through the front air grille, passes through the KI-impregnated carbon filter that adsorbs radioactive iodine, and then moves to the blower plenum where it is filtered by ULPA filters before being exhausted.

Features

Class II Product / Operator / Environment Protection
Extra Safety: Cabinet air is filtered via two exhaust filters, allowing filter changes without prior decontamination
Lead-Shielded Protection: 3 mm Pb lead-shielding on cabinet front sides and work zone bottom
Radiation-proof glass with lead equivalence of 3 mm
KI (potassium iodide) impregnated carbon filter for iodine adsorption
ULPA filters with >99.999% efficiency for 0.1–0.3 µm particles, providing ISO Class 3 cleanliness
Isocide™ antimicrobial coated structure eliminates 99.9% of bacterial presence on external surfaces within 24 hours
Ergonomic sloped front reduces glare and enhances operator comfort
Microprocessor-based control and alarm system with extremely low noise
Additional options:
- Lead-shielded back panel
- Increased lead shielding thickness up to 6 mm

Models

Model No.	External Dimensions (mm / in)	Internal Dimensions (mm / in)	Inflow Velocity	Downflow Velocity	Electrical
LS2-4A1	1420 × 780 × 2190 (55.9" × 30.7" × 86.2")	1270 × 603 × 670 (50.0" × 23.7" × 26.4")	0.45 m/s (90 fpm)	0.32 m/s (65 fpm)	230 VAC, 50 Hz
LS2-6A1	2030 × 780 × 2190 (79.9" × 30.7" × 86.2")	1870 × 603 × 670 (73.6" × 23.7" × 26.4")	—	—	—

Accessories

Esco offers a variety of options and accessories to meet local applications.
Contact Esco or your local Sales Representative for ordering information.
