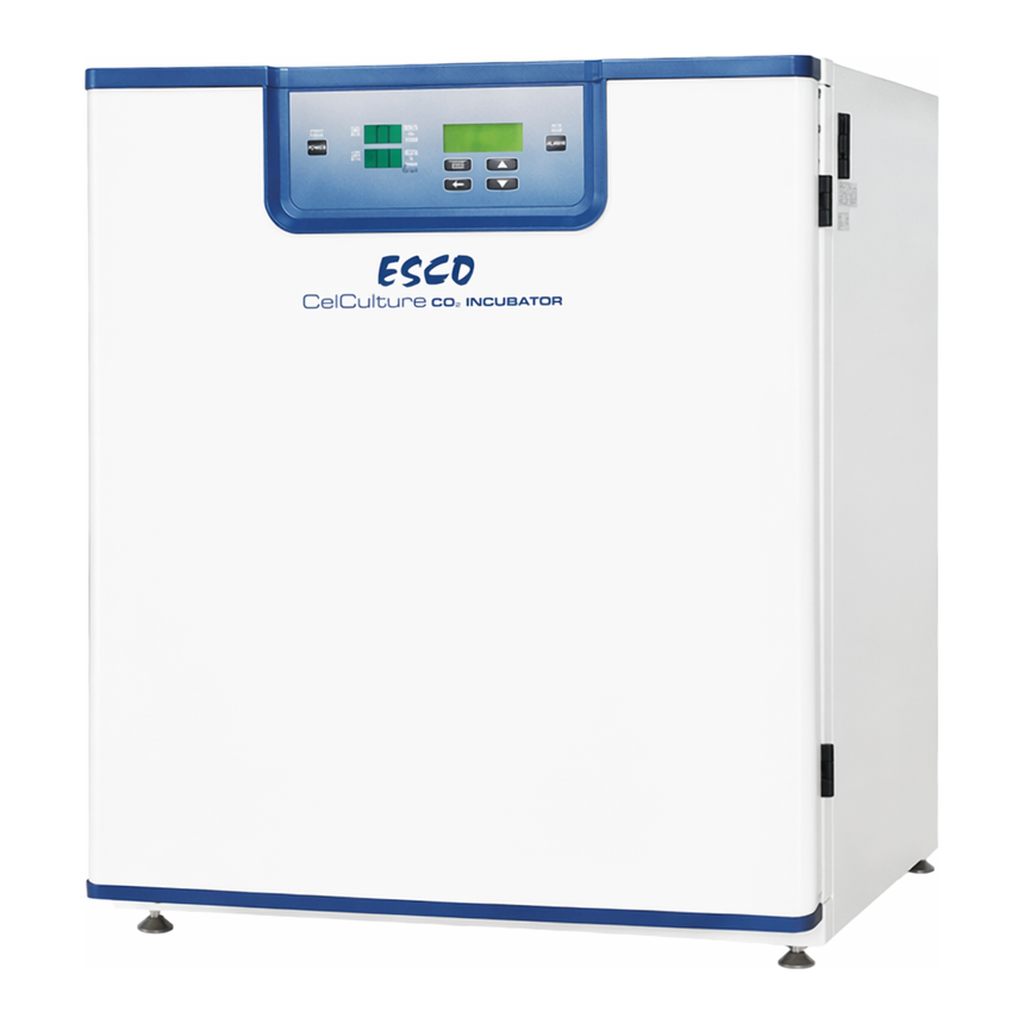

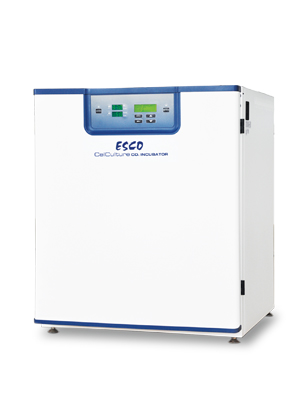

CelCulture® CO2 Incubator with Cooling System

Different cells require different temperatures for optimum growth for instance, mammalian cells thrive at 37oC, while insect cells grow best at around 27oC and thus a CO2 incubator with the capacity to run at a wide range of temperatures is highly advantageous for multiple applications.

CelCulture® CO2 Incubator with Integrated Cooling System provides solution for highly specialized application. The integrated cooling system allows studies of samples that requires temperature at/or below ambient temperature.

Wider Temperature Range
Temperature range of 12°C below ambient to 60°C above ambient means wider range of applications.

Highly Efficient, Environmentally Friendly Peltier Cooling System
This provides precise heating and cooling inside the chamber making sure that your samples are safe from temperature changes.

Complete Contamination Control Methods
-90 °C validated moist heat decontamination cycle
-ULPA filter
-ISOCIDE® anti-microbial coating
-0.2 micron in-line filter

IR Sensor Model with Integrated Cooling System

Models	Description
CCL-170-B-8-P	CelCulture Incubator, 170L, IR sensor, CO2 control, Moist Heat Decon, Peltier System, 230VAC, 50/60 Hz
CCL-170-B-9-P	CelCulture Incubator, 170L, IR sensor, CO2 control, Moist Heat Decon, Peltier System, 115VAC, 50/60 Hz

Suppressed O2 Model with Integrated Cooling System

Models	Description
CCL-170-T-8-P	CelCulture Incubator, 170L, IR sensor, CO2 control, O2 control, Moist Heat Decon, Peltier System, 230VAC, 50/60 Hz
CCL-170-T-9-P	CelCulture Incubator, 170L, IR sensor, CO2 control, O2 control, Moist Heat Decon, Peltier System, 115VAC, 50/60 Hz

Options:

TYPE	VALUE
COA-1001	Humidity Display, Factory Installed
COA-1001-F	Humidity Display, Field Install Kit
COA-1002	CO2 Backup (Tank Switcher), Factory Installed
COA-1002-F	CO2 Backup (Tank Switcher), Field Installed
COA-1004	Reversed Door Swing, Factory Installed
COA-1005	Analog Outputs, Factory Installed
COA-1005-F	Analog Outputs, Field Installed
COA-1006	Sealed Inner Door Kit for 170L (4 Glass Doors With Latches), Factory Installed
COA-1006-F	Sealed Inner Door Kit (4 Glass Doors With Latches), Field Installed
COA-1007	N2 Backup (Tank Switcher), Factory Installed
COA-1007-F	N2 Backup (Tank Switcher), Factory Installed

Accessories:

TYPE	VALUE
COA-2001-F	Roller Base (170L)
COA-2002-F	Floor Stand 200mm (8.0") With Adjustable Feet (170L)
COA-2003-F	Floor Stand 700mm (27.6") With Casters (170L)
COA-2005-F	2-Stage Gas Regulator for CO2/N2 Choose One of The Connectors Below: -1080588 - CGA 320 Connector (US Standard) -1080589 - BP-BS34-#8-NT4 Connector (British Standard) -1080590 - G5/8-RH Connector (China Standard)
COA-2007-F	Extra Shelf (170L, Stainless Steel)
COA-2008-F	Stacking Kit (One Set Included With Every Unit Purchased)
COA-2010-F	Electronic CO2 Analyzer, For CO2/O2 Temp Measurement (With Temp. Probe)
COA-2016-F	Electronic CO2 + O2 Analyzer, For CO2/O2 Temp Measurement (With Temp. Probe)
COA-2017-F	Electronic CO2 + O2 + RH Analyzer, For CO2/O2/RH/Temp Measurement (With Temp. Probe)
COA-2011-F	IQ/OQ Documentation
COA-2012-F	6" Chart Recorder, Temp, 115/230VAC 50/60HZ
COA-2013-F	8" Chart Recorder, Temp/Temp, 115/230VAC 50/60HZ
COA-2014-F	6" Chart Recorder, Temp/RH, 115/230VAC 50/60HZ
COA-2015-F	Inner Door Shelving Kit (4 Sets With Total 12 Mini Shelves For One Incubator)
5250001	Voyager Software Kit

Features

Wider Temperature Range
Temperature range of 12°C below ambient to 60°C above ambient means wider range of applications.

Highly Efficient, Environmentally Friendly Peltier Cooling System
This provides precise heating and cooling inside the chamber making sure that your samples are safe from temperature changes.

Complete Contamination Control Methods
-90 °C validated moist heat decontamination cycle
-ULPA filter
-ISOCIDE® anti-microbial coating
-0.2 micron in-line filter

Models

IR Sensor Model with Integrated Cooling System

Models	Description
CCL-170-B-8-P	CelCulture Incubator, 170L, IR sensor, CO2 control, Moist Heat Decon, Peltier System, 230VAC, 50/60 Hz
CCL-170-B-9-P	CelCulture Incubator, 170L, IR sensor, CO2 control, Moist Heat Decon, Peltier System, 115VAC, 50/60 Hz

Suppressed O2 Model with Integrated Cooling System

Models	Description
CCL-170-T-8-P	CelCulture Incubator, 170L, IR sensor, CO2 control, O2 control, Moist Heat Decon, Peltier System, 230VAC, 50/60 Hz
CCL-170-T-9-P	CelCulture Incubator, 170L, IR sensor, CO2 control, O2 control, Moist Heat Decon, Peltier System, 115VAC, 50/60 Hz

Accessories

Options:

TYPE	VALUE
COA-1001	Humidity Display, Factory Installed
COA-1001-F	Humidity Display, Field Install Kit
COA-1002	CO2 Backup (Tank Switcher), Factory Installed
COA-1002-F	CO2 Backup (Tank Switcher), Field Installed
COA-1004	Reversed Door Swing, Factory Installed
COA-1005	Analog Outputs, Factory Installed
COA-1005-F	Analog Outputs, Field Installed
COA-1006	Sealed Inner Door Kit for 170L (4 Glass Doors With Latches), Factory Installed
COA-1006-F	Sealed Inner Door Kit (4 Glass Doors With Latches), Field Installed
COA-1007	N2 Backup (Tank Switcher), Factory Installed
COA-1007-F	N2 Backup (Tank Switcher), Factory Installed

Accessories:

TYPE	VALUE
COA-2001-F	Roller Base (170L)
COA-2002-F	Floor Stand 200mm (8.0") With Adjustable Feet (170L)
COA-2003-F	Floor Stand 700mm (27.6") With Casters (170L)
COA-2005-F	2-Stage Gas Regulator for CO2/N2 Choose One of The Connectors Below: -1080588 - CGA 320 Connector (US Standard) -1080589 - BP-BS34-#8-NT4 Connector (British Standard) -1080590 - G5/8-RH Connector (China Standard)
COA-2007-F	Extra Shelf (170L, Stainless Steel)
COA-2008-F	Stacking Kit (One Set Included With Every Unit Purchased)
COA-2010-F	Electronic CO2 Analyzer, For CO2/O2 Temp Measurement (With Temp. Probe)
COA-2016-F	Electronic CO2 + O2 Analyzer, For CO2/O2 Temp Measurement (With Temp. Probe)
COA-2017-F	Electronic CO2 + O2 + RH Analyzer, For CO2/O2/RH/Temp Measurement (With Temp. Probe)
COA-2011-F	IQ/OQ Documentation
COA-2012-F	6" Chart Recorder, Temp, 115/230VAC 50/60HZ
COA-2013-F	8" Chart Recorder, Temp/Temp, 115/230VAC 50/60HZ
COA-2014-F	6" Chart Recorder, Temp/RH, 115/230VAC 50/60HZ
COA-2015-F	Inner Door Shelving Kit (4 Sets With Total 12 Mini Shelves For One Incubator)
5250001	Voyager Software Kit
