300 series_Tubing Pump-소형 튜브연동 액체펌프(장비장착용)

300 series_Tubing Pump

소형 튜브연동 액체펌프 (장비장착용)

---

제품 설명 (KEY FEATURES)

• Extremely long life
• Quiet operation
• Easy tube replacement
• Self priming to 3 metres
• Flow to 250 ml per minute

---

FEATURES

• Extremely long life
• Choice of stepper or brushed DC motors
• Speed controllers available
• Cased pump option
• Quiet operation
• Easy tube replacement (clam shell style)
• Self priming to 5 metres
• Flow to 500 ml per minute
• Excellent dry running characteristics
• Can pump fluid and gas/air
• Fluid only contacts the inside of the tubing
• Can pump slurries and fluids with high particulate content
• Extremely accurate for dispensing or metering applications
• Compatible with most chemicals and aggressive fluids (depending on tube material chosen)
• Pumps extremely hot or cold fluids

---

SPECIFICATIONS

Part Numbers

DEVISE YOUR PRODUCT CODE USING THE PRODUCT CODES FROM THE TABLE BELOW.
(PLEASE NOTE EXCLUSIONS LISTED IN TABLE.)

300 - □ - 230 - □ - □

Label	Meaning
TUBE MATERIAL	SPEED

예시:
300 시리즈, 실리콘 튜브, 50 RPM, 230V AC, 5mm ID 튜브, 폴리프로필렌 커넥터 →
300-050-230-050-PP

OPTIONS TABLE

OPTIONS	PRODUCT CODE
TUBE MATERIAL
Silicone	0
Santoprene	1
Viton® (3 & 5mm tube only)	2
Norprene Chemical®	7
SPEED
50 RPM	050
80 RPM	080
TUBE SIZE
3.2mm ID (PP connectors only)	030
4.8mm ID	050
6.4mm ID (not available in Viton)	060
CONNECTOR TYPE
Polypropylene	PP
Standard (not 3mm tube)	No code

---

Materials

Materials of Construction
Pump Body	Polypropylene
Pump Cover	Polypropylene
Rotor	Aluminium (plated)
Needle Bearing Rollers	Stainless steel
Inlet/Outlet Moulding	Nylon

---

Flow

Tube Size	Silicone Tube	Santoprene	Viton®	Norprene Chemical®
3	1.1 ml/rev	1.0 ml/rev	0.8 ml/rev	0.9 ml/rev
5	2.2 ml/rev	2.0 ml/rev	1.6 ml/rev	1.8 ml/rev
6	3.3 ml/rev	3.0 ml/rev	2.4 ml/rev	2.8 ml/rev

Note: These figures are based on pumping water and are for guidance only.
Flow rate is subject to tube tolerance, tube age, back pressure, and fluid viscosity.

---

Dimensions (mm)

• 76
• 34
• 96
• 24 Ø
• 2.0 (Min. mounting plate thickness)
• 60 Ø
• 70 Ø
• 3 Term. Base Connector

---

Specifications

RPM	Current	Thermal Protection	Class	Connections
50	0.2A 230V 50/60Hz	✅	1	Flying leads
80	0.4A 230V 50/60Hz	✅	1	¼” Fastons

---

APPLICATIONS

• Continuous Inkjet (CIJ)
• Drop-on-Demand Inkjet (DOD)
• In-Vitro Diagnostics (IVD)

---

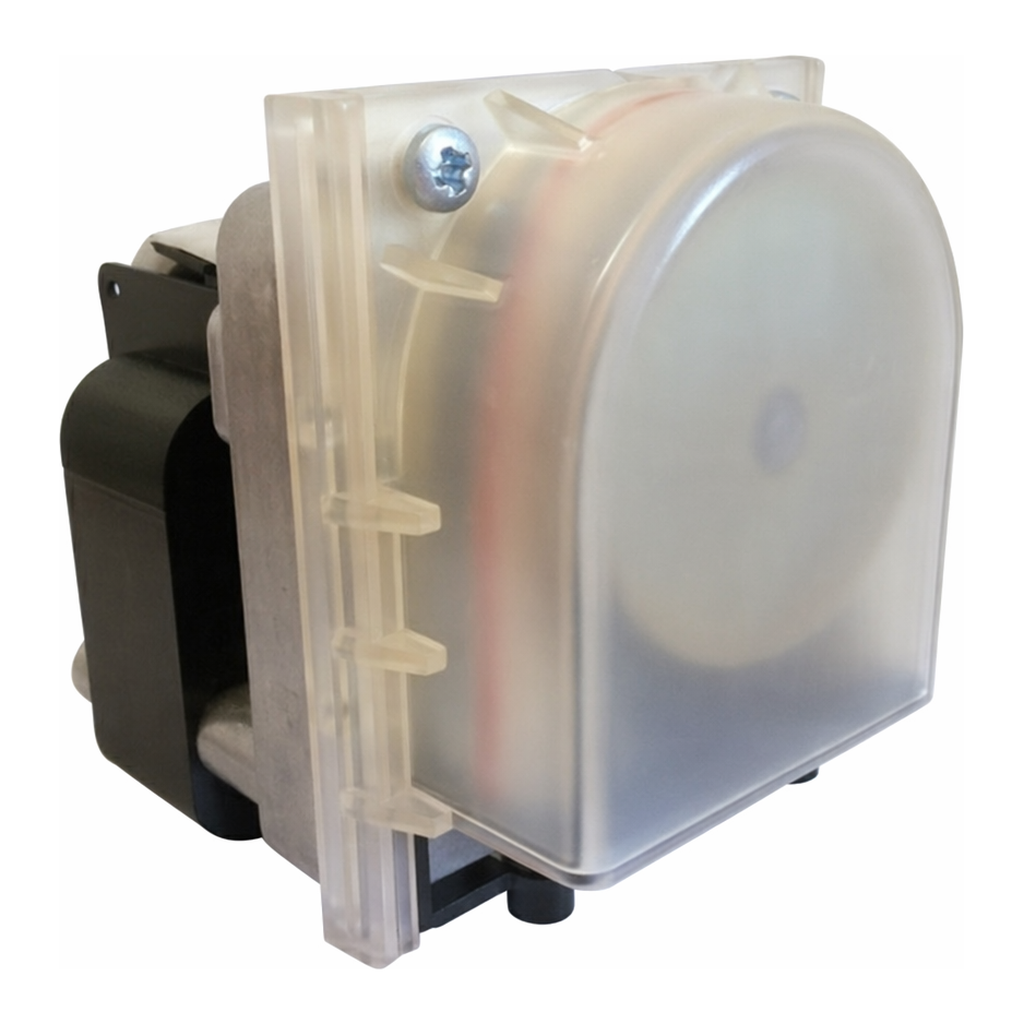

제품 이미지
