5002F Twin_Diaphragm Pump-소형 다이아프램 액체펌프(장비장착용)

5002F Twin Diaphragm Pump

소형 다이아프램 액체펌프 (장비장착용)

---

제품 설명 (Key Features)

• Self priming (자흡 가능)
• Dry running (드라이런닝 가능)
• Oil-less, non-lubricated (무급유 구조)
• Suitable for continuous operation (연속 운전 가능)
• Chemical resistant pump materials for aggressive media (내화학성 소재 사용)

---

작동 원리

Intake → Compression → Power → Exhaust

---

SPECIFICATIONS

HYDRAULIC DATA

Description	5002F Twin DC Carbon/EPDM	5002F Twin DC PPS/FPM
Part number	12 V 53200001 24 V 53200002	12 V 53200051 24 V 53200052
Max. flow (parallel config.)	1000 ml/min	1100 ml/min
Max. intermittent pressure height	25 m H₂O	25 m H₂O
Max. continuous pressure height	10 m H₂O	10 m H₂O
Max. suction height	4.5 m H₂O	4.5 m H₂O

ELECTRICAL DATA

	5002F Twin DC Carbon/EPDM	5002F Twin DC PPS/FPM
Motor type	Permanent Magnet	Permanent Magnet
Nominal speed	2700 rpm	2500 rpm
Nominal voltage	12/24 V DC	12/24 V DC
Max. power consumption @ 10 m H₂O	6.5 W	8.2 W
Motor insulation class	E	E
Protection class	IP00	IP00
EMC protection	Yes	Yes

GENERAL DATA

	5002F Twin DC Carbon/EPDM	5002F Twin DC PPS/FPM
Ambient temperature	0 to 40°C	0 to 40°C
Media temperature	0 to 70°C	0 to 70°C
Weight	0.34 kg	0.33 kg

WETTED PARTS

	5002F Twin DC Carbon/EPDM	5002F Twin DC PPS/FPM
Pump head	Carbon	PPS
Diaphragm	EPDM	FPM
Valves	EPDM	FPM
Tubing	PUR	PUR

Note:
The technical data is based on the use of PVC measuring tubing, 6 × 2 mm (ID × wall thickness), 1 m length, 75° shore hardness.
The use of a different tubing will change the flow.

---

FLOW CURVES

Flow [ml/min]

Legend:

• ■ 5002F Twin DC Carbon/EPDM
• □ 5002F Twin DC PPS/FPM

선 설명:

• ― max. continuous pressure height
• • • • max. intermittent pressure height

축 정보:

• X축: Pressure height [m H₂O] (0, 5, 10, 15, 20, 25)
• Y축: Flow [ml/min] (0, 250, 500, 750, 1000, 1250)

두 재질 모두 압력 높이가 증가할수록 유량이 감소하는 형태의 곡선을 가집니다.

---

DIMENSIONS

Dimensions in mm [inch]

Top view

• [6.47] 164.30
• [4.49] 114.0
• [1.18] 30
• OD 7.0 [0.28] für Schlauche / for tubes ID 6.0 [0.23]

Front view

• [1.18] 30
• [0.47] 12
• Einbaulage
• [0.13] 3.3
• [0.93] 23.6

Bottom view

• [1.38] 35.10
• [0.36] 9.20
• [0.79] 20.0 (x4)
• [0.39] 10.0

---

APPLICATIONS

• Continuous Inkjet (CIJ)
• Drop-on-Demand Inkjet (DOD)
• In-Vitro Diagnostics (IVD)
• Chemical Industry
• Medical Devices
• Laboratory and Analysis
• Industrial Applications
• Hygiene

---

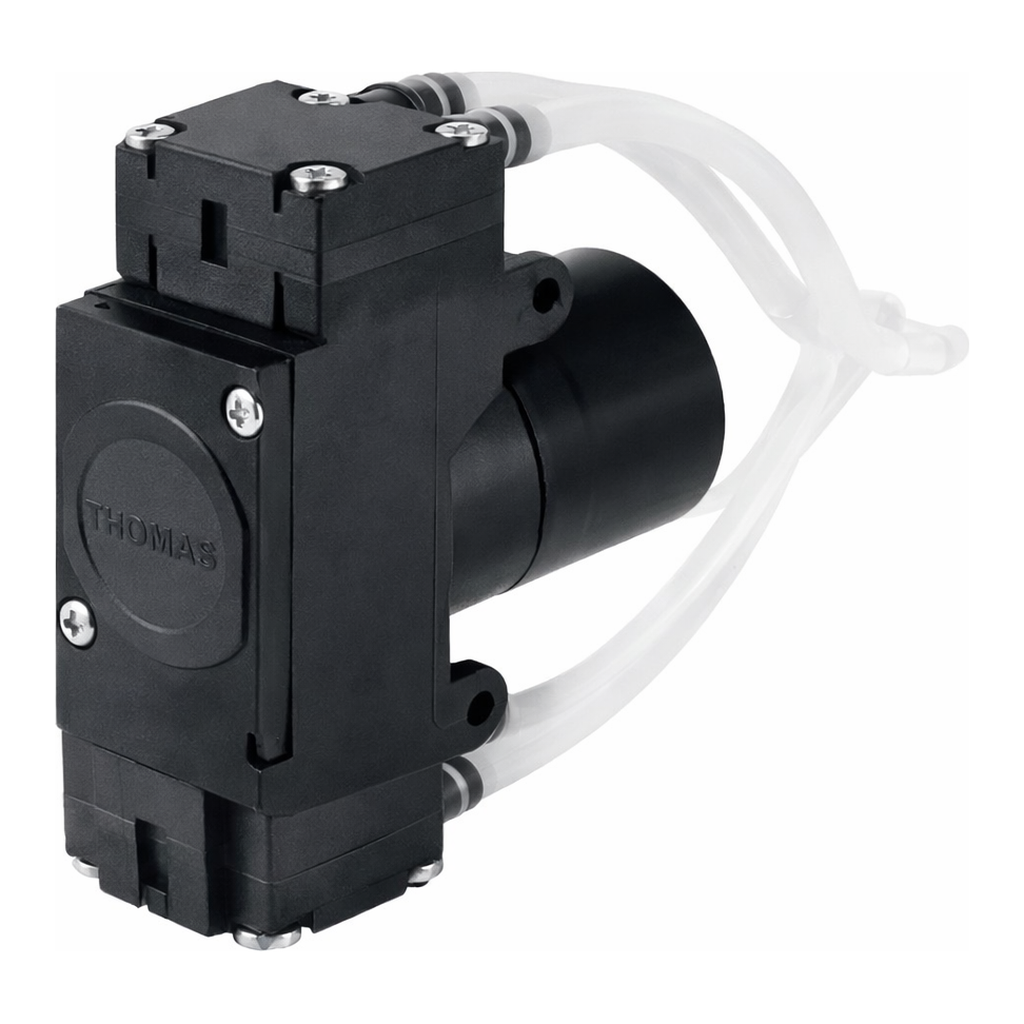

제품 이미지
