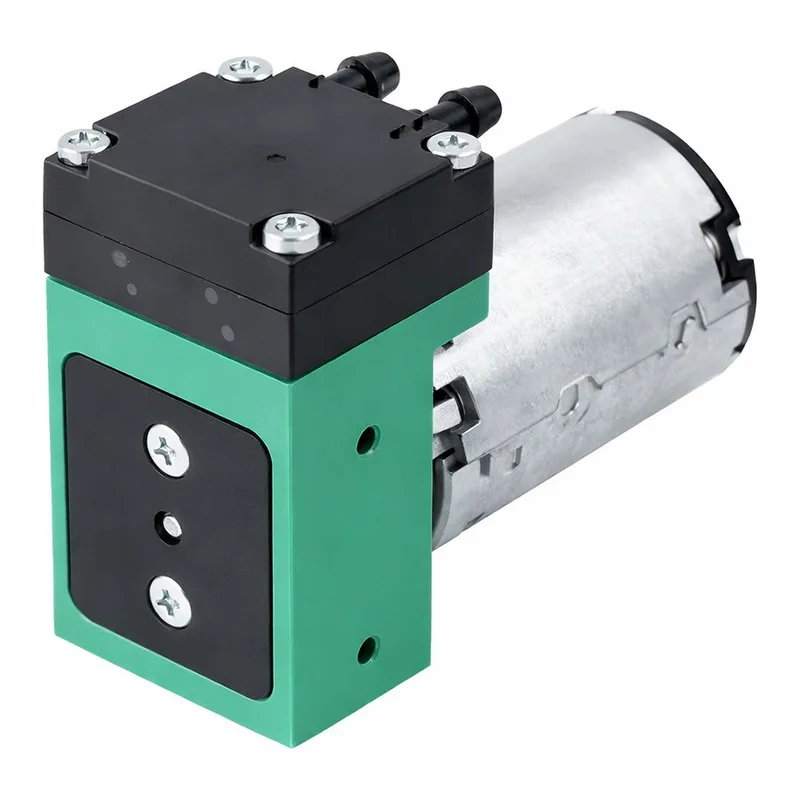

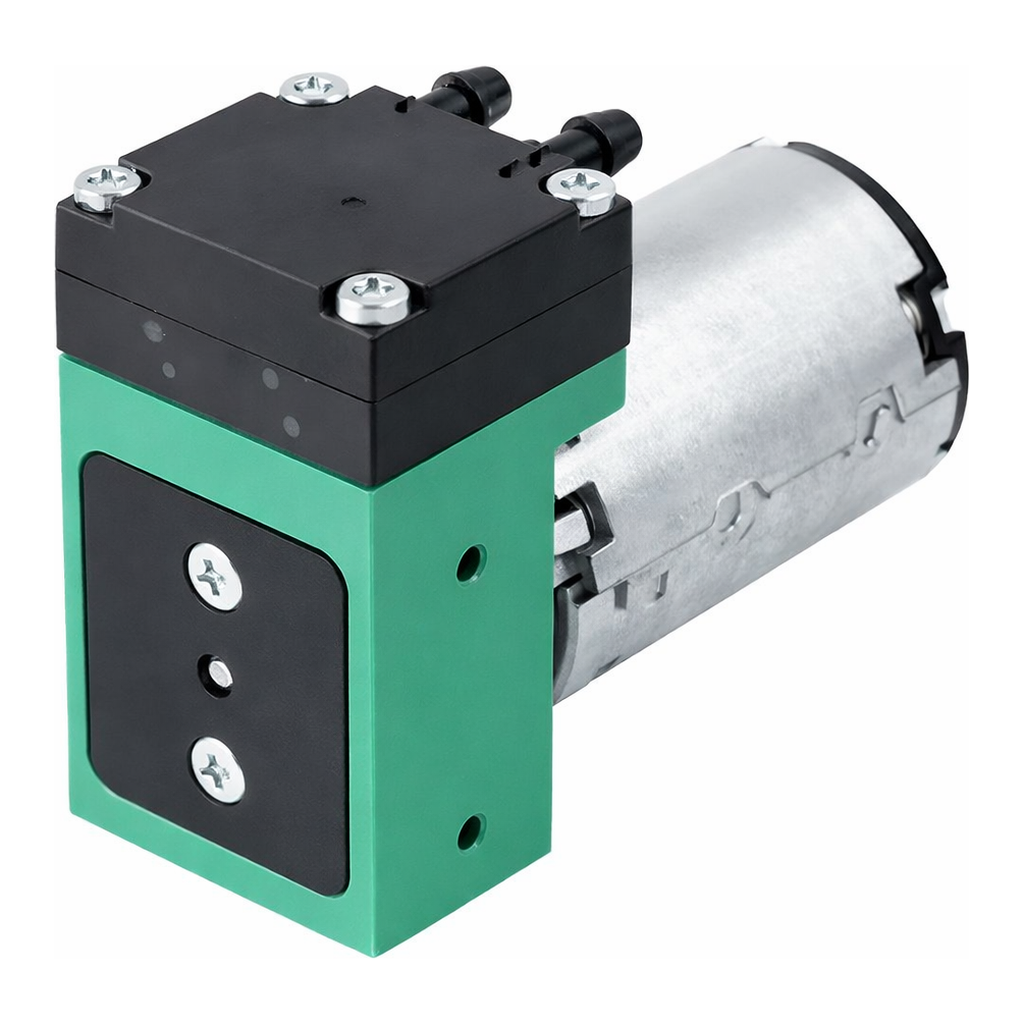

5002F_Diaphragm Pump-소형 다이아프램 액체펌프(장비장착용)

5002F Diaphragm Pump

소형 다이아프램 액체펌프 (장비 장착용)
모델명: 5002F_Diaphragm Pump
브랜드: Leadfluid

---

제품 특징 (KEY FEATURES)

• Self priming (자흡식)
• Dry running 가능
• Oil-less, 비윤활 구조
• 연속 운전에 적합
• 화학적 내성이 강한 재질 적용

---

구성 요소 (이미지 내 텍스트)

• Cylinder head
• Spark plug
• Intake valve
• Exhaust valve
• Piston
• Crankshaft

---

사양 (SPECIFICATIONS)

HYDRAULIC DATA

Description	PA/EPDM	PPS/FPM	Carbon/PTFE
Part number (12 V DC)	53001002	53001005	53001008
Part number (24 V DC)	53001003	53001006	53001009
Max. flow	400 ml/min	400 ml/min	400 ml/min
Max. intermittent pressure height	40 m H₂O	40 m H₂O	40 m H₂O
Max. continuous pressure height	up to 15 m H₂O	up to 15 m H₂O	up to 10 m H₂O
Max. suction height	6 m H₂O	6 m H₂O	5 m H₂O

ELECTRICAL DATA

	PA/EPDM	PPS/FPM	Carbon/PTFE
Motor type	Permanent magnet	Permanent magnet	Permanent magnet
Nominal speed	3000 rpm	3000 rpm	3000 rpm
Nominal voltage	12/24 V DC	12/24 V DC	12/24 V DC
Max. power consumption @10 m H₂O	5 W	7 W	7 W
Motor insulation class	A	A	A
Protection class	IP20	IP20	IP20
EMC protection	Basic EMC filter (2L)	Basic EMC filter (2L)	Basic EMC filter (2L)

GENERAL DATA

	PA/EPDM	PPS/FPM	Carbon/PTFE
Ambient temperature	0–40°C	15–40°C	15–40°C
Media temperature	0–70°C	15–70°C	15–70°C
Weight	0.19 kg	0.19 kg	0.19 kg

WETTED PARTS

	PA/EPDM	PPS/FPM	Carbon/PTFE
Pump head	PA	PPS	Carbon
Diaphragm	EPDM	FPM	PTFE
Valves	EPDM	FPM	FFPM

Note:
Technical data is based on PVC measuring tubing (4 × 1.5 mm, 1 m length, 65° shore hardness).
Use of different tubing may alter flow rate.

---

유량 곡선 (FLOW CURVES)

Pressure height [m H₂O]	Flow [ml/min]
0	400
40	약 100 (Carbon/PTFE) / 약 50 (PA/EPDM, PPS/FPM)

범례 (Legend)

• ■ Carbon/PTFE
• □ PA/EPDM, PPS/FPM

선 스타일 설명

• ─── : max. continuous pressure height
• • • • : max. intermittent pressure height

---

치수 (DIMENSIONS)

Dimensions in mm (inch)
Option: Kopf mit M5 Gewinde (head with M5 threads)

항목	mm	inch
전체 길이	81	3.19
폭	40	1.58
높이	30	1.18
주요 홀 간격	12, 21, 26, 30.5, 45.6, 52	(0.47–2.05)
나사 규격	M5	0.20

---

적용 분야 (APPLICATIONS)

• Continuous Inkjet (CIJ)
• Drop-on-Demand Inkjet (DOD)
• In-Vitro Diagnostics (IVD)
• Chemical Industry
• Medical Devices
• Laboratory and Analysis
• Industrial Applications
• Hygiene

---
