1210LC_Diaphragm Pump-소형 다이아프램 액체펌프(장비장착용)

1210LC Diaphragm Pump

소형 다이아프램 액체펌프 (장비 장착용)

---

제품 설명 (Key Features)

• 액체 및 기체 혼합물 이송 가능
• 자흡식(Self-priming) 구조
• 고유량 및 고압 성능
• 콤팩트한 디자인
• 버블 없는 매체 이송
• 펄세이션 감소 설계

---

작동 원리

Intake (흡입) → Compression (압축) → Power (작동) → Exhaust (배기)

---

사양 (Specifications)

HYDRAULIC DATA

Description	1210 LC PP/EPDM	1210 LC PP/FPM
Part number	12 V DC → 12100003 24 V DC → 12100004	12 V DC → 12100053 24 V DC → 12100054
Max. flow	180 ml/min	150 ml/min
Max. continuous pressure height	10 m H₂O	10 m H₂O
Max. suction height	6 m H₂O	5 m H₂O

ELECTRICAL DATA

항목	1210 LC PP/EPDM	1210 LC PP/FPM
Motor type	Permanent Magnet	Permanent Magnet
Nominal speed	3100 rpm	3000 rpm
Nominal voltage	12/24 V DC	12/24 V DC
Max. power consumption @ 10 m H₂O	2.2 W	2.3 W
Motor insulation class	B	B
Protection class	IP00	IP00
EMC protection	Yes	Yes

GENERAL DATA

항목	1210 LC PP/EPDM	1210 LC PP/FPM
Ambient temperature	15–40°C	15–40°C
Media temperature	0–70°C	15–70°C
Weight	0.063 kg	0.063 kg

WETTED PARTS

부품	1210 LC PP/EPDM	1210 LC PP/FPM
Pump head	PP	PP
Diaphragm	EPDM	FPM
Valves	EPDM	FPM

Note:
기술 데이터는 OD 6mm × ID 4mm, Hardness Shore D 45의 폴리우레탄 튜빙 기준임.

---

유량 곡선 (Flow Curves)

Pressure height [m H₂O]	Flow [ml/min]
0	180 (PP/EPDM), 160 (PP/FPM)
10	140 (PP/EPDM), 120 (PP/FPM)

범례 (Legend):
■ 1210 LC PP/EPDM
□ 1210 LC PP/FPM

---

외형 치수 (Dimensions)

단위: mm [inch]

좌측도

[0.098] 2.5 (3x)
4.5 deep
[0.197] 5
[0.374] 9.5
[0.781] 19.9
[0.400] 10.2
[0.886] 22.5
[0.172] 4.4
[0.287] 7.3
[1.982] 50.4
[0.213] 5.40
[0.435] 11
[0.190] 4.8
[0.097] 2.47
[0.071] 1.8
2x Terminal 3.0 x 0.4 mm

정면도

[0.886] 22.50
[0.346] 8.8
red / rot
[0.669] Ø17
[0.361] Ø9.14
[1.496] 38.0
[1.220] 31.0
[0.454] 11.54

상단도

[0.098] 2.5 (3x)
4.5 deep
[0.197] 5
[0.374] 9.5
[0.781] 19.9
[0.886] 22.5

---

응용 분야 (Applications)

• Continuous Inkjet (CIJ)
• Drop-on-Demand Inkjet (DOD)
• In-Vitro Diagnostics (IVD)

---

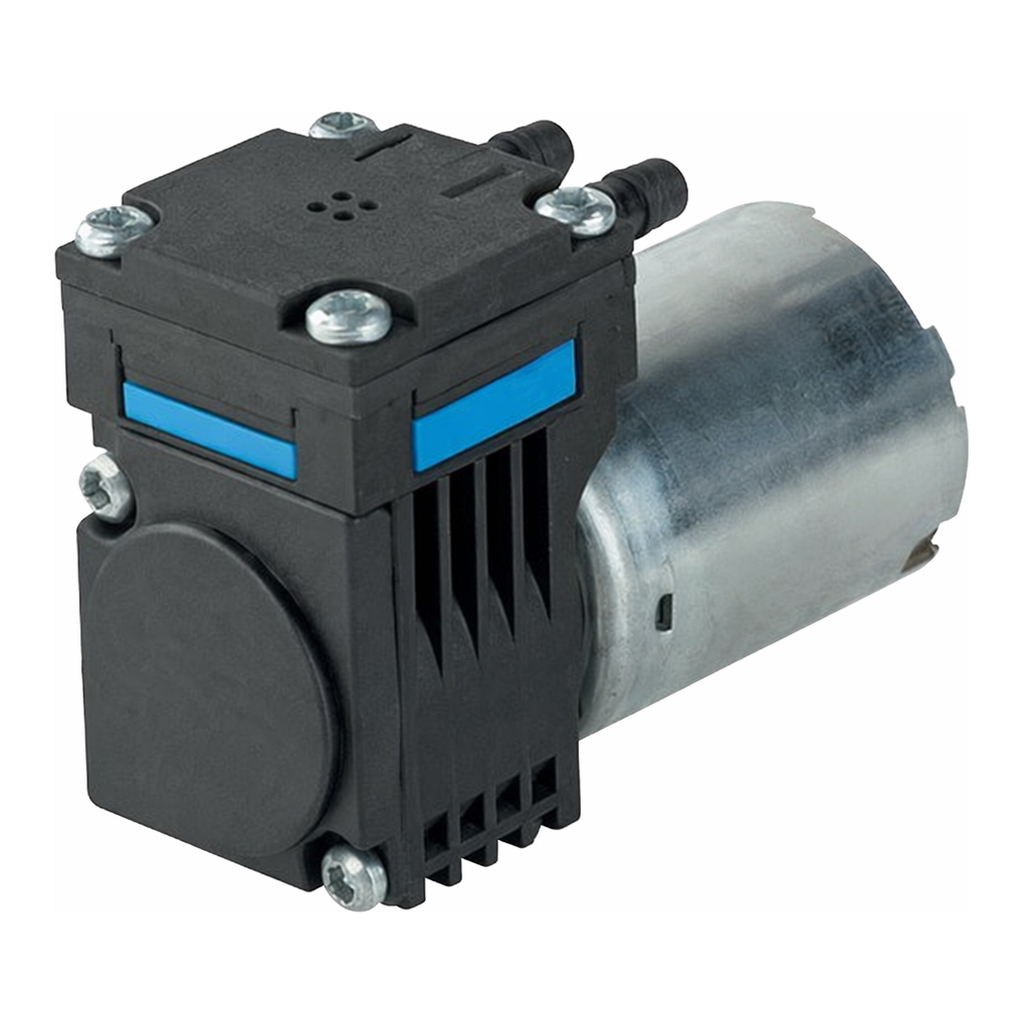

제품 이미지
