1210DC_Diaphragm Pump-소형 다이아프램 액체펌프(장비장착용)

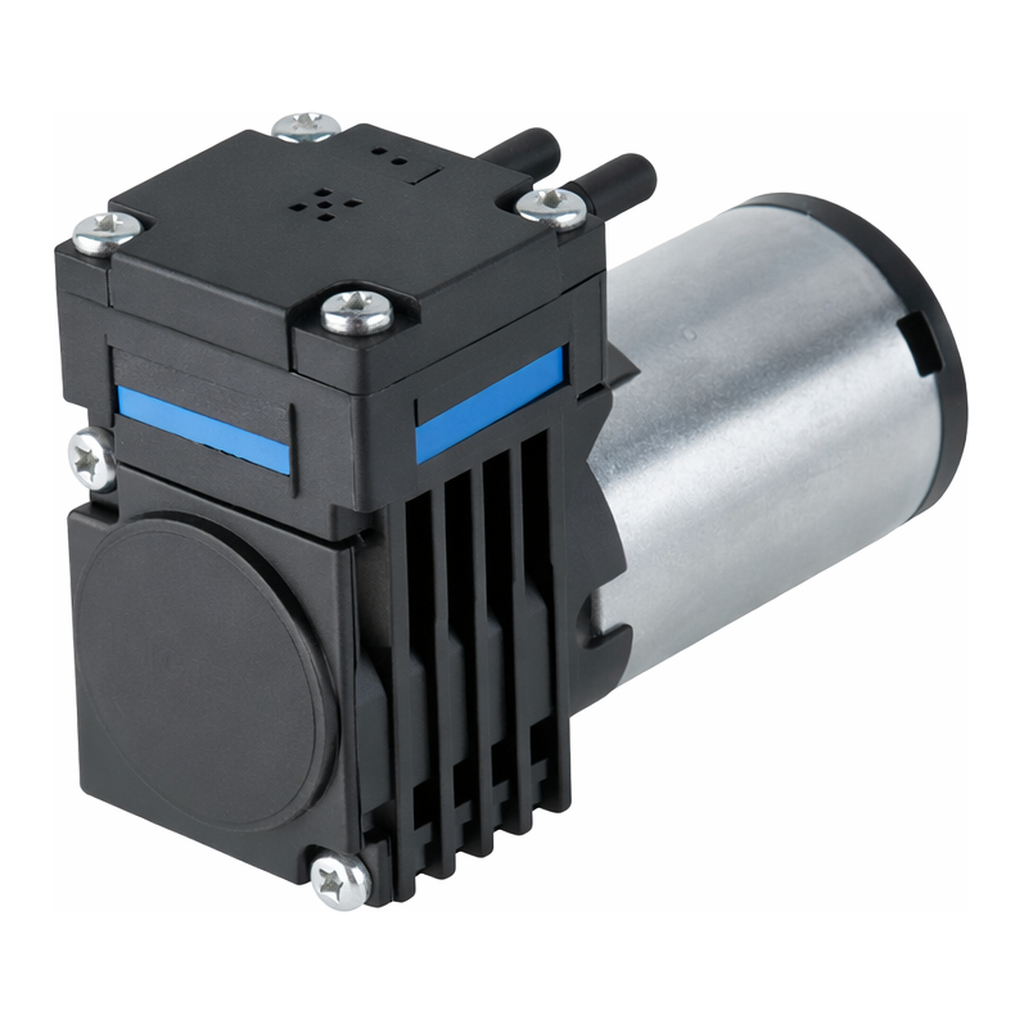

1210DC Diaphragm Pump

소형 다이아프램 액체펌프 (장비장착용)
브랜드: Leadfluid

---

제품 설명 (Key Features)

• 액체 및 기체 혼합물 처리 가능 (Handles liquid/gas mixture)
• 자흡식(Self priming)
• 고유량(High flow)
• 고압력(High pressure)
• 콤팩트한 디자인(Compact design)
• 버블 없는 매질 이송(Bubble free media transfer)
• 맥동 감소(Reduced pulsation)

---

작동 원리

펌프는 다음 4단계로 동작합니다:

1. Intake (흡입)
2. Compression (압축)
3. Power (구동)
4. Exhaust (배기)

---

SPECIFICATIONS

HYDRAULIC DATA

Description	1210 DC PP/EPDM	1210 DC PP/FPM
Part number	12 V DC 12100001 24 V DC 12100002	12 V DC 12100051 24 V DC 12100052
Max. flow	180 ml/min	150 ml/min
Max. continuous pressure height	10 m H₂O	10 m H₂O
Max. suction height	6 m H₂O	5 m H₂O

ELECTRICAL DATA

	1210 DC PP/EPDM	1210 DC PP/FPM
Motor type	Ironless Core DC	Ironless Core DC
Nominal speed	2800 rpm	2700 rpm
Nominal voltage	12/24 V DC	12/24 V DC
Max. power consumption @ 10 m H₂O	1.5 W	1.6 W
Motor insulation class	H	H
Protection class	IP00	IP00
EMC protection	Yes	Yes

GENERAL DATA

항목	1210 DC PP/EPDM	1210 DC PP/FPM
Ambient temperature	15 ~ 40 °C	15 ~ 40 °C
Media temperature	0 ~ 70 °C	15 ~ 70 °C
Weight	0.073 kg	0.073 kg

WETTED PARTS

항목	1210 DC PP/EPDM	1210 DC PP/FPM
Pump head	PP	PP
Diaphragm	EPDM	FPM
Valves	EPDM	FPM

Note:
The technical data is related to a Polyurethane tubing, OD 6 mm × ID 4 mm, Hardness Shore D 45.

---

FLOW CURVES

Pressure height [m H₂O]	Flow [ml/min]
0 m H₂O	180 (1210 DC PP/EPDM) / 160 (1210 DC PP/FPM)
10 m H₂O	120 (1210 DC PP/EPDM) / 100 (1210 DC PP/FPM)

범례 (Legend):
■ 1210 DC PP/EPDM
□ 1210 DC PP/FPM

---

APPLICATIONS

• Continuous Inkjet (CIJ)
• Drop-on-Demand Inkjet (DOD)
• In-Vitro Diagnostics (IVD)

---
