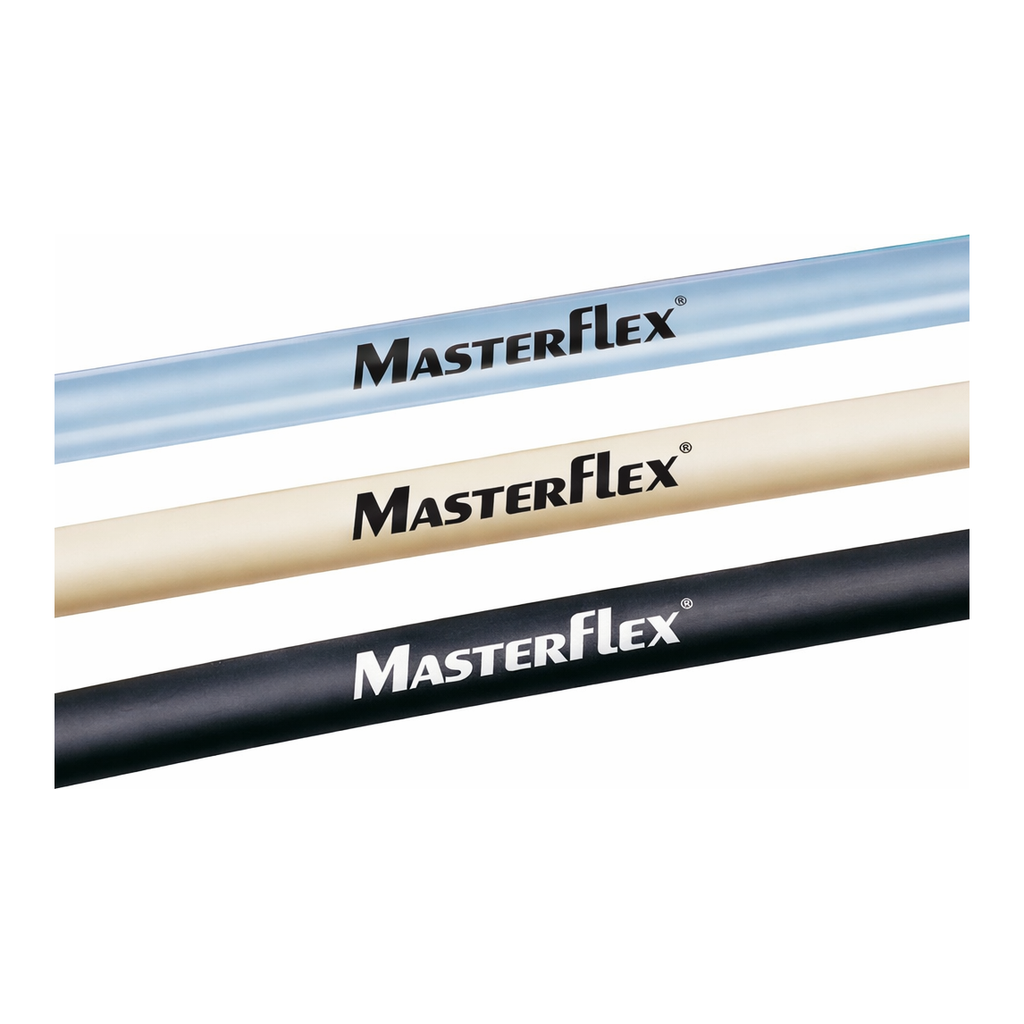

EMP Series용 High-Performance Precision Pump Tubing

주요특징

• EMP Series용 High-Performance Precision Pump Tubing

EMP Series용 High-Performance Precision Pump Tubing
Thicker wall compared to our Precision pump tubing

Features

· Best choice for applications involving pressure, suction lift, viscous fluids, or long tubing life

		** Tubing size**	** L/S 15**	** L/S 24**	** L/S 35**	** L/S 36**
** Inner diameter**	** 4.8 mm (0.19")**	** 6.4 mm (0.25")**	** 7.9 mm (0.31")**	** 9.7 mm (0.38")**
** Hose barb size**	** 4.8 mm (3⁄16")**	*6.4 mm (1⁄4") *	*9.5 mm (3⁄8") *	*9.5 mm (3⁄8") *
** Flow range (approximate)**	*1.7 to 1000 mL/min(1.8 to 1100 mL/min) *	** 2.8 to 1700 mL/min (3.0 to 1800 mL/min)**	3.8 to 2300 mL/min (4.3 to 2600 mL/min)	4.8 to 2900 mL/min (5.8 to 3400 mL/min)
Pump tubing formulation	Description	Compatible pump head
Silicone (platinum-cured)	–– Complies with USP Class V, EP, FDA, REACH, RoHS, ADCF –– Low protein binding, fungus resistant, phthalate and latex-free –– Accommodates a wide temperature range	✓ Standard ✓ Easy-Load ✓ Easy-Load II ✓ Easy-Load 3 ✓ High- Performance	GY-96410-15	GY-96410-24	GY-96410-35	GY-96410-36
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
Silicone (peroxide-cured)	–– Complies with USP Class VI, EP, FDA, 3A, REACH, RoHS, ADCF ––Greater physical compression capability –– Economical, longer tubing life	✓ Standard ✓ Easy-Load ✓ Easy-Load II ✓ Easy-Load 3 ✓ High- Performance	GY-96400-15	GY-96400-24	GY-96400-35	GY-96400-36
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
BioPharm Silicone (platinum-cured)	–– Complies with USP Class VI, EP, FDA, 3A, REACH, RoHS, ADCF ––Low absorptionexcellent biocompatibility <br>–– Very low extractable weather, ozone, corona, radiation resistant	✓ Standard ✓ Easy-Load ✓ Easy-Load II ✓ Easy-Load 3 ✓ High- Performance	GY-96420-15	GY-96420-24	GY-96420-35	GY-96420-36
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
BioPharm Plus Silicone (platinum-cured)	–– Complies with USP Class VI, EP, FDA, REACH, RoHS, ADCF –– Ultra-smooth—minimizes particle entrapment –– Very low extractable—ideal for lab, biotech, and pharmaceutical applications	✓ Standard ✓ Easy-Load ✓ Easy-Load II ✓ Easy-Load 3 ✓ High- Performance	GY-96440-15	GY-96440-24	GY-96440-35	GY-96440-36
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
Puri-Flex™	–– Complies with USP Class VI, FDA, 3A, REACH, RoHS, ADCF –– Heat sealable, weldable, and economical –– Long pump life when compared to silicone or many other TPE tubings	✓ Standard ✓ Easy-Load ✓ Easy-Load II ✓ Easy-Load 3 ✓ High- Performance	GY-96419-15	GY-96419-24	GY-96419-35	GY-96419-36
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
C-Flex®	–– Complies with USP Class VI, EP, REACH, RoHS, ADCF –– Heat sealable, weldable, economical ––Better resistance to pH fluctuations	✓ Standard ✓ Easy-Load ✓ Easy-Load II ✓ Easy-Load 3 ✓ High- Performance	GY-06424-15	GY-06424-24	GY-06424-35	GY-06424-36
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
C-Flex® ULTRA	–– Complies with USP Class VI, EP, REACH, RoHS, ADCF –– Longest life of any C-Flex formulation ––Lowest spallation and reduced residue	✓ Standard ✓ Easy-Load ✓ Easy-Load II ✓ Easy-Load 3 ✓ High- Performance	GY-06434-15	GY-06434-24	GY-06434-35	GY-06434-36
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
PharMed® BPT	–– Complies with USP Class VI, EP, FDA, NSF, REACH, RoHS ––>10,000 hours of tubing life` sealable, weldable ––I deal for tissue and cell culture work	✓ Standard ✓ Easy-Load ✓ Easy-Load II ✓ Easy-Load 3 ✓ High- Performance	GY-06508-15	GY-06508-24	GY-06508-35	GY-06508-36
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
PharmaPure®	–– Complies with USP Class VI, EP, FDA, REACH, RoHS ––Nontoxic and nonhemolytic biocompatible –– Long life even under pressure with VERY low spallation	✓ Easy-Load ✓ Easy-Load II	GY-06435-15	GY-06435-24	—	—
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	—	—

​

​

		Tubing size	L/S 15	L/S 24	L/S 35	L/S 36
Inner diameter	4.8 mm (0.19")	6.4 mm (0.25")	7.9 mm (0.31")	9.7 mm (0.38")
Hose barb size	4.8 mm (3⁄16")	6.4 mm (1⁄4")	9.5 mm (3⁄8")	9.5 mm (3⁄8")
Flow range (approximate)	1.7 to 1000 mL/min (1.8 to 1100 mL/min)	2.8 to 1700 mL/min (3.0 to 1800 mL/min)	3.8 to 2300 mL/min (4.3 to 2600 mL/min)	4.8 to 2900 mL/min (5.8 to 3400 mL/min)
Pump tubing formulation	Description	Compatible pump head
Chem-Durance Bio	–– Complies: USP Class VI, FDA, REACH, RoHS –– Excellent chemical compatibility and biocompatibility –– Excellent pump life and durability under pressure	✓ Easy-Load ✓ Easy-Load II​	GY-06442-15	GY-06442-24	GY-06442-35	GY-06442-36
	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk
Solve-Flex	–– Complies with USP Class VI –– Excellent chemical resistance, especially with solvents ––Low spallation ––Fluoropolymer lined tubing	✓ Easy-Load ✓ Easy-Load II​	—	GY-96446-24	—	—
	3.6 m (12 ft)/pk
Tygon® E-LFL	–– Complies with USP Class VI, EP, FDA, REACH, RoHS, ADCF ––Longest life of all Tygon formulations –– Broad chemical resistance	✓ Standard ✓ Easy-Load ✓ Easy-Load II ✓ Easy-Load 3 ✓ High- Performance	GY-06440-15	GY-06440-24	GY-06440-35	GY-06440-36
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
Tygon E-Food (B-44-4X)	–– Complies with FDA, NSF, 3A, and EU Food regulations (10/2011) –– Smooth inner surface unaffected by common commercial sanitizers –– Nontoxic	✓ Standard ✓ Easy-Load ✓ Easy-Load II ✓ Easy-Load 3 ✓ High- Performance	GY-06418-15	GY-06418-24	GY-06418-35	GY-06418-36
	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk
Tygon E-Lab (E-3603)	–– Complies with USP Class V, EP, FDA, REACH, RoHS, ADCF ––Ideal for general transfer applications –– Clear for easy monitoring –– Nontoxic, nonaging, nonoxidizing	✓ Standard ✓ Easy-Load ✓ Easy-Load II ✓ Easy-Load 3 ✓ High- Performance	GY-06509-15	GY-06509-24	GY-06509-35	GY-06509-36
	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk
Tygon Fuel & Lubricant (F-4040-A)	–– Complies with USP Class V, EP, FDA, REACH, RoHS, ADCF ––I deal for transferring hydrocarbons, gasoline, kerosene, and heating oil –– Very low gas permeability	✓ Standard ✓ Easy-Load ✓ Easy-Load II ✓ Easy-Load 3 ✓ High- Performance	GY-06401-15	GY-06401-24	GY-06401-35	GY-06401-36
	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk
Tygon Chemical (2001)	–– Complies with USP Class V, EP, FDA, REACH, RoHS, ADCF –– Best chemical resistance of Tygon formulations –– Plasticizer-free with low gas permeability	✓ Easy-Load ✓ Easy-Load II​	GY-06475-15	GY-06475-24	—	—
	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	—	—
Norprene® (A-60 G)	–– Complies with NSF, REACH, RoHS ––Up to 10,000 hours of tubing life –– Excellent choice for pressure/vacuum applications	✓ Standard ✓ Easy-Load ✓ Easy-Load II ✓ Easy-Load 3 ✓ High- Performance	GY-06404-15	GY-06404-24	GY-06404-35	GY-06404-36
	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk
Norprene Food (A 60 F)	–– Complies with FDA, 3A, NSF, REACH, RoHS ––I deal for high-temperature food applications –– Resists heat, ozone, acids, and alkalis	✓ Standard ✓ Easy-Load ✓ Easy-Load II ✓ Easy-Load 3 ✓ High- Performance	GY-06402-15	GY-06402-24	GY-06402-35	GY-06402-36
	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk
Viton®	–– Complies with FDA, ADCF –– Perfect for applications where FDA and chemical compatibility is needed –– Resists corrosives, solvents, and oils at elevated temperatures	✓ Standard ✓ Easy-Load ✓ Easy-Load II ✓ Easy-Load 3 ✓ High- Performance	GY-96412-15	GY-96412-24	GY-96412-35	GY-96412-36
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
