주요특징

  • Intuitive touch-screen interface for easy programming and control
  • Flow range: 0.001 to 1500 mL/min with Masterflex® L/S® pump tubing
  • Program options include constant flow rate, stepped flow, ramped flow, and pulsed flow
  • Pump or dispense by volume or time
  • Advanced options include program linkage, step repeat, go-to step statements, and program alarms
  • Store and transfer programs to a PC or from pump to pump
  • Controller is preprogrammed with flow ranges for all accepted tubing sizes
  • 07582-00, 07582-10, 07582-20

Modular Touch-Screen Dispensing Pumpsspan>

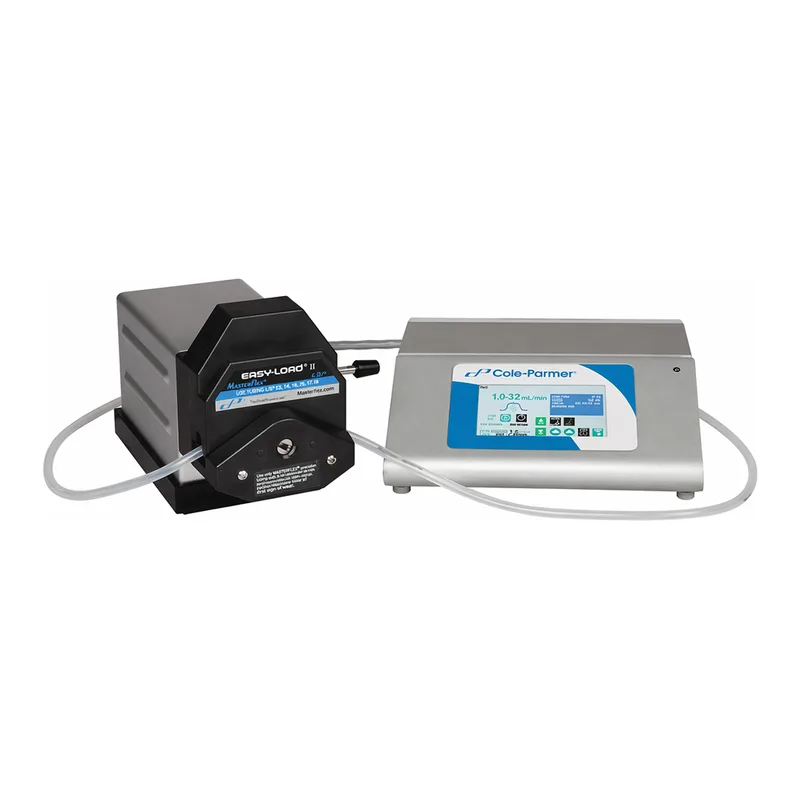

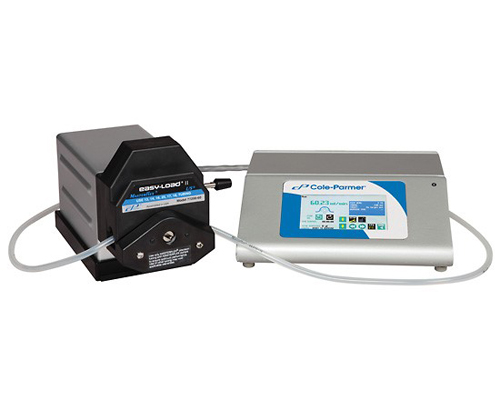

Modular Touch-Screen Dispensing Pumps

Description

  • Flow range: 0.001 to 1500 mL/min with Masterflex® L/S® pump tubing
  • Program options include constant flow rate, stepped flow, ramped flow, and pulsed flow
  • Pump or dispense by volume or time
  • Advanced options include program linkage, step repeat, go-to step statements, and program alarms
  • Store and transfer programs to a PC or from pump to pump
  • Controller is preprogrammed with flow ranges for all accepted tubing sizes​

Quickly set up single- or multiple-step programs depending on the requirements of your application. The controller will store up to
50 programs with up to 20 steps each` programs are easily recalled for later use. When pumps are daisy-chained, programs can be
transferred from pump to pump to ensure process or experimental consistency.

The included Masterflex Easy-Load® II pump head with automatic tubing retention makes tubing changes quick and easy. Controller is preprogrammed with maximum and minimum flow rates for all accepted tubing sizes. Tubing calibration function ensures flow
accuracy and allows user to select calibration volume based on volume being dispensed.

Additional features include screen lockout to prevent inadvertent program changes, forward and reverse prime to rapidly fill or purge
tubing, and user selectable restart function in the event of power outage. Controller and drive are housed in durable painted steel.

What’s included: Easy-Load II pump head, power adapter with 6-ft (1.8-m) line cord with IEC 320/CEE22 socket. These models
are shipped with country-specific plug/cord set` please specify ultimate destination when ordering.

Specifications

Accuracy ±1%
Input/output RS-485, USB Type B, DB15, mini phono jack
Motor 1.8° stepper
Motor input power: 30 V, 1.67 A
Dimensions (W x H x D) Drive: 43⁄8" x 6" x 10" (11.1 x 15.2 x 25.4 cm)
Controller: 9" x 3" x 73⁄4" (22.9 x 7.6 x 19.7 cm)

Products

Flow range
(mL/min)
Pump head(s)
included
Tubing sizes
accepted
Drive speed
rating (rpm)
IP rating Power Catalog
number
0.001 to 1500 One L/S Easy-Load II
77200-60
L/S 13, L/S 14, L/S 16,
L/S 25, L/S 17, L/S 18
0.02 to 375 IP33 100 to 240 VAC GY-07582-00
0.001 to 1250
per channel
Two L/S Easy-Load II
77200-60
L/S 13, L/S 14, L/S 16,
L/S 25, L/S 17, L/S 18
GY-07582-10
0.001 to 500
per channel
One L/S Easy-Load II
dual-channel 77202-60
L/S 13, L/S 14, L/S 16,
L/S 25
GY-07582-20
