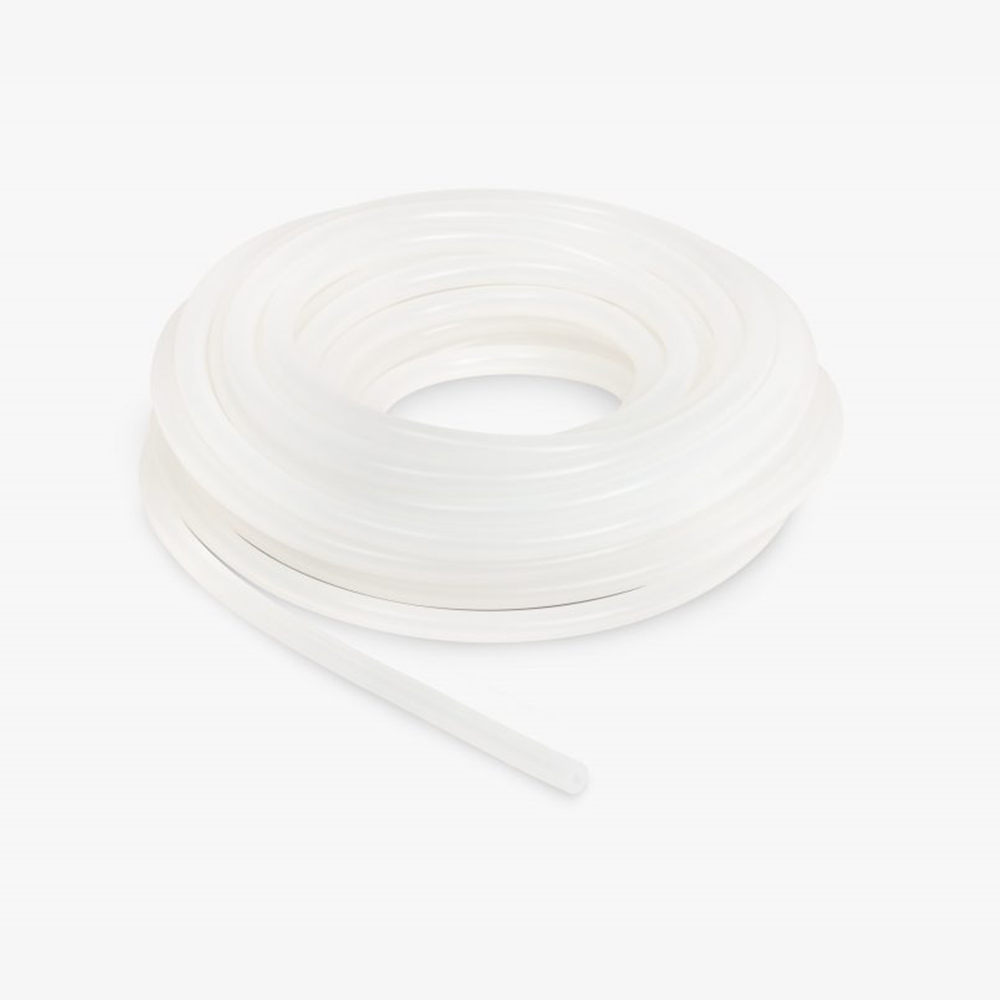

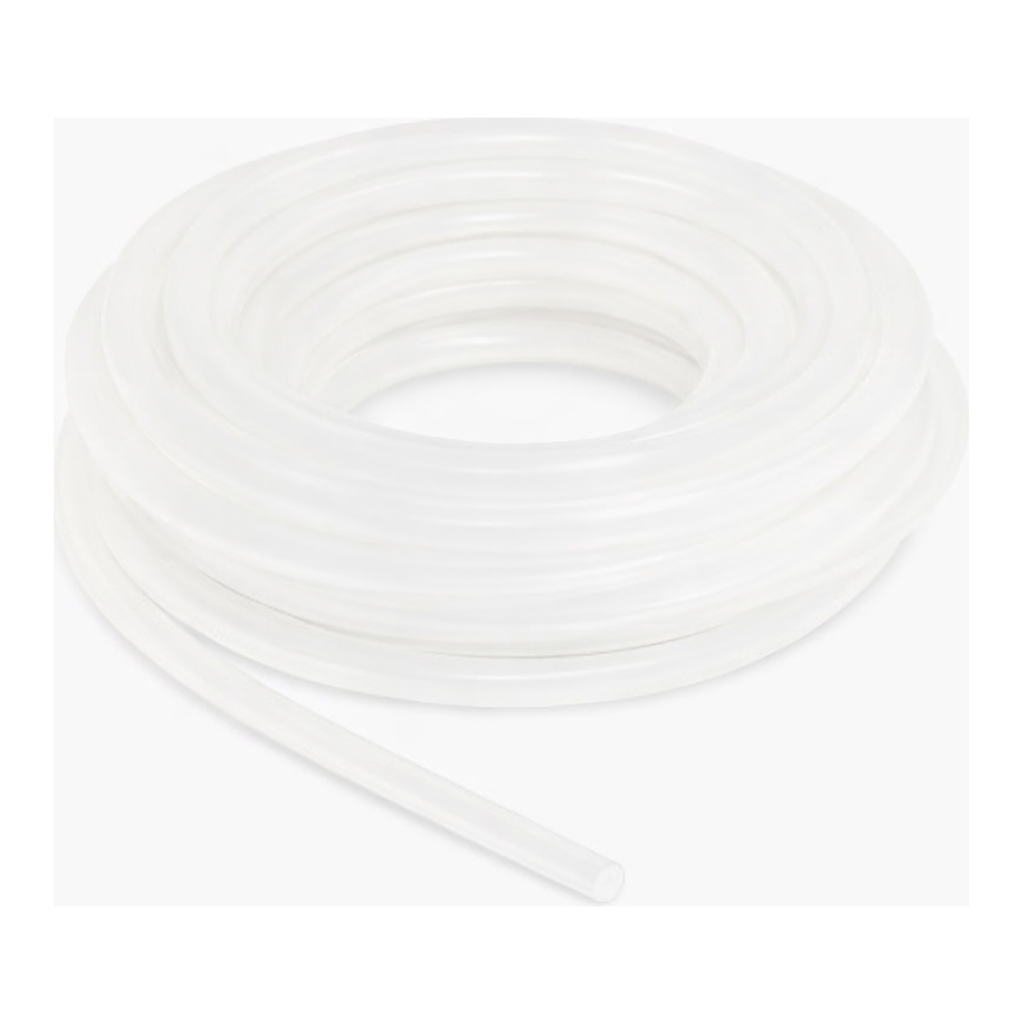

VENA®Bio Pure ISO 7

PLATINUM POSTCURED TUBING

Applications:

It is especially recommended for the transport of liquid or semi-liquid fluids in the food, cosmetic, chemical and pharmaceutical industries. It offers an extremely broad field of applications.

Due to its translucent appearance, the product inside the hose is visible during the process phase.

Properties:

• Odorless, tasteless and completely non-toxic.
• Can be equipped with 316L stainless steel fittings on each end with a roughness value of less than 0.8 µm (or 0.5 µm on request).
• The standard manufacturing length is 25 meters long (82.02 ft), although they can be manufactured in any length required.

More information

Appearance: Translucent and smooth inner appearance.

Hardness: Available in 50 ShA, 60 ShA and 70 ShA.

Features: Double bagged in clean room ISO 7 according ISO 14644-1.

Temperature: -60°C (-76 F) to +200°C (392 F), it may reach up to 220°C (428 F) during short periods of time.

Construction: This reference is manufactured with VMQ (Vinyl-Methyl Quality) silicone.

Certificates

Certifications: Complete Validation Package.
