SL2100 Eight Channel Data Logger
8채널 입력을 지원하는 고성능 데이터 로거 16비트 해상도와 다양한 입력 타입(mA, mV, Thermocouple) 지원 정전 시 8시간까지 동작 가능한 배터리 백업 기능 112,000개 데이터 저장 및 1초~24시간 간격 샘플링 가능 실시간 그래프 표시 및 알람 릴레이 출력 지원
- 브랜드
- Signatrol
Signatrol · SL2100 Eight Channel Data Logger

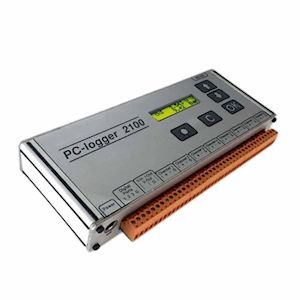

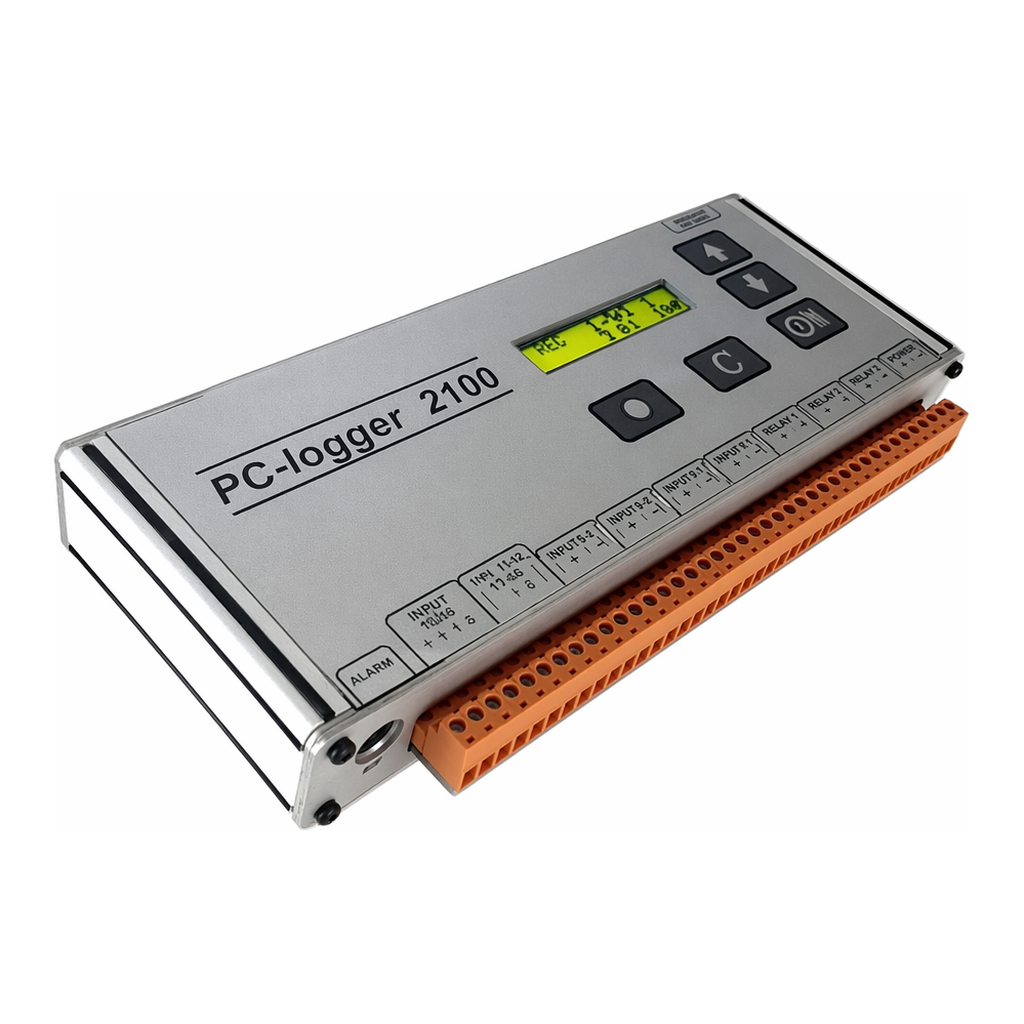

SL2100 Eight Channel Data Logger
The SL2100 is a high-performance data logger with 16-bit resolution, supplied with EasyView software. It features eight configurable channels that can accept mA, mV, low-level DC voltage, and thermocouple sensors. Additionally, three extra channels can be configured as pulse counters or digital inputs.
Although mains powered, the SL2100 includes internal batteries providing up to 8 hours of operation during power failure. It has internal memory capable of storing 112,000 readings, with sample rates adjustable from 1 second to 24 hours in 1-second increments.
The SL2100 can operate in two modes:
- Off-line mode: Logs data to internal memory
- On-line mode: Logs data directly to a connected computer, allowing real-time graph display
It also includes a relay output for alarm signaling and is supplied in a convenient carry case.
Specification
| 항목 | 내용 |
|---|---|
| Power | Mains power with battery backup. Power requirements: 12–18VDC @ 250mA |
| Battery Life | At least 8 hours when fully charged |
| Input Types | ±20mA ±10VDC, ±1VDC, ±100mV, ±50mV Thermocouple Types B, E, J, K, N, R, S & T |
| Accuracy | Current Input: ±0.04% of full scale Voltage Input: ±0.04% of full scale Thermocouple Input: ±0.5°C + 0.04% full scale |
| Resolution | 16 Bit |
| Sample Rate | 1 second to 24 hours in 1-second intervals |
| Number of Readings Stored | 112,000 |
| Reusable When Memory Full | Yes |
| Digital Output(s) | One – Max Voltage 20V, Max Current 100mA |
| Waterproofing | IP50 – Protected against dust that may harm the instrument. No moisture ingress protection |
| Delayed Start | No |
| Software Alarms | Yes, high and low alarms can be specified |
| Weight | 1.1 kg |
| Material | Aluminium, Stainless Steel |
| Dimensions | 247 mm (L) × 110 mm (W) × 36 mm (H) |
| Warranty | 1 Year |
