Robot Lines

Robotic equipment

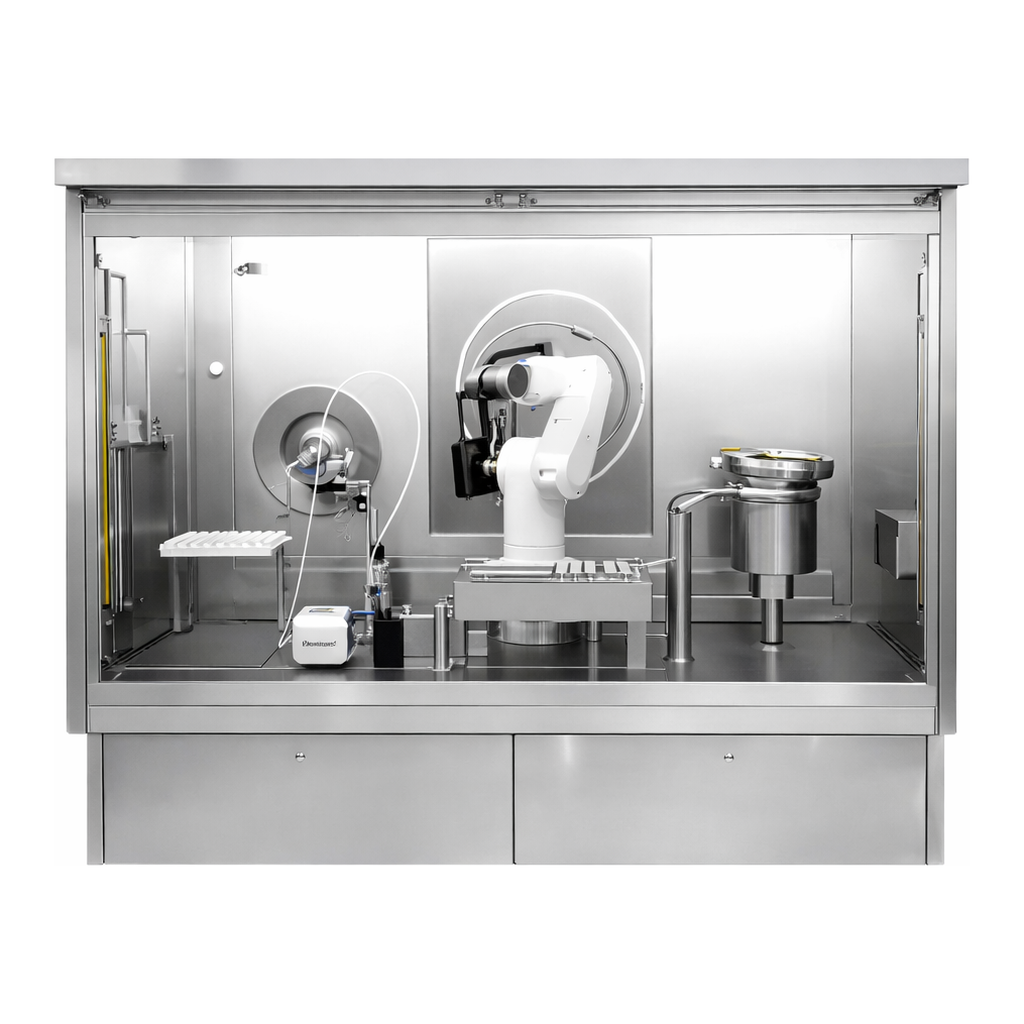

The Crystal® L1 Robot Line is an automated equipment designed to perform filling of stability batches, clinical batches and niche products production. The equipment can fill up to 600 AT-Closed Vials® per hour.

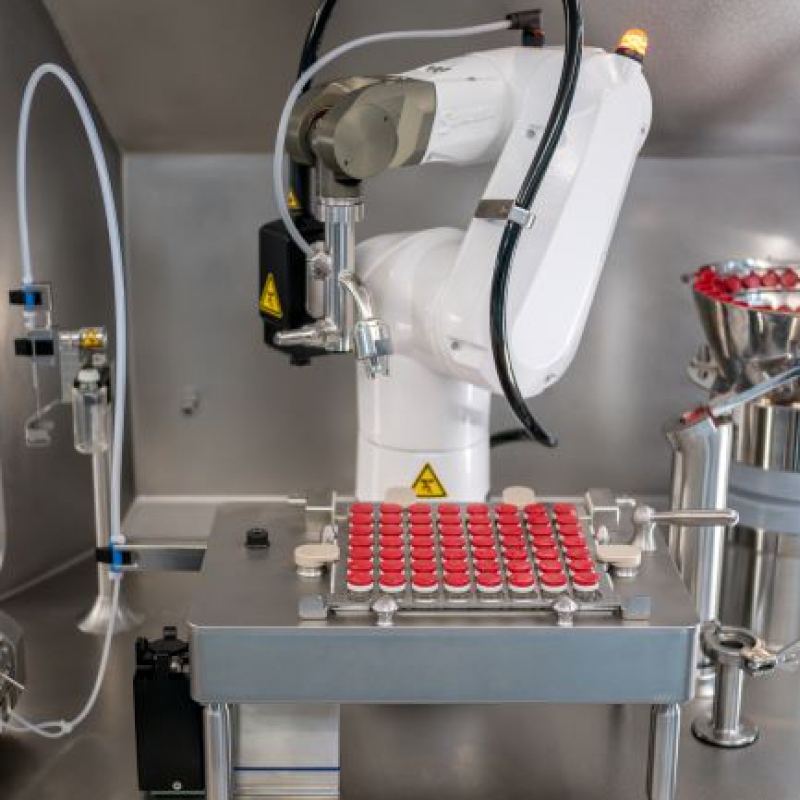

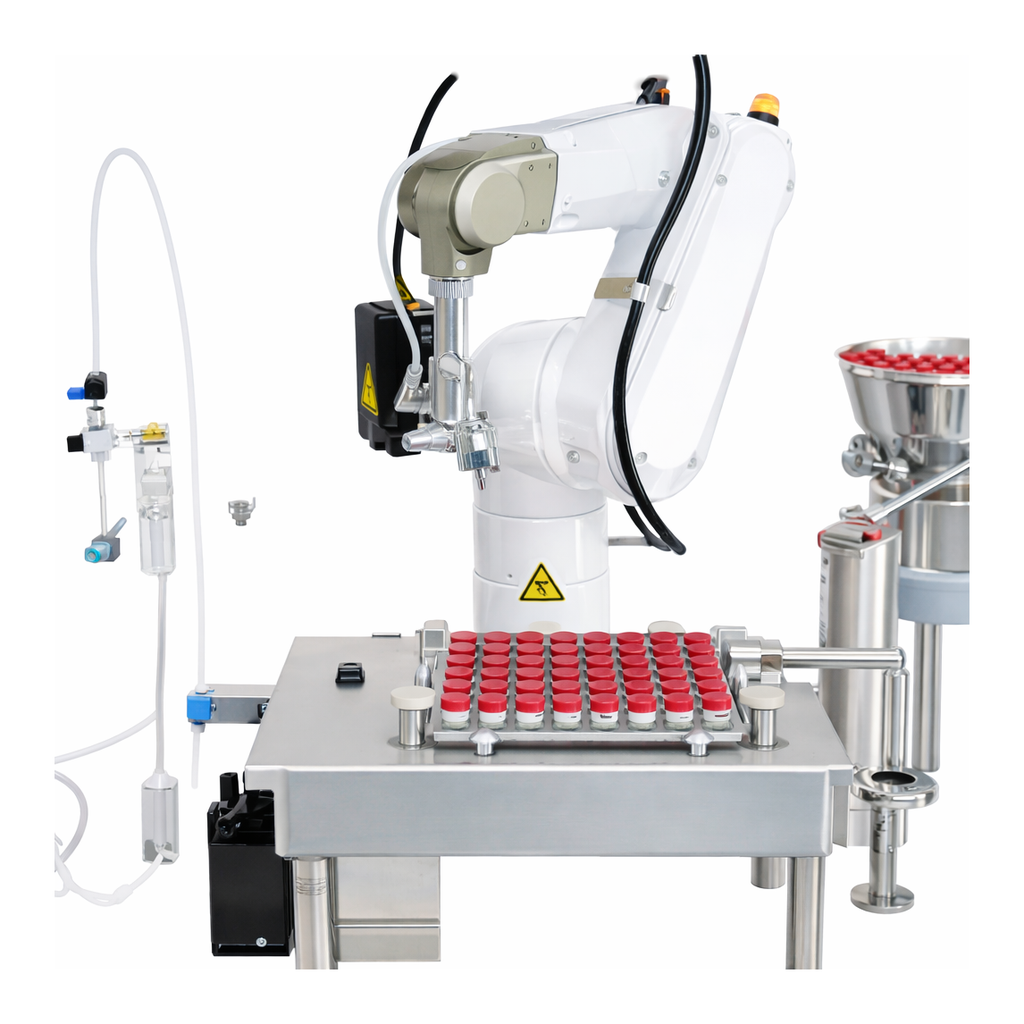

Ready-to-Fill AT-Closed Vial® are processed in nests. They are automatically filled, laser re-sealed and capped by the L1 Robot line.

The Crystal® L1 Robot Line can be easily operated by a single person and is suitable for installation in different backgrounds: from Grade B clean room in active or passive RABS up to Grade C surrounding when installed inside an isolator.

Download the brochure

Advantages

> Very limited space required: footprint is approximately 1 sq. m. (~ 10 sq. ft.)
> Different vial entry procedures and barrier systems according to project specifications and product requirements
> Only electricity is required to operate the equipment

Main characteristics

Multicontainer equipment

The multicontainer Crystal® SL1 Robot Line is designed to face the challenge of flexible small scale pharmaceutical filling with a capacity going up to 700 units/hour. Typical batch size outgoes 5,000 units per shift.

Fully compliant with cGMP requirements, the Crystal® SL1 Robot Line is able to process different kind of ready-to-fill containers in nests (all formats of AT-Closed Vial®, prefillable syringe and rubber stoppered vial) with minimum change-over time. All operations are performed by the Robot equipped with specific tools.

Advantages

> Flexibility: 1 equipment 3 containers
> Short changeover time to switch to another container type
> Very limited space required: footprint is approximately 1 sq. m. (~ 10 sq. ft.)
> Different vial entry procedures and barrier systems according to project specifications and product requirements

Main characteristics

Download the brochure
