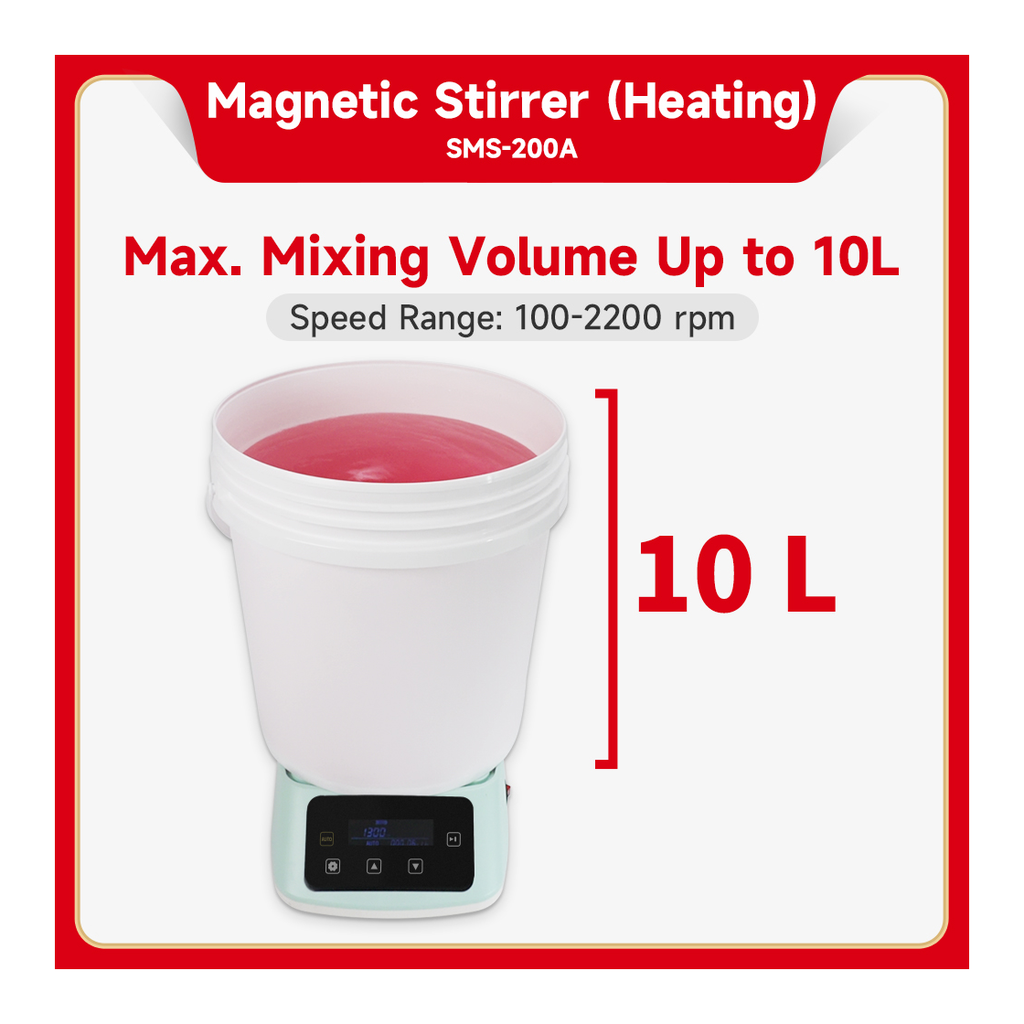

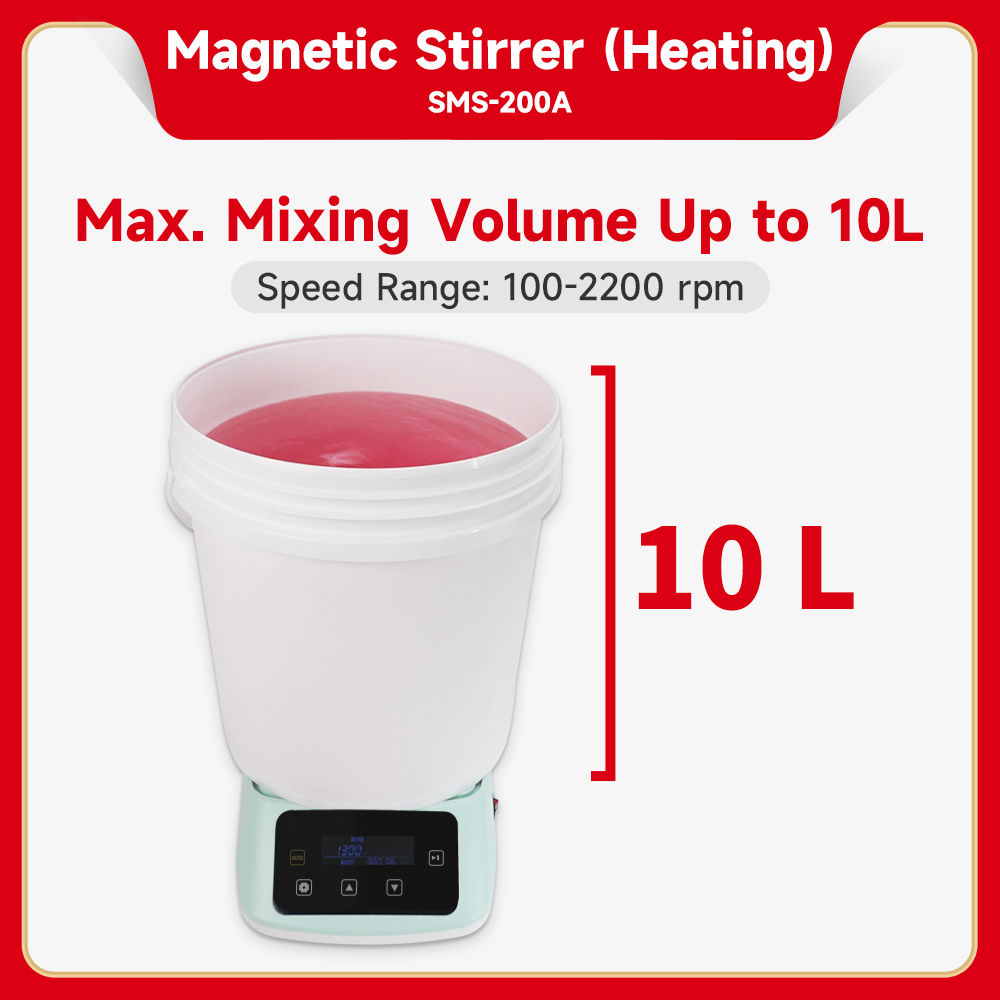

Servicebio Magnetic Stirrer (Heating)

Product Information

The magnetic stirrer is a laboratory instrument used for liquid mixing, mainly for stirring or simultaneously heating and stirring low-viscosity liquids or solid-liquid mixtures. Its basic principle is to use the principle of same-sex repulsion and opposite-sex attraction of the magnetic field to push the magnetically placed stir bar in the container to perform circular motion, thereby achieving the purpose of stirring the liquid. With the heating temperature control system, it can heat and control the sample temperature according to specific experimental requirements, maintain the required temperature conditions for experimental conditions, and ensure that the liquid mixing meets the experimental requirements.

---

*Product Features *

1. 10L stirring volume, increased magnetic force.

2. Equipped with heating temperature control system, heating and controlling sample temperature, with high temperature control accuracy.

3. Automatic and manual modes. Automatic search for stir bar.

4. Intelligent anti-jumping stir bar, it will automatically restart after the stir bar jumps.

5. LCD display, intuitive and clear, easy to operate.

6. .The side of the instrument can absorb the stir bar, which can avoid the stir bar from being lost frequently

7. Anti-collision, anti-scalding design, flame-retardant materials for safer use.

---

Products Parameters

Product Name	Classic Smart Model	Smart Heating Model
Cat. No.	SMS-200	SMS-200A
Work Plate Size	140mm×140mm	150mm×150mm
Heating And Stirring Function	-	Yes
Intelligent Speeding Function	Yes	Yes
Work Plate Material	Plastic Plate	Cast Aluminum Sprayed Ceramics
Speed Range	100-2000rpm	100-2000rpm
Heating Temperature Range	-	RT-300℃
Temperature Control Accuracy	-	±1℃(below 100℃), ±1%(above 100℃)
External Temperature Sensor	-	PT1000
Overheating Protection	-	320℃
Timing Range	1-999h60min	1-999h60min
Number of Stirring Points	1	1
Maximum Stirring Capacity	10 L	10 L
Maximum Size of Stir Bar	50 mm	50 mm
Input Voltage	220V 50/60Hz	220V 50/60Hz
Output Power	10W	570W
Thermal Output Power	-	550W
Dimension	290*195*68mm	290*195*440mm
Net Weight	0.79kg	2.4kg
Motor Type	Brushless DC Motor	Brushless DC Motor
Speed Control Accuracy	100rpm	100rpm
Residual Temperature Warning	-	50℃
Working Temperature And Humidity	5-40℃, 80%rh	5-40℃, 80%rh
