OPTi Digital Handheld Refractometer/디지털 휴대용 굴절계 for a wide range scales

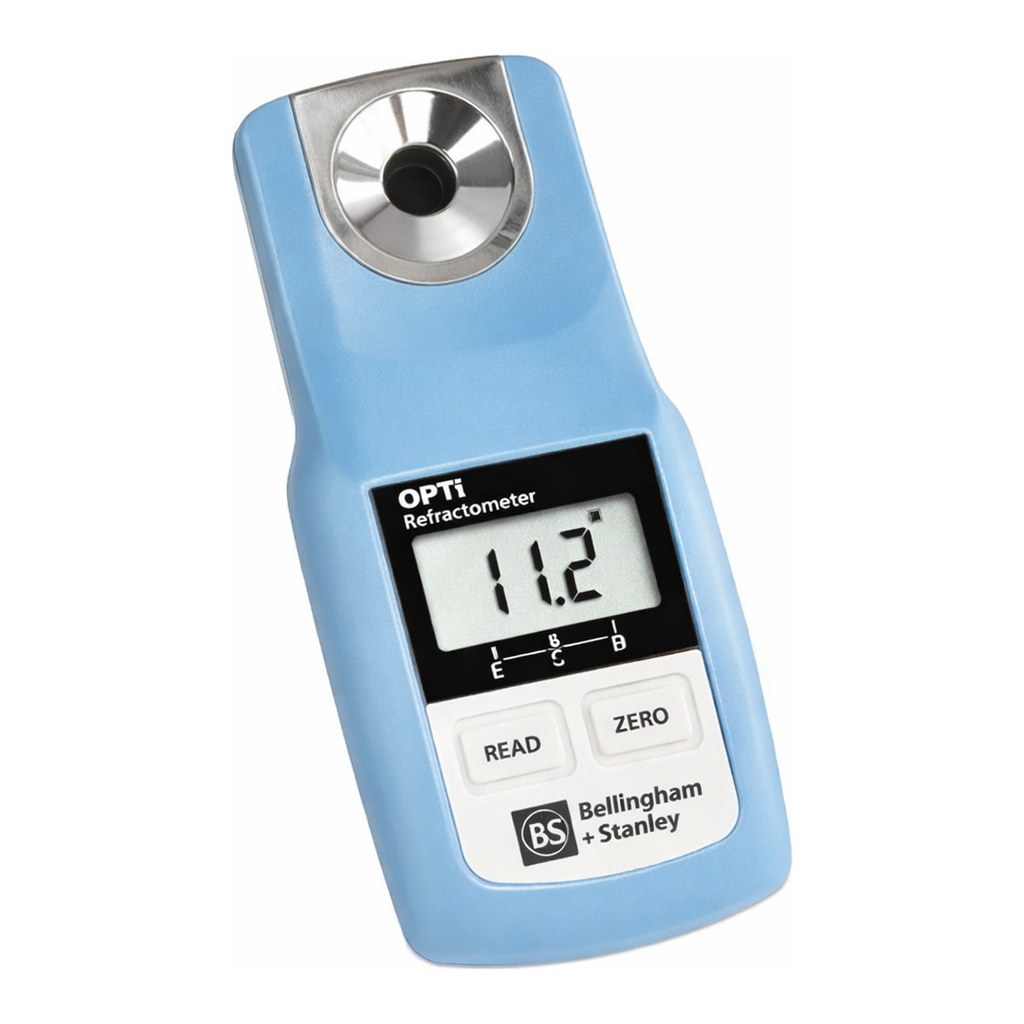

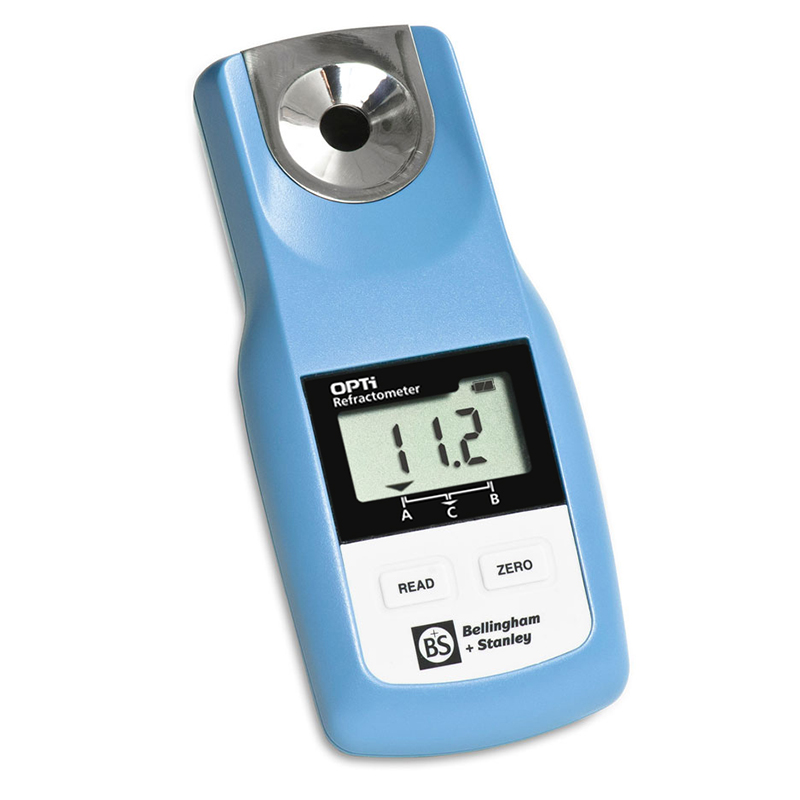

OPTi Digital Handheld Refractometer (Made in UK)

주요 특징

• 40개 이상의 스케일 라이브러리 내장 (Library Onboard)
• 최대 3개의 활성 스케일을 동시에 측정 가능
• 물(Water)로 간편한 Zero Calibration
• 초소형, 경량, IP65 등급의 휴대용 설계
• 신속한 온도 보정 기능으로 높은 신뢰성 확보
• 사용이 간단하며 UKAS 교정 인증서(Certificate of Calibration) 포함
• 제조사: Bellingham + Stanley

---

기본 사양

항목	내용
Cat. No.	R09-105-501
Model	38-01
Type	°Brix (Sucrose)
측정 범위	0 ~ 90
Resolution	RI (0.0001) / °Brix (0.1)
Accuracy	RI (±0.0003) / °Brix (±0.2)
ATC	ICUMSA / App. Specific
Operating Temperature	5 ~ 40℃
Measurement Time	< 2 sec
Battery	3V (AAA × 2, 약 10,000회 측정)
Dimension	W55 × D120 × H35 mm

---

Primary Scales

ATC	굴절율	Resolution	Unit	Scale
°Brix	0 ~ 95	0.1	-	°Brix (ATC)
None	0 ~ 95	0.1	-	°Brix
°Brix	1.33 ~ 1.53	0.0001	-	RI (ATC)
None	1.33 ~ 1.53	0.0001	-	RI

RI : Refractive Index

---

Automotive Scales

ATC	굴절율	Resolution	Unit	Scale
AUS32	0 ~ 40	0.1	% Weight/Weight	AdBlue® / DEF (NOx reduction)
EG	0 ~ -50	1	°C Freezing Point	Ethylene Glycol
EG	30 ~ -40	1	°F Freezing Point	Ethylene Glycol
PG	0 ~ -50	1	°C Freezing Point	Propylene Glycol
PG	30 ~ -40	1	°F Freezing Point	Propylene Glycol

---

Food & Beverage Scales

ATC	굴절율	Resolution	Unit	Scale
Butyro	0 ~ 100	0.1	-	°Butyro
°Brix	0 ~ 85	0.1	% Weight/Weight	Fructose
°Brix	30 ~ 85	0.1	% Weight/Weight	Glucose
°Brix	0 ~ 95	0.1	% Weight/Weight	42 HFCS
°Brix	0 ~ 95	0.1	% Weight/Weight	55 HFCS
°Brix	0 ~ 95	0.1	% Weight/Weight	90 HFCS
°Brix	0 ~ 85	0.1	% Weight/Weight	Invert Sugar
°Brix	0 ~ 60	0.1	% Weight/Weight	Maltose
NaCl	0 ~ 28	0.1	% Weight/Volume	Salinity (NaCl)
°Brix	5 ~ 15	0.1	%	Total Solids of Waste Milk
Honey	10 ~ 30	0.1	% Weight/Weight	Water in Honey

HFCS : High Fructose Corn Syrup

---

Industrial Scales

ATC	굴절율	Resolution	Unit	Scale
-	0 ~ 95	0.1	-	Arbitrary
CaCl2	0 ~ 40	0.1	% Weight/Weight	Calcium Chloride
Ethanol	0 ~ 20	0.5	% Volume/Volume	Ethanol
EG	0 ~ 60	0.1	% Volume/Volume	Ethylene Glycol
EG	0 ~ 60	0.1	% Weight/Weight	Ethylene Glycol
°Brix	0 ~ 0.25	0.01	% Volume/Volume	FSII DiEGME (ASTM D 5006)
°Brix	0 ~ 50	0.2	% Weight/Weight	Hydrogen Peroxide
Meth	0 ~ 40	1	% Weight/Weight	Methanol
PG	0 ~ 60	0.1	% Volume/Volume	Propylene Glycol
Na2SO4	0 ~ 22	0.1	% Weight/Weight	Sodium Sulphate
°Brix	0 ~ 30	0.1	%	Starch
SA	1 ~ 1.501	0.001	Specific Gravity (d20/20)	Sulphuric Acid (Battery Acid)
AUS32	0 ~ 40	0.1	% Weight/Weight	Urea (CRC data)

---

Life Science Scales

ATC	굴절율	Resolution	Unit	Scale
°Brix	Poor / PASS	Poor / PASS	-	Colostral Quality
NaCl	0 ~ 180	1	Part Per Thousand	Seawater (Practical Salt Unit)
NaCl	1 ~ 1.090	0.0005	Specific Gravity (d20/20)	Seawater (Practical Salt Unit)
°Brix	0 ~ 30	0.1	g/100 ml	Serum Protein
°Brix	1 ~ 1.050	0.0005	Specific Gravity (d20/20)	Urine (SG) Human
°Brix	1 ~ 1.050	0.0001	Specific Gravity (d20/20)	Urine (SG) Large Mammal
°Brix	1 ~ 1.050	0.0005	Specific Gravity (d20/20)	Urine (SG) Small Mammal

---

Wine & Beer Scales

ATC	굴절율	Resolution	Unit	Scale
°Brix	0 ~ 50	0.1	-	°Baumé
°Brix	10 ~ 135	0.1	% Volume/Volume	°Zeiss (ABV)
°Brix	0 ~ 22	0.1	-	Alcohol Probable (AP)
°Brix	0 ~ 25	1	-	KMW (Babo)
°Brix	30 ~ 130	1	-	Oechsle (German)
°Brix	0 ~ 130	1	-	Oechsle (Swiss)
°Brix	0 ~ 30	0.1	-	°Plato
°Brix	0 ~ 95	0.1	% Weight/Weight	Mass Sugar (°Brix)(ATC)
None	0 ~ 95	0.1	% Weight/Weight	Mass Sugar (°Brix)
°Brix	1 ~ 1.120	0.0005	Specific Gravity (d20/20)	Wort (Sucrose Equivalent)

---
