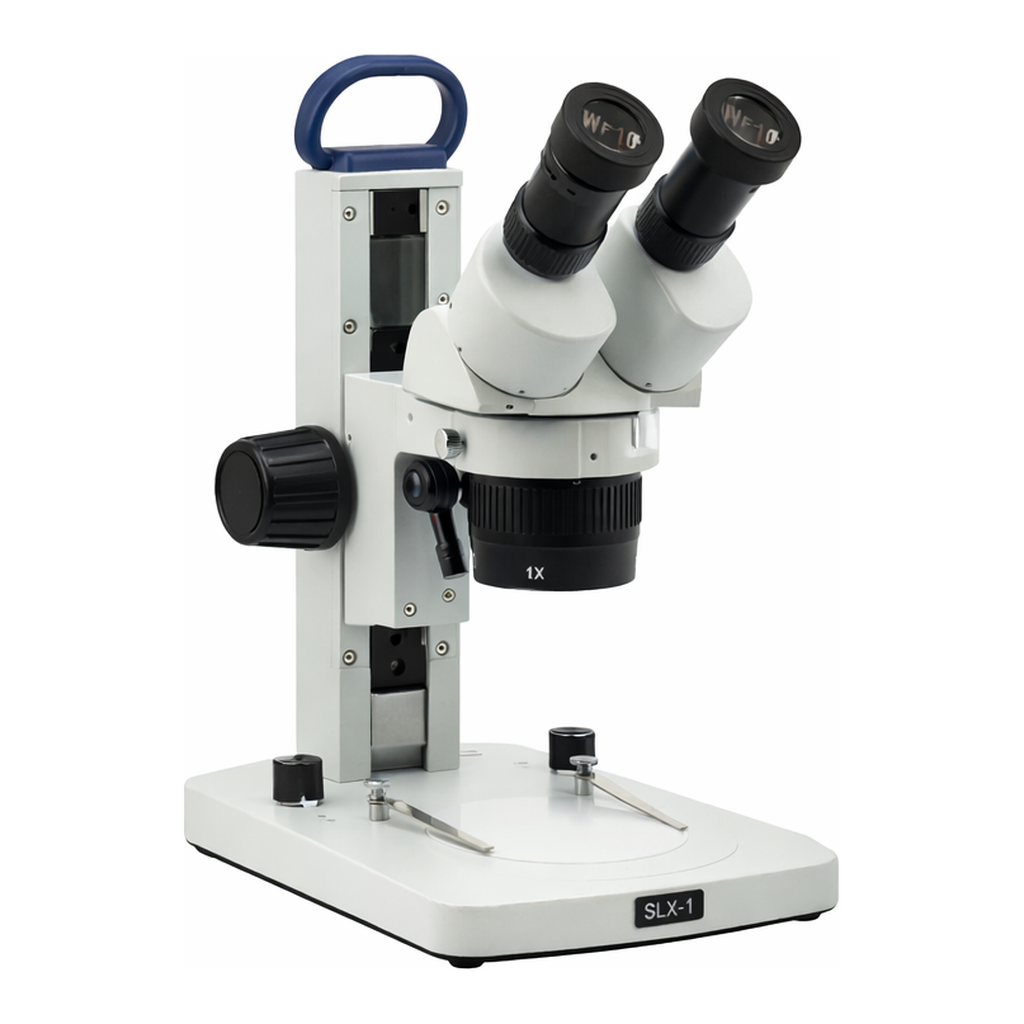

Laboratory Stereomicroscopes 실험실 입체 현미경

■ 기본 쌍안 (Binocular)이며, Photography/Video 기능을 장착할 수 있는 삼안(Trinocular) 모델 두종류임

■ High Eyepoint 접안렌즈로 안경을 착용한 채로 관찰 할 수 있음
■ Head는 360˚ 회전이 가능하며, 45˚ 기울어져 있어 관찰이 용이함
■ Working Distance : 100 mm
■ Optika Microscope With Illuminator

Cat. No.	Model	Head	Objective

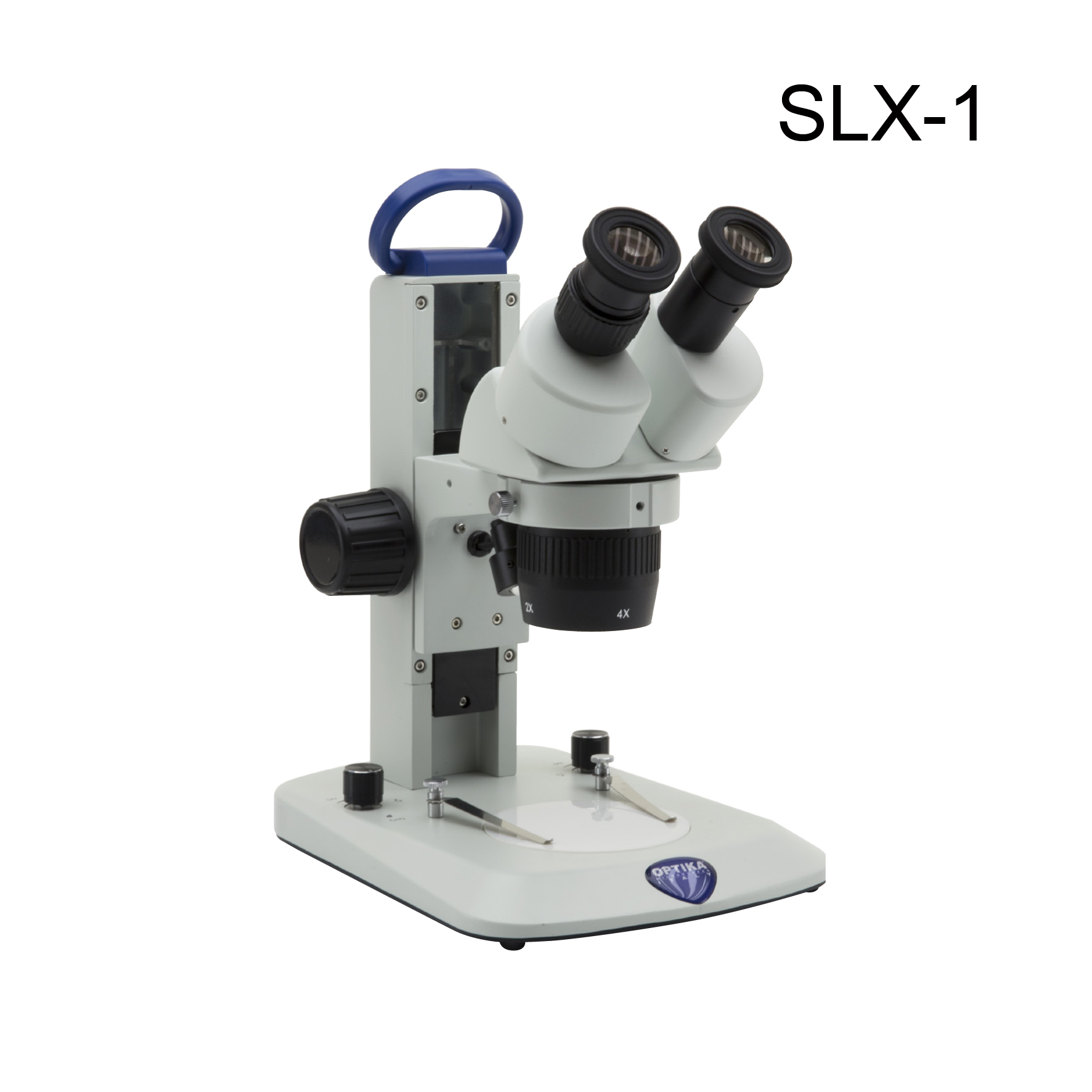

M02-29-125	SLX-1	Bionocular	Achromatic 2x...4x (with anti-fungus treatment)
---	---	---	---
M02-29-135	SLX-2	Bionocular	Achromatic 0.7x...4.5x (6.43 : 1 Ratio) with anti-fungus treatment
---	---	---	---
M02-29-145	SLX-3	Trinocular
---	---	---	---

● Cordless use, totally independent from mains/batteries connection

- Rechargeable batteries, External Power Supply

● Longlife LED illumination

Without Illuminator

Cat. No.	Model	Head	Objective
M02-29-155	SLX-4	Bionocular	Achromatic 0.7x...4.5x (6.43 : 1 Ratio) with anti-fungus treatment
---	---	---	---
M02-29-165	SLX-5	Trinocular
---	---	---	---

● Overhanging Stand : 420 mm high, 430 mm horizontal arm length, base 230x230 mm with following adjustments

● External illuminators available (Option)

	Binocular Type	TTrinocular Type
Head	45° inclined, 360° rotating	Split Ratio 50/50, 45° inclined, 360° rotating
---	---	---
Dioptric adjustment	Both eyepieces
Eyepiece	WWF10x / 21 mm, high eye-point, Secured by screw and with rubber cups
Working Distance	1100 mm
Focusing	Rack and pinion mechanism controlled by a pair of knobs placed on both side of the stand

Eyepiece

Cat. No.	Model	Description
M02-29-201	ST-036	Eyecups (pair), Flat
M02-29-203	ST-081	Eyepieces(pair) WF10×/21mm, high eyepoint, w/ rubber cup
M02-29-205	ST-082	Eyepieces(pair) WF15×/15mm, high eyepoint
M02-29-207	ST-083	Eyepieces(pair) WF20×/10mm, high eyepoint
M02-29-209	ST-084	Eyepieces micrometric WF10×/21mm, high eyepoint, w/ rubber cup

Additional Lens

Cat. No.	Model	Description
M02-29-212	ST-085.1	Additional Lens 0.5×(w.d 165mm), SLX-1 제외
M02-29-214	ST-091	Additional Lens 0.75×(w.d 105mm), SLX-1 제외
M02-29-216	ST-086.1	Additional Lens 1.5×(w.d 45mm), w/ Compensating disc, , SLX-1 제외
M02-29-218	ST-087	Additional Lens 2×(w.d 33mm), only for SLX-4 & 5

Camera Adapter

Cat. No.	Model	Description
M02-29-455	M-620	0.35x focusable C-mount adapter
---	---	---
M02-29-114	M-620.1	0.50x focusable C-mount adapter
---	---	---
M02-29-457	M-620.2	0.65x focusable C-mount adapter
---	---	---
M02-29-421	M-620.3	1.00x focusable C-mount adapter
---	---	---

Additional Accessory

Cat. No.	Model	Description
M02-29-423	ST-088.1	Cleaning Kit
---	---	---
M02-29-426	ST-040.1	Plastic Dust Cover, w490 X h490mm, for SLX-1, 2, & 3
---	---	---
M02-29-427	ST-100.1	TNT Dust Cover, w700 X h550mm, for SLX-4, 5
---	---	---
M02-29-556	CL-41	2-Arm LED Illuminator
---	---	---
