Masterflex L/S Rigid PTFE-Tubing Pump Head, Avantor

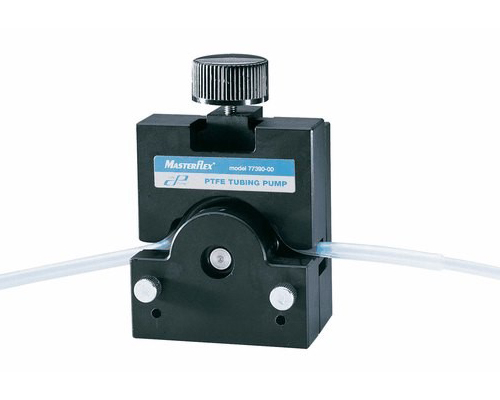

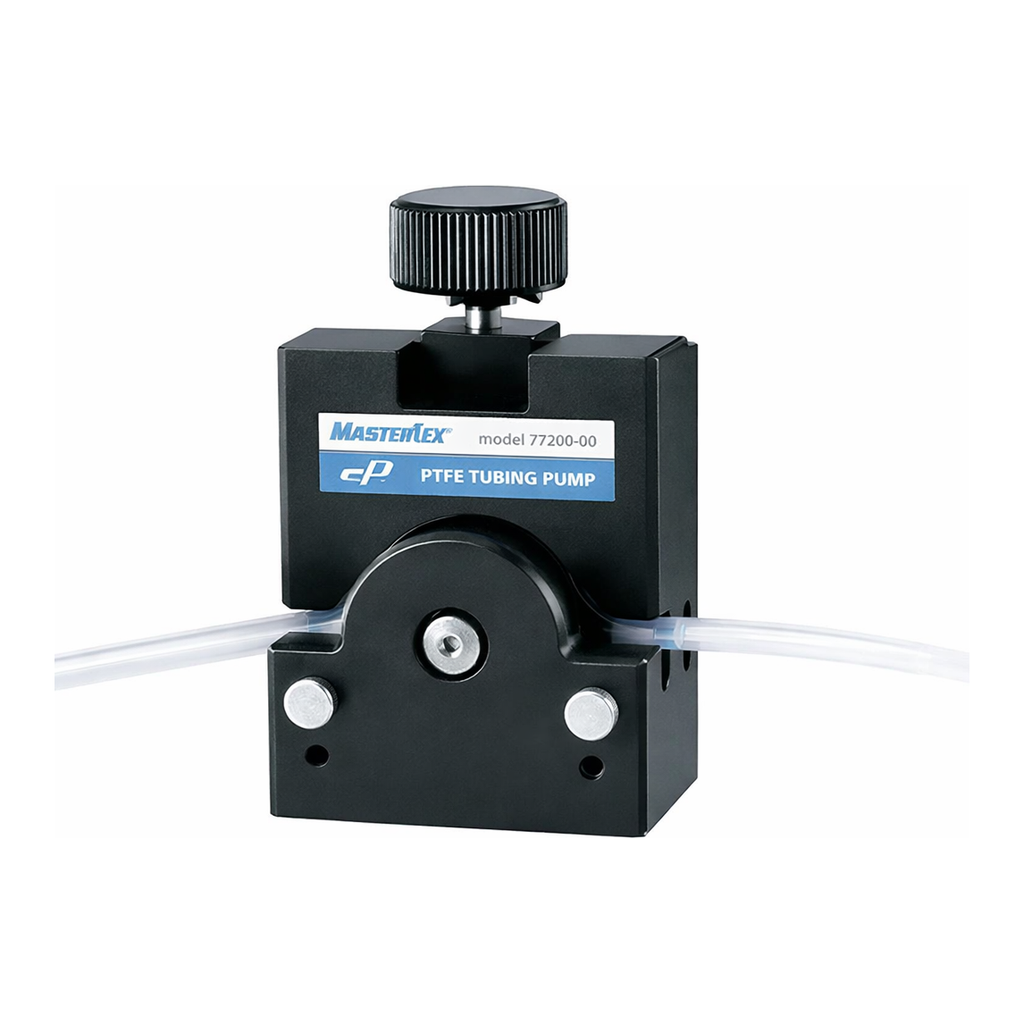

L/S® PTFE-Tubing Pump Head
Ideal for high-purity fluids and aggressive organic solvents

**
Features**

· Pump fluids at pressures up to 100 psi (6.9 bar)
· Use for applications including filtration, chemical injection, and high-purity sampling
· PTFE tubing is the only wetted part –– Compatible with L/S drives that accept two or more pump heads (1⁄10 hp min); For best results, run at 1 to 300 rpm

Note: PTFE-tubing pump head accepts only the Masterflex L/S PTFE tubing sets sold below; ordinary PTFE tubing cannot be
substitued. Use the connectors to adapt the tubing sets to your system.

Specifications

PTFE-Tubing Sets

PTFE-tubing sets include two 15` (38 cm) lengths and cannot be substituted with ordinary PTFE tubing.
CP-77390-50 PTFE-tubing set. 2-mm ID, 4-mm OD. Set of 2
CP-77390-60 PTFE-tubing set. 4-mm ID, 6-mm OD. Set of 2

Accessories for Tubing Sets

The compression fittings listed below adapt tubing sets to your system.
For 4-mm OD PTFE-Tubing Sets
CP-31321-61 Straight connector, 40 psi (2.8 bar) max
CP-06605-53 PTFE extension tubing, 4-mm OD. Pack of 25 ft (7.6 m)

For 6-mm OD PTFE-Tubing Sets
CP-31321-64 Straight connector, 135 psi (9.2 bar) max
CP-06605-54 PTFE extension tubing,6-mm OD. Pack of 25 ft (7.6 m)
