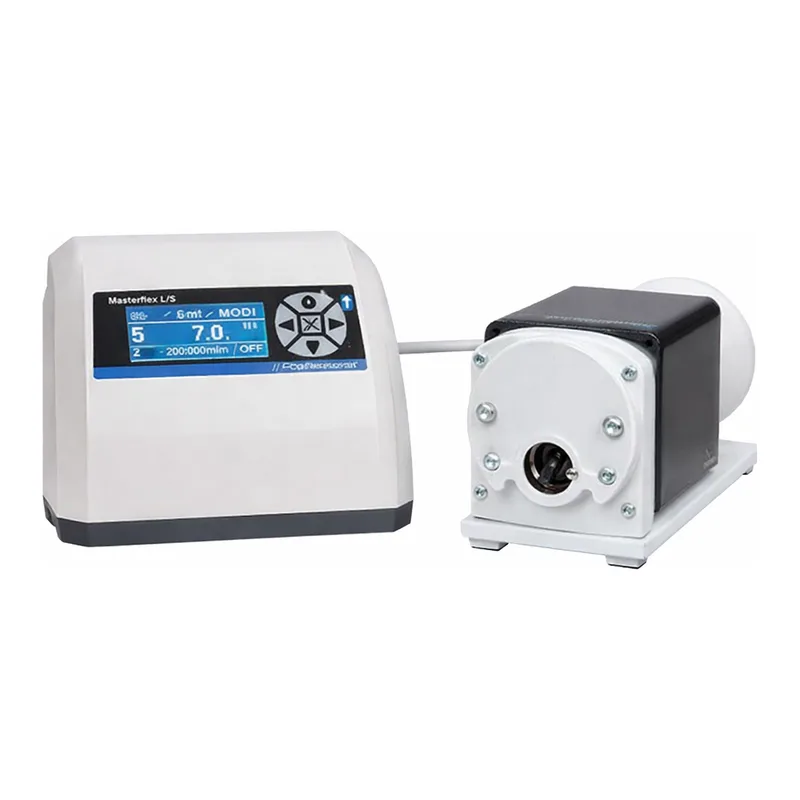

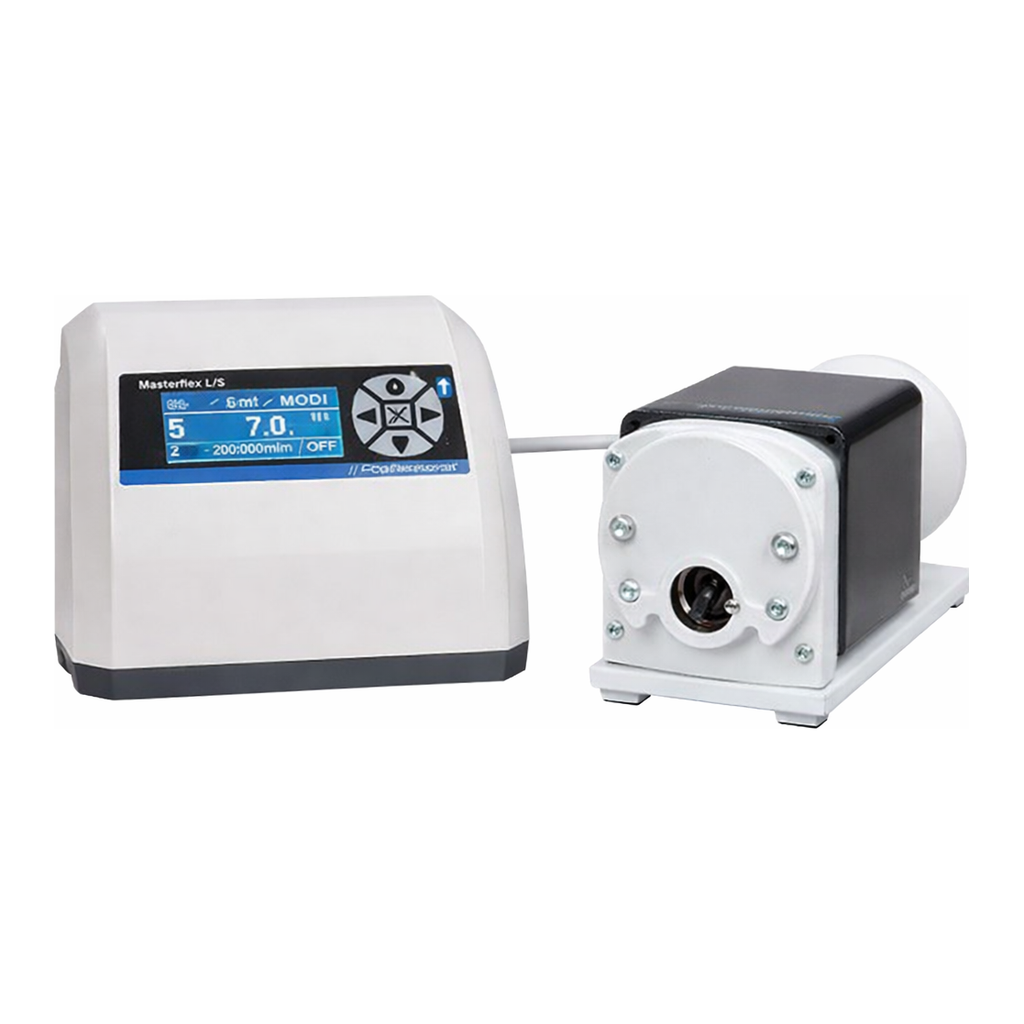

L/S® Digital Modular Dispensing Drives
Three dispensing modes and precision low-maintenance motor
Description
· Graphical LCD shows four operating modes: continuous run, timed dispense, copy dispense, volume dispense
· Dispense by mL—volume in mL of each dispense, 0.001 to 9999 mL;Copy—1 to 9,999 dispense cycles; or SEC—time interval between each dispense cycle (1 to 9,999 secs)
· Antidrip function ensures dispense accuracy
· Brushless, maintenance-free motor offers ±0.1% speed control accuracy and a 6000 to 1 turndown ratio
· Remote control capabilities: speed, direction, start/stop/prime, and tach output
What’s included: 6-ft (1.8-m) cable to connect drive and controller and 6-ft (1.8-m) line cord with IEC 320/CEE22 socket. Shipped with countryspecific plug/cord set; please specify destination when ordering.

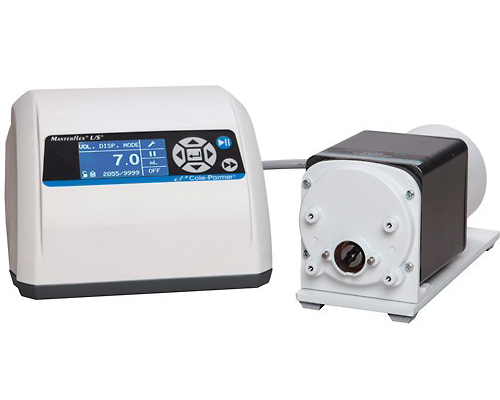

A. Modular Drive with Benchtop Controller
· Stackable, splash-resistant ABS plastic controller housing is IP33 rated; drive housing is epoxy finished steel, IP33 rated
· Remote control via a DB25 female connector on back of controller
B. Washdown Modular Drive with Wall-Mount Controller
**· Wall-mount controller housing is powder-coated aluminum, IP66 / NEMA4X rated for washdown; powder-coated steel drive housing is IP66 / NEMA4X rated for washdown
· Remote control via weather-resistant connection on controller
| rpm | Speed control |
Pump heads accepted |
Motor size |
IP rating |
Dimensions (L x W x H) |
Power (50/60 Hz) | Catalog number |
|
| VAC | Amps | |||||||
| A. Digital modular drive with benchtop controller | ||||||||
| 0.1 to 600 |
±0.1% (0.1 rpm at 600 rpm; 0.01 rpm at 100 rpm) |
2 | 1⁄10 hp (75 W) |
IP33 | Controller:10 1⁄2x 8 1⁄4 x 5<br><br>(26.7 x 21 x 12.7 cm) <br>Drive:10 1⁄2 x 3 13⁄16x 4 5⁄8(26.7 x 9.7 x 11.7 cm) |
90 to 260 | 2.2 at 115 VAC, 1.1 at 230 VAC |
GY-77301-40 |
| B. Digital washdown modular drive with washdown, wall-mount controller | ||||||||
| 0.1 to 600 |
±0.1% (0.1 rpm at 600 rpm; 0.01 rpm at 100 rpm) |
2 | 1⁄10 hp (75 W) |
IP66 | Controller: 9x 11 3⁄4 x 4 1⁄2<br><br>(23 x 30 x 11.4 cm) <br>Drive:15 9⁄16 x 7x 6(39.5 x 17.8 x 15.2 cm) |
90 to 260 | 2.2 at 115 VAC, 1.1 at 230 VAC |
GY-77301-50 |
GY-07523-95 Cable assembly, for benchtop modular drive 77301-40;DB25 male connector and 25-ft (7.9-m) cable with stripped wire ends for remote control
GY-77301-82 Extension cable, 9 ft (2.7 m) extends distance between motor and controller
GY-07575-80 Remote control cable for washdown modular drive 77301-50; wire to controller/PLC; 25-ft (8.3-m) length
GY-17050-01 NIST-traceable calibration for peristaltic pump drive
