Masterflex L/S Tube Sets, PTFE, Avantor
| 상품 옵션 정보 | ||||||
|---|---|---|---|---|---|---|
| 카탈로그 번호 | 설명 | 상태 | 단위 | 가격 | 가격(VAT포함) | 수량 / 장바구니 |
| MFLX77390-50 | MasterFlex MFLX77390-50 TUBING MFLEX PTFE 4MM OD 1,25` ea | 재고문의 | ea | 208,000원 | 228,800원 | |
| MFLX77390-60 | MasterFlex MFLX77390-60 TUBING MFLEX PTFE 6MM OD 1,25` ea | 재고문의 | ea | 260,000원 | 286,000원 | |
다른 상품 둘러보기
L/S® PTFE-Tubing Pump Head
Ideal for high-purity fluids and aggressive organic solvents
Features
· Pump fluids at pressures up to 100 psi (6.9 bar)
· Use for applications including filtration, chemical injection, and high-purity sampling
· PTFE tubing is the only wetted part –– Compatible with L/S drives that accept two or more pump heads (1⁄10 hp min); For best results, run at 1 to 300 rpm
Note: PTFE-tubing pump head accepts only the Masterflex L/S PTFE tubing sets sold below; ordinary PTFE tubing cannot be
substitued. Use the connectors to adapt the tubing sets to your system.
| Specifications |  |
| Materials | anodized aluminum and acetal body; stainless steel rotor assembly |
|---|---|
| Dimensions (W x H x D) | 1⁄4x 5 1⁄8 x 2 1⁄4` (8.3 x 13 x 5.7 cm) |
| Flow rates (mL/min at 1 to 300 rpm) | Maximum continuous pressure |
Max suction lift |
Avg tubing life (100 rpm, 0 psi) |
Number of rollers |
Catalog number |
|
|---|---|---|---|---|---|---|
| 4-mm OD tubing | 6-mm OD tubing | |||||
| 0.06 to 17 | 0.25 to 65 | 100 psi (6.9 bar) | 8 ft (2.4 m) | 500 hours | Six | CP-77390-00 |

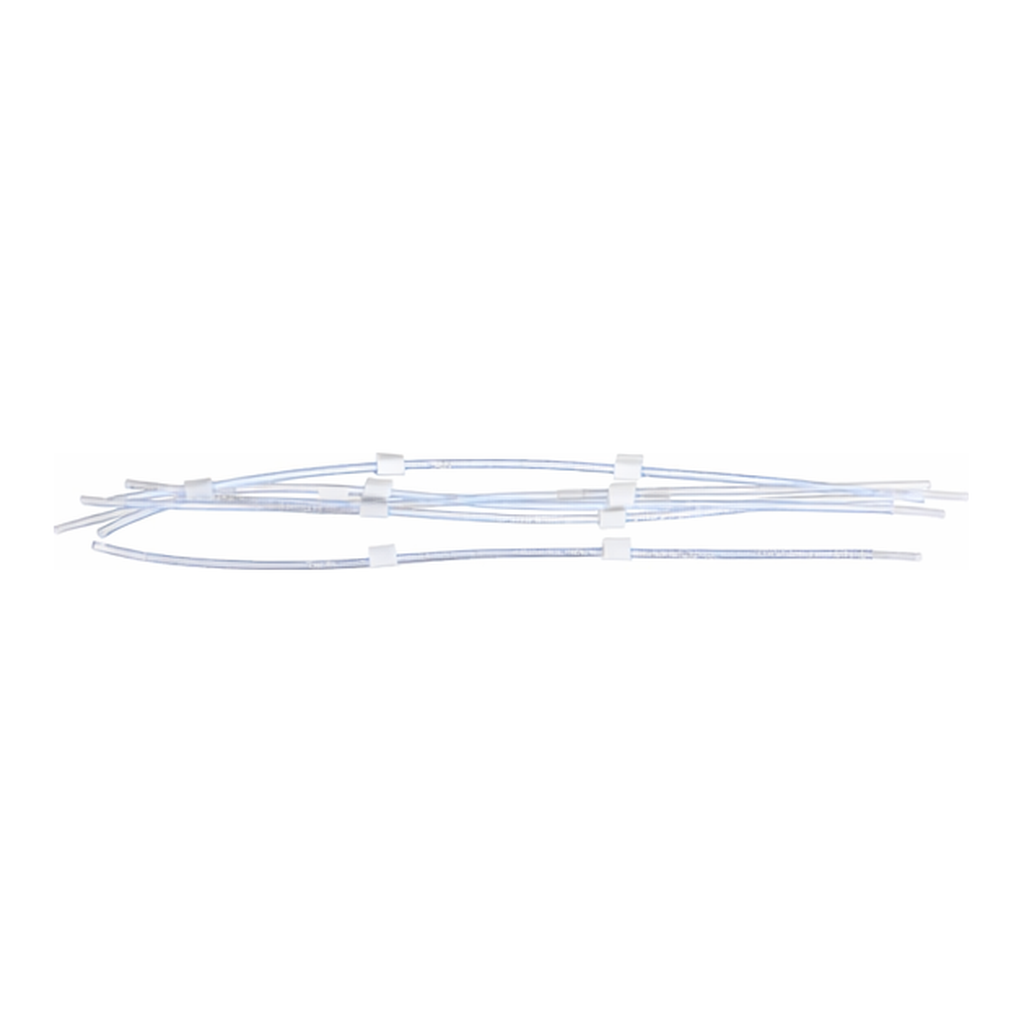

PTFE-Tubing Sets
PTFE-tubing sets include two 15` (38 cm) lengths and cannot be substituted with ordinary PTFE tubing.
CP-77390-50 PTFE-tubing set. 2-mm ID, 4-mm OD. Set of 2
CP-77390-60 PTFE-tubing set. 4-mm ID, 6-mm OD. Set of 2
Accessories for Tubing Sets
The compression fittings listed below adapt tubing sets to your system.
For 4-mm OD PTFE-Tubing Sets
CP-31321-61 Straight connector, 40 psi (2.8 bar) max
CP-06605-53 PTFE extension tubing, 4-mm OD. Pack of 25 ft (7.6 m)
For 6-mm OD PTFE-Tubing Sets
CP-31321-64 Straight connector, 135 psi (9.2 bar) max
CP-06605-54 PTFE extension tubing,6-mm OD. Pack of 25 ft (7.6 m)
