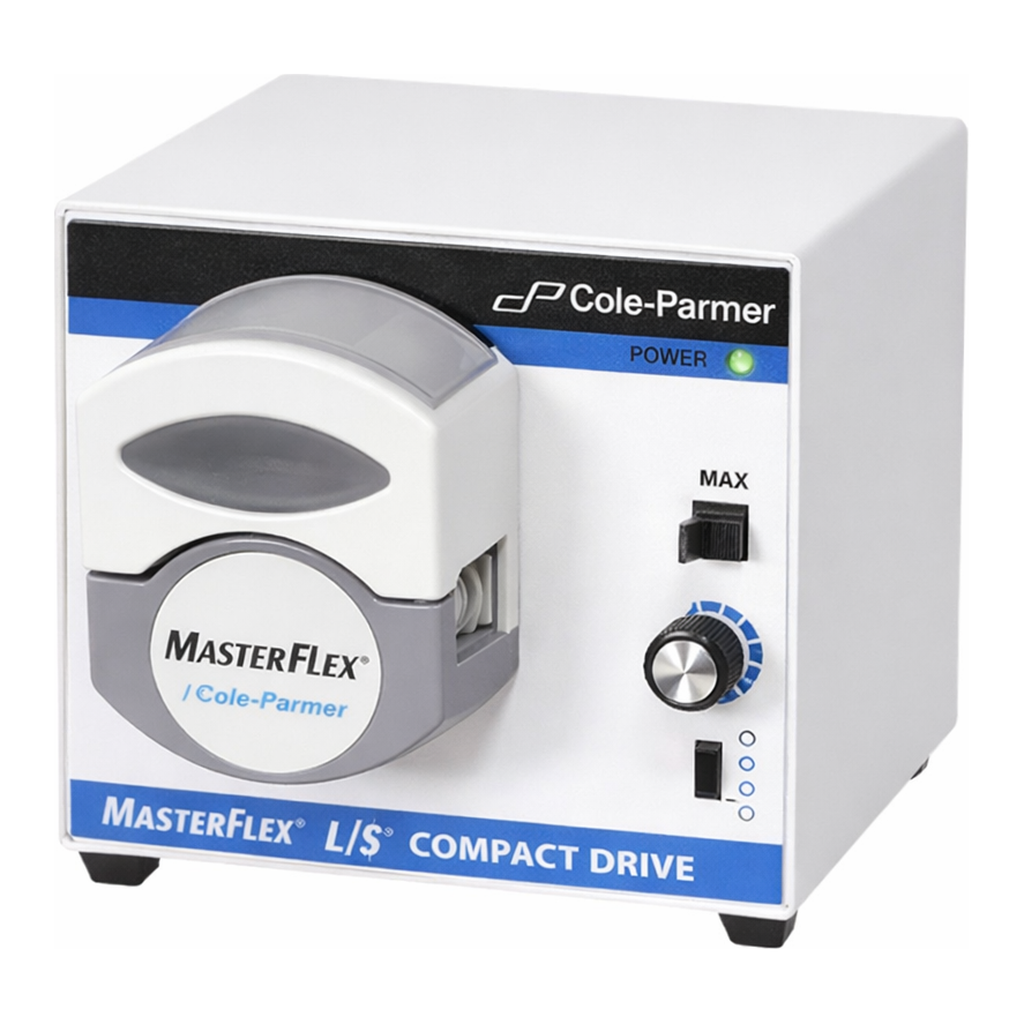

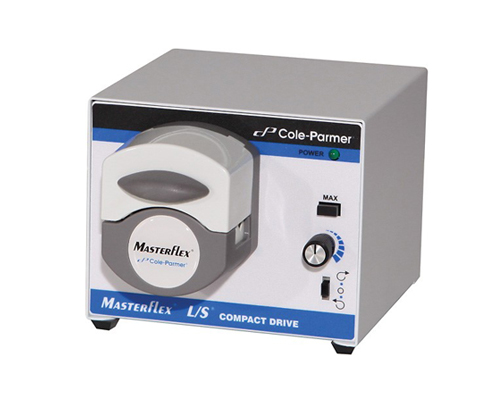

L/S® Compact Variable-Speed Pumps
Make low-flow pumping easy!
Description
· No confusing menus—easy-to-use speed controller and reversing switch get you pumping quicker
· No stress loading of tubing—new easyloading Miniflex™ pump head with automatic tubing retention keeps tubing in place
· Easier on the budget—complete system accepts continuous tubing, no need to buy special tubing sets
· Dual-channel model delivers synchronous flow from two separate channels
hese easy-to-use complete pumps offer a wide occlusion angle, which prevents fluid backflow up to the rated pressure of the tubing.
Prime or flush tubing quickly by depressing the MAX button. Self-lubricating thermoplastic polyester rollers are low friction and long wearing for smooth operation and long life.
What`s included: L/S Miniflex pump head and dual-voltage
(115/230 VAC) benchtop power supply
Flow Rates in mL/min
| rpm | Precision pump tubing | |||
| L/S 13 | L/S 14 | L/S 16 | L/S 25 | |
| Single-channel pump 77240-20 | ||||
| 35 to 200 | 1.8 to 10 | 6.3 to 36 | 21 to 118 | 40 to 220 |
| Dual-channel pump 77240-30 | ||||
| 35 to 200 | 1.8 to 10 | 6.3 to 36 | 21 to 118 | — |
Specifications
| Speed control (repeatability) | Dimensions (L x W x H) | Reversible motor |
| ±5% | 8 5⁄8x 5 1⁄4 x 4 1⁄2` (22 x 13.3 x 11.4 cm) |
yes |
| Number of channels | rpm | IP rating | Power (50/60 Hz) | Catalog number |
| 1 | 35 to 200 | IP22 | 90 to 260 VAC | GY-77240-20 |
| 2 | GY-77240-30 |
Accessories
GY-77200-07 Replacement power supply, dual-voltage 115/230 VAC
GY-17050-01 NIST-traceable calibration with data for peristaltic pump drive
🏷️Masterflex 상품 둘러보기
동일 브랜드의 다른 상품들을 확인해보세요
Masterflex
Masterflex L/S Rigid PTFE-Tubing Pump Head, Avantor
1,469,000원
Masterflex
Masterflex L/S Digital Modular Dispensing Drives, Avantor
Masterflex
Masterflex L/S Compact Variable-Speed Drives, Avantor
2,272,400원
Masterflex

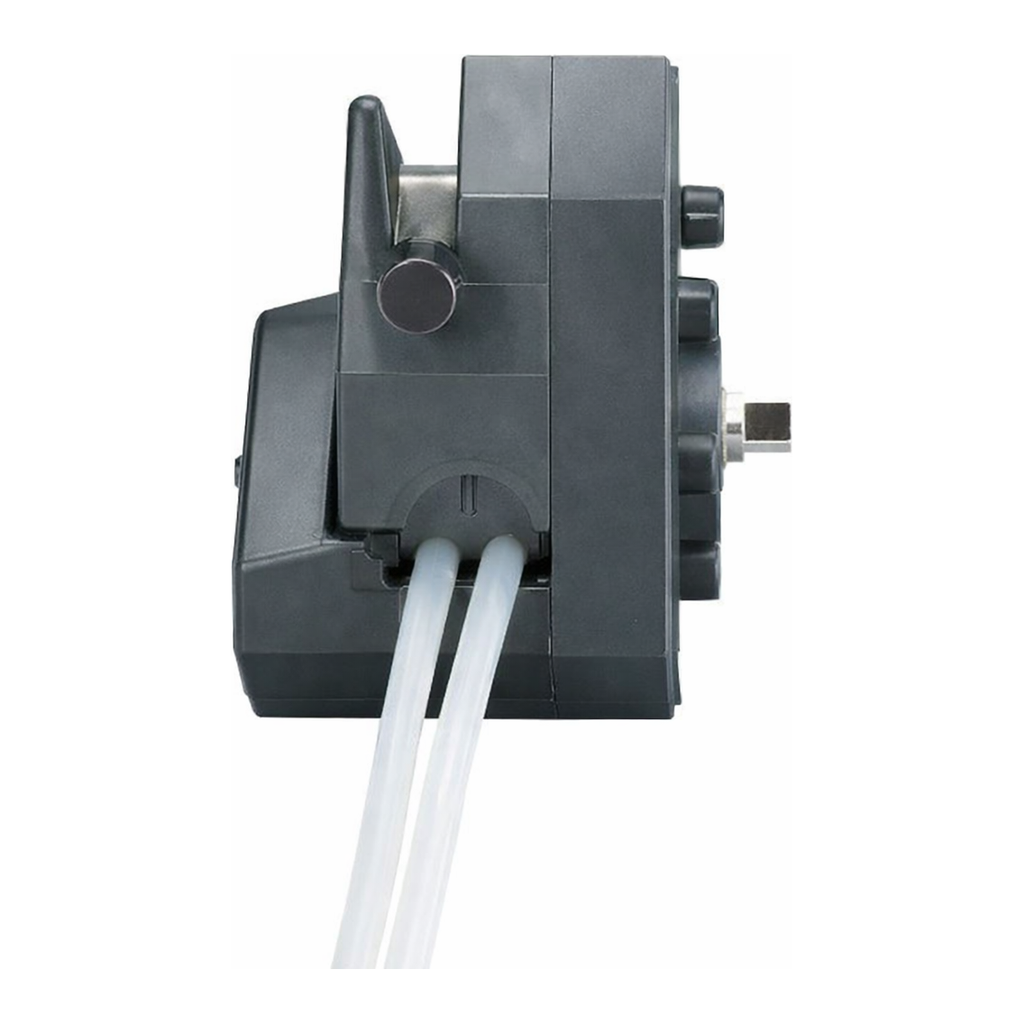

Masterflex L/S Easy-Load II Pump Heads with 2-Channels for Precision Tubing, Avantor
764,000원
Masterflex

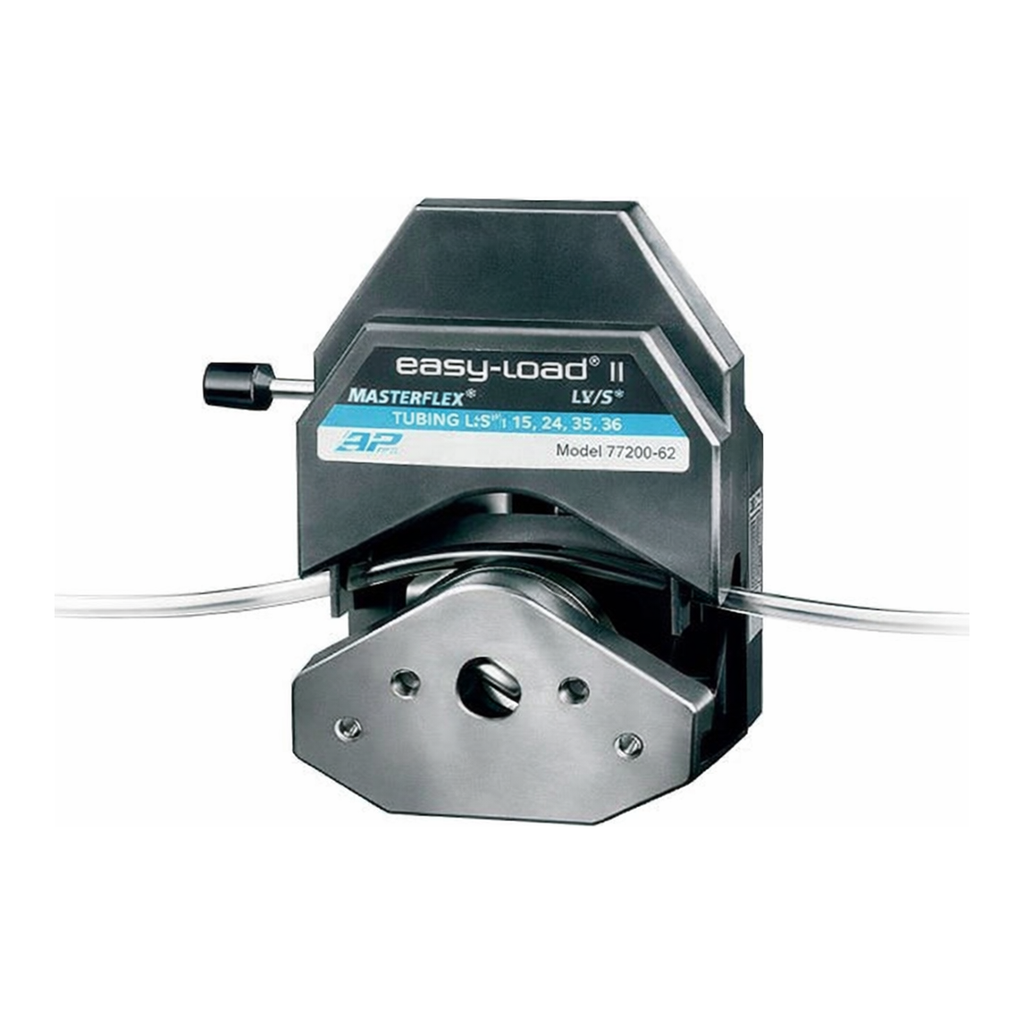

Masterflex L/S Easy-Load II Pump Heads for High-Performance Precision Tubing, Avantor
