Masterflex L/S Multichannel Pump Heads, Avantor
| 상품 옵션 정보 | ||||||||
|---|---|---|---|---|---|---|---|---|
| 카탈로그 번호 | CAS 번호 | 설명 | 상태 | 단위 | 판매가 | 할인가 | 가격(VAT포함) | 수량 / 장바구니 / 찜 |
| MFLX07535-08 | - | MasterFlex MFLX07535-08 PUMPHEAD MFLEX L/S 8-CHAN 6ROL ea | 재고문의 | ea | 2,893,000원 | - | 3,182,300원 | |
| MFLX07536-02 | - | MasterFlex MFLX07536-02 PUMPHEAD MFLEX L/S 2-CHAN 3ROL ea | 재고문의 | ea | 2,016,000원 | - | 2,217,600원 | |
| MFLX07535-04 | - | MasterFlex MFLX07535-04 PUMPHEAD MFLEX L/S 4-CHAN 6ROL ea | 재고문의 | ea | 1,761,000원 | - | 1,937,100원 | |
| MFLX07536-04 | - | MasterFlex MFLX07536-04 PUMPHEAD MFLEX L/S 4-CHAN 3ROL ea | 재고문의 | ea | 0원 | - | 0원 | |
다른 상품 둘러보기

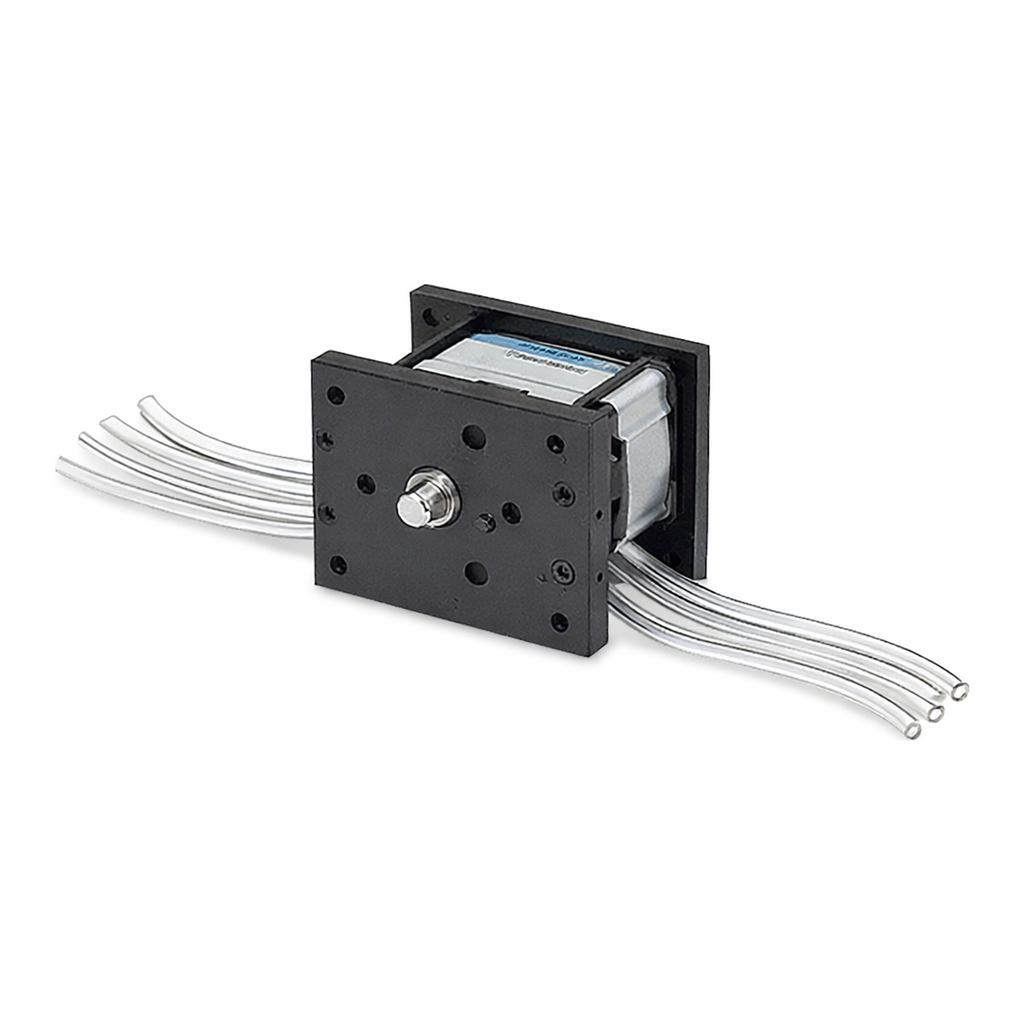

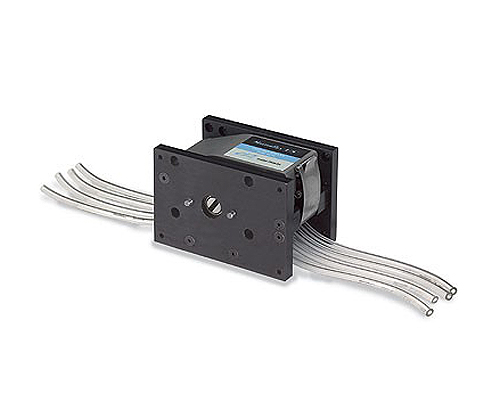

L/S® Multichannel Pump Heads
Get low-pulsation synchronous flow in multiple channels without cartridges
Features
· Load the tubing, latch the occlusion bed, and run the pump— two-stop tubing gives you optimal tension with no adjustment
· Stackable two-, four-, or eight-channel heads for up to 24 channels
· Six roller heads deliver low-pulsation flow; three-roller heads offer higher flow rates
· Machined stainless steel (SS) and anodized aluminum with SS rotor, bearings, and rollers for reliable, continuous-duty operation
· Flow range: 0.045 to 2300 mL/min per channel depending on drive rpm and tubing size
· Heads for L/S precision pump tubing accept two-stop tubing set sizes L/S 13, L/S 14, and L/S 16; heads for L/S high-performance precision pump tubing accept two-stop tubing set sizes L/S 15, L/S 24, and L/S 35
· Compatible with L/S drives that accept two or more pump heads; 1⁄10 hp min
What`s included: mounting hardware and hex key tool
| Number of channels | Number of rollers | Max channels with stacked heads† | Catalog number | |
| 100 rpm drive | 600 rpm drive | |||
| A. L/S Multichannel pump heads for precision pump tubing, sizes L/S 13, L/S 14, L/S 16 | ||||
| 4 | 6 | 24 | 12 | GY-07535-04 |
| 8 | GY-07535-08 | |||
| B. L/S Multichannel pump heads for high-performance precision pump tubing, sizes L/S 15, L/S 24, L/S 35 | ||||
| 2 | 3 | 12 | 6 | GY-07536-02 |
| 4 | GY-07536-04 |
†Maximum channel capacity depends on drive torque capability and tubing formulation used.
L/S Two-Stop Precision Tubing Sets Ordering Information for 07535- and 07536-series pump heads
| Pump tubing formulation | L/S Precision pump tubing | L/S High-performance precision pump tubing | ||||
| L/S 13 | L/S 14 | L/S 16 | L/S 15 | L/S 24 | L/S 35 | |
| Tygon® E-LFL | GY-06447-13 | GY-06447-14 | GY-06447-16 | GY-06447-15 | GY-06447-24 | GY-06447-35 |
| Silicone (platinum-cured) | GY-06421-13 | GY-06421-14 | GY-06421-16 | GY-06421-15 | GY-06421-24 | GY-06421-35 |
| BioPharm Plus Silicone (platinum-cured) |
GY-96116-13 | GY-96116-14 | GY-96116-16 | GY-96116-15 | GY-96116-24 | GY-96116-35 |
| PharMed® BPT | GY-96114-13 | GY-96114-14 | GY-96114-16 | GY-96114-15 | GY-96114-24 | GY-96114-35 |
| Chem-Durance® Bio | GY-96117-13 | GY-96117-14 | GY-96117-16 | GY-96117-15 | GY-96117-24 | GY-96117-35 |
| Viton® | GY-96428-13 | GY-96428-14 | GY-96428-16 | GY-96428-15 | GY-96428-24 | GY-96428-35 |
*Flow Rates per Channel in mL/min with L/S Two-Stop Precision Pump Tubing Sets above *
| Drive rpm | Precision pump tubing | High-performance precision pump tubing | ||||
| L/S 13 | L/S 14 | L/S 16 | L/S 15 | L/S 24 | L/S 35 | |
| 1 to 100 6 to 600 |
0.045 to 4.5 0.27 to 27 |
0.16 to 16 0.96 to 96 |
0.47 to 47 2.8 to 280 |
1.6 to 160 10 to 1000 |
2.8 to 280 17 to 1700 |
3.8 to 380 23 to 2300 |
