Masterflex L/S Digital Drives with Computer/Network Compatibility, Avantor
| 상품 옵션 정보 | ||||||||
|---|---|---|---|---|---|---|---|---|
| 카탈로그 번호 | CAS 번호 | 설명 | 상태 | 단위 | 판매가 | 할인가 | 가격(VAT포함) | 수량 / 장바구니 / 찜 |
| MFLX07551-20 | - | MasterFlex MFLX07551-20 DRIVE MFLEX L/S 600RPM EUROPEAN 230V ea | 재고문의 | ea | 6,130,000원 | - | 6,743,000원 | |
| MFLX07551-30 | - | MasterFlex MFLX07551-30 DRIVE MFLEX L/S 100RPM EUROPEAN 230V ea | 재고문의 | ea | 6,130,000원 | - | 6,743,000원 | |
다른 상품 둘러보기

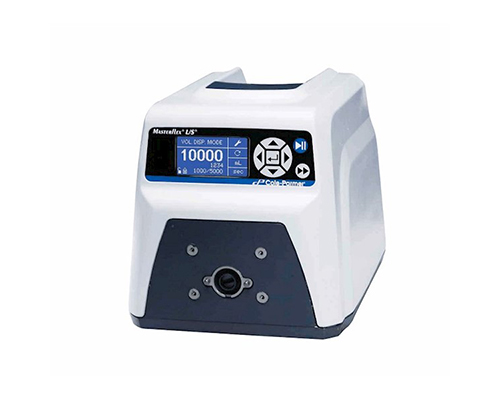

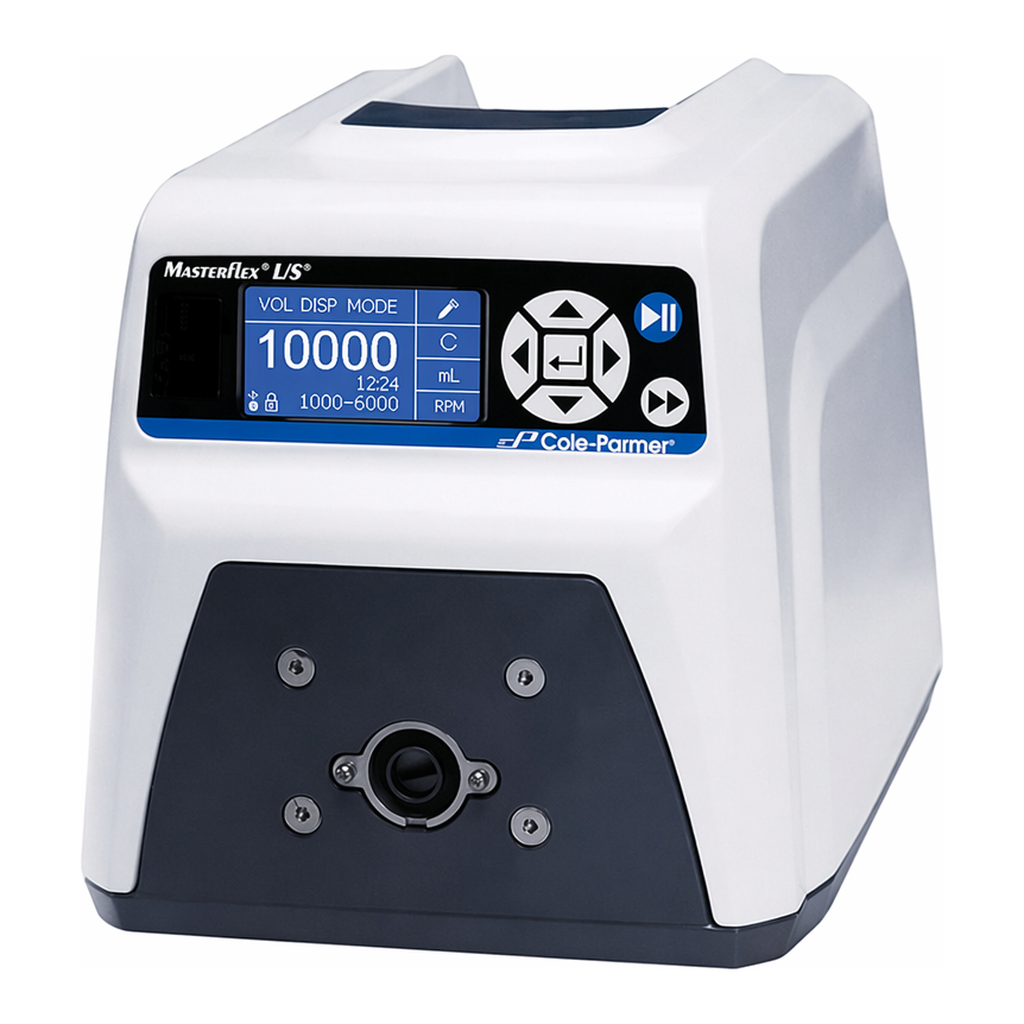

L/S® Computer-Compatible Digital Drives
Automate your process by interfacing drives with a computer
Description
· Flow rate: 0.001 to 3400 mL/min with L/S tubing
· Interface drive to your PC via DB9 serial or USB connector
· Graphical LCD shows four operating modes: continuous run, time dispense, copy dispense, and volume dispense. View pump performance continually
· Antidrip function ensures dispensing accuracy
· Remote control capabilities via DB25 female connector on drive
· Menu driven interface—select one of seven languages for programming and operation
Drives offer analog remote control options and simple programming—ideal for automated process applications. Precise PWM speed control (±0.1%) maximizes accuracy and efficiency while the brushless motor gives you quiet, maintenance- free reliability.
What’s included: 6-ft (1.8-m) line cord with IEC 320/EE22 socket. Shipped with country-specific plug/cord set; please specify
ultimate destination when ordering.
| rpm | Speed control |
Pump heads accepted |
Motor size |
IP rating |
Dimensions (L x W x H) |
Power (50/60 Hz) | Catalog number |
|
| VAC | Amps | |||||||
| 0.1 to 600 | ±0.1% (0.1 rpm at 600 rpm; 0.01 rpm at 100 rpm) |
2 | 1⁄10 hp (75 W) |
IP33 | 10x 8 1⁄2 x 8 1⁄2` (25.4 x 21.6 x 21.6 cm) |
90 to 260 | 2.2 at 115 VAC, 1.1 at 230 VAC |
GY-07551-20 |
| 0.02 to 100 | 4 | GY-07551-30 |
GY-07523-92 Foot switch, momentary start/stop; 6-ft (1.8-m) cable
GY-07523-94 DB25 male connector. Use to create your own cable
GY-07523-95 Cable assembly, DB25 male connector and 25-ft (7.9-m) cable with stripped wire ends for remote control
GY-07523-98 Tilt bail, use to securely elevate front of drive
GY-07523-97 Handheld remote controller, DB9; for on/off control;route tubing through handle for filling and dispensing applications
GY-17050-01 NIST-traceable calibration with data for peristalic pump drive
