Masterflex L/S Fixed-Speed VDC Compact Drives, Avantor
| 상품 옵션 정보 | ||||||
|---|---|---|---|---|---|---|
| 카탈로그 번호 | 설명 | 상태 | 단위 | 가격 | 가격(VAT포함) | 수량 / 장바구니 |
| MFLX07533-50 | MasterFlex MFLX07533-50 DRIVE MFLEX L/S 100RPM 12VDC ea | 재고문의 | ea | 1,612,000원 | 1,773,200원 | |
| MFLX07533-60 | MasterFlex MFLX07533-60 DRIVE MFLEX L/S 540RPM 12VDC ea | 재고문의 | ea | 1,519,000원 | 1,670,900원 | |
| MFLX07533-70 | MasterFlex MFLX07533-70 DRIVE MFLEX L/S 100RPM 24VDC ea | 재고문의 | ea | 1,619,000원 | 1,780,900원 | |
| MFLX07533-80 | MasterFlex MFLX07533-80 DRIVE MFLEX L/S 570RPM 24VDC ea | 재고문의 | ea | 1,519,000원 | 1,670,900원 | |
다른 상품 둘러보기
L/S® Air-Powered Drive
Take it where you need it—ideal for field use
Description
Drives accept 8 different pump head types: Standard, Easy-Load®, Easy-Load® II, Easy-Load® 3, High-Performance, Cartridge, PTFE Tubing, PTFE-Diaphragm†

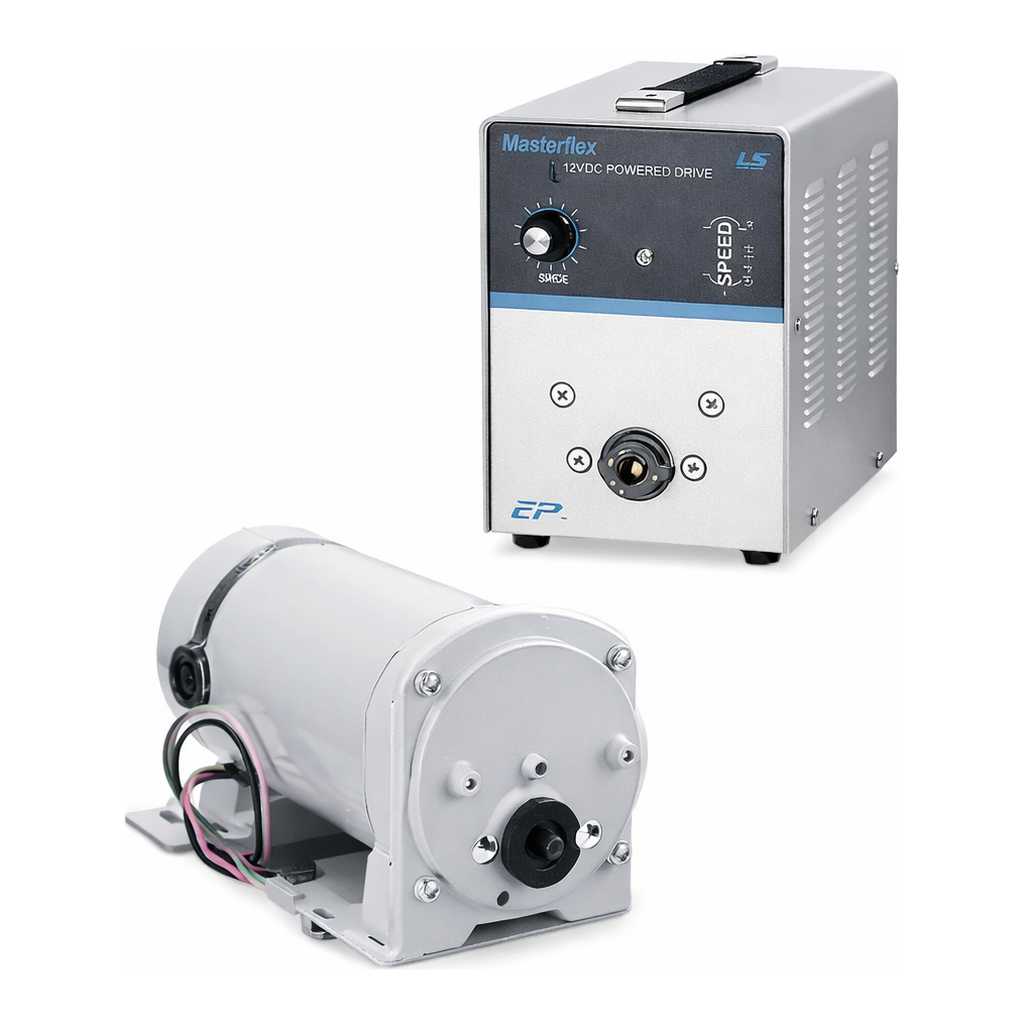

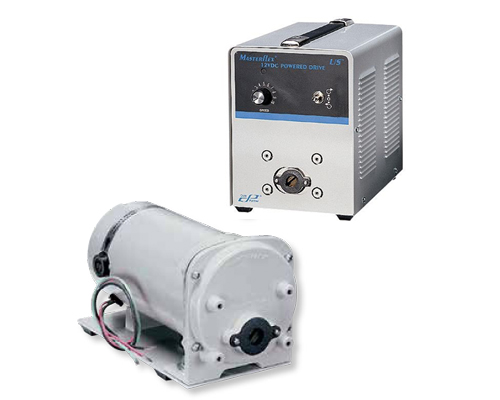

A. Cabinet-Style Drives
· Flow range: 1.2 to 2400 mL/min depending on drive rpm and tubing size
· Reversible motor for pumping in either direction or purging
· Sample depths down to 26 ft (7.9 m)
· Color-coded banana plug/screw terminals for power connections—attach your 12 VDC source directly or order adapters below for easy connection
B. Compact 12- and 24-VDC Drives
· Flow range: 6 to 2700 mL/min depending on drive rpm and tubing size
· Ideal for continuous-duty operations
· Vary input voltage to change drive speed; reverse input voltage polarity to reverse direction. Control drive completely using power source
· Three-wire, 16-gauge, 12-inch (30-cm) long stripped-end leads for power connection. Wire power from your 12 or 24 VDC source
| rpm |
Nominal voltage |
Speed control |
Pump heads accepted |
Motor size |
IP rating |
Dimensions (L x W x H) |
Power |
Catalog number |
|---|---|---|---|---|---|---|---|---|
| A. Cabinet-style drives | ||||||||
| 20 to 90 |
12 VDC |
±5% |
2 |
1⁄20 hp (37 W) |
IP21 |
11" x 6 1⁄2" x 8 3⁄4" (27.9 cm x 16.5 cm x 22.2 cm) |
10.8 to 13.2 VDC, 3 A |
GY-07533-20 |
| 100 to 500 |
1 |
GY-07533-40 |
||||||
| B. Compact 12- and 24-VDC drives | ||||||||
| 100 |
12 VDC |
±5% |
2 |
1⁄20 hp (37 W) |
IP52 |
8 9⁄16" x 3 13⁄16" x 4 5⁄8" (21.6 cm x 9.7 cm x 11.7 cm) |
1.0 to 15 VDC, 3.2 A |
GY-07533-50 |
| 540 |
1 |
1.5 to 15 VDC, 5.7 A |
GY-07533-60 |
|||||
| 100 |
24 VDC |
±5% |
2 |
1⁄20 hp (37 W) |
IP52 |
8 9⁄16" x 3 13⁄16" x 4 5⁄8" (21.6 cm x 9.7 cm x 11.7 cm) |
1.0 to 30 VDC, 1.5 A |
GY-07533-70 |
| 570 |
1 |
1.7 to 30 VDC, 2.6 A |
GY-07533-80 |
|||||
