Masterflex L/S Precision Variable-Speed Console Drives, Avantor
| 상품 옵션 정보 | ||||||
|---|---|---|---|---|---|---|
| 카탈로그 번호 | 설명 | 상태 | 단위 | 가격 | 가격(VAT포함) | 수량 / 장바구니 |
| MFLX07528-10 | MasterFlex MFLX07528-10 DRIVE MFLEX L/S 600RPM EUROPEAN 230V ea | 재고문의 | ea | 3,155,000원 | 3,470,500원 | |
| MFLX07528-20 | MasterFlex MFLX07528-20 DRIVE MFLEX L/S 300RPM EUROPEAN 230V ea | 재고문의 | ea | 3,155,000원 | 3,470,500원 | |
| MFLX07528-30 | MasterFlex MFLX07528-30 DRIVE MFLEX L/S 100RPM EUROPEAN 230V ea | 재고문의 | ea | 3,155,000원 | 3,470,500원 | |
다른 상품 둘러보기

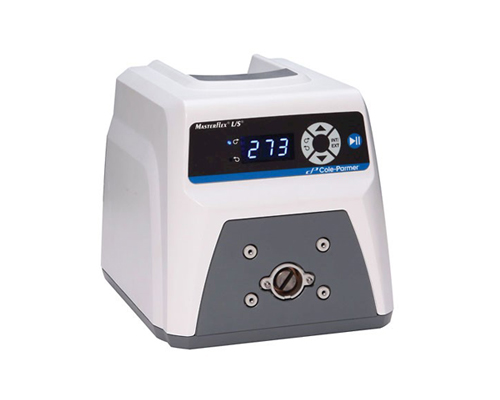

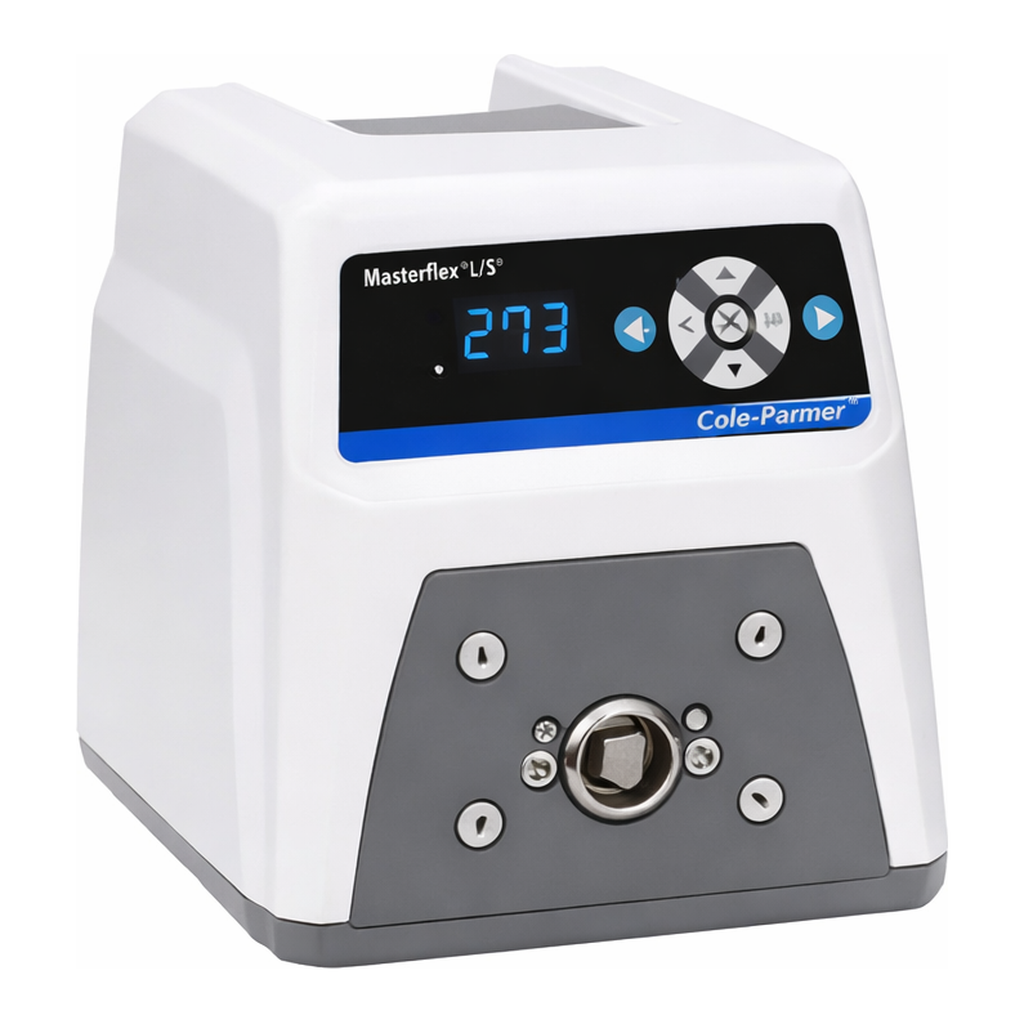

L/S Precision Variable-Speed Console Drives
Don’t lose control of your metering applications--digital display gives you precise control
**
Description**
· Accurate and repeatable settings with 3-digit LED display of rpm
· Pump fluid in either direction with reversible motor—perfect for purging tubing
· Save space and increase productivity by stacking 2 or 4 pump heads on the same drive to create a multichannel pump system
· Maximize processes in a minimal footprint by stacking splash-resistant, IP33-rated drives
· Two ways to control speed, direction, and start/stop—use either the membrane keypad or remote control capabilities
· Customize for your application—drives accept nine pump head types: Standard, Easy-Load®, Easy-Load® II, Easy-Load® 3, Multichannel, High-Performance, Cartridge, PTFE-Tubing, and PTFE-Diaphragm
Complete system includes: L/S® PTFE-tubing pump head 77390-00, PTFE-tubing set 77390-60, and L/S® variable-speed drive 07528-20 (3 to 300 rpm). System also includes two 1⁄4` NPT(M) pipe adapters.
| rpm | Speed control (resolution) |
Pump heads accepted |
Motor size | IP rating |
Dimensions (L x W x H) |
Power (50/60 Hz) | Catalog number |
|
| VAC | Amps | |||||||
| 6 to 600 | ±0.25% (1 rpm at 600 rpm; 0.1 rpm at 100 rpm) |
2 | 1⁄10 hp (75 W) | IP33 | 10x 8.5 x 8.5` (25.4 x 21.6 x 21.6 cm) |
90 to 260 | 1.8 at 115 VAC, 1.2 at 230 VAC |
GY-07528-10 |
| 3 to 300 | 2 | GY-07528-20 | ||||||
| 1 to 100 | 4 | GY-07528-30 |
Accessories
GY-07595-45 Connector, DB9 male. Use for 4 to 20 mA remote control
GY-07595-47 Cable assembly, DB9 male connector and 25-ft (7.9-m) cable with stripped wire terminal ends. Use for remote control
GY-77595-35 Foot switch, DB9 male
GY-07528-80 Handheld remote controller; for remote control of start/stop, route tubing through handle for dispensing into containers
GY-17050-01 NIST-traceable calibration with data for peristaltic pump drive
