Masterflex L/S Standard Digital Drives, Avantor
| 상품 옵션 정보 | ||||||||
|---|---|---|---|---|---|---|---|---|
| 카탈로그 번호 | CAS 번호 | 설명 | 상태 | 단위 | 판매가 | 할인가 | 가격(VAT포함) | 수량 / 장바구니 / 찜 |
| MFLX07522-30 | - | MasterFlex MFLX07522-30 DRIVE MFLEX L/S 100RPM EUROPEAN 230V ea | 재고문의 | ea | 5,170,000원 | - | 5,687,000원 | |
| MFLX07522-20 | - | MasterFlex MFLX07522-20 DRIVE MFLEX L/S 600RPM EUROPEAN 230V ea | 재고문의 | ea | 4,850,000원 | - | 5,335,000원 | |
다른 상품 둘러보기

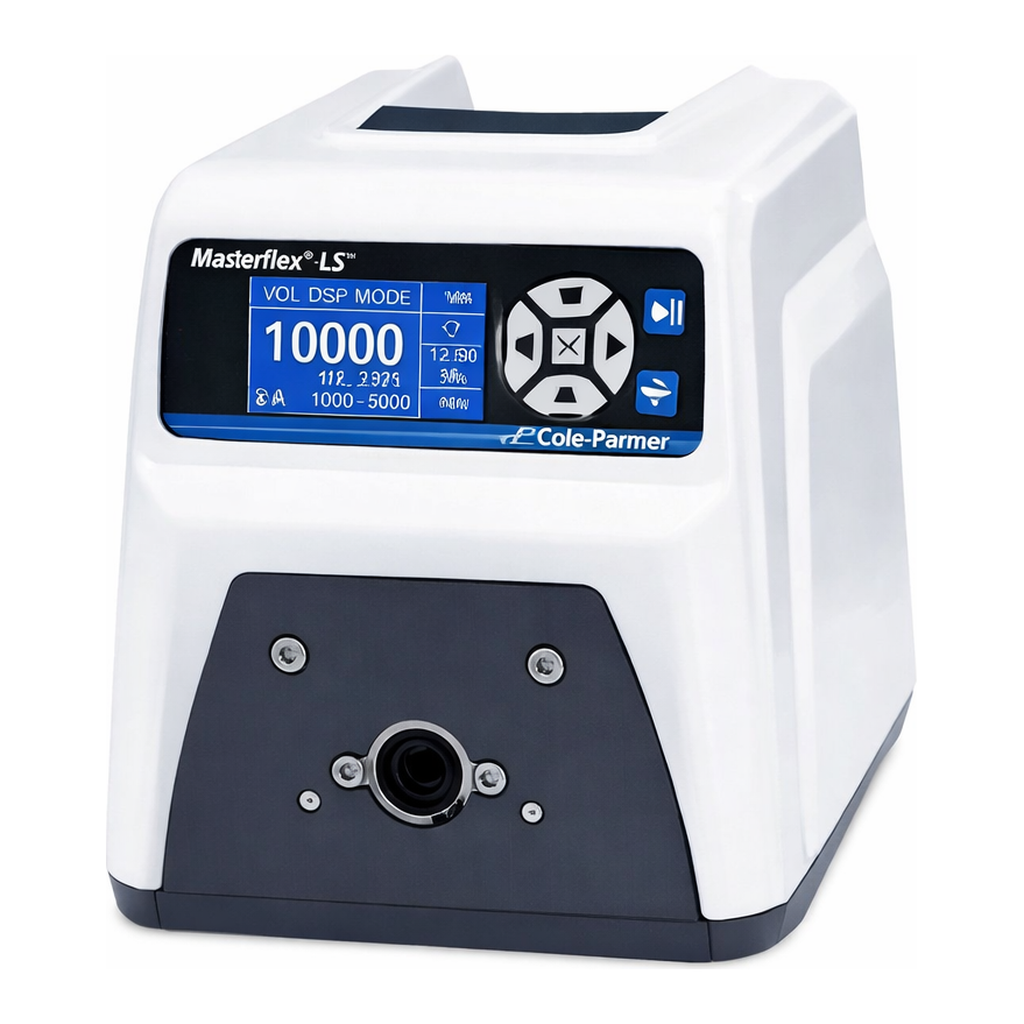

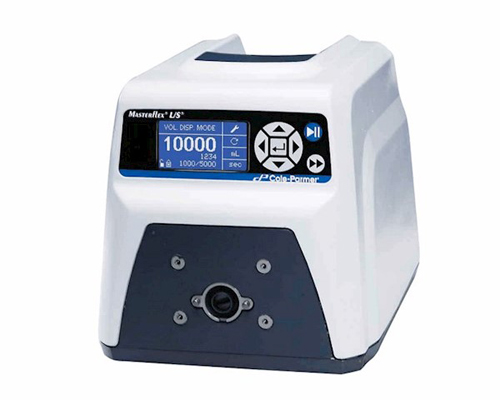

L/S® Variable-Speed Digital Drives
Versatile, worry-free operation
**
Description**
· Brushless, maintenance-free motor provides ±0.1% speed control accuracy with 6000:1 turndown ratio
· Bright graphical LCD offers easy programming, four operating modes, and seven languages
· Get more accurate dispensing with preprogrammed calibration
· Change based on your needs—drives accept all L/S pump heads for more pumping versatility
· Choose how you want to dispense:volume, copy cycles, or time
· Operate remotely via DB25 female connector
Flow Rates in mL/min (flow rates in parentheses can only be obtained with the High-Performance pump head)
| rpm | Precision pump tubing | High-performance precision pump tubing | ||||||||
| L/S 13 | L/S 14 | L/S 16 | L/S 25 | L/S 17 | L/S 18 | L/S 15 | L/S 24 | L/S 35 | L/S 36 | |
| Standard†, Easy-Load, Easy-Load II, Easy-Load 3 | Multichannel, Standard, Easy-Load II Easy-Load 3, High-Performance |
|||||||||
| Cartridge, Multichannel | Cartridge | Easy-Load | ||||||||
| 0.1 to 600 |
0.006 to 36 |
0.021 to 130 |
0.08 to 480 |
0.17 to 1000 |
0.28 to 1700 |
0.38 to 2300 |
0.17 to 1000 (0.18 to 1100) |
0.28 to 1700 (0.30 to 1800) |
0.38 to 2300 (0.43 to 2600) |
0.48 to 2900 (0.57 to 3400) |
| 0.02 to 100 |
0.001 to 6 |
0.004 to 21 |
0.016 to 80 |
0.033 to 170 |
0.057 to 280 |
0.077 to 380 |
0.033 to 170 (0.036 to 183) |
0.057 to 280 (0.057 to 300) |
0.077 to 380 (0.086 to 433) |
0.096 to 480 (0.113 to 566) |
| rpm | Speed control (resolution) |
Pump heads accepted |
Motor size |
IP rating |
Dimensions (L x W x H) |
Power (50/60 Hz) | Catalog number |
|
| VAC | Amps | |||||||
| 0.1 to 600 | ±0.1% (0.1 rpm at 600 rpm; 0.01 rpm at 100 rpm) |
2 | 1⁄10 hp (75 W) |
IP33 | 10x 8.5 x 8.5` (25.4 x 21.6 x 21.6 cm) |
90 to 260 | 2.2 at 115 VAC, 1.1 at 230 VAC |
GY-07522-20 |
| 0.02 to 100 | 4 | GY-07522-30 |
GY-07523-92 Foot switch, momentary start/stop; 6-ft (1.8-m) cable
GY-07523-94 DB25 male connector. Use to create your own cable
GY-07523-95 Cable assembly, DB25 male connector and 25 ft (7.9 m) cable with stripped wire ends for remote control
GY-07523-97 Handheld remote controller; route tubing through handle for dispensing into containers
GY-17050-01 NIST-traceable calibration with data for peristaltic pump drive
