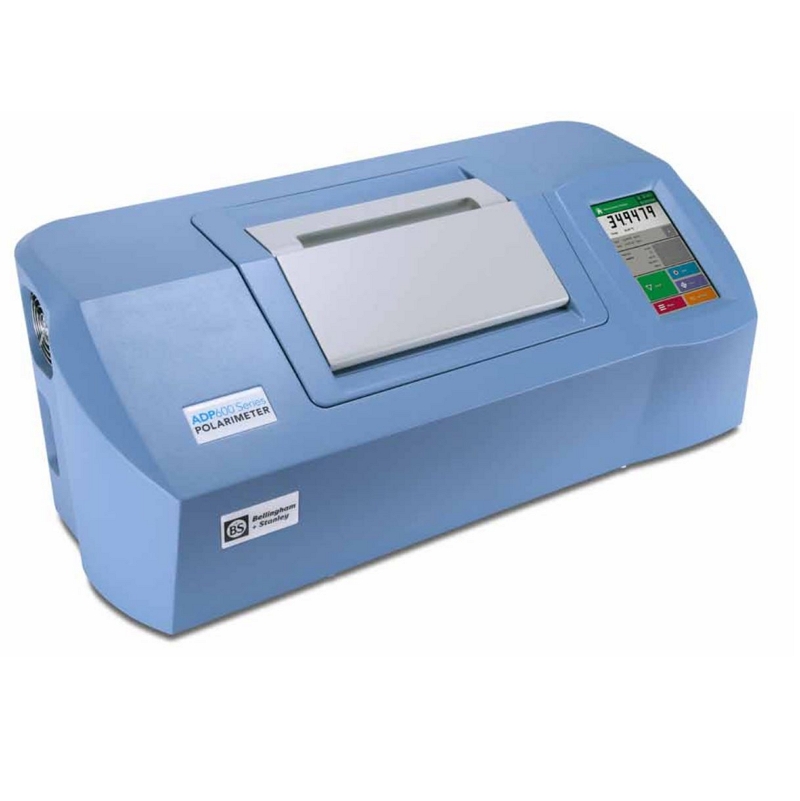

■ 전자동 편광계로 화학,제약 및 기타 많은 분야에 사용되어지고 있음
■ 측정 파장의 6가지 모델로 구성
■ 고화질 터치스크린을 통해 소수점 4자리까지 측정가능
■ 특허받은 Peltier 온도제어 시스템 XPC Technology 사용
■ FDA regulation 21 CFR part 11 환경에 사용하기 적합
■ 구성 : Polarimeter, two RFID tag(단,ADP-610-HCI 100mm tube (PEEK endcaps)), standard lid, manual, certificate
■ Bellingham+Stanley
| Cat. No. |
Model |
Description |
Wavelengths |
| P07-105-130 |
ADP-610 |
single wavelength |
589nm |
| P07-105-133 |
ADP-620 |
dual wavelength |
546 & 589nm |
| P07-105-136 |
ADP-622 |
365 & 589nm |
|
| P07-105-139 |
ADP-640 |
multiple wavelength |
405, 436, 546 & 589nm |
| P07-105-142 |
ADP-650 |
365, 405, 436, 546 & 589nm |
|
| P07-105-145 |
ADP-660 |
325, 365, 405, 436, 546 & 589nm |
|
| Cat. No. | | P07-105-130 | P07-105-133 | P07-105-136 | P07-105-139 | P07-105-142 | P07-105-145 |
| --- | --- | --- | --- | --- | --- | --- |
| Model | | ADP-610 | ADP-620 | ADP-622 | ADP-640 | ADP-650 | ADP-660 |
| --- | --- | --- | --- | --- | --- | --- |
| Range (°A) | | ± 89 (-355 to +355 via Method selection) | | | | | |
| Resolution (°A) | | 0.0001 | | | | | |
| Accuracy (°A) | | ± 0.003 (@546 & 589 nm) / ± 0.005 (@325, 365, 405, 436 nm) | | | | | |
| Temperature | Range | 15-35°C | | | | | |
| Control | Patented XPC Technology | | | | | |
| Accuracy | ± 0.2°C | | | | | |
| Compensation | None, sugar, quartz, user defined | | | | | |
| Optical Density Range | | 0.0 to 3.0 OD | | | | | |
| Methods | | Specific Rotation, % Concentration, % Invert Sugar, % Inversion (A-B), Purity | | | | | |
| Temperature Set Points | | 20 & 25 °C (variable between 20-30 °C via Method) | | | | | |
| Reading Time | | 15-60 seconds @ 546/589nm and 20/20°C (instrument/sample) | | | | | |
| Tube Type | | XPC (stainless steel), Low Volume, Flow-through, PEEK (Glass) | | | | | |
| Tube Length | | 5-200 mm | | | | | |
| Tube Diameter | | 5-8 mm | | | | | |
| User Interface | | High Definition 7.4” touch-screen color display | | | | | |
| Light Source | | UV/Vis lamp (6V, 2A >1000hrs) and narrow band pass filter(s) | | | | | |
| Interfaces | | 3 x USB, 1 x Ethernet, 1 x RS232 | | | | | |
| Power Supply | | 100-250V~, 50-60 Hz. <2A. | | | | | |
- *Low Volume Tubes for ADP600 For wavelength higher than 400nm
| Cat. No. |
Model |
Description |
| P07-105-169 |
35-71-V |
Low volume tube 5 x 50mm 1.0ml |
| P07-105-172 |
35-72-V |
Low volume tube 5 x 25mm 0.5ml |
| P07-105-175 |
35-73-V |
Low volume tube 5 x 10mm 0.2ml |
| P07-105-178 |
35-74-V |
Low volume tube 5 x 5mm 0.1ml |
| P07-105-181 |
35-77-V |
Low volume PTFE tube 5 x 25mm 0.5ml |
| P07-105-184 |
35-78-V |
Low volume PTFE tube 5 x 50mm 1.0ml |
- *Polarimeter ADP600 Spare parts
| Cat. No. |
Model |
Description |
| P07-105-187 |
37-460 |
ADP600 IQ,OQ,PQ documentation |
| P07-105-190 |
37-510 |
Lamp alignment target ADP600 |
| P07-105-193 |
37-511 |
ADP 600 lamp |
- * Thermal Printer, USB & Serial Connector with USB Cable
| Cat. No. |
Model |
Description |
| P07-105-208 |
55-18 |
Thermal Printer, USB+Serial Connector |
