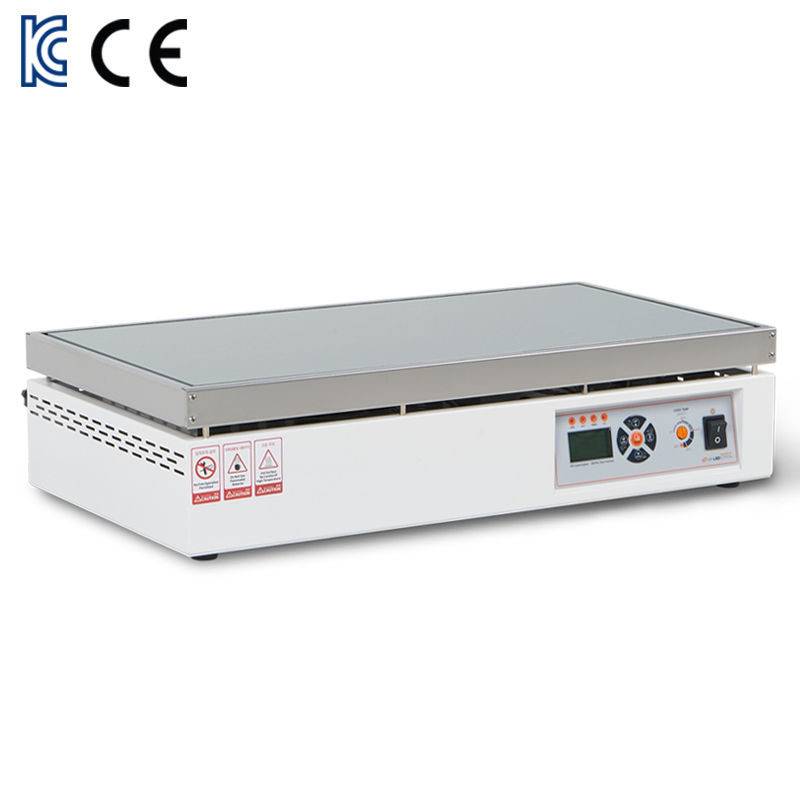

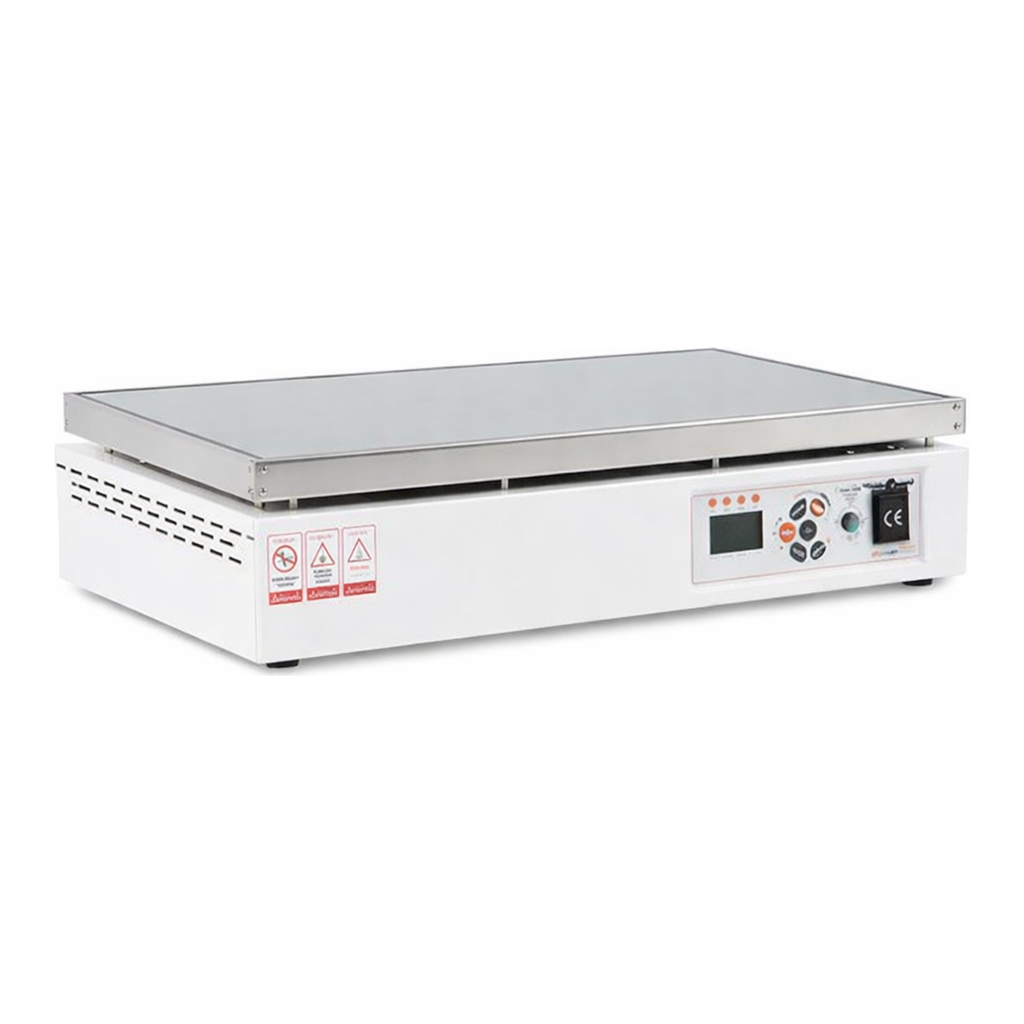

Precision Jumbo Hotplate 정밀 대형 핫 플레이트

■ 일반 가열, 적정(Titration), Wafer Baking용으로 적합

■ 우수한 온도 분포도와 Plate 평탄도
■ Anodizing 가열판을 사용하여 내열성, 내약품성 우수
■ Graphic LCD Display, 간편하고 직관적인 Controller 조작
■ Auto-tuning, Temperature Calibration 기능
■ 2 가지 타입의 타이머. 구동과 동시에 시작, 목표 온도 도달 후 시작
■ 외부 센서 및 RS485 PC 통신용 포트 기본 장착
■ Plate 주변 보호 마스크가 있어 사용자가 안전하고 화재 위험이 적음
■ Automatical Fault Sensing System 기기 스스로 이상 상황을 감시 (특허 등록)
■ 2중화 과온 안전 장치 적용
■ Program Control
- 온도 Overshoot 억제 및 정밀 제어 가능
- 2 Pattern, 18 Segment 프로그램 설정 가능
■ PL Insurance (제조물 배상 책임 보험)
■ Validation Service (IQ, OQ, PQ)
■ LK Labkorea
■ (주)엘케이랩코리아 제작품 제품문의 : 031-573-4952(내선 1703) / 070-4282-1452 / fac@lklab.com PID Control

| | | |
| --- | --- | --- |정밀 대형 핫 플레이트
| Cat. No | Model | Plate Size |
| --- | --- | --- |
| H03-04-150 | PDLP250 | w250×d250 mm |
| H03-04-160 | PDLP300 | w300×d300 mm |
| H03-04-180 | PDLP430 | w400×d300 mm |
| H03-04-190 | PDLP630 | w600×d300 mm |

Program Control

| | | |
| --- | --- | --- |정밀 대형 핫 플레이트
| Cat. No | Model | Plate Size |
| --- | --- | --- |
| H03-04-155 | PDLP250P | w250×d250 mm |
| H03-04-165 | PDLP300P | w300×d300 mm |
| H03-04-185 | PDLP430P | w400×d300 mm |
| H03-04-195 | PDLP630P | w600×d300 mm |

Validation

| | | | | |
| --- | --- | --- | --- | --- |정밀 대형 핫 플레이트
| Cat. No. | | H03-04-150 /
H03-04-155 | H03-04-160 /
H03-04-165 | H03-04-180 /
H03-04-185 | H03-04-190 /
H03-04-195 |
| --- | --- | --- | --- | --- |
| Model | | PDLP250 / PDLP250P | PDLP300 / PDLP300P | PDLP430 / PDLP430P | PDLP630 / PDLP630P |
| --- | --- | --- | --- | --- |
| Plate Size | | w250×d250 mm | w300×d300 mm | w400×d300 mm | w600×d300 mm |
| --- | --- | --- | --- | --- |
| Controller | Control | PID Control, Auto-tuning / Program Control | | | |
| --- | --- | --- | --- | --- |
| Resolution | 0.1℃ | | | |
| --- | --- | --- | --- | --- |
| Temperature | Range | Ambient +10℃ to +320℃ | | | |
| --- | --- | --- | --- | --- |
| Accuracy at 100℃ | ±0.3℃ | | | |
| --- | --- | --- | --- | --- |
| Uniformity at 100℃ | ±0.8℃ | ±1.0℃ | ±1.1℃ | ±1.5℃ |
| --- | --- | --- | --- | --- |
| Size | | w280×d280×h155 mm | w330×d330×h155 mm | w430×d330×h155 mm | w630×d330×h155 mm |
| --- | --- | --- | --- | --- |
| Material | Plate | Anodized Aluminium | | | |
| --- | --- | --- | --- | --- |
| Exterior | Powder Coated Steel | | | |
| --- | --- | --- | --- | --- |
| Electric Supply | Power | 1 Phase, 220VAC, 50/60 Hz | | | |
| Max Consumption | 1.2 kW (5.5 A) | 1.5 kW (6.8 A) | 1.8 kW (8.2 A) | 2.4 kW (11 A) |
| Power Line | Standard Plug | | | |
