● Stainless Steel Plate로 320℃까지 사용 가능 (Ceramic Plate는 문의 바람)
● 마이크로프로세서에 의한 제어장치
● ETS-D5 Temp Controller를 연결하여 온도제어 가능 (±0.5 K)
● Stirring Bar의 튐현상을 방지하는 High Magnetic Adhesion
● Motor와 Hotplate의 기능을 일정하게 유지하는 Microprocessor
● Protection class acc. to DIN EN 60529 (IP21)
● 기타 악세사리는“Accessory” 594 ~ 595 Page 참조
● IKA
| | | | |
| --- | --- | --- | --- |가열 자력 교반기, RH basic / Digital
| Cat. No | Model | Type | 용량 |
| --- | --- | --- | --- |
| S07-05-052 | 5019700 | RH basic | 15 L |
| S07-05-057 | 5019800 | RH digital |
|
|
|
| Cat. No. |
S07-05-052 |
S07-05-057 |
| --- |
--- |
--- |
| Type |

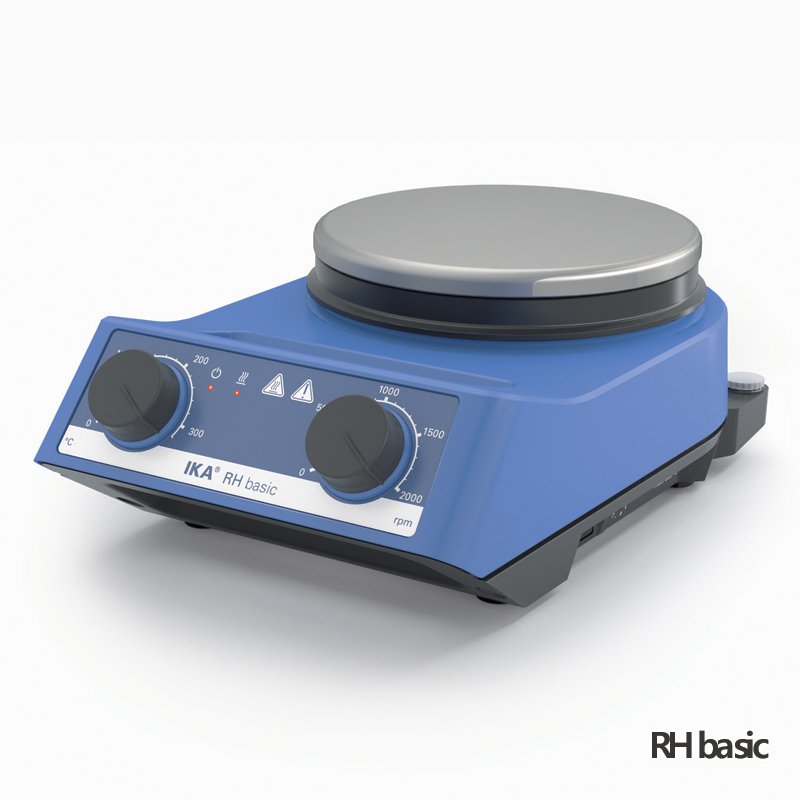

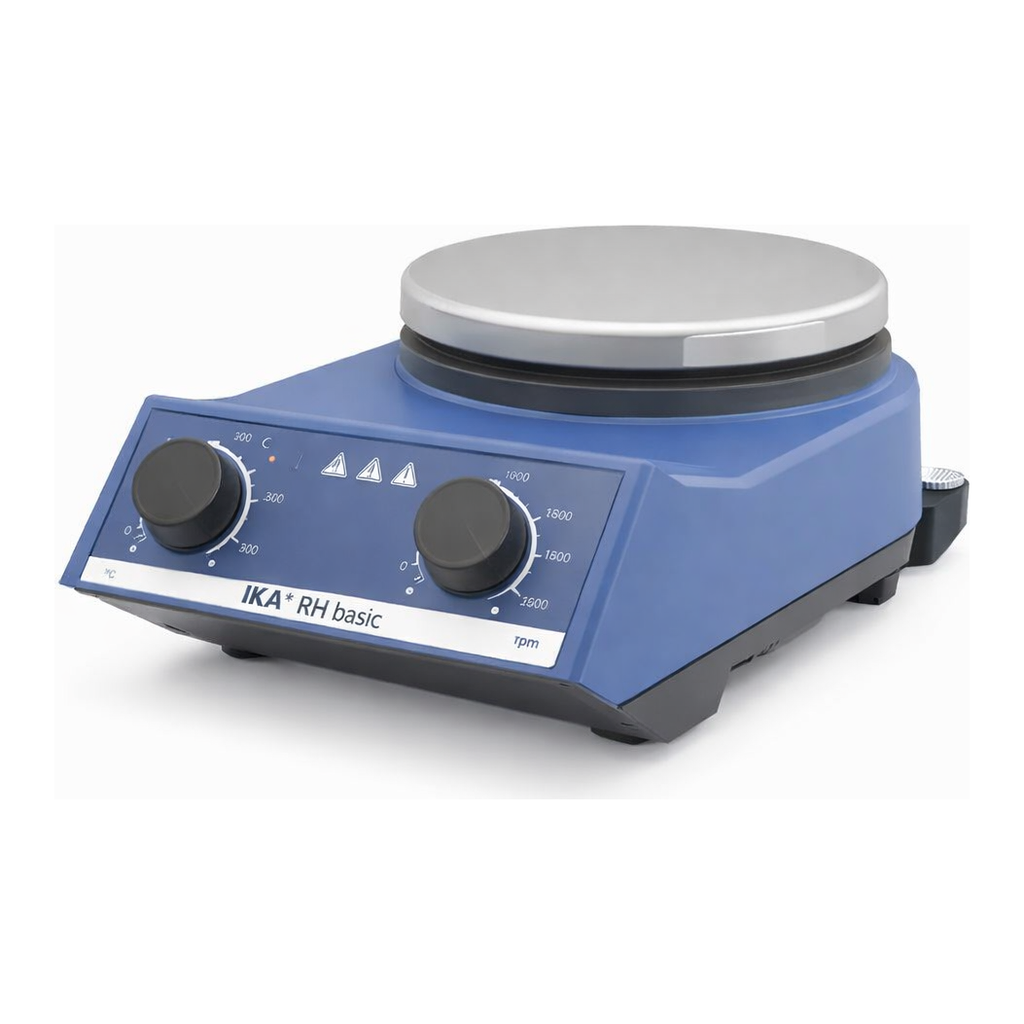

RH basic |
RH digital |
| --- |
--- |
--- |
| Stirring Quantity(H2O) |
15 L |
|
| --- |
--- |
--- |
| Speed Display |
Scale |
Digital |
| --- |
--- |
--- |
| Speed Range |
100 ~ 2000 rpm |
|
| --- |
--- |
--- |
| Max. Magnetic Bar |
L80×Ø10 mm |
|
| --- |
--- |
--- |
| Heating Output |
600 W |
|
| --- |
--- |
--- |
| Heating Rate (H2O) |
6 k/min |
|
| --- |
--- |
--- |
| Temp. Range |
50 ~ 320℃ |
|
| --- |
--- |
--- |
| Setting Accuracy |
- |
±5 K
(But. w/Controller : ±0.5 K) |
| --- |
--- |
--- |
| Adjustable Safety Circuit |
100 ~ 360℃ |
|
| --- |
--- |
--- |
| Plate Material |
Stainless Steel |
|
| --- |
--- |
--- |
| Size (본체 / Plate) |
w160×d246×h90 mm / Ø135mm |
|
| --- |
--- |
--- |
| Power |
220 ~ 240V, 50/60 Hz |
|
