■ Temp. range : Max. 380℃
■ 사용중 마그네틱바가 이탈되거나 급회전 하지 않음
■ 저속과 고속으로 다양하게 사용가능
■ 가열, 교반을 동시 또는 개별 컨트롤 가능
■ 내열성, 내약품성, 내구성 등이 우수함
■ Mi-Sung
| | | | |

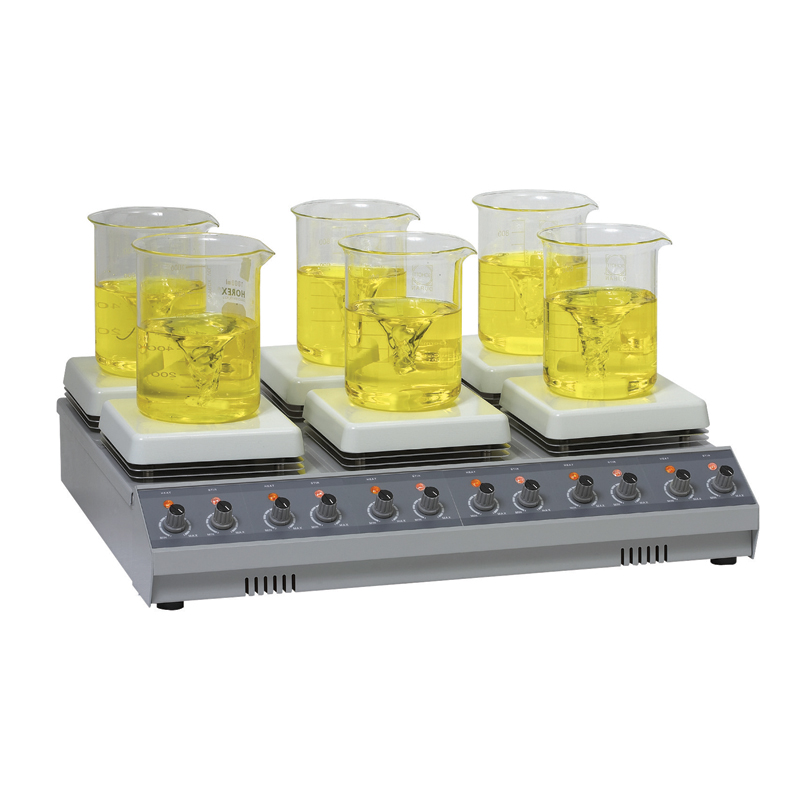

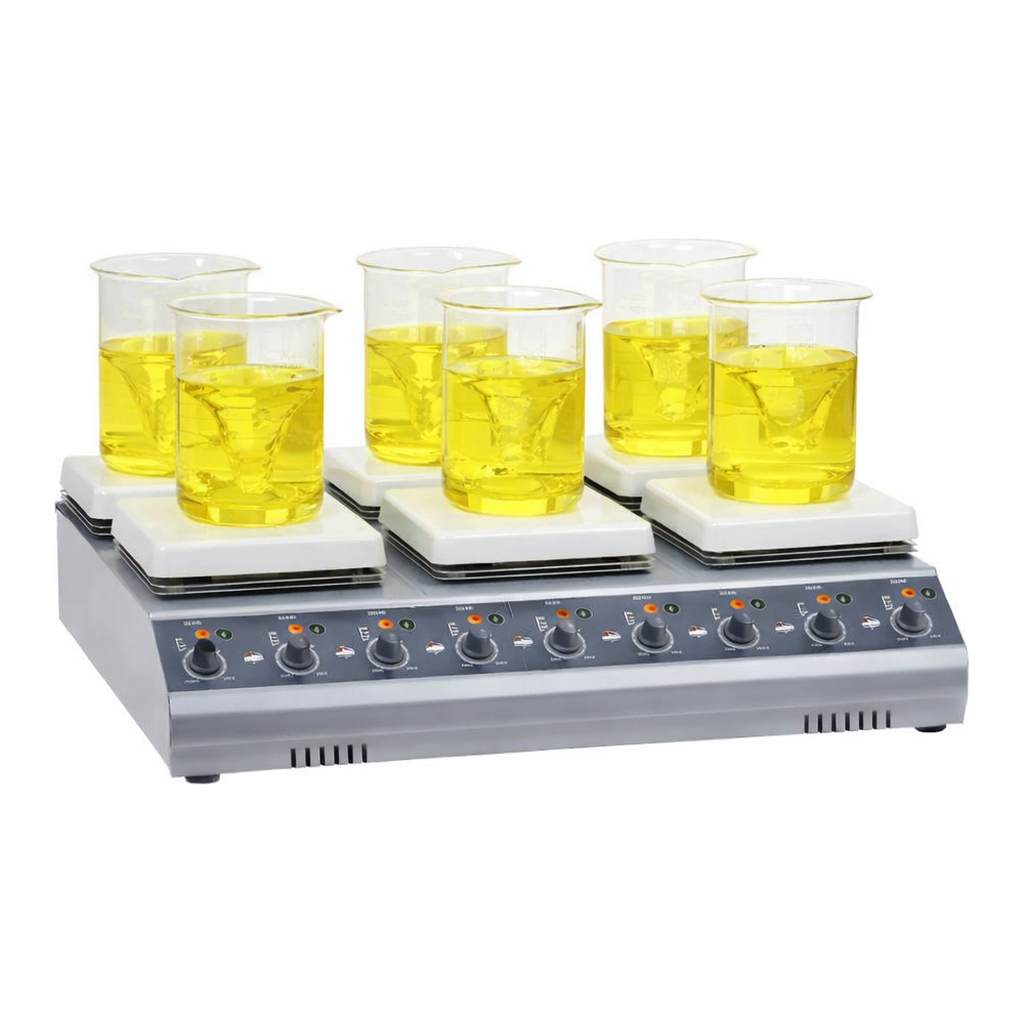

| --- | --- | --- | --- |멀티 가열 자력 교반기
| Cat. No | Model | Position | Plate Size (w×d) |
| --- | --- | --- | --- |
| S07-72-045 | MS-1206P | 6 (1열 6구) | 120×120 mm |
| S07-72-050 | MS-1526P | 6 (2열 3구) | 150×150 mm |
| S07-72-053 | MS-1504P | 4 (2열 2구) |
| S07-72-055 | MS-1203P | 3 (1열) | 120×120 mm |
| S07-72-060 | MS-1503P | 150×150 mm |
| | | | | | |
| --- | --- | --- | --- | --- | --- |멀티 가열 자력 교반기
| Cat. No. | S07-72-045 | S07-72-050 | S07-72-053 | S07-72-055 | S07-72-060 |
| --- | --- | --- | --- | --- | --- |
| Model | MS-1206P | MS-1526P | MS-1504P | MS-1203P | MS-1503P |
| --- | --- | --- | --- | --- | --- |
| Stirring Position | 6 | | 4 | 3 | |
| --- | --- | --- | --- | --- | --- |
| TemperatureRange | Max. 380℃ | | | | |
| --- | --- | --- | --- | --- | --- |
| Speed Display / Range | Scale / 100 ~ 1500 | | | | |
| --- | --- | --- | --- | --- | --- |
| Max. Magnetic Bar | Ø10×L100 mm | | | | |
| --- | --- | --- | --- | --- | --- |
| Plate Size | w120×d120 mm | w150×d150 mm | | w120×d120 mm | w150×d150 mm |
| --- | --- | --- | --- | --- | --- |
| Plate Material | Ceramic Coated | | | | |
| --- | --- | --- | --- | --- | --- |
| Heat Output | 480W×6ea | | 480W×4ea | 480W×3ea | |
| Power Line | 220V, 50/60 Hz | | | | |
