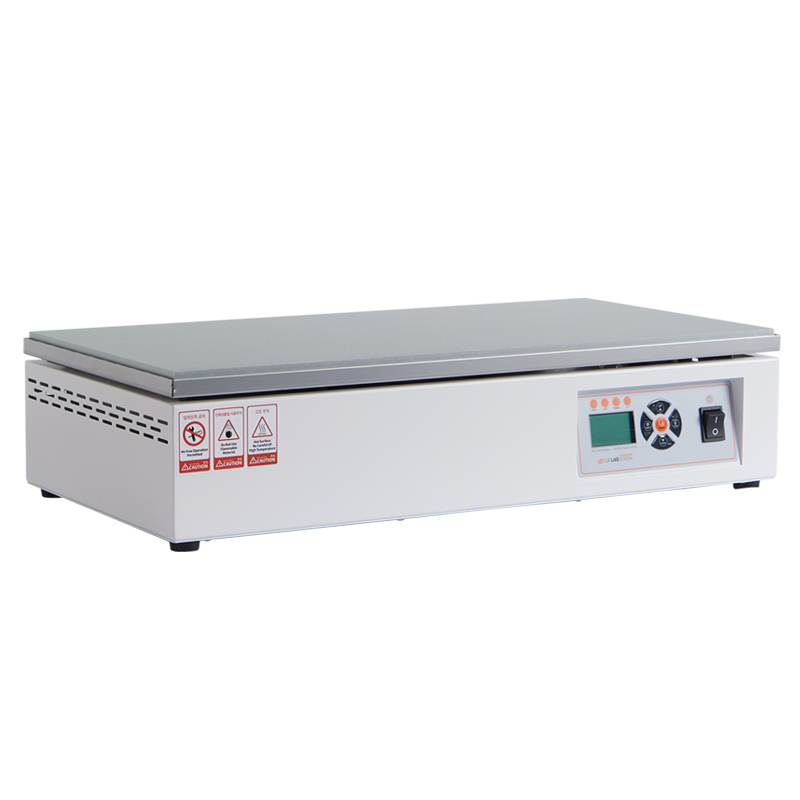

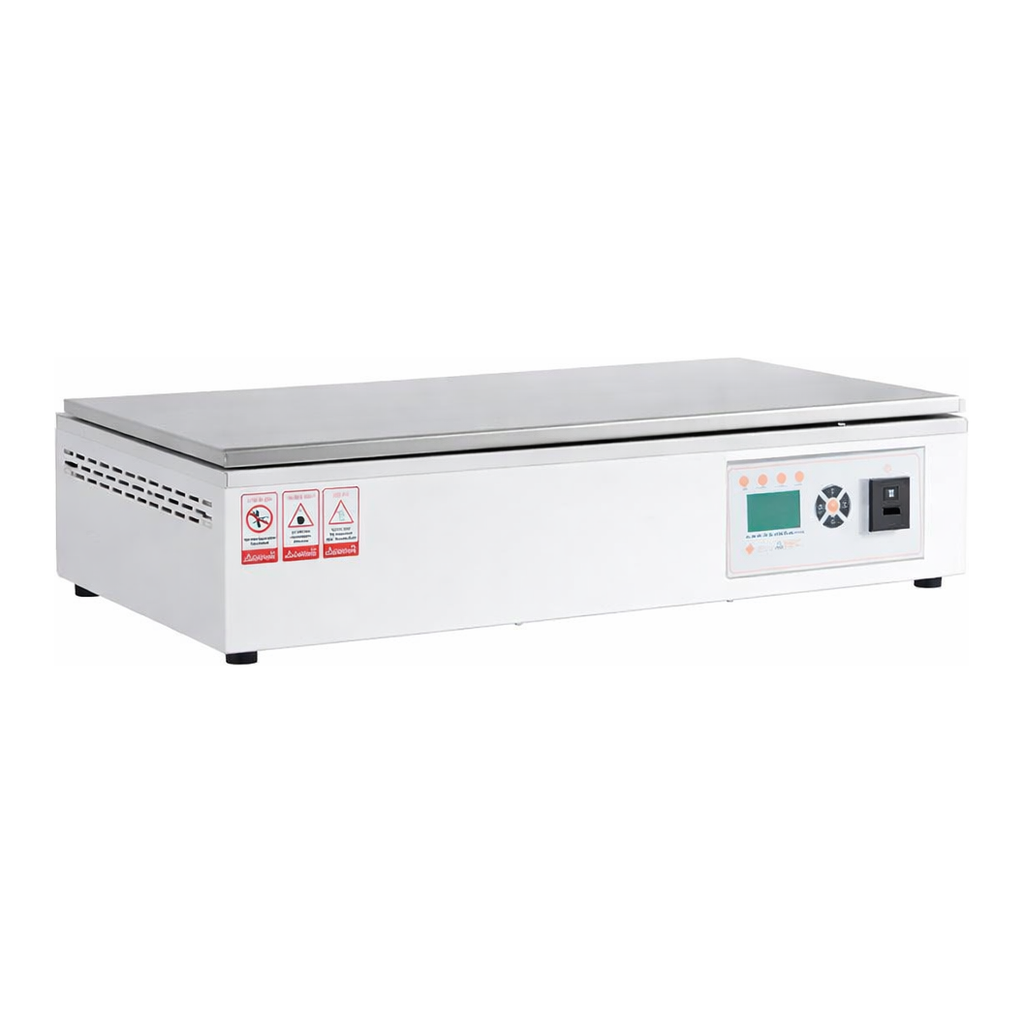

■ 일반 가열, 적정(Titration), Wafer Baking용으로 적합
■ 우수한 온도 분포도와 Plate 평탄도
■ Anodizing 가열판을 사용하여 내열성, 내약품성 우수
■ Graphic LCD Display, 간편하고 직관적인 Controller 조작
■ Auto-tuning, Temperature Calibration 기능
■ 2 가지 타입의 타이머. 구동과 동시에 시작, 목표 온도 도달 후 시작
■ Plate 주변 보호 마스크가 있어 사용자가 안전하고 화재 위험이 적음
■ Automatical Fault Sensing System 기기 스스로 이상 상황을 감시 (특허 등록)
■ 사용자의 요청에 의해 Program Control Model 공급 가능
■ CE 인증 모델은 요청에 의하여 공급 가능함
■ CE 인증 모델은 Over Temp. Limiter 추가
■ Validation Service (IQ, OQ, PQ) 가능
■ PL Insurance (제조물 배상 책임 보험)
■ LK Labkorea
■ (주)엘케이랩코리아 제작품 제품문의 : 031-573-4952(내선 1703) / 070-4282-1452 / fac@lklab.com
| Cat. No. |
Model |
Plate Size |
| H03-04-050 |
DLP250 |
w250×d250 mm |
| H03-04-060 |
DLP300 |
w300×d300 mm |
| H03-04-080 |
DLP430 |
w400×d300 mm |
| H03-04-090 |
DLP630 |
w600×d300 mm |
Validation for Jumbo Hotplate
| Cat. No. |
Model |
Plate Size |
| H03-91-999 |
VA-JH100 |
Validation for Jumbo Hotplate |
| | | | | |
| --- | --- | --- | --- | --- |대형 핫 플레이트
| Cat. No. | | H03-04-050 | H03-04-060 | H03-04-080 | H03-04-090 |
| --- | --- | --- | --- | --- |
| Model | | DLP250 | DLP300 | DLP430 | DLP630 |
| --- | --- | --- | --- | --- |
| Plate Size | | w250×d250 mm | w300×d300 mm | w400×d300 mm | w600×d300 mm |
| --- | --- | --- | --- | --- |
| Controller | Control | PID Control, Auto-tuning / Program Control | | | |
| --- | --- | --- | --- | --- |
| Display | GLCD (Graphic LCD) | | | |
| --- | --- | --- | --- | --- |
| Resolution | 0.1℃ | | | |
| --- | --- | --- | --- | --- |
| Timer | Run start / Wait start (99 hr 59 min) | | | |
| --- | --- | --- | --- | --- |
| Temperature | Range | Ambient +10℃ to +320℃ | | | |
| --- | --- | --- | --- | --- |
| Accuracy at 100℃ | ±0.8℃ | | | |
| --- | --- | --- | --- | --- |
| Uniformity at 100℃ | ±1.5℃ | ±1.7℃ | ±1.9℃ | ±2.4℃ |
| --- | --- | --- | --- | --- |
| Size | | w258×d258×h150mm | w308×d308×h150mm | w408×d308×h150mm | w608×d308×h150mm |
| --- | --- | --- | --- | --- |
| Material | Plate | Anodized Aluminium | | | |
| --- | --- | --- | --- | --- |
| Exterior | Powder Coated Steel | | | |
| --- | --- | --- | --- | --- |
| Electric Supply | Power | 1 Phase, 220 Vac, 50/60 Hz | | | |
| Max Consumption | 1.2 Kw (5.5 A) | 1.5 Kw (6.8 A) | 1.8 Kw (8.2 A) | 2.4 Kw (11A) |
| Power Line | Standard Plug | | | |
