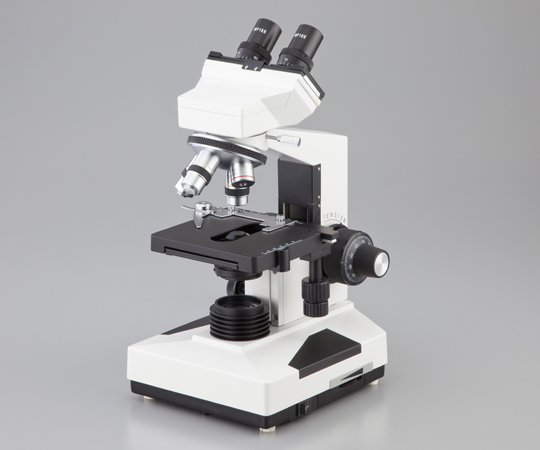

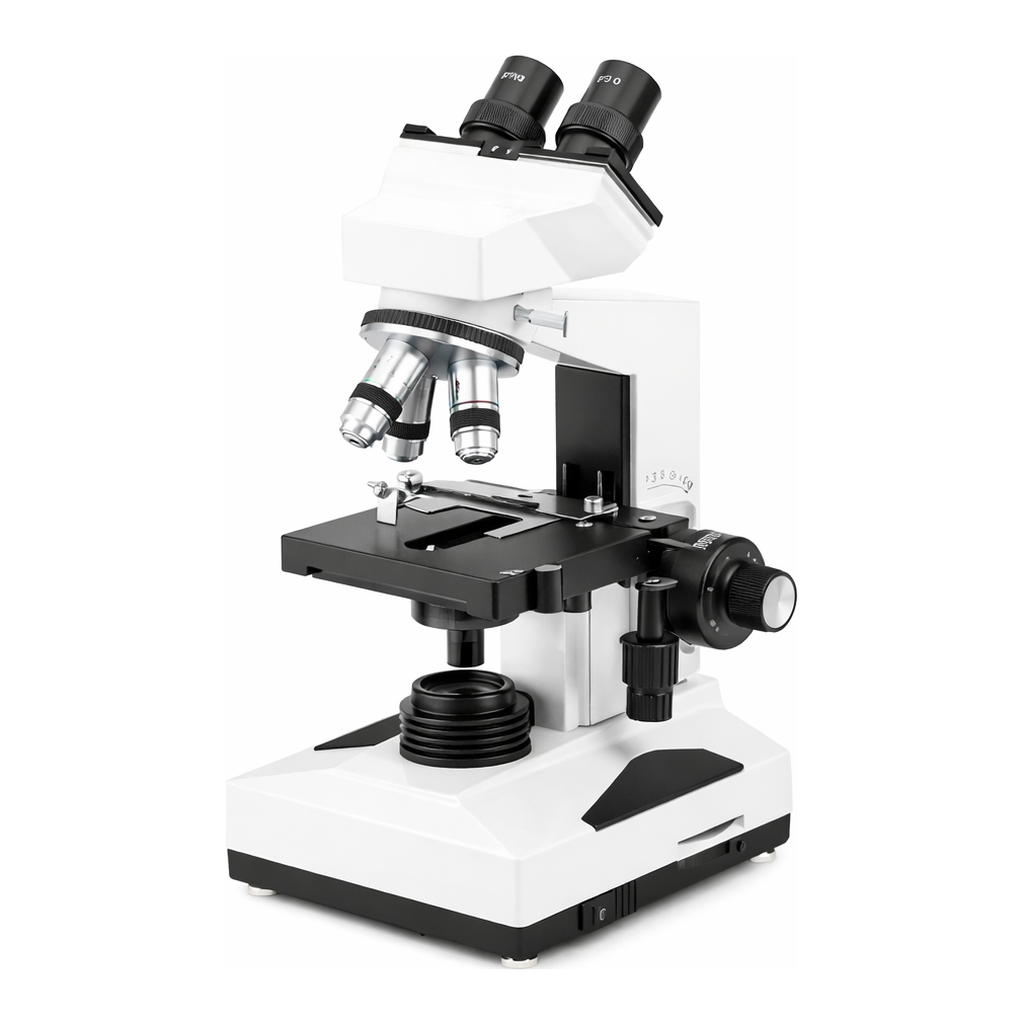

AS ONE Biological Microscope 40 - 1000 x　BM-322

AS ONE Biological Microscope 40 - 1000 x　BM-322

Spec

• Model number: BM-322
• Eye lens: WF 10 × (Number of fields 18)
• Objective lens: Acromat 4 × 10 × S 40 × S 100 × (oil)
• The lens barrel type: the binocular head and the tilt angle of 30 °
• Focal adjustment: uniaxial coarse fine motion (With static and tension control), stroke / 2 μm (front and back)
• Stage: 124 x 140 mm (Front and rear movement 50 mm x left and right movement 75 mm)
• Eye width range: 55 to 75 mm
• Lighting: 20 W halogen light (Adjustable light quantity)
• Capacitor: Abbey N.A. 1.25 iris aperture and filter holder
• power supply: AC100V
• Size: approx. 187 x 231 x 385 mm
• Weight: About 5.3 kg
• overall magnification: 40 x to 1000 x
• * The oil immersion oil is required when using S 100.
